MT Gear Shift Lever: Disassembly

  1. Disassemble locking wire.

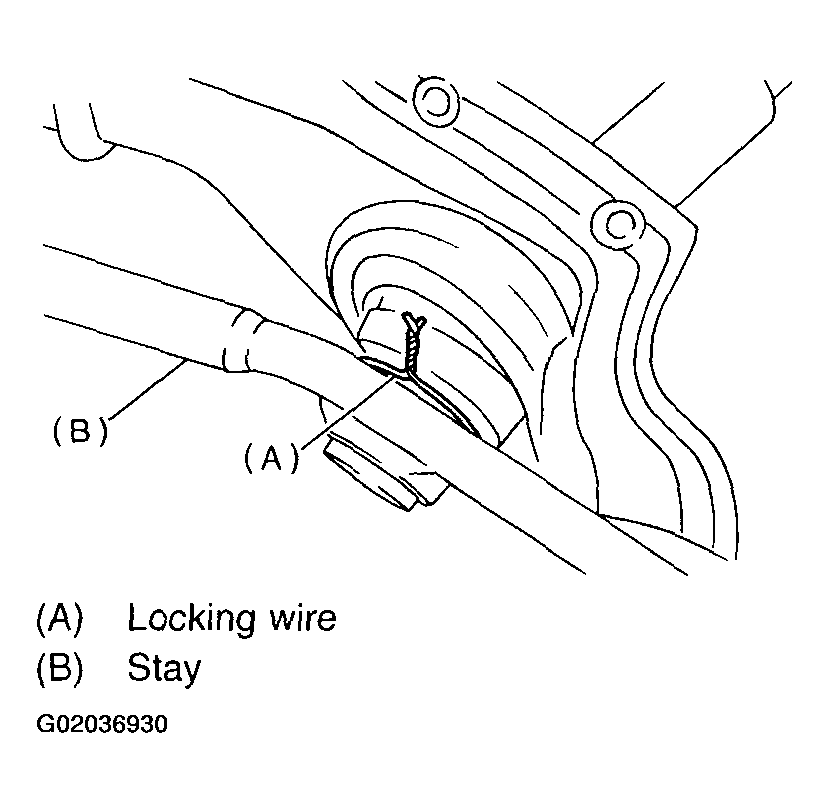

    Fig 1: Disassembling Locking Wire
    G02036930
  2. Remove rod from gear shift lever.

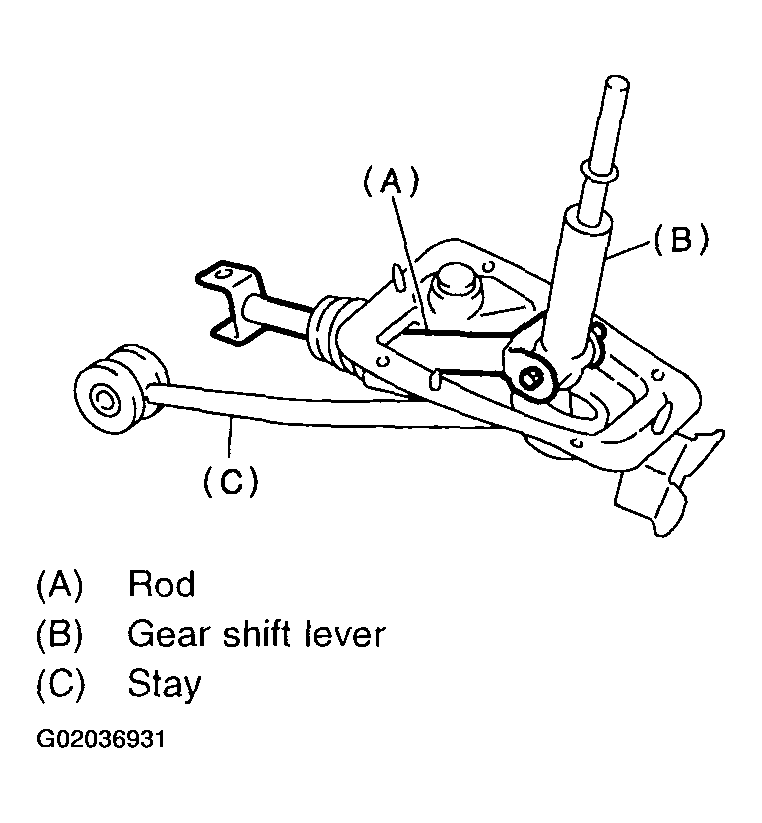

    Fig 2: Removing Rod From Gear Shift Lever
    G02036931
  3. Remove snap ring from bush D, then disconnect stay.

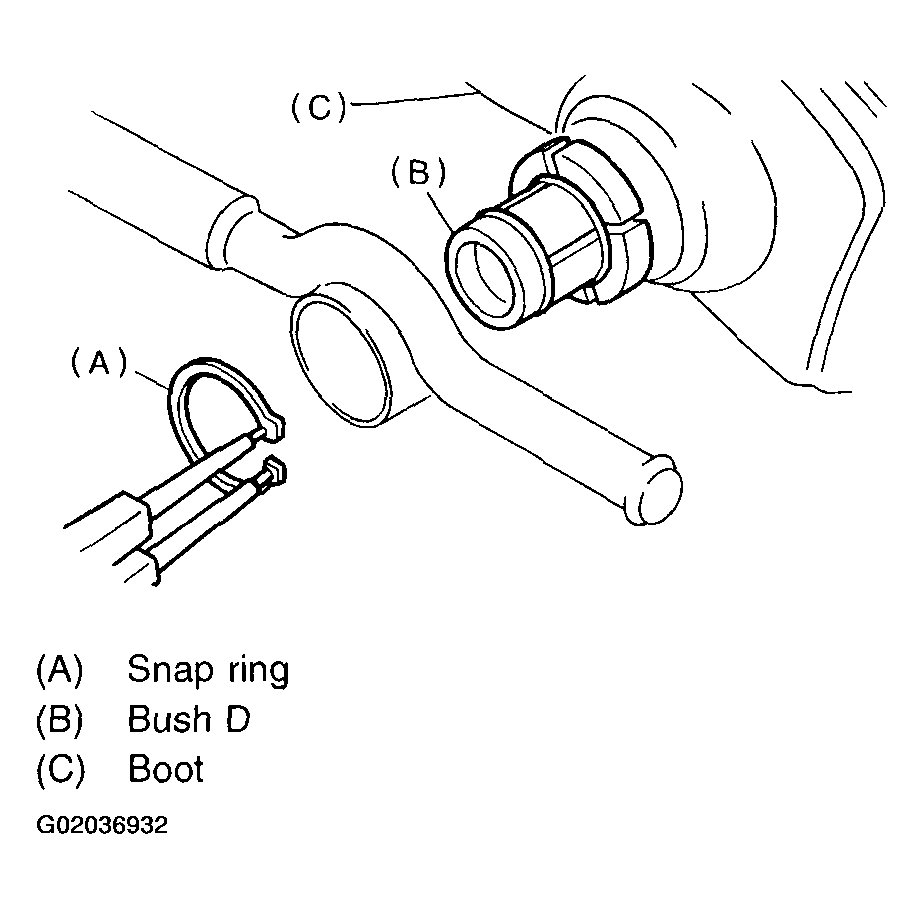

    Fig 3: Removing Snap Ring From Bush D & Disconnecting Stay
    G02036932
  4. Remove boot from gear shift lever.
  5. Remove bush and cushion rubber from stay.

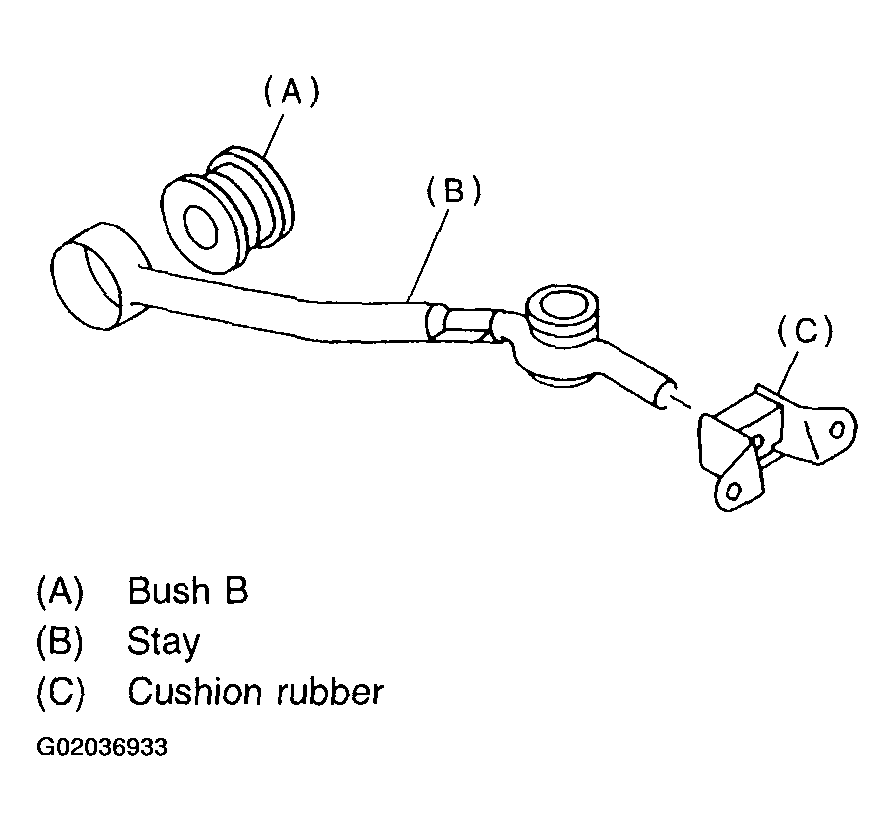

    Fig 4: Removing Bush & Cushion Rubber From Stay
    G02036933
  6. Remove O-ring, then disconnect bush D.

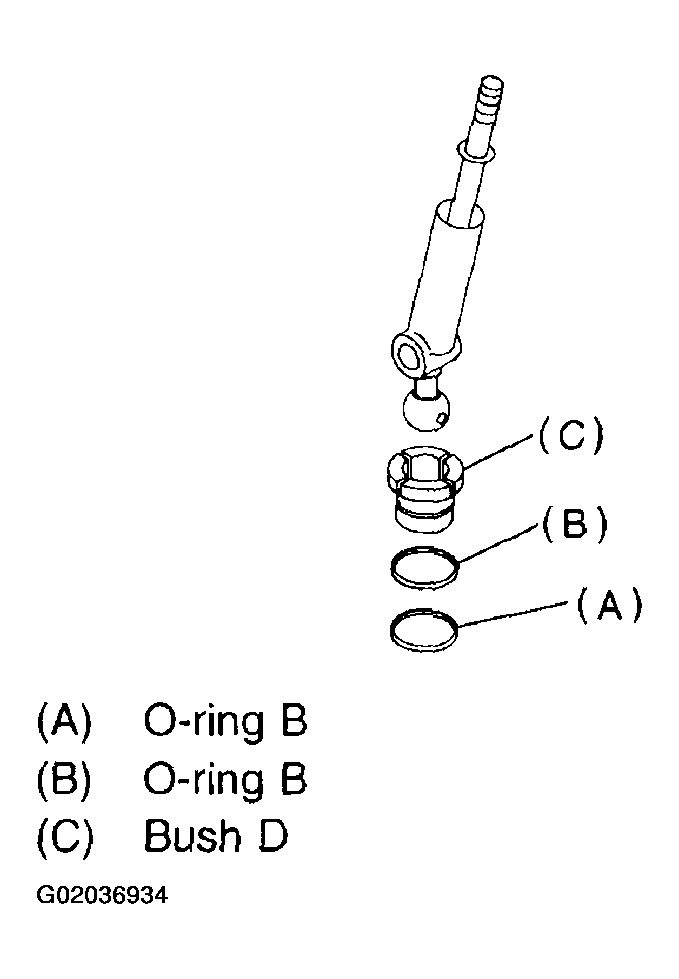

    Fig 5: Removing O-Ring & Disconnecting Bush D
    G02036934
  7. Draw out straight pin, then remove bush C from gear shift lever.

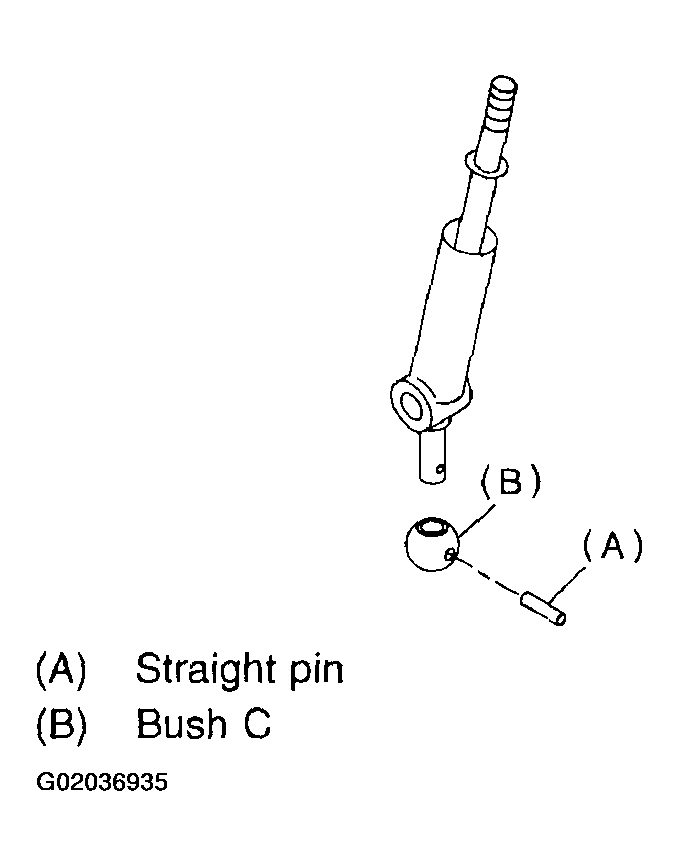

    Fig 6: Drawing Out Straight Pin & Removing Bush C From Gear Shift Lever
    G02036935
