MT Gear Shift Lever: Installation

Install the joint to the transmission and secure with the straight pin.
Insert gear shift lever from room side.
NOTE: After inserting rod and stay, temporarily put them onto transmission mount.

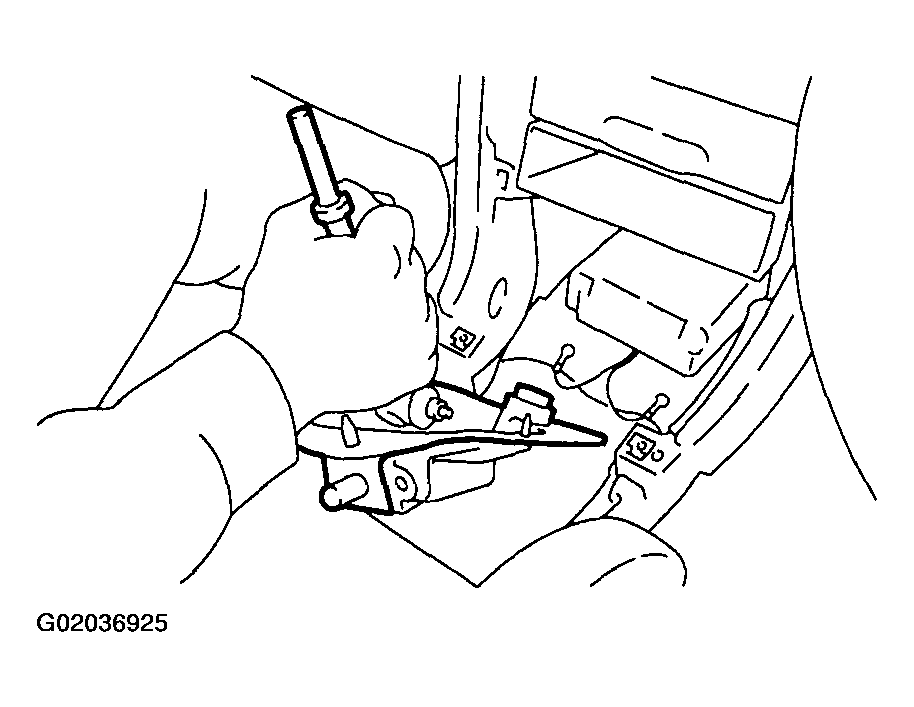

Fig 1: Inserting Gear Shift Lever
Mount cushion rubber on the body.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)

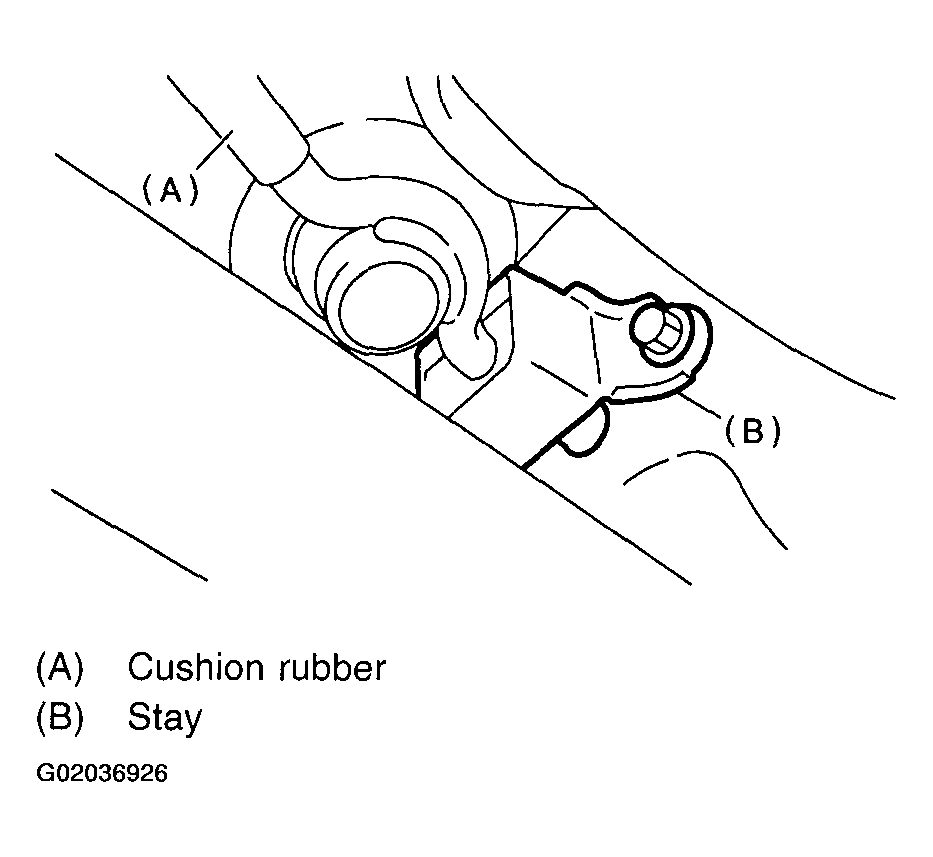

  Fig 2: Mounting Cushion Rubber On The Body
Connect rod to the joint.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)

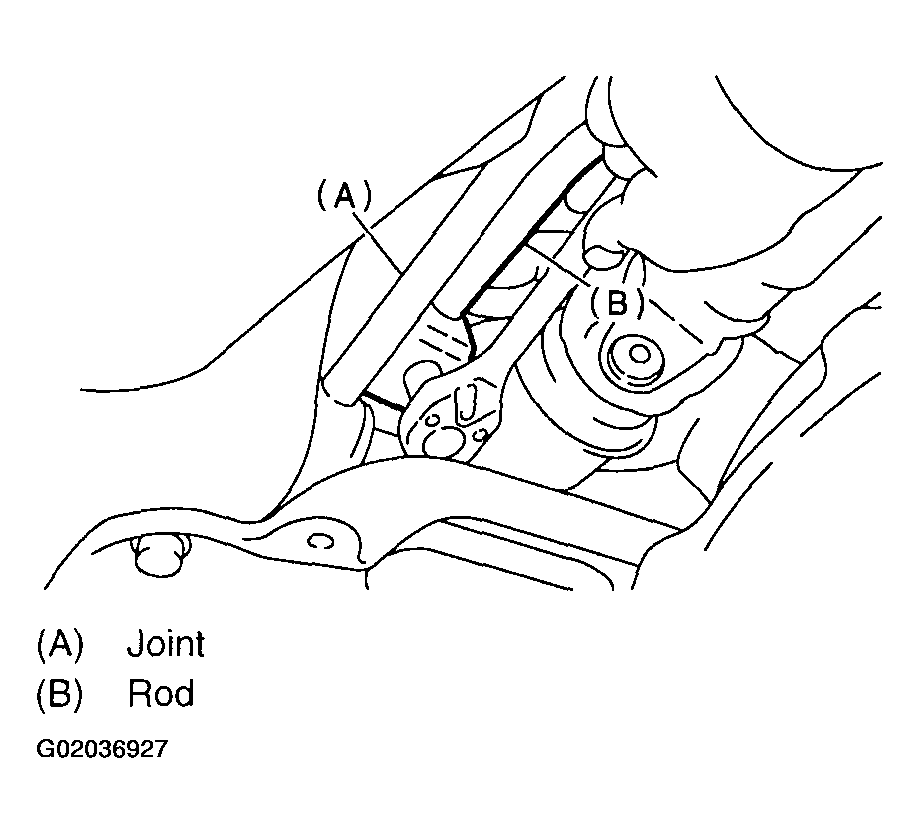

  Fig 3: Connecting Rod To The Joint
Connect stay to transmission bracket.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)

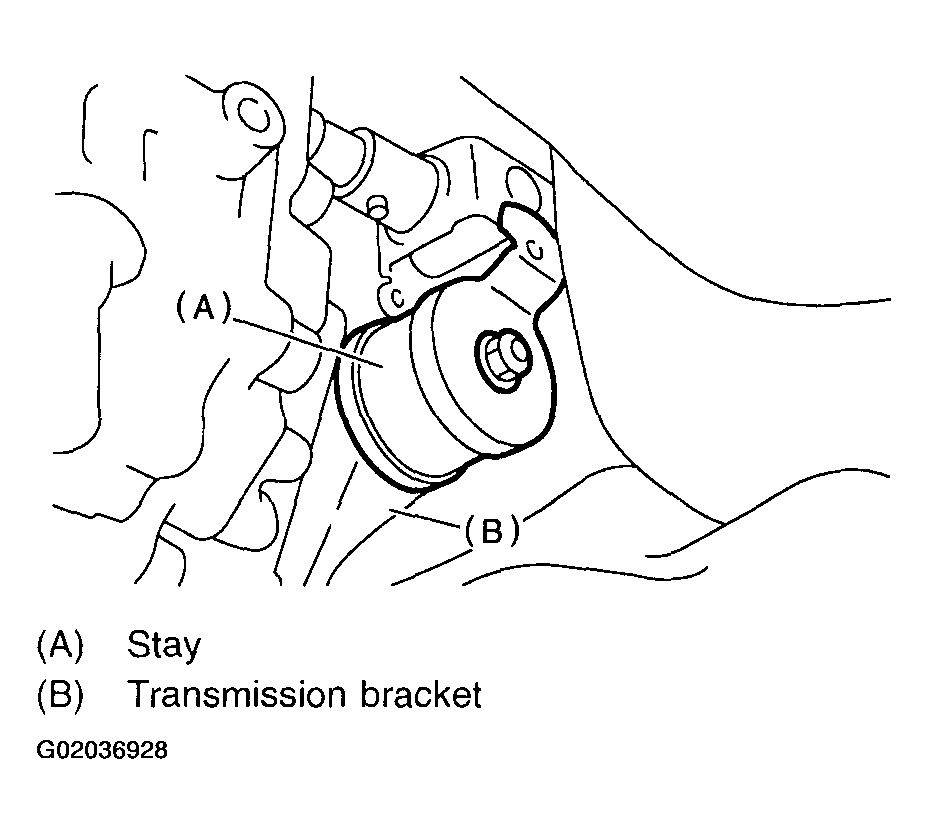

  Fig 4: Connecting Stay To Transmission Bracket
Install heat shield cover.

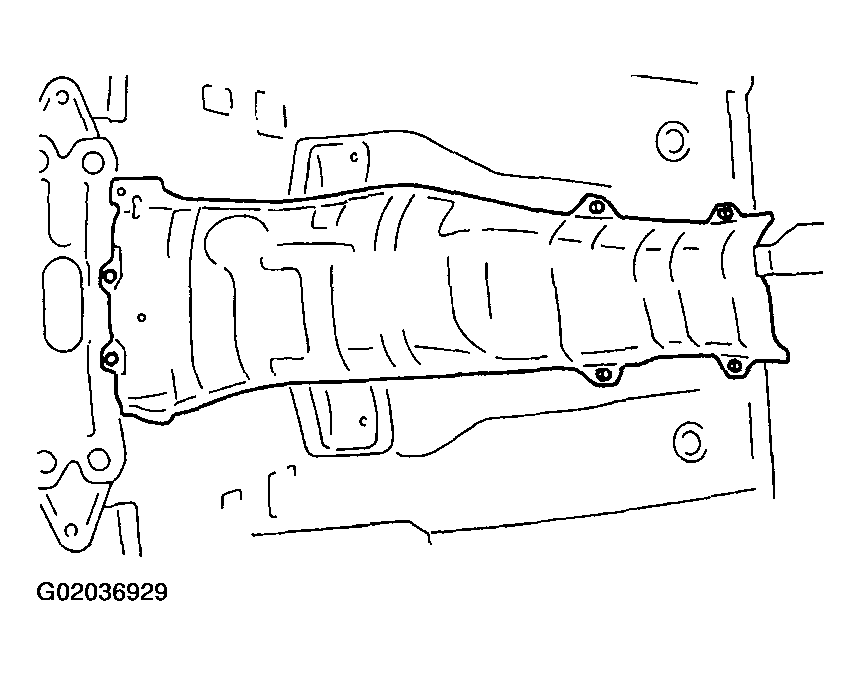

Fig 5: Installing Heat Shield Cover
