MT Gear Shift Lever: Removal

  1. Remove gear shift knob.
  2. Remove console box. See REMOVAL .
  3. Remove boot plate from body.

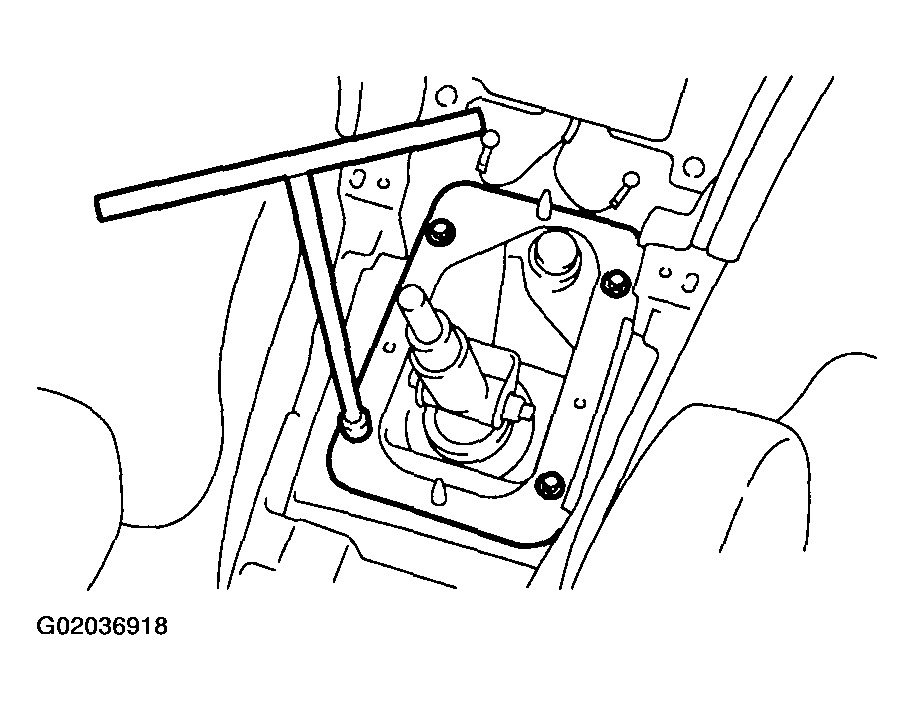

    Fig 1: Removing Boot Plate From Body
    G02036918
  4. Remove rear exhaust pipe and muffler.
  5. Remove heat shield cover.

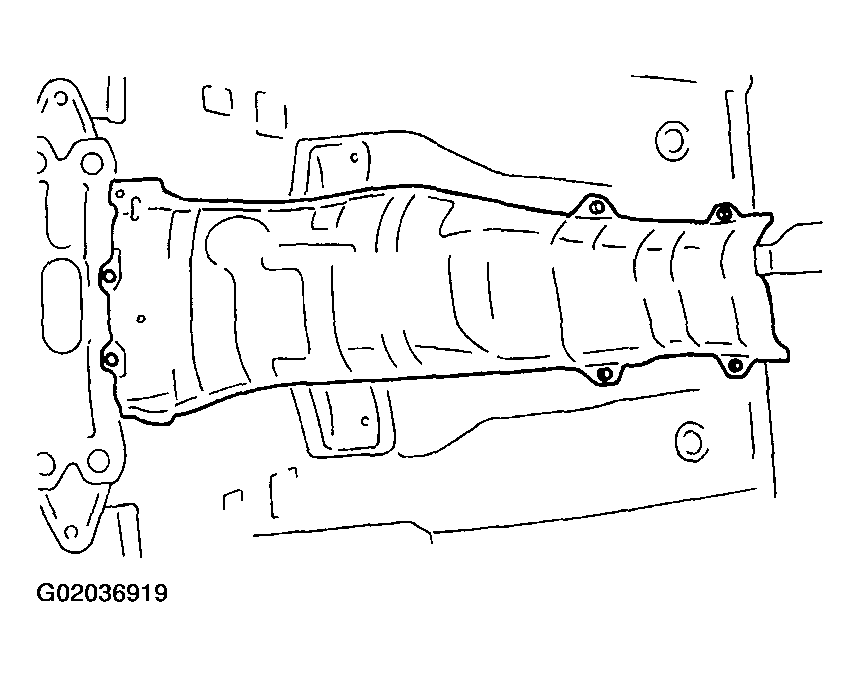

    Fig 2: Removing Heat Shield Cover
    G02036919
  6. Remove stay from transmission bracket.

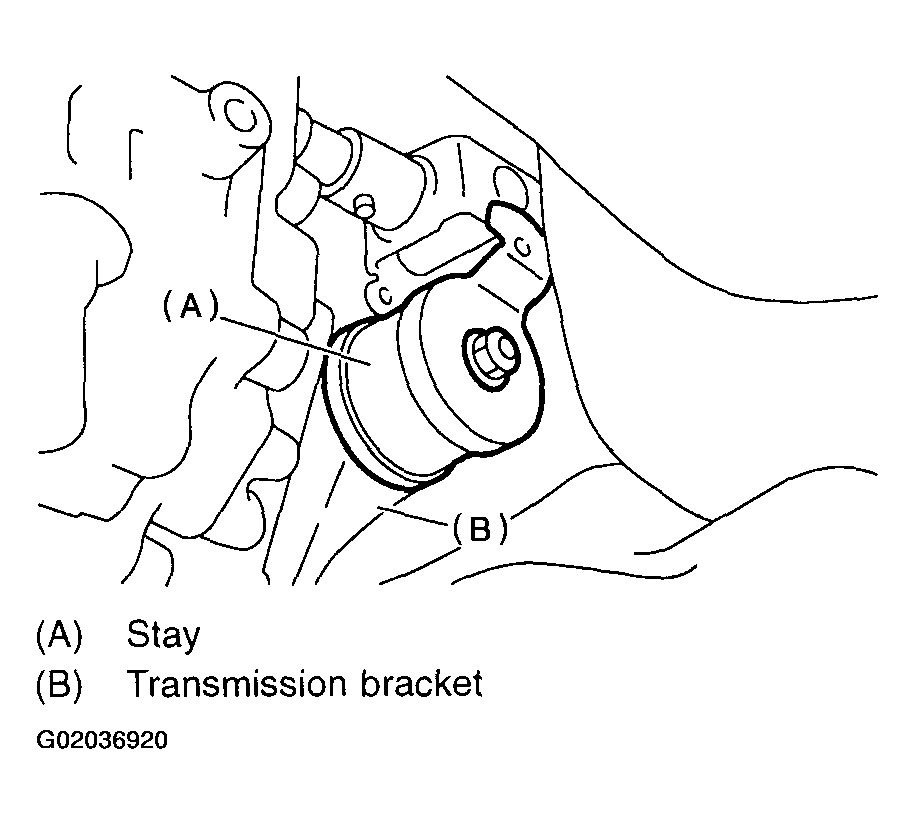

    Fig 3: Removing Stay From Transmission Bracket
    G02036920
  7. Remove rod from joint.
    Fig 4: Removing Rod From Joint
    G02036921
  8. Remove cushion rubber from body.

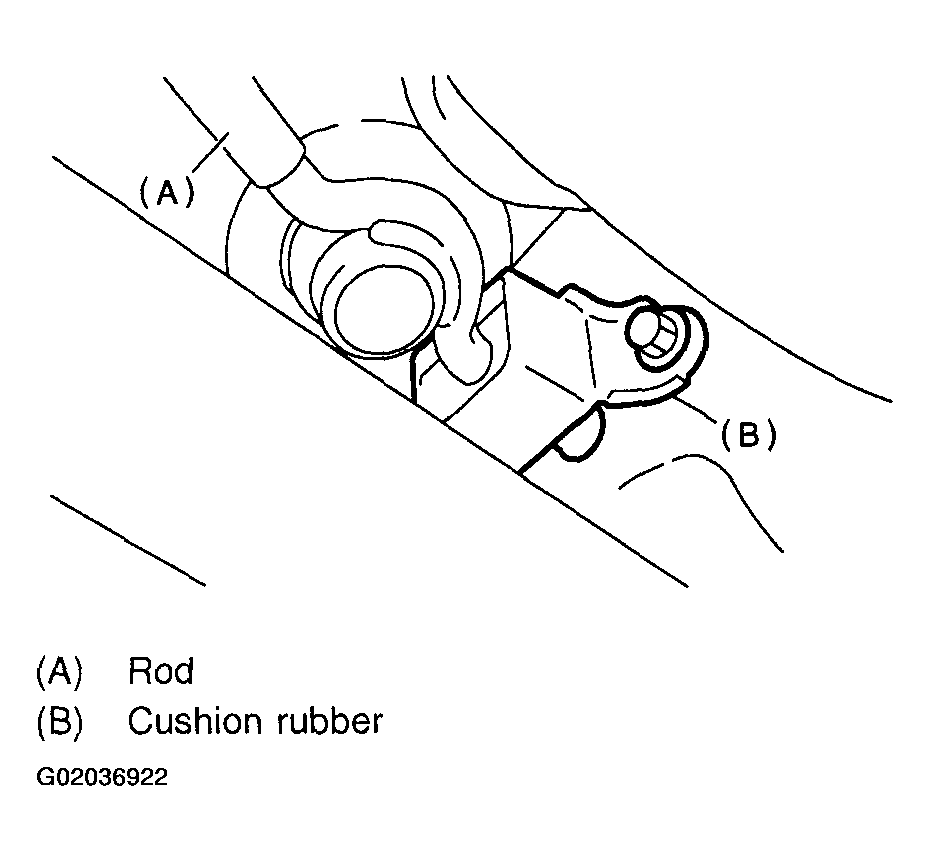

    Fig 5: Removing Cushion Rubber From Body
    G02036922
  9. Remove joint and then extract straight pin.

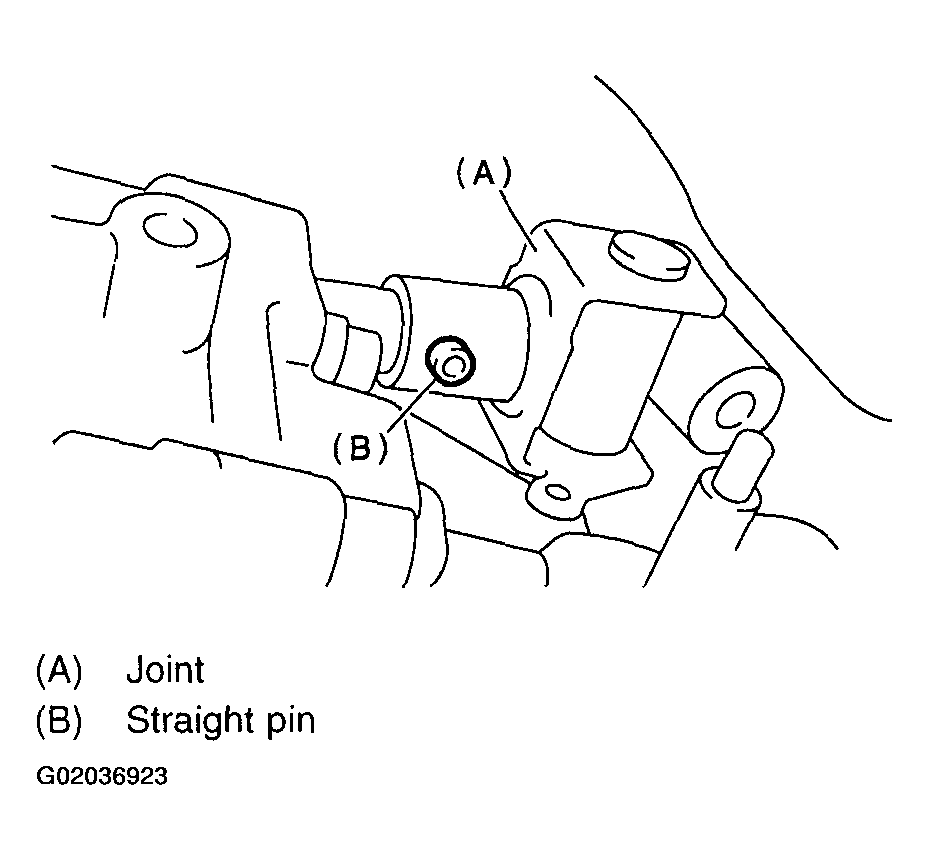

    Fig 6: Removing Joint & Extracting Straight Pin
    G02036923
  10. Remove gear shift lever.

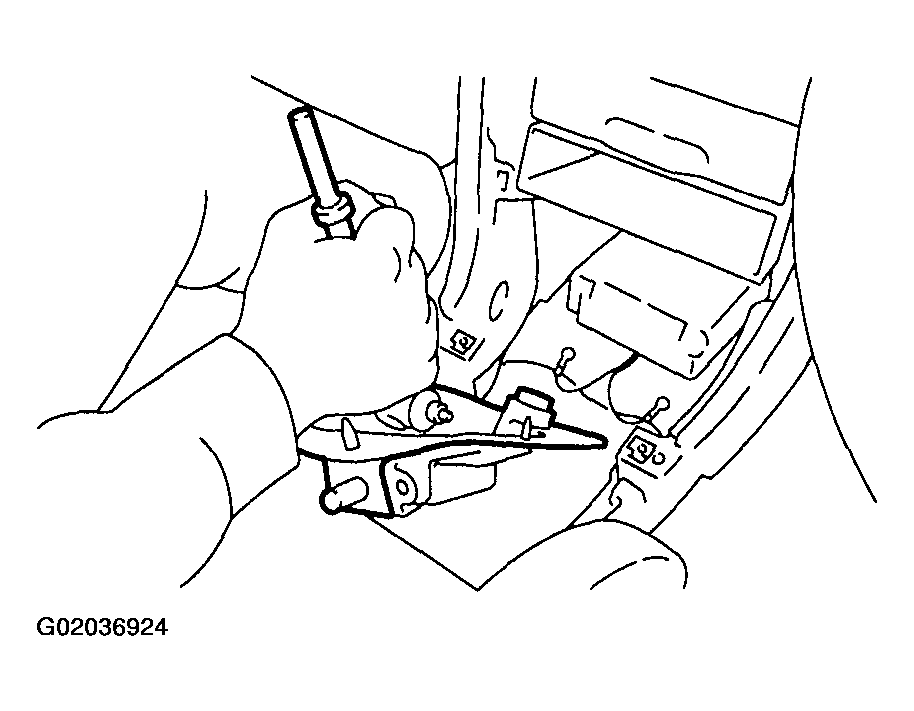

    Fig 7: Removing Gear Shift Lever
    G02036924
