Select Cable: Installation

Install select cable to plate assembly.
Tightening torque:
1. 32 N.m (3.3 kgf-m, 24 ft-lb)
Install select cable to range select lever.
Install plate assembly to transmission.
Tightening torque:
1. T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

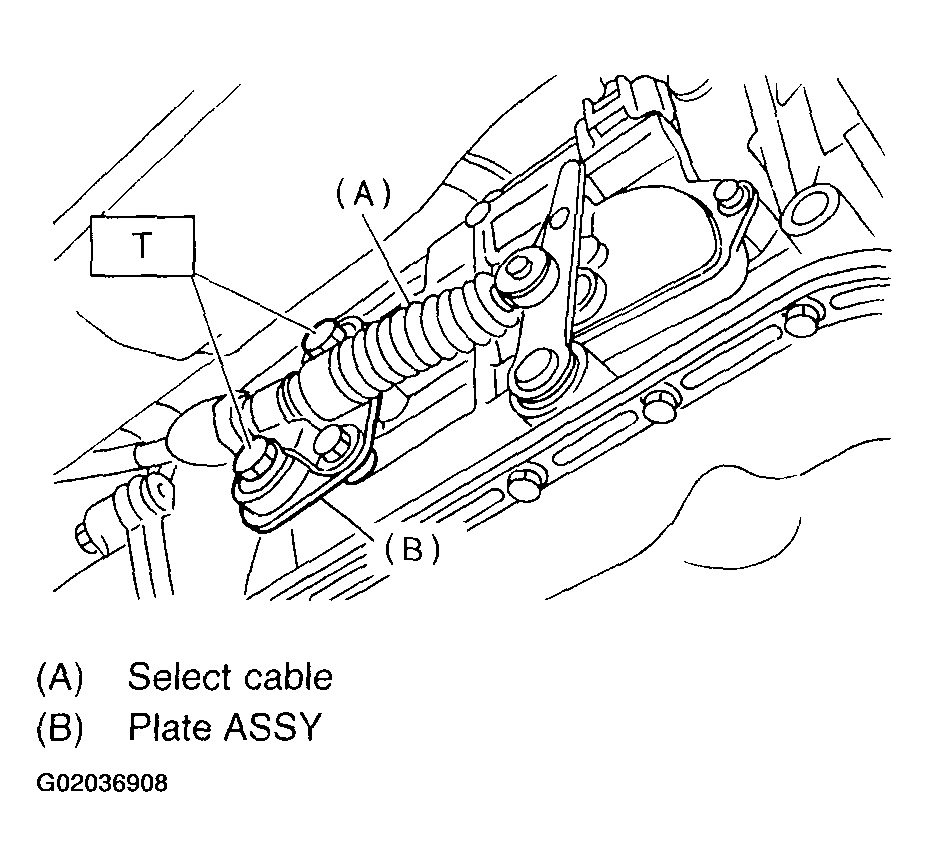

  Fig 1: Installing Plate Assembly
Install snap pin to range select lever.

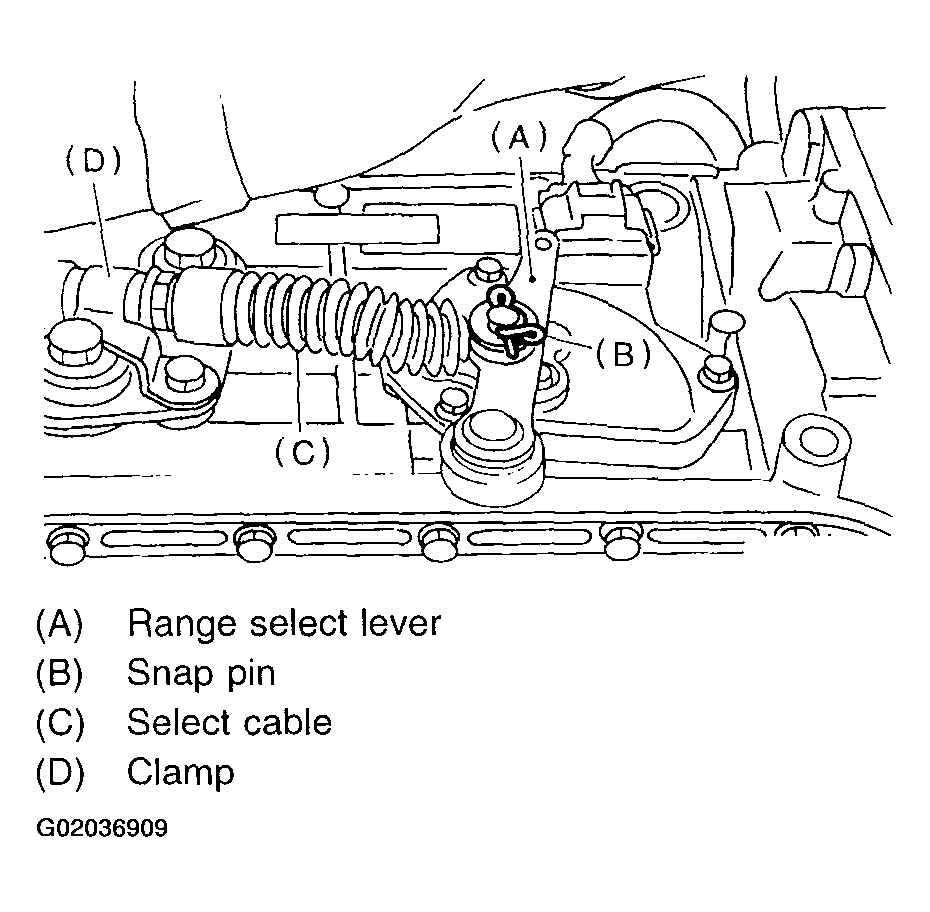

Fig 2: Installing Snap Pin
Move the select lever to the "N" position, then adjust the select cable position. See ADJUSTMENT .
Install heat shield cover.

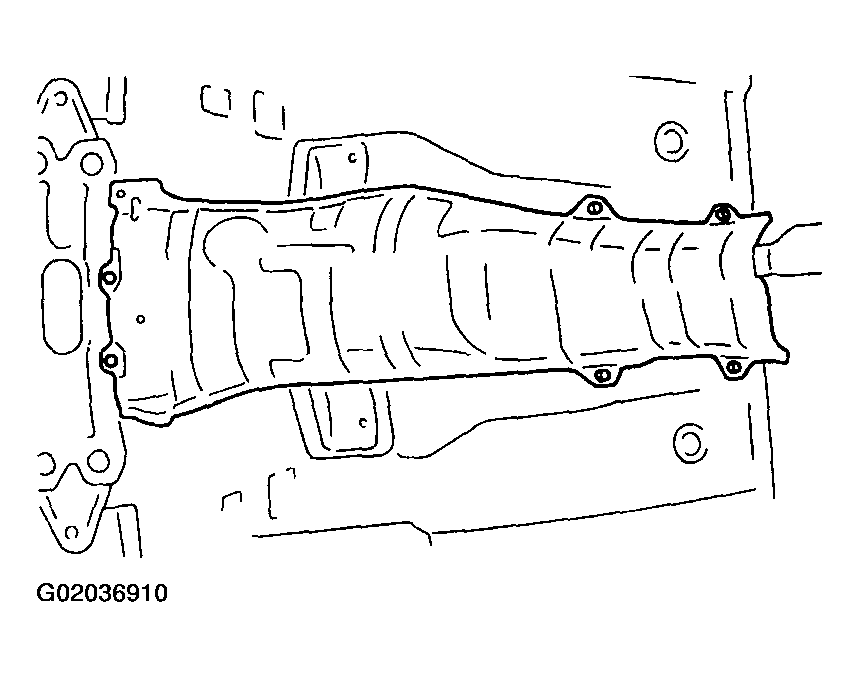

Fig 3: Installing Heat Shield Cover
Install rear exhaust pipe to muffler.
Install under cover.
