Select Cable: Removal

  1. Prior to removal, set lever to "N" position.
  2. Remove under cover.
  3. Remove rear exhaust pipe and muffler.
    CAUTION: When removing exhaust pipes, be careful each exhaust pipe does not drop out.
  4. Remove heat shield cover.

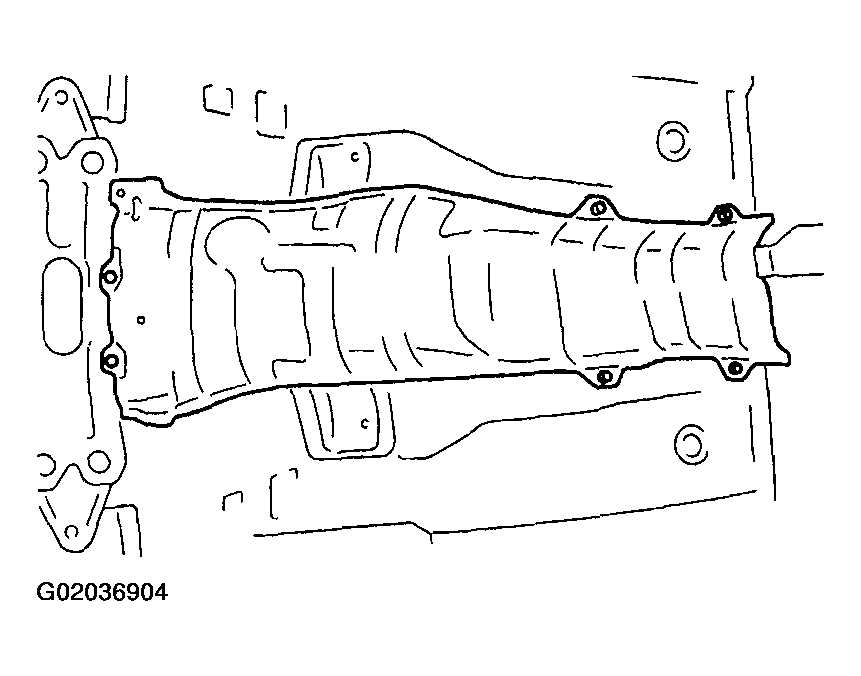

    Fig 1: Removing Heat Shield Cover
    G02036904
  5. Remove Snap Pin from range select lever.

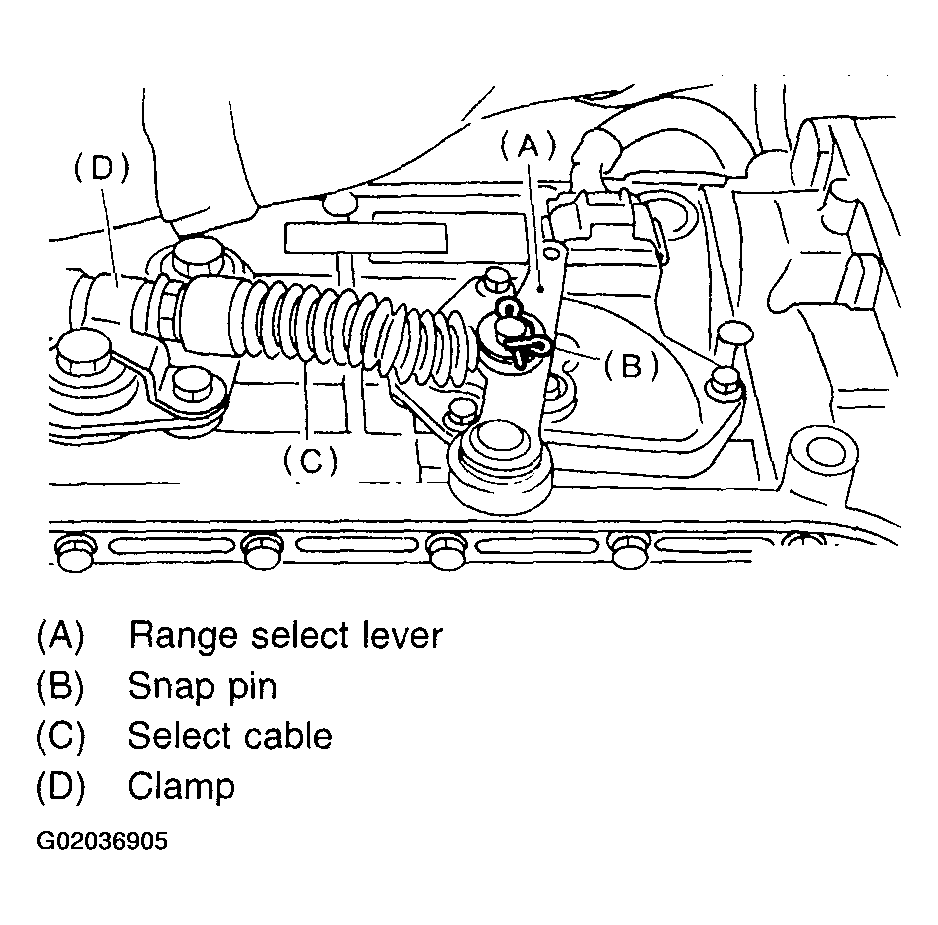

    Fig 2: Removing Snap Pin
    G02036905
  6. Remove plate assembly from transmission case.

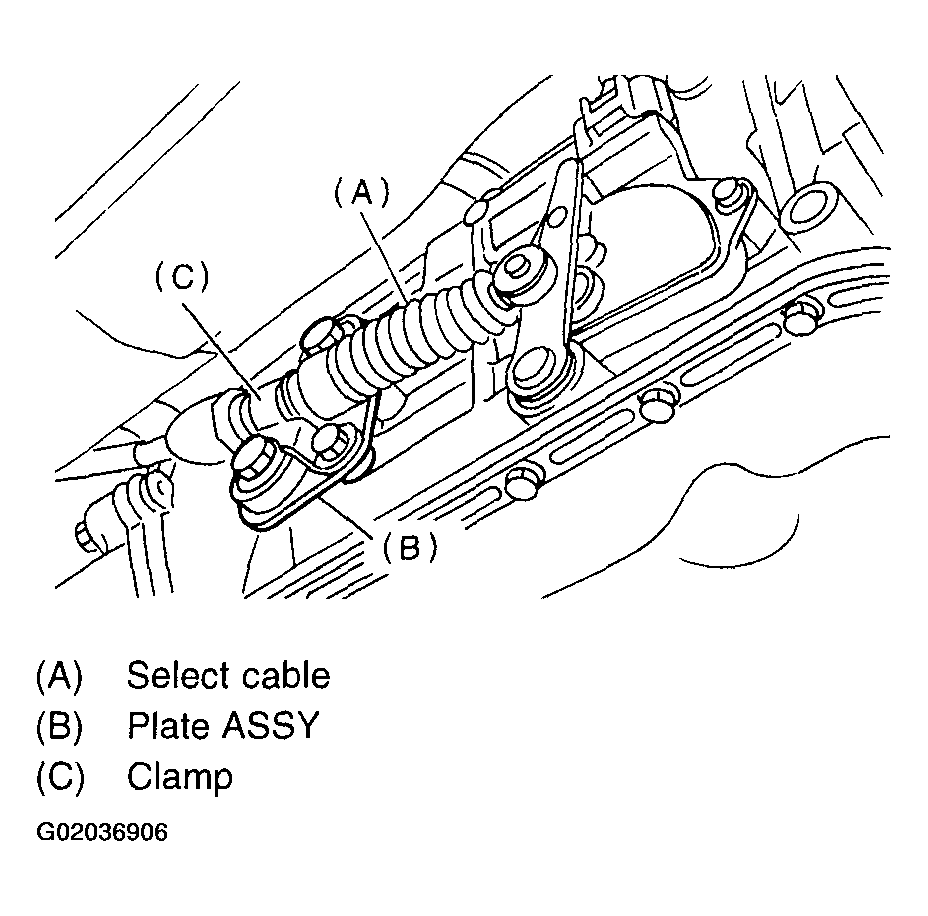

    Fig 3: Removing Plate Assembly
    G02036906
  7. Disconnect cable from select lever and then remove cable bracket.

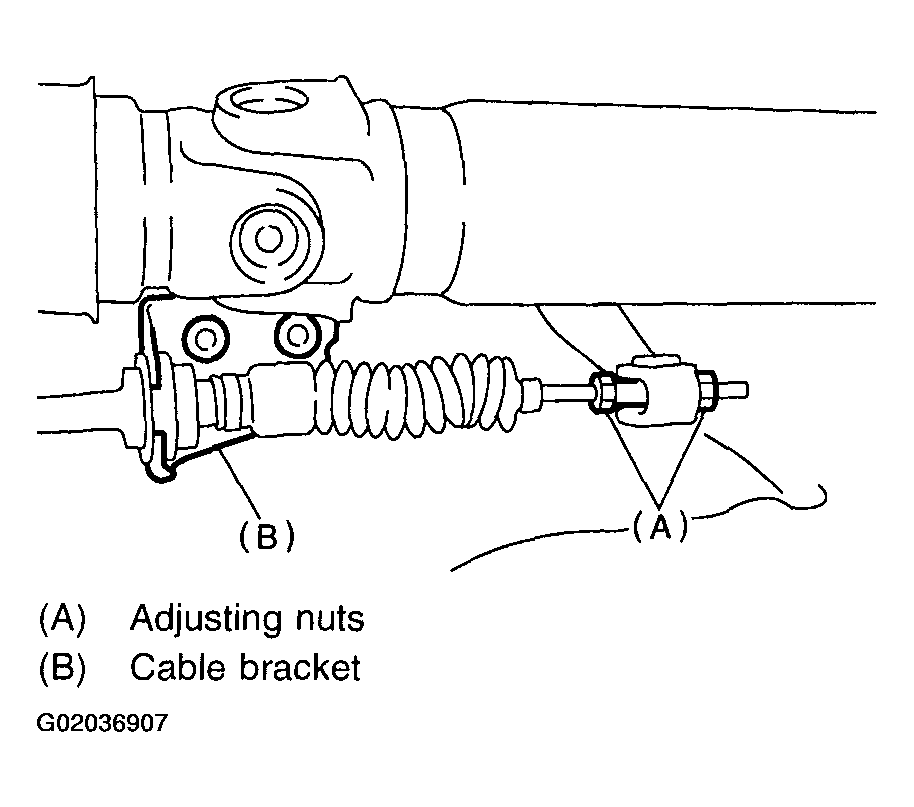

    Fig 4: Removing Select Cable
    G02036907
  8. Remove select cable from plate assembly.
