Valve Body: Installation

  1. Set the select lever in "N" position.

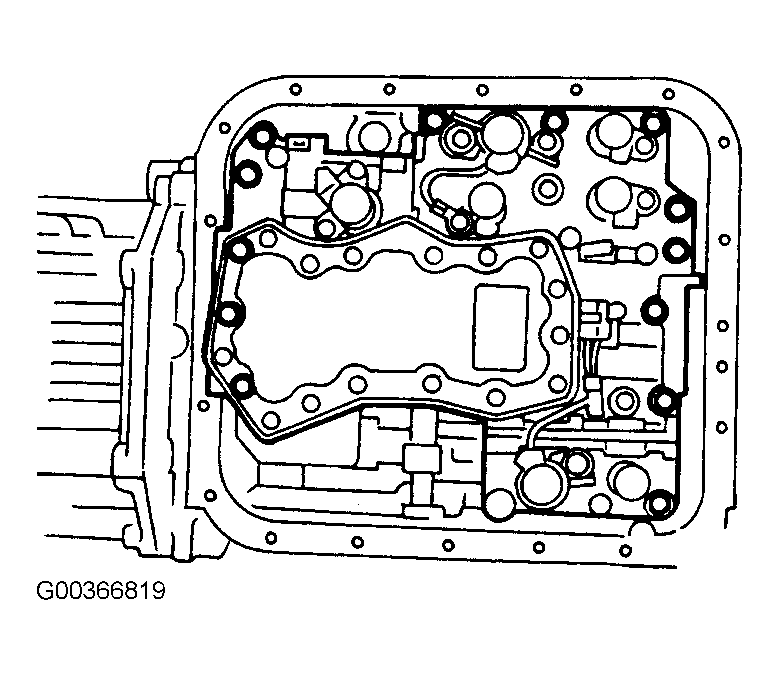

  2. Install the control valve and ground earth connectors. See Figure .

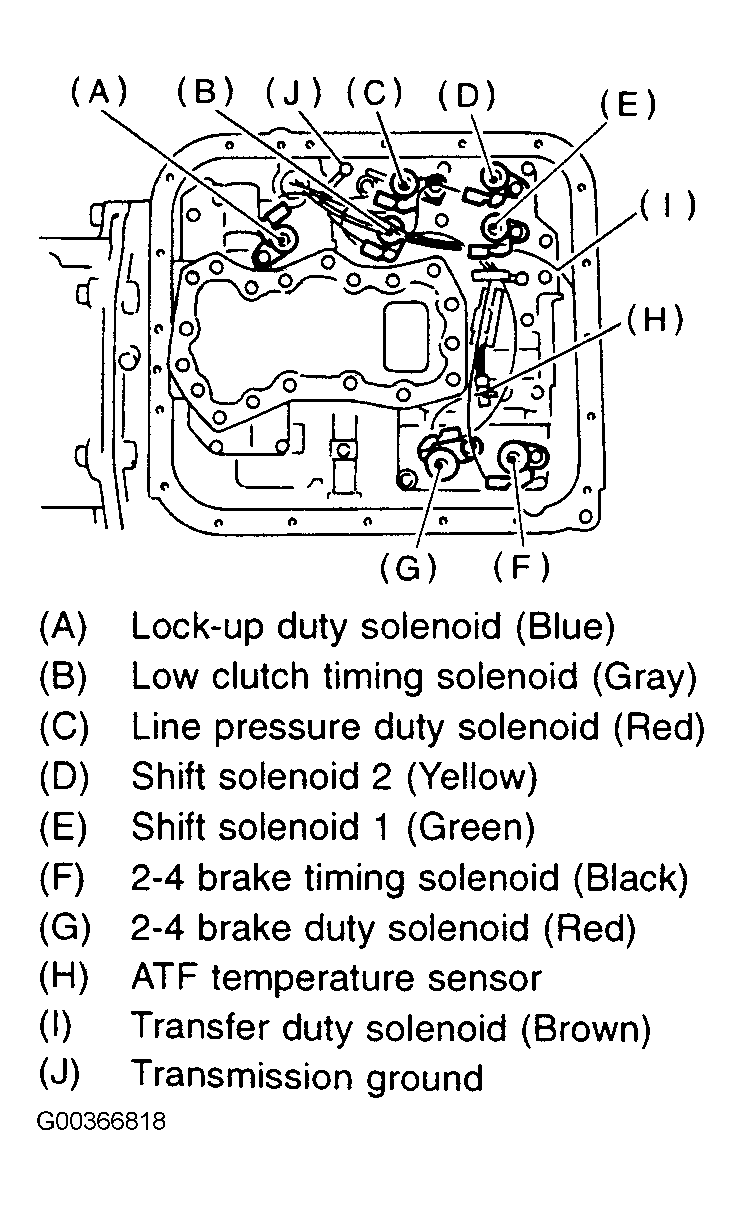

  3. Connect all connector. See Figure .
  4. Attach the magnet at the specified position. See Fig 1 .
  5. Apply proper amount of liquid gasket to the entire oil pan mating surface. See Fig 2 .
  6. Install the oil pan.
  7. Pour ATF into the oil charge pipe.
  8. Check the level of the ATF.
Fig 1: Attaching Magnet
G00366820Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Applying Proper Amount Of Liquid To Oil Pan Mating Surface
G00366821Courtesy of SUBARU OF AMERICA, INC.
