Basic Diagnostic Procedure: Procedure

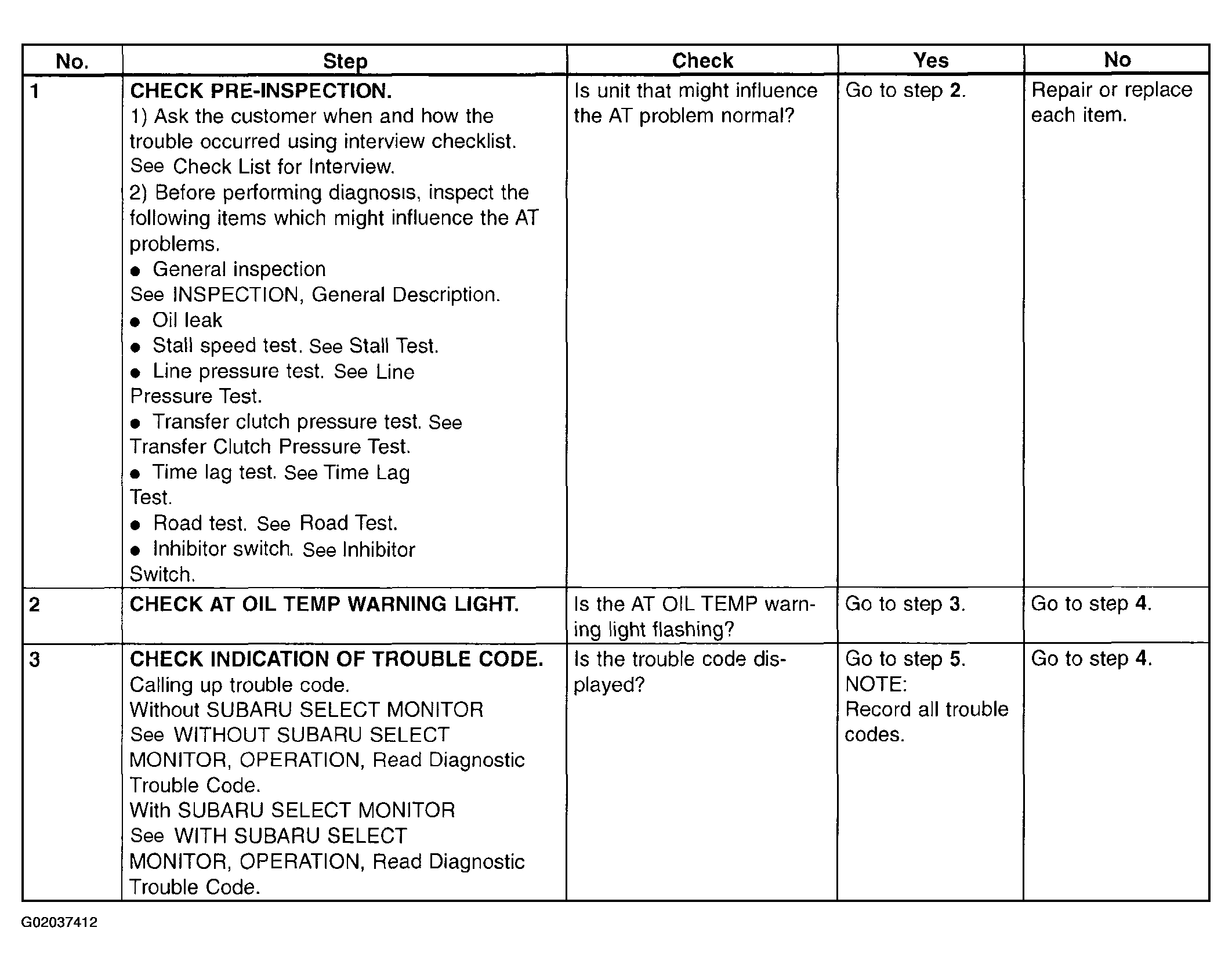

Fig 1: Procedure Chart (1 Of 2)

G02037412

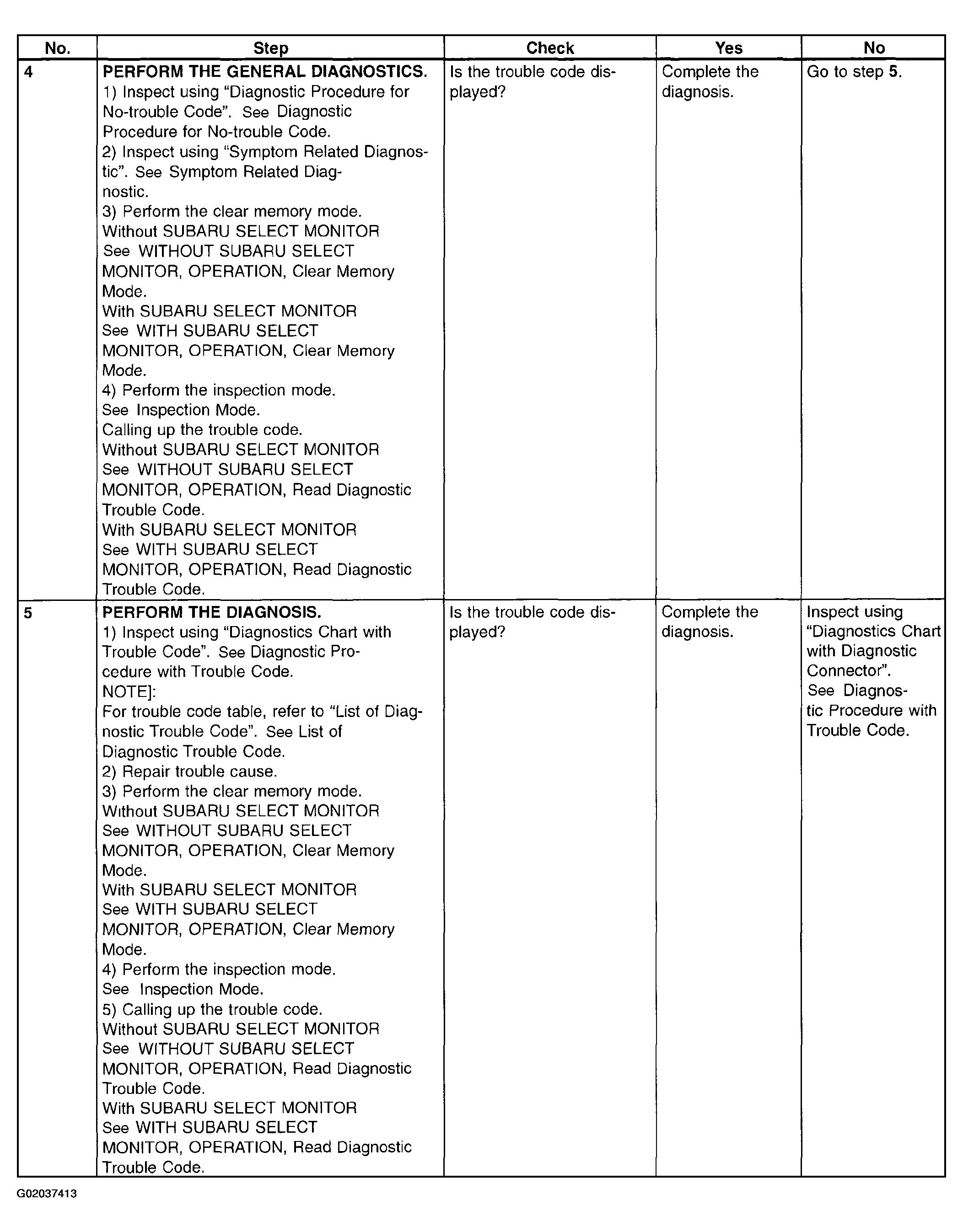

Fig 2: Procedure Chart (2 Of 2)

G02037413
