Code 27: ATF Temperature Sensor: Trouble Symptom

Excessive shift shock.

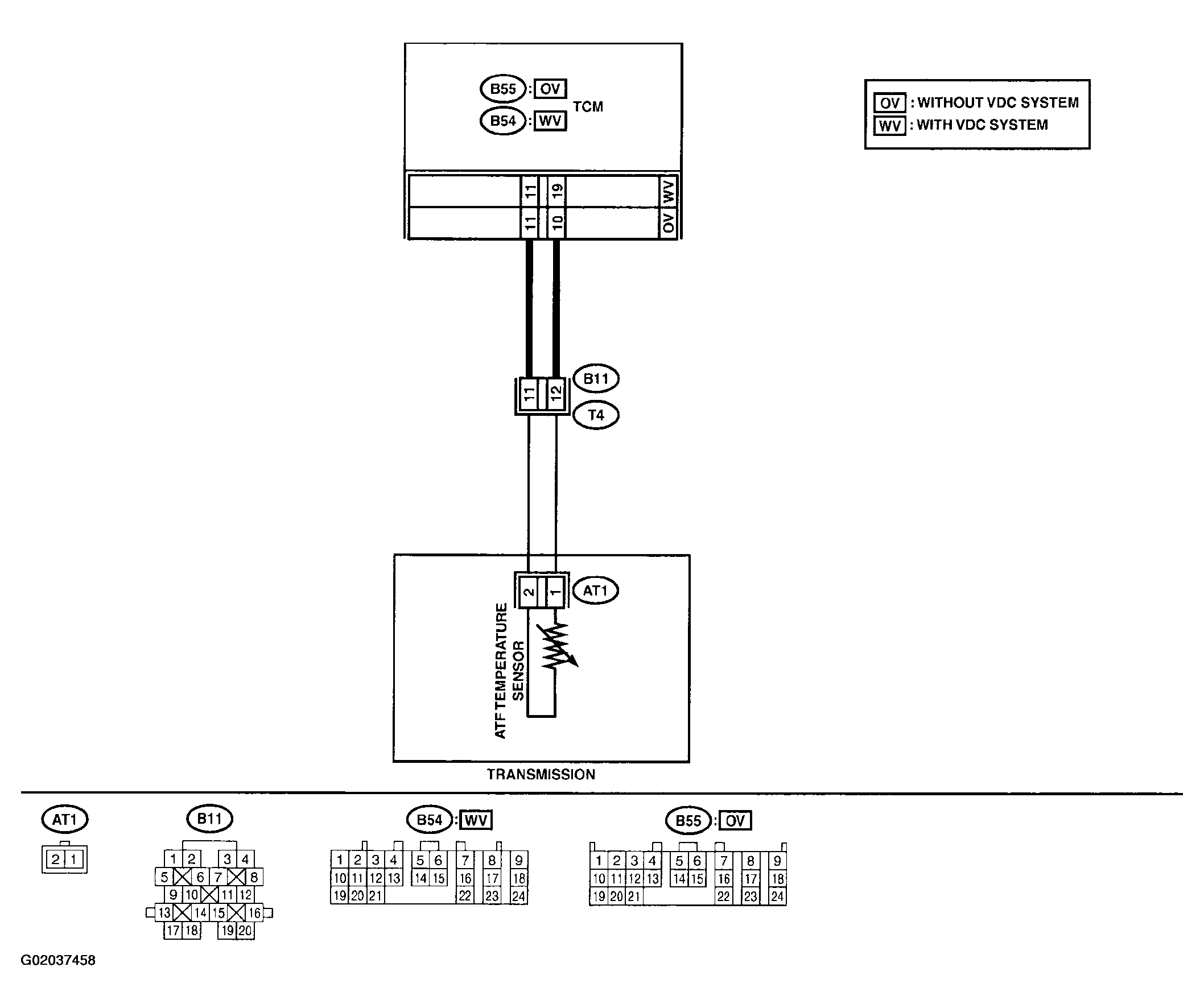

Fig 1: Trouble Code 27 - ATF Temperature Sensor Wiring Diagram

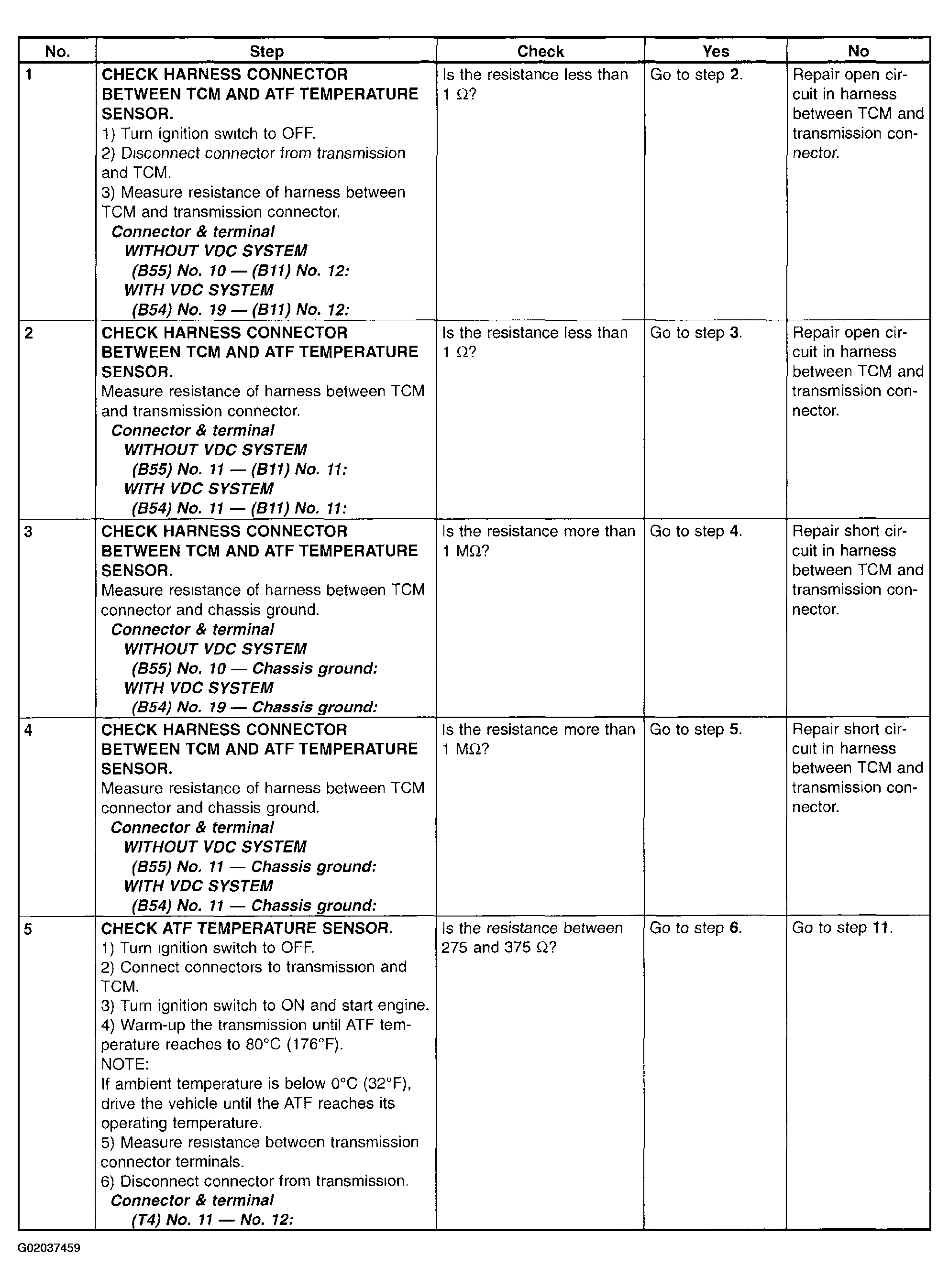

Fig 2: Trouble Code 27 - Diagnostic Chart (1 Of 3)

Fig 3: Trouble Code 27 - Diagnostic Chart (2 Of 3)

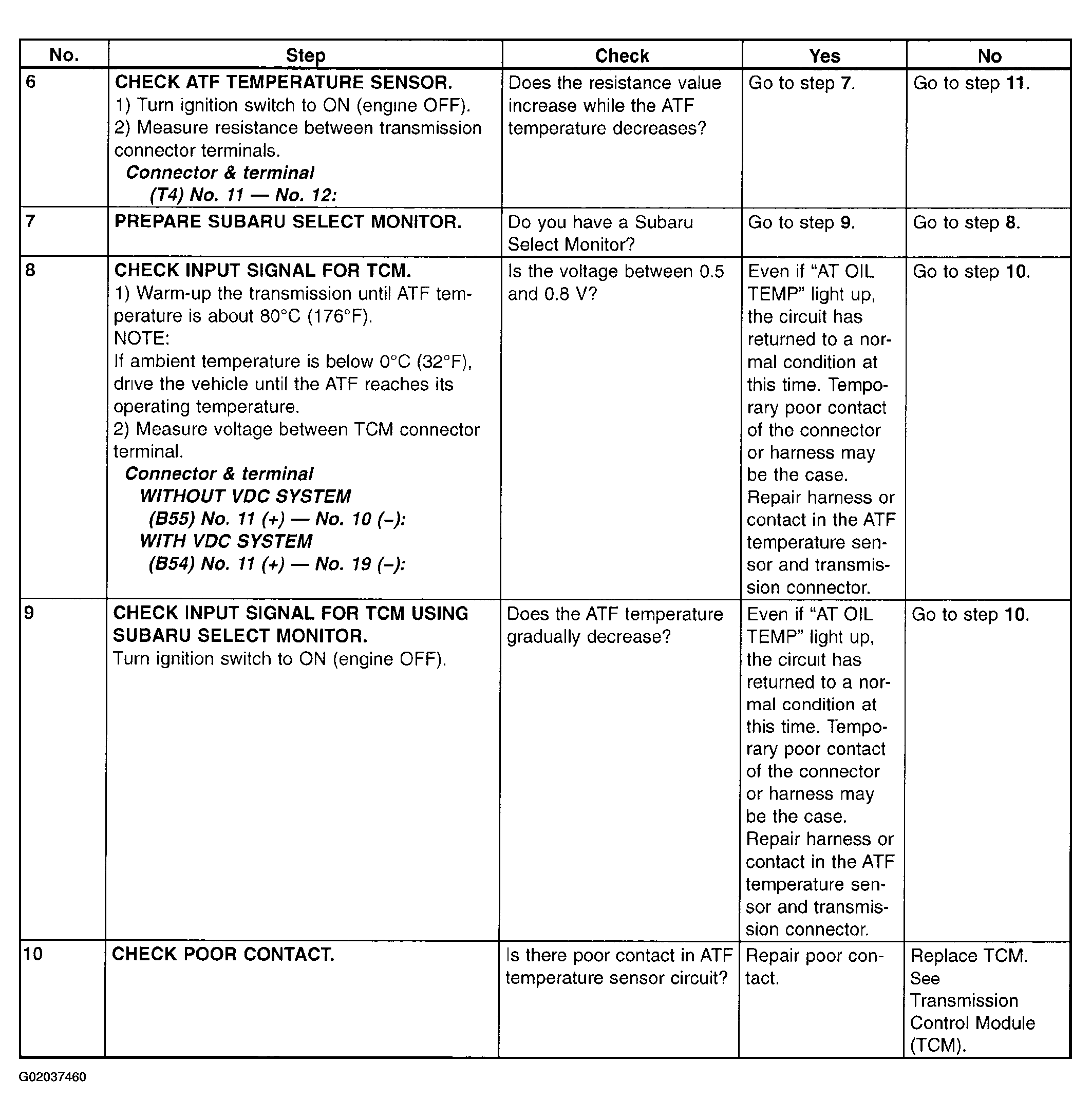

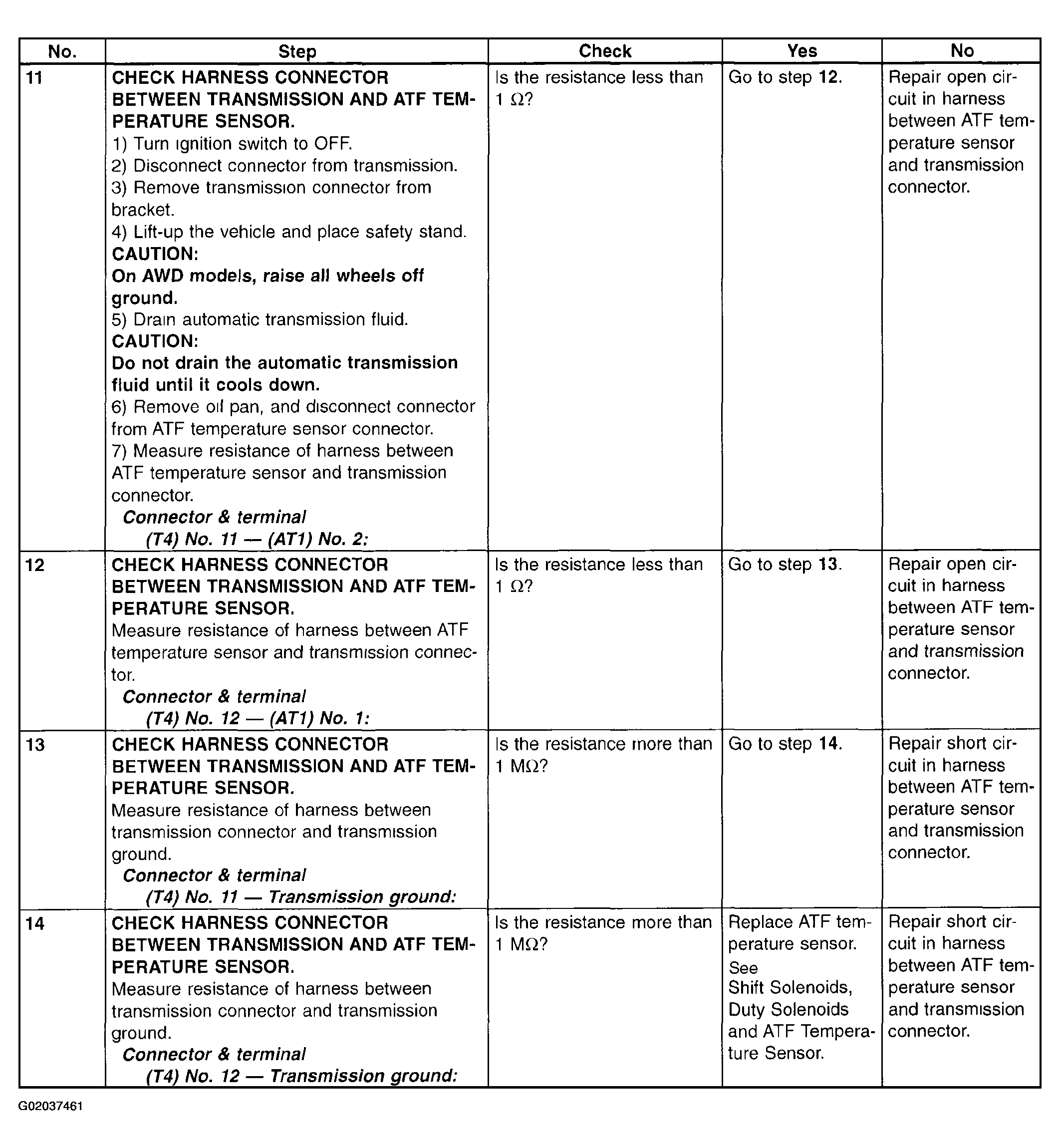

Fig 4: Trouble Code 27 - Diagnostic Chart (3 Of 3)
