Code 33: Front Vehicle Speed Sensor: Trouble Symptom
Erroneous idling.
Engine stalls.
Poor driving performance.

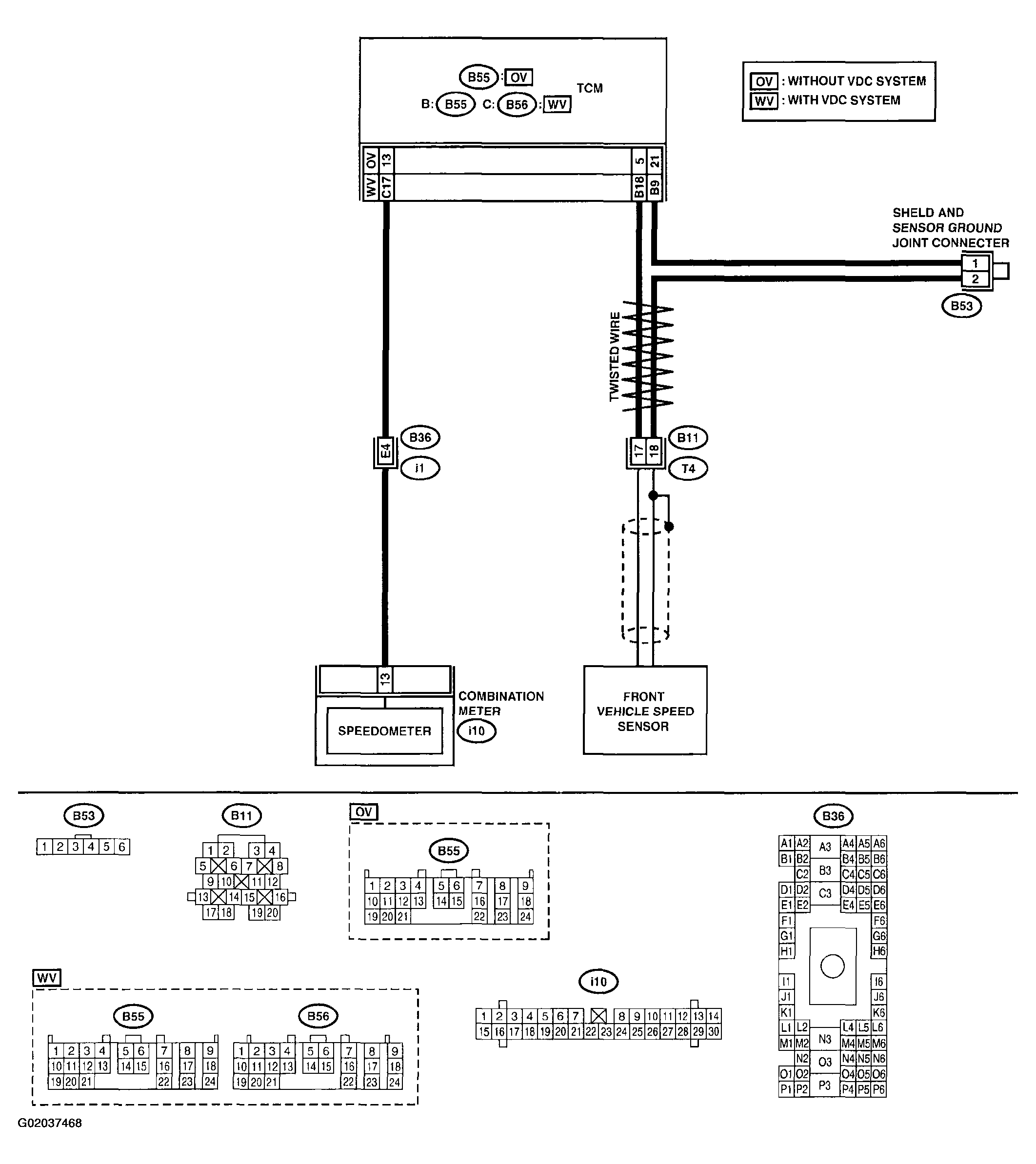

Fig 1: Trouble Code 33 - Front Vehicle Speed Sensor Wiring Diagram

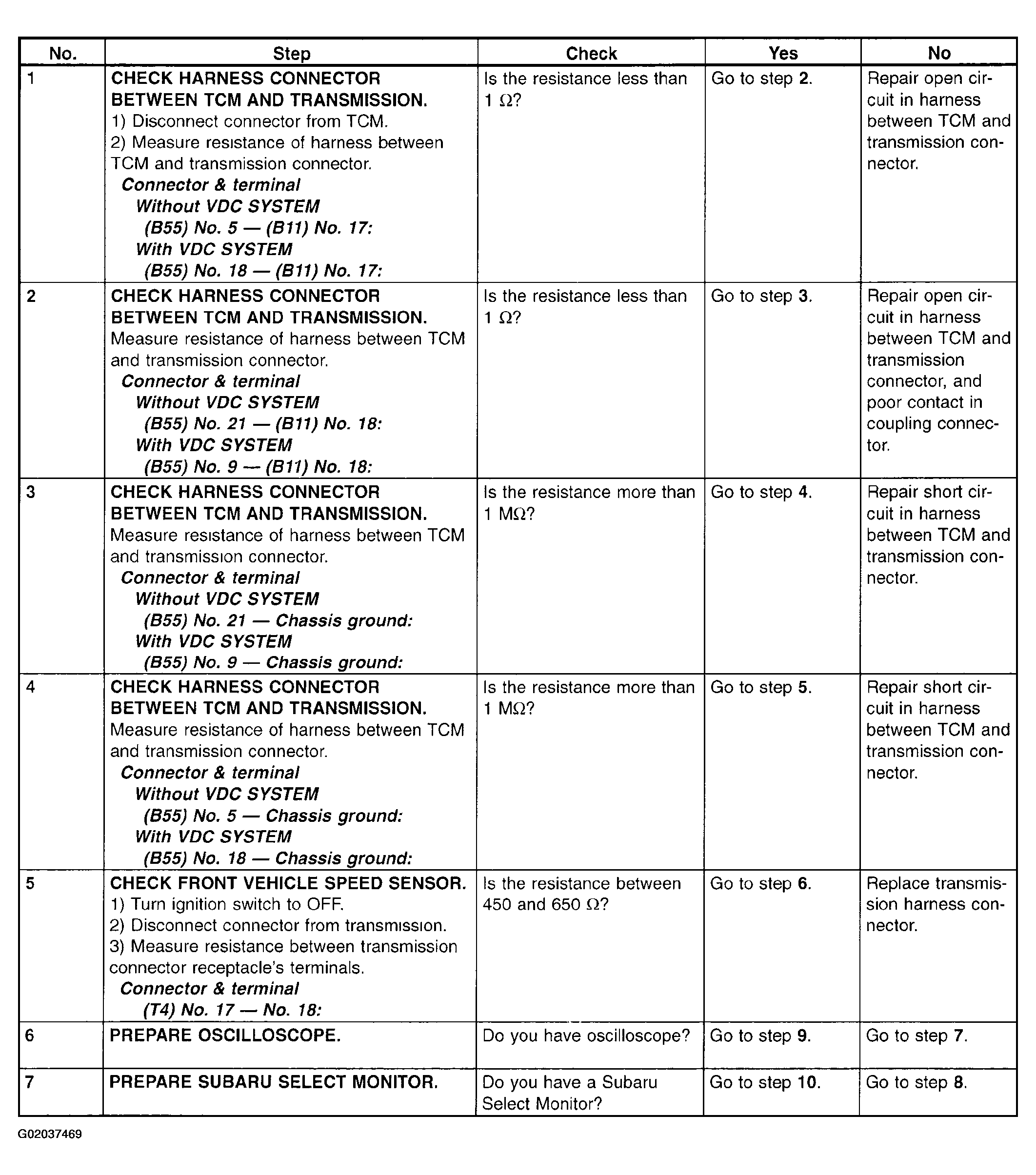

Fig 2: Trouble Code 33 - Diagnostic Chart (1 Of 3)

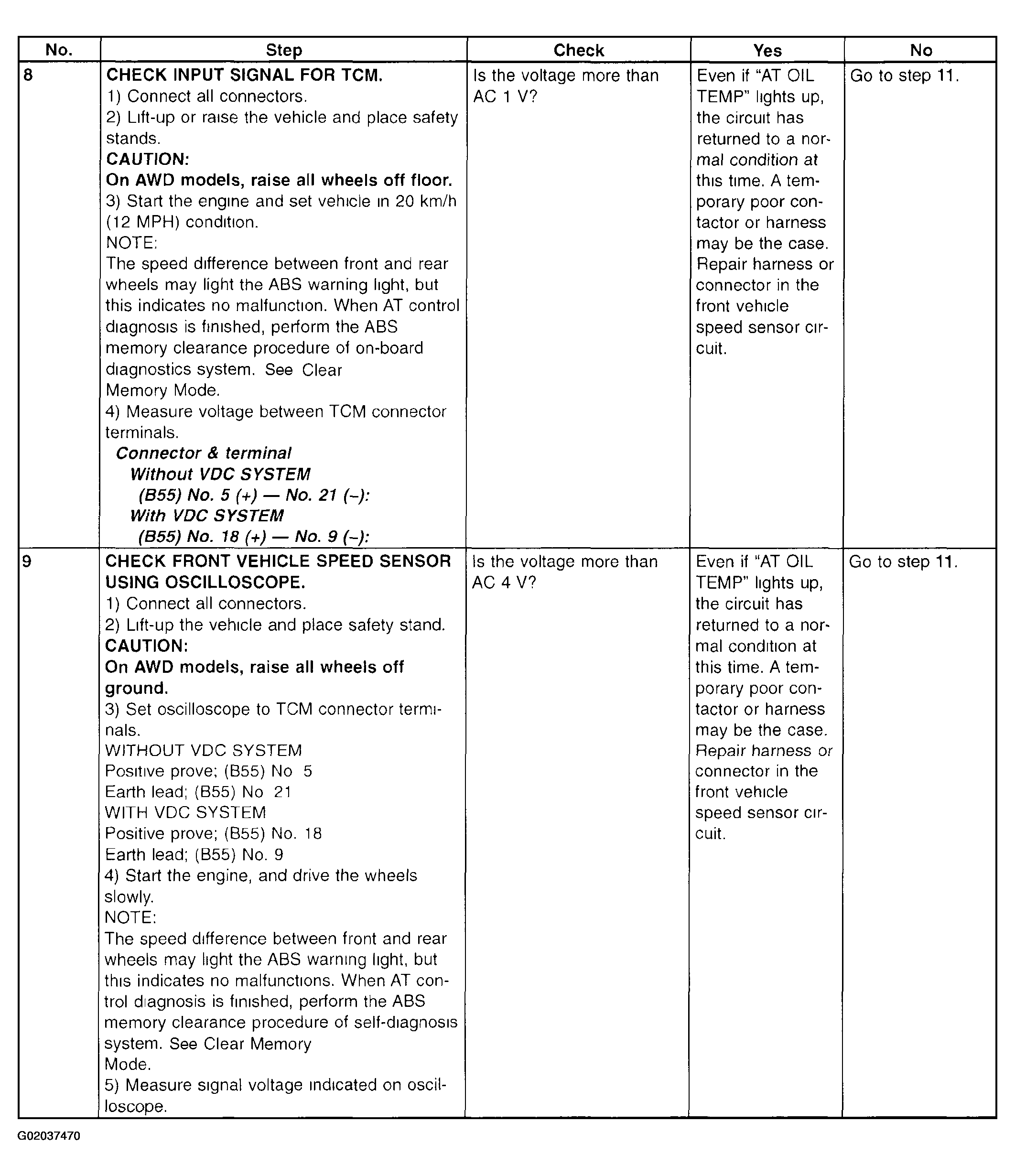

Fig 3: Trouble Code 33 - Diagnostic Chart (2 Of 3)

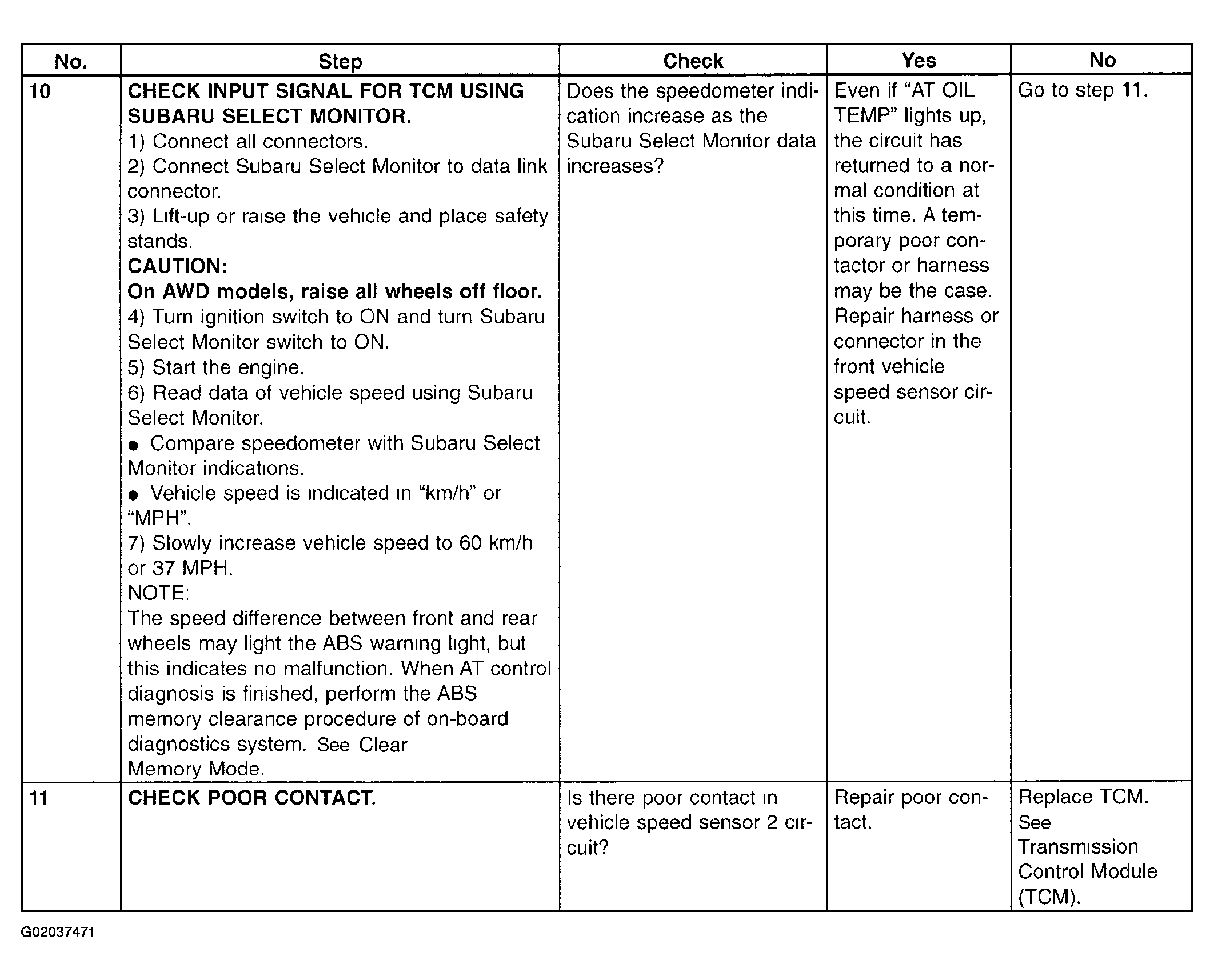

Fig 4: Trouble Code 33 - Diagnostic Chart (3 Of 3)
