Code 45: Intake Manifold Pressure Signal: Trouble Symptom

Excessive shift shock.

• 2.5 L and 3.0 L

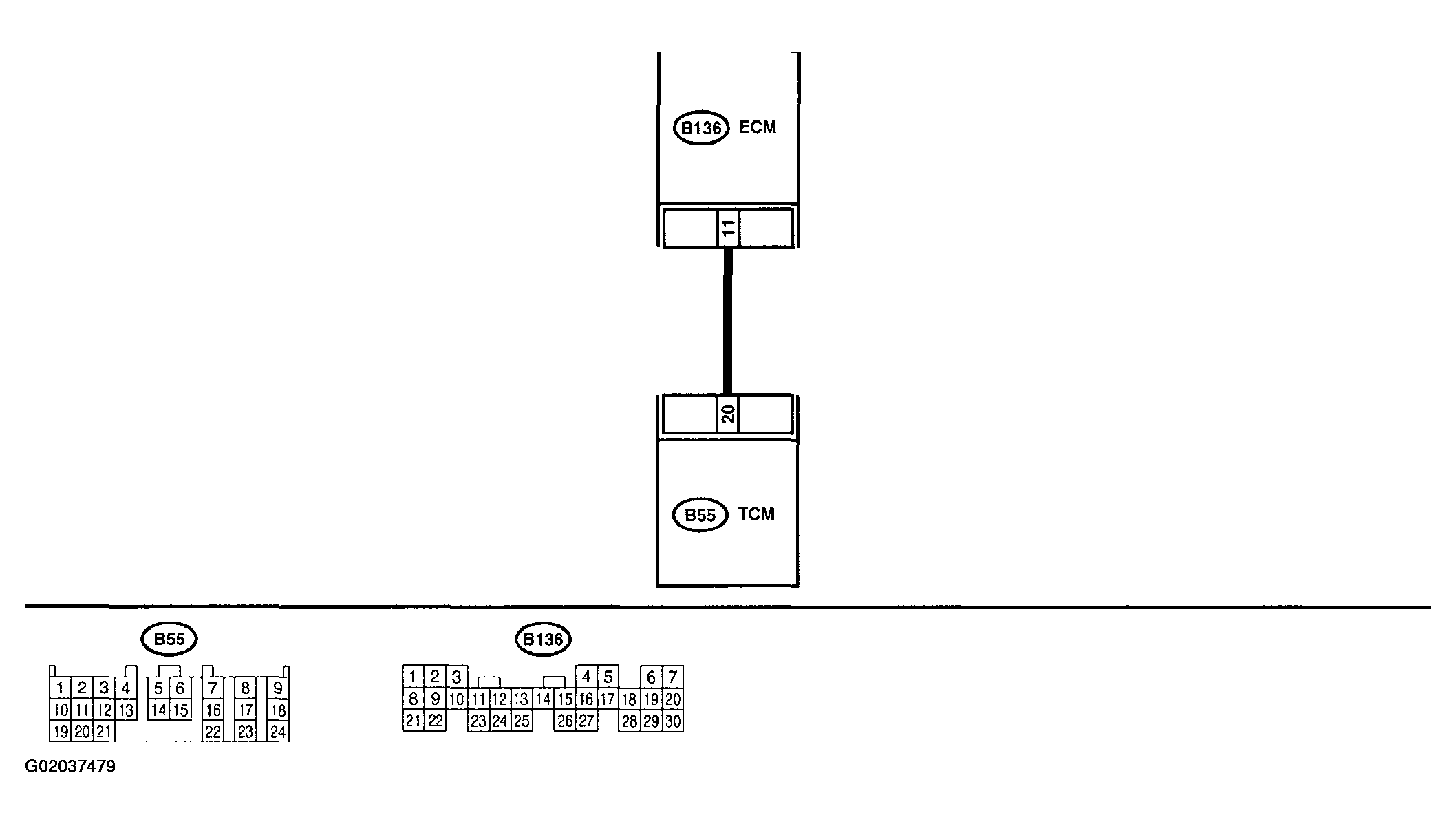

  Fig 1: Trouble Code 45 - Intake Manifold Pressure Signal Wiring Diagram (2.5 L)


  Fig 2: Trouble Code 45 - Intake Manifold Pressure Signal Wiring Diagram (3.0 L)

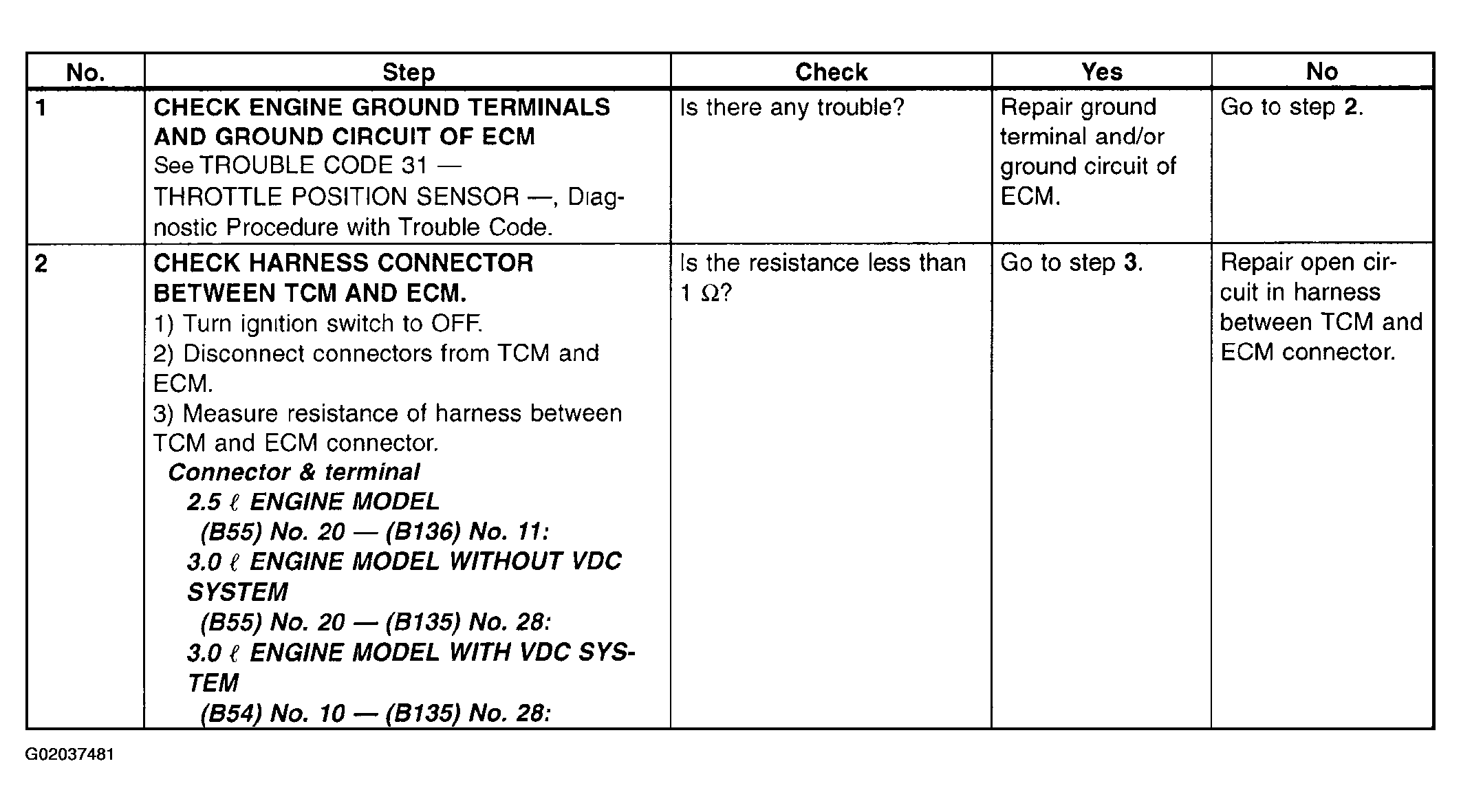

  Fig 3: Trouble Code 45 - Diagnostic Chart (1 Of 2)

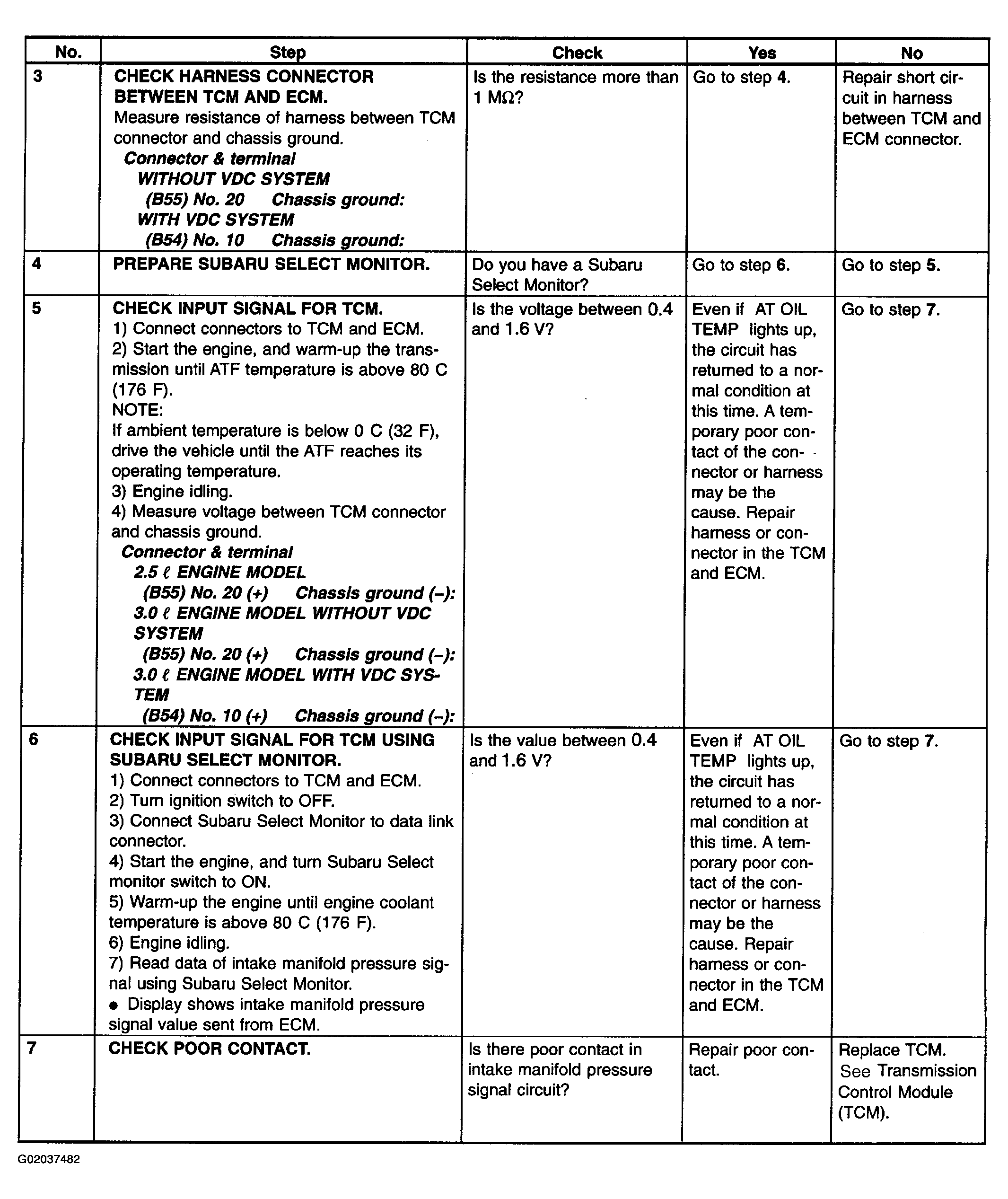

  Fig 4: Trouble Code 45 - Diagnostic Chart (2 Of 2)
