Code 72: Shift Solenoid 2: Trouble Symptom

Does not shift.

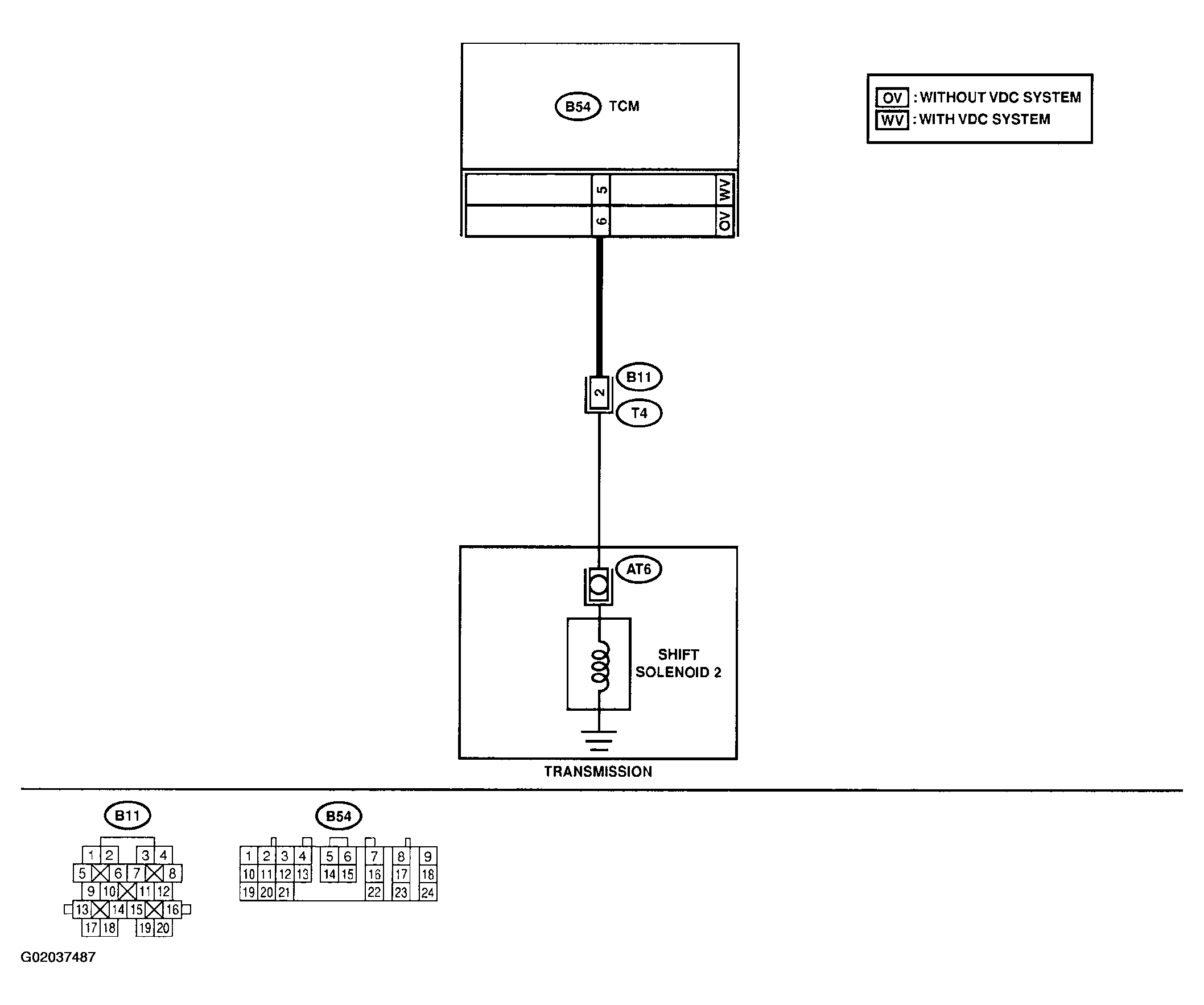

Fig 1: Trouble Code 72 - Shift Solenoid 2 Wiring Diagram

G02037487

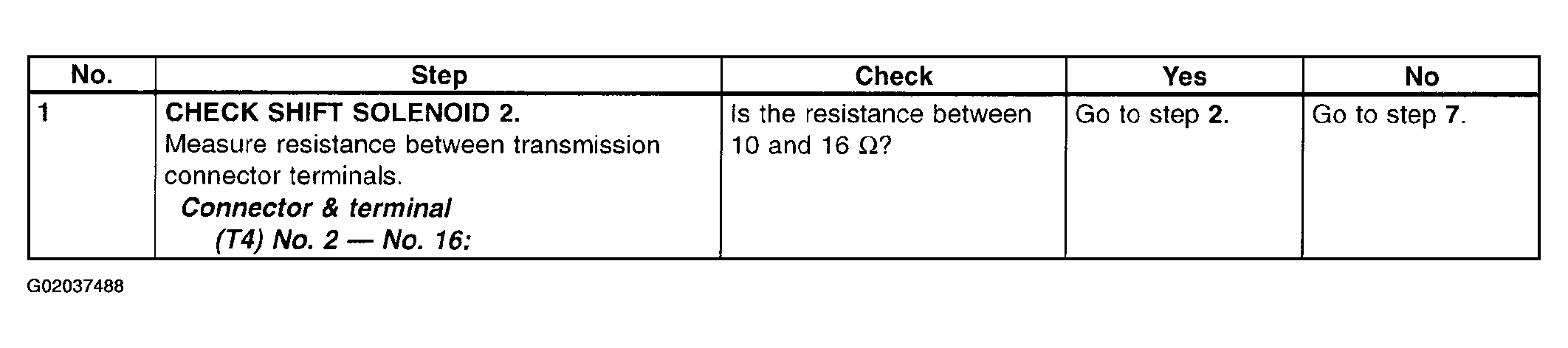

Fig 2: Trouble Code 72 - Diagnostic Chart (1 Of 3)

G02037488

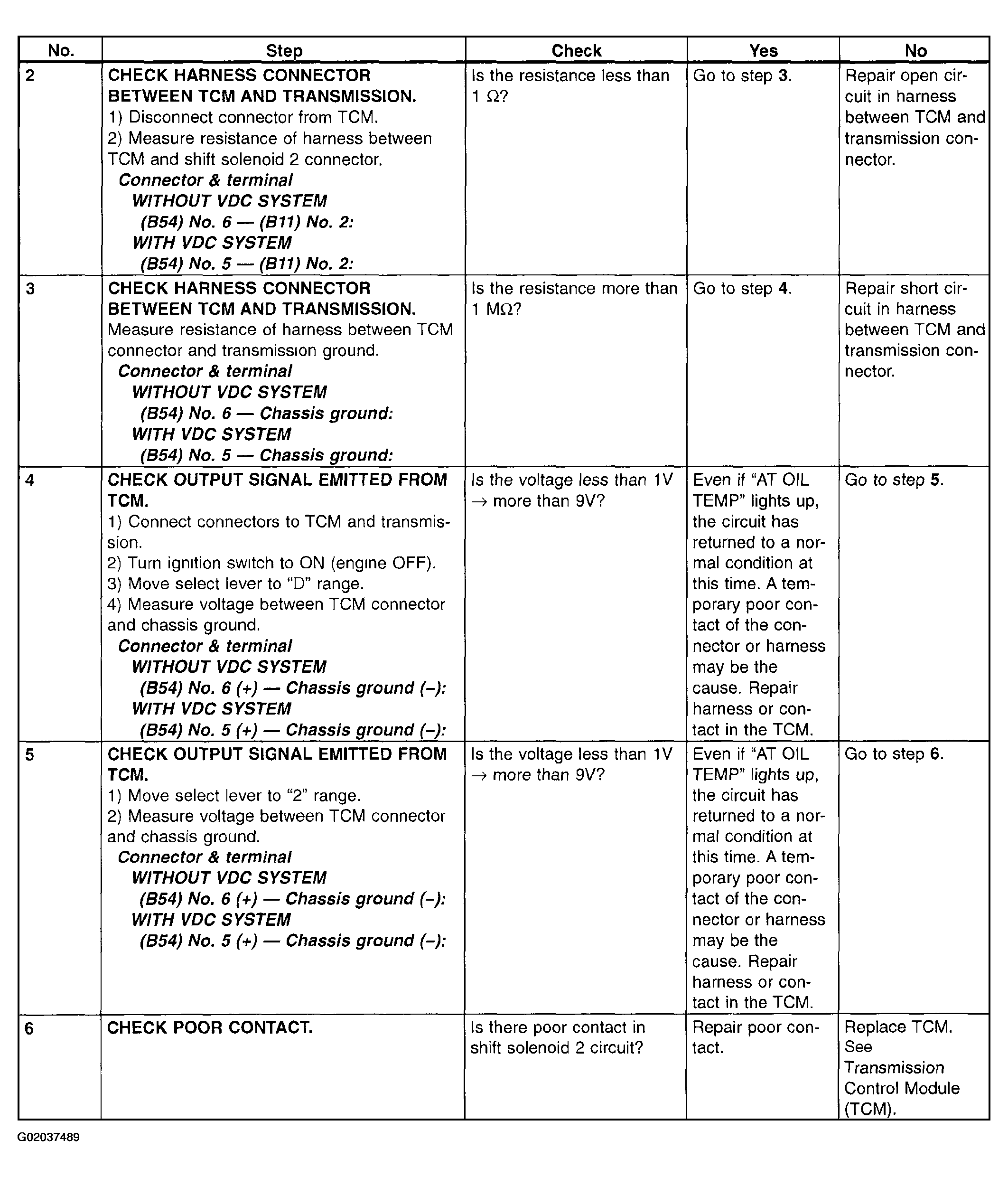

Fig 3: Trouble Code 72 - Diagnostic Chart (2 Of 3)

G02037489

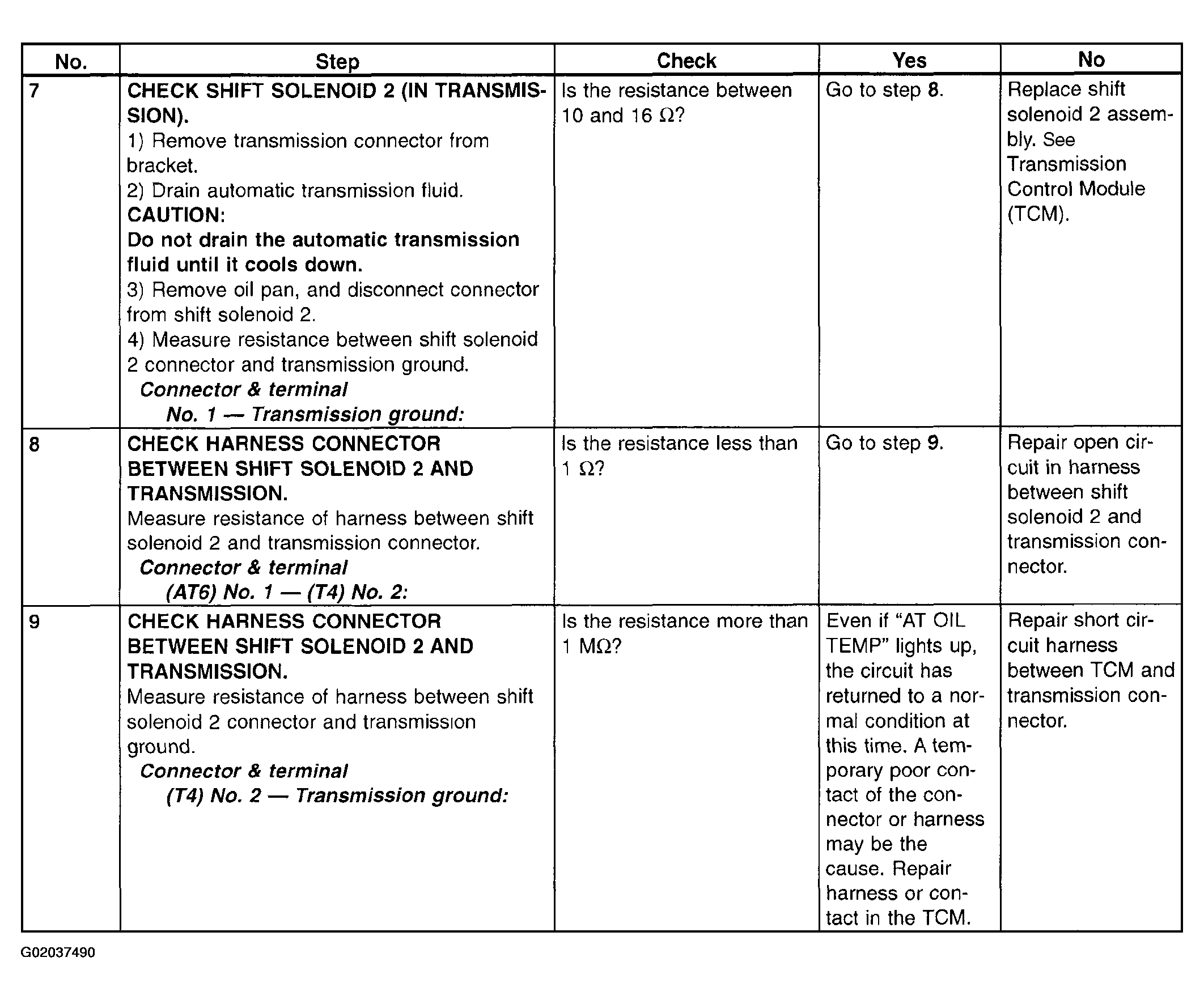

Fig 4: Trouble Code 72 - Diagnostic Chart (3 Of 3)

G02037490
