Control Module Power Supply And Ground Line: Trouble Symptom
AT OIL TEMP warning light remains on.

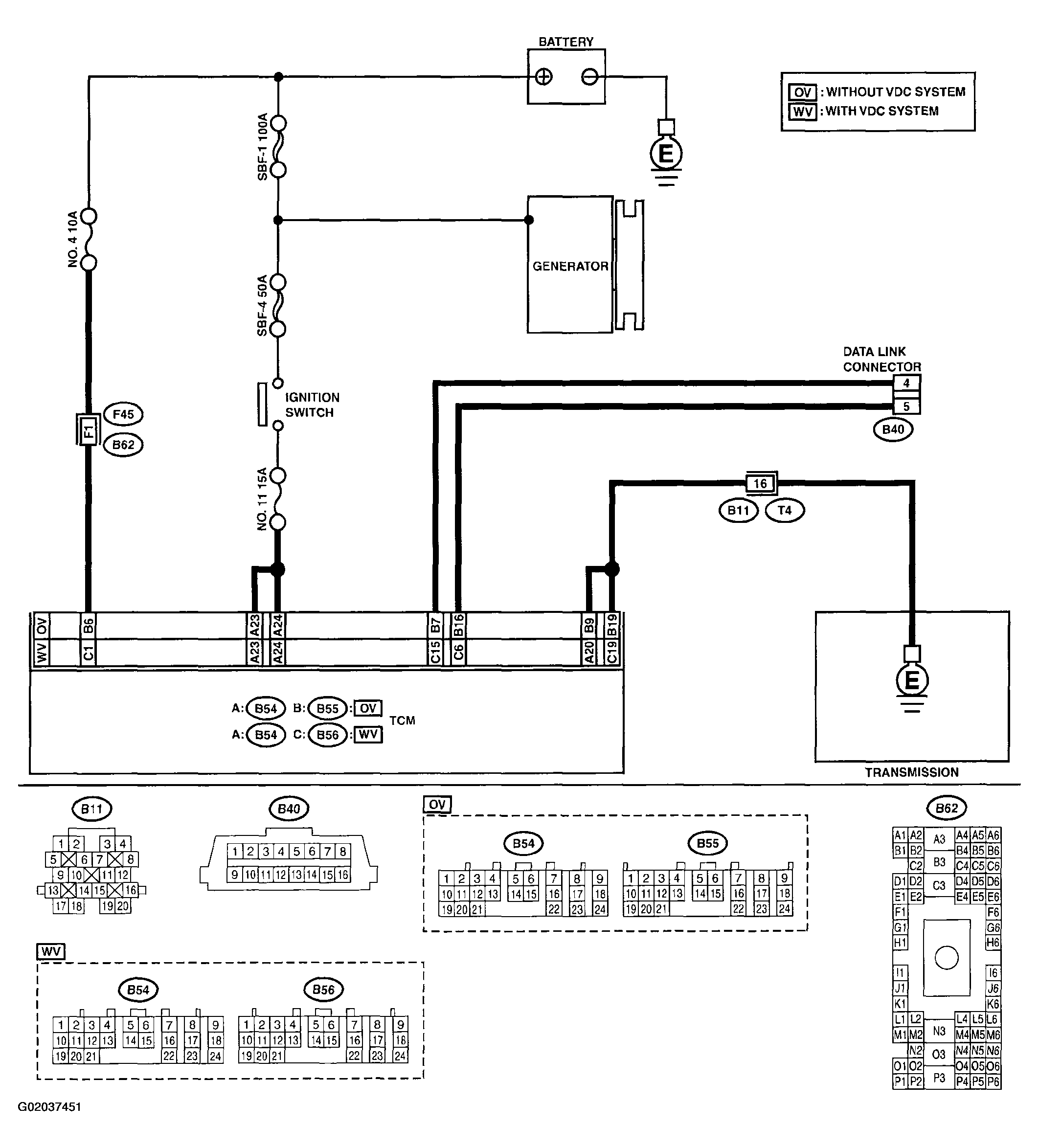

Fig 1: Diagnostic Procedure With Trouble Code Wiring Diagram

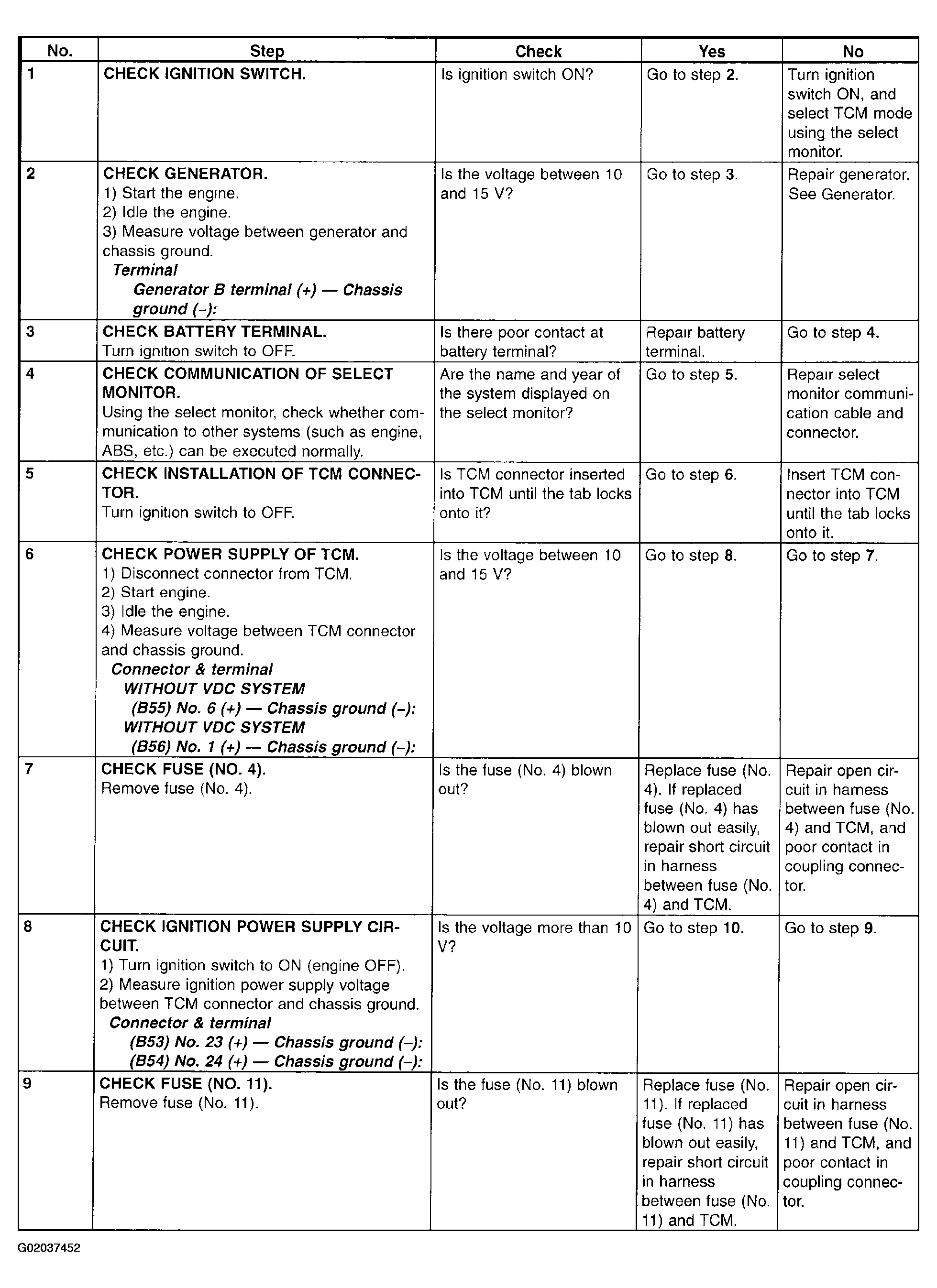

Fig 2: Diagnostic Procedure With Trouble Code Diagnostic Procedure - Chart (1 Of 2)

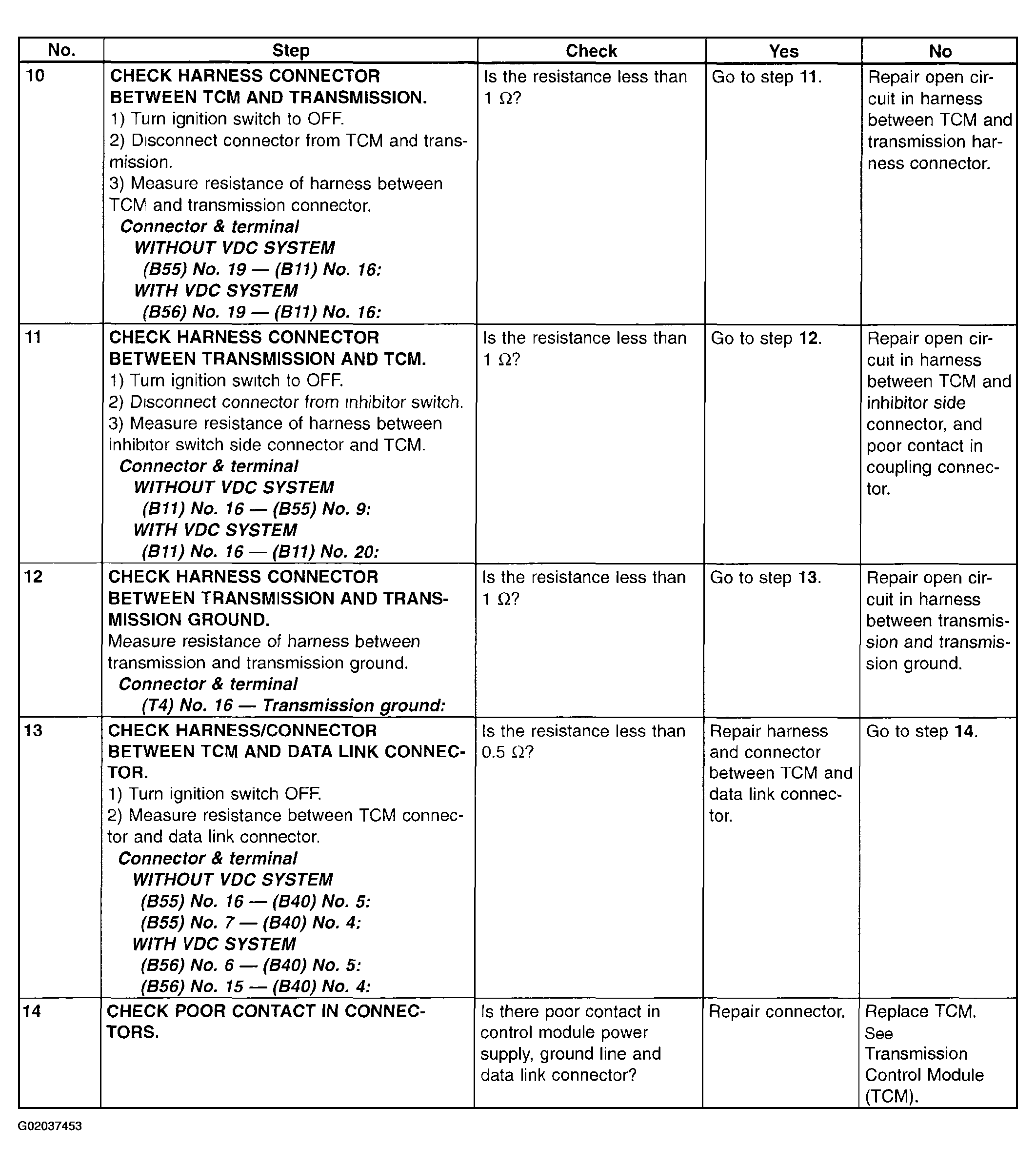

Fig 3: Diagnostic Procedure With Trouble Code Diagnostic Procedure - Chart (2 Of 2)
