Control Module

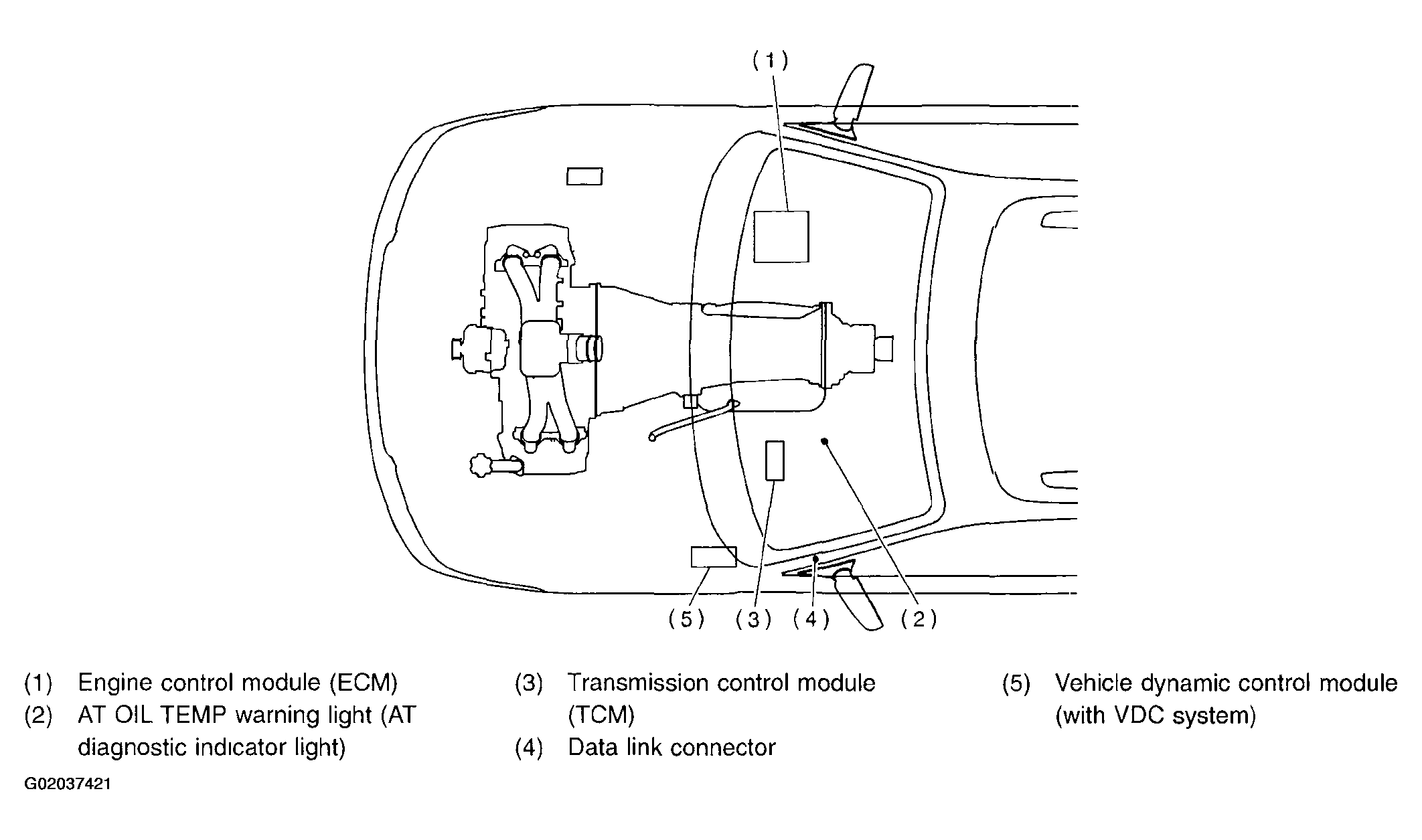

Fig 1: Locating Electrical Components (Control Module Related - 1 Of 2)
G02037421

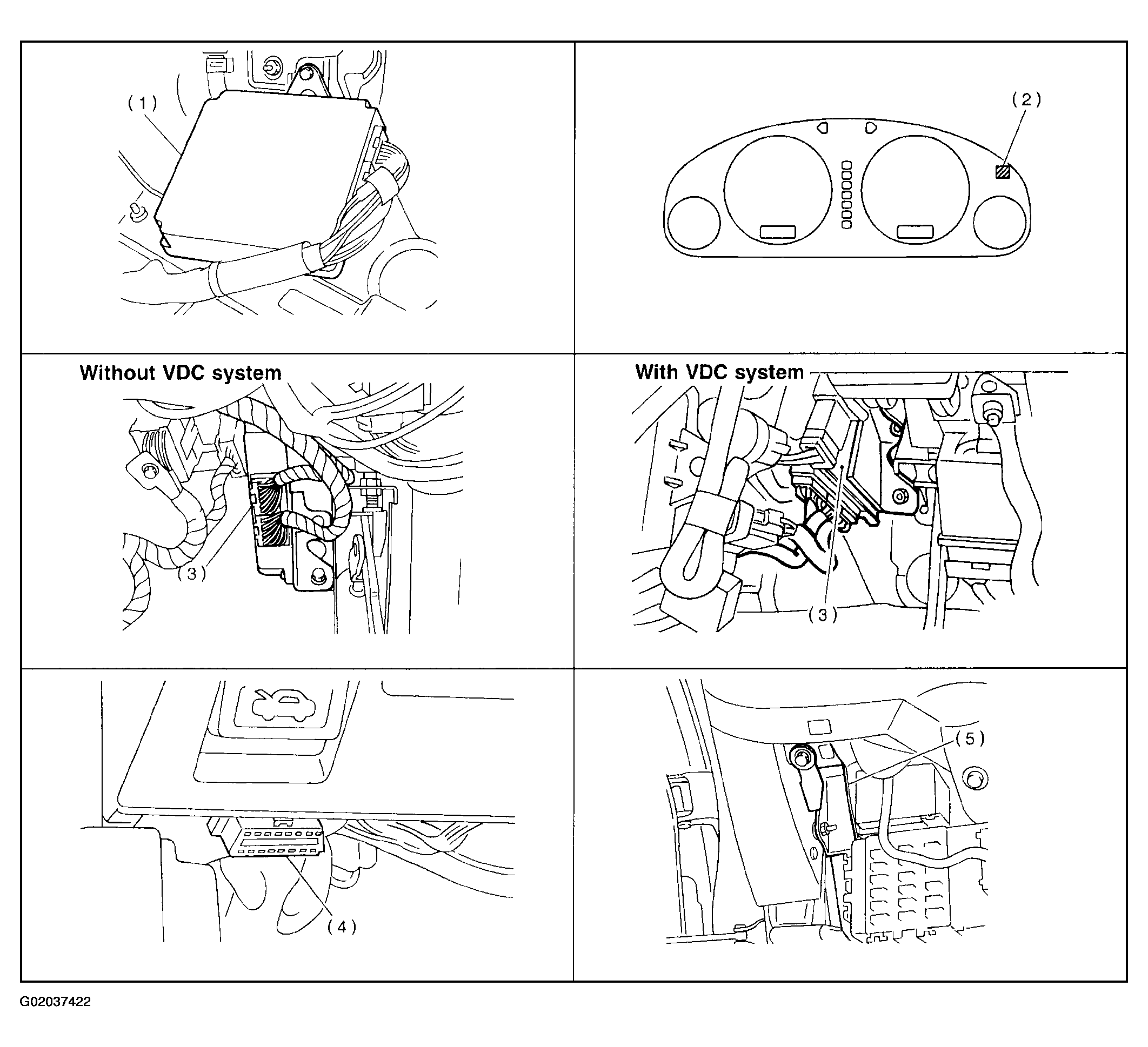

Fig 2: Locating Electrical Components (Control Module Related - 2 Of 2)
G02037422
