Electrical Components Location: Location: Sensor

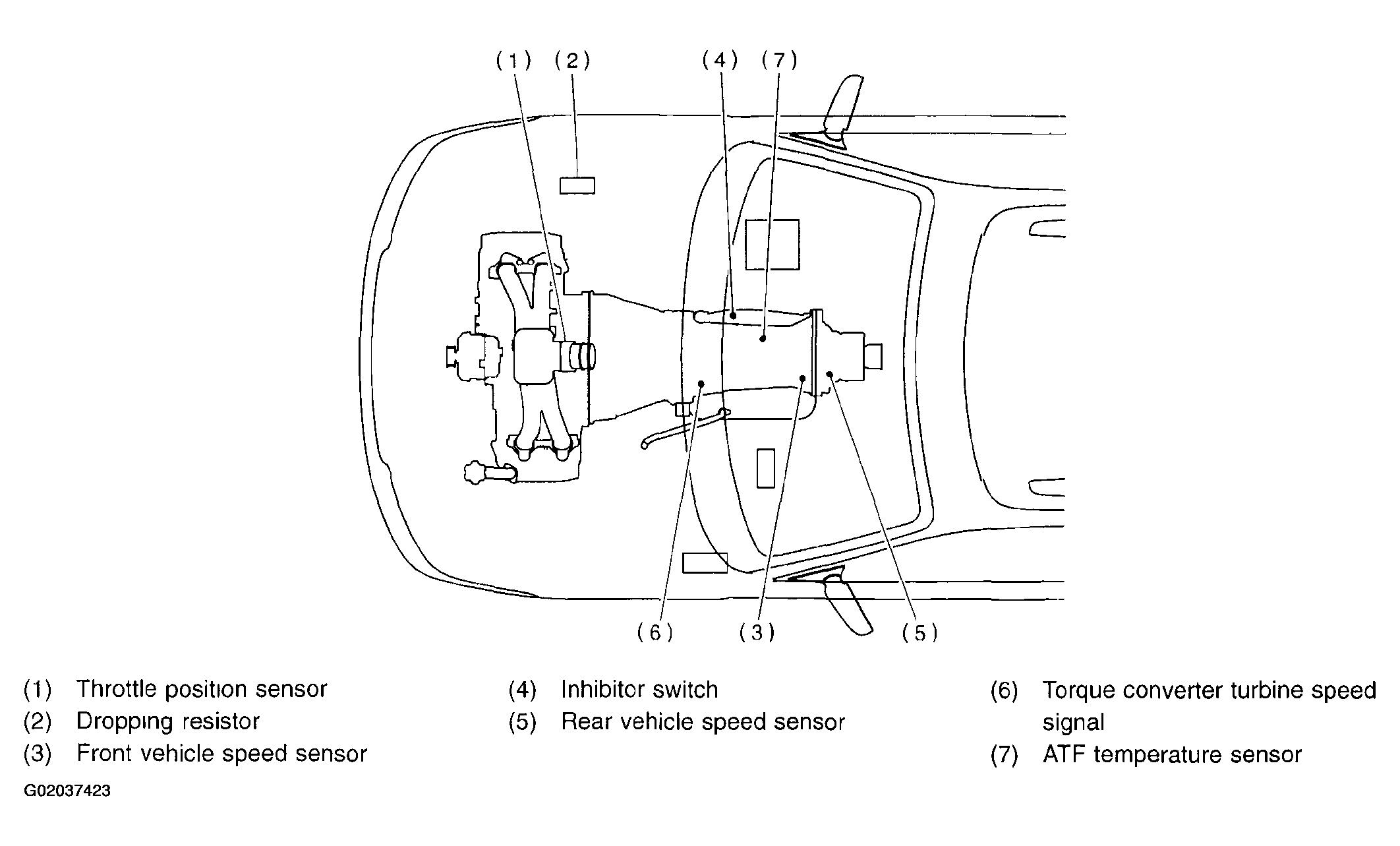

Fig 1: Locating Sensor (1 Of 2)

G02037423

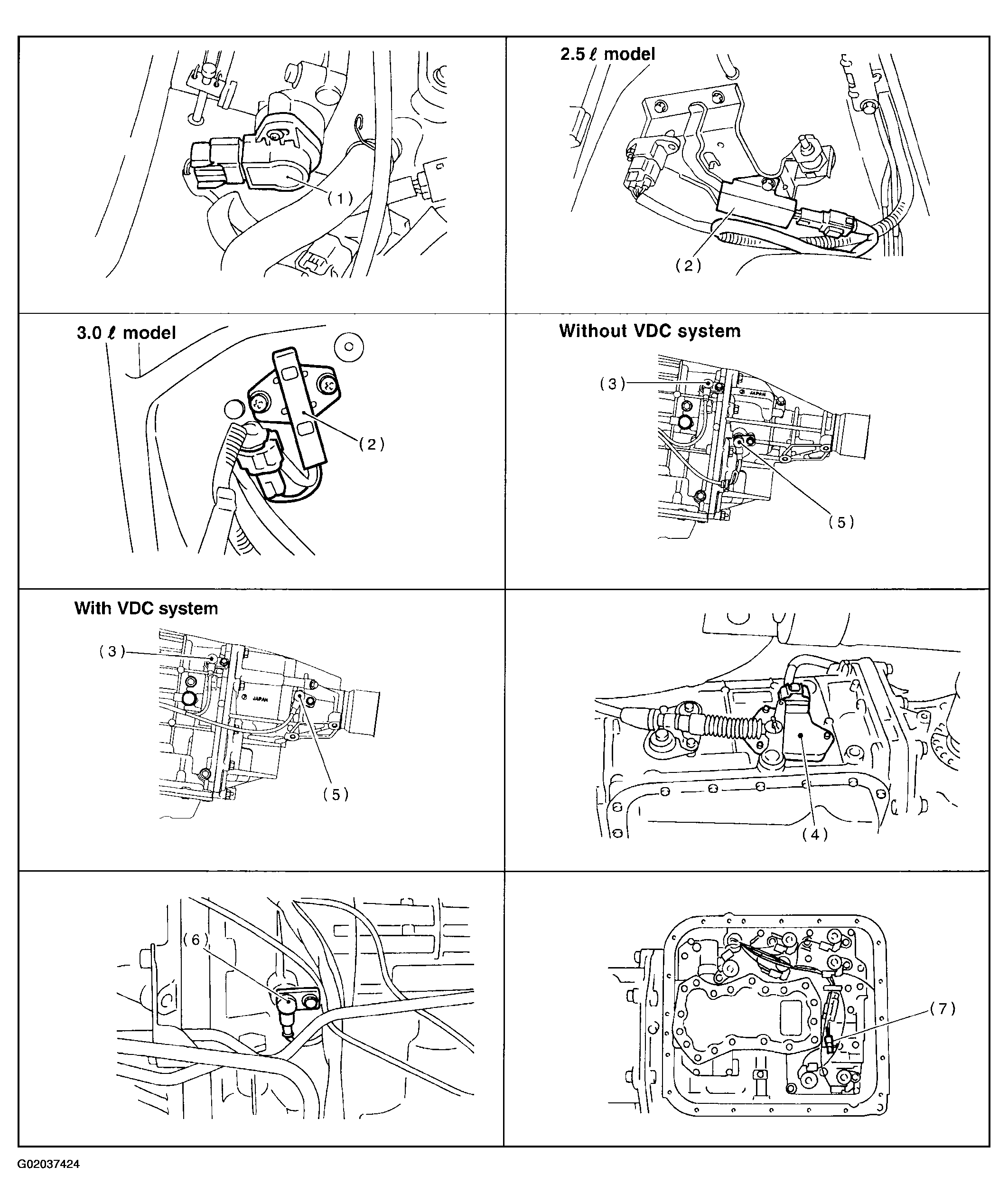

Fig 2: Locating Sensor (2 Of 2)

G02037424
