Operation Of Shift Select Lever
Make sure there is no abnormal noise, dragging or contact pattern in each select lever range.
WARNING:
Stop the engine while checking operation of selector level.

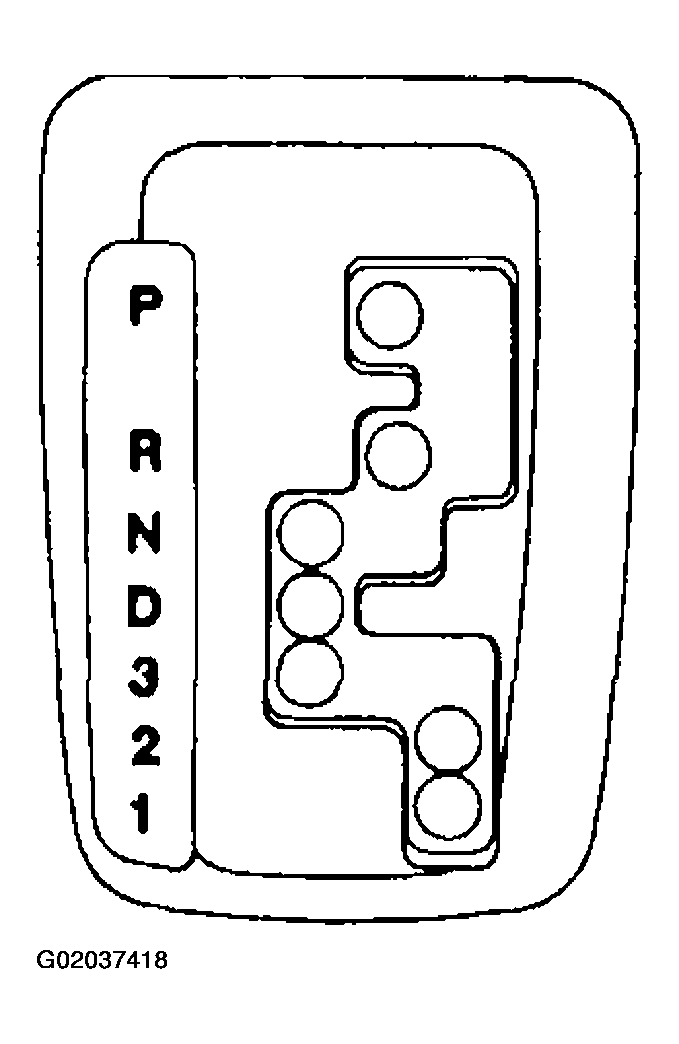

Fig 1: Checking Operation Of Shift Select Lever
