Reading Diagnostic Trouble Code

Prepare Subaru Select Monitor kit.

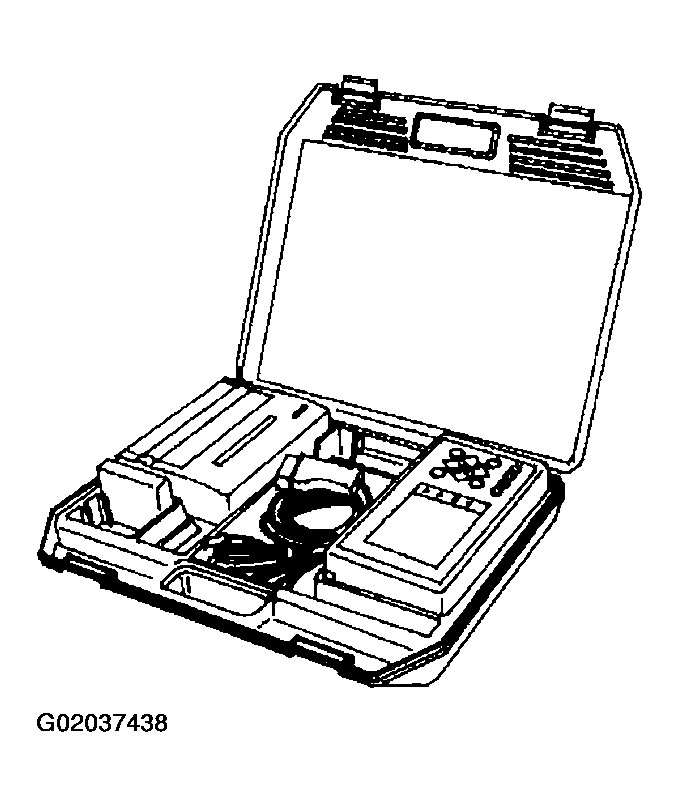

Fig 1: Preparing Subaru Select Monitor Kit
Connect diagnosis cable to Subaru Select Monitor.
Insert cartridge into Subaru Select Monitor.

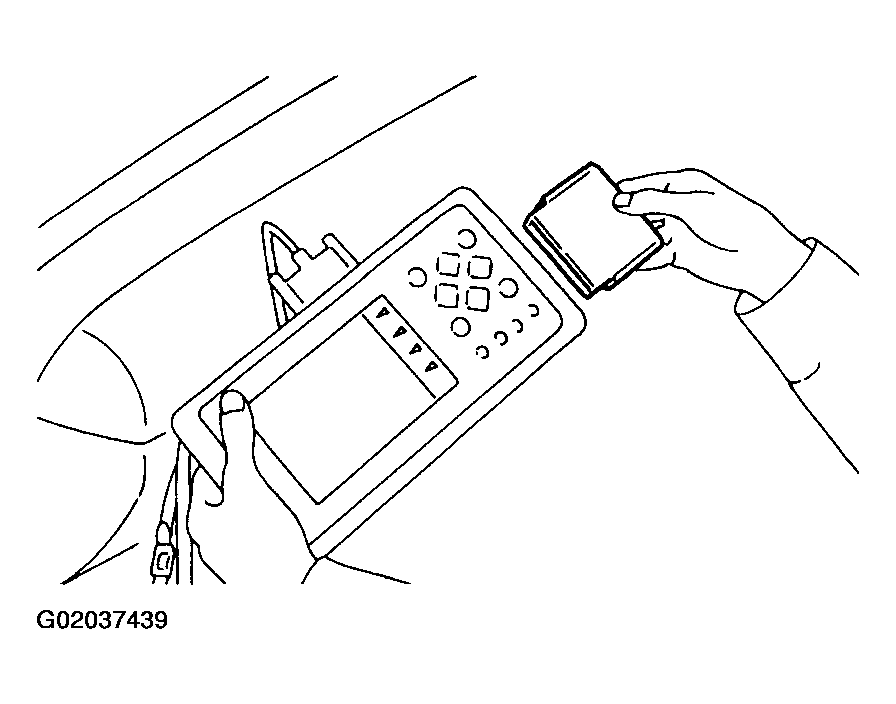

Fig 2: Inserting Cartridge Into Subaru Select Monitor
Connect Subaru Select Monitor to data link connector.
1. Data link connector located in the lower portion of the instrument panel (on the driver's side).

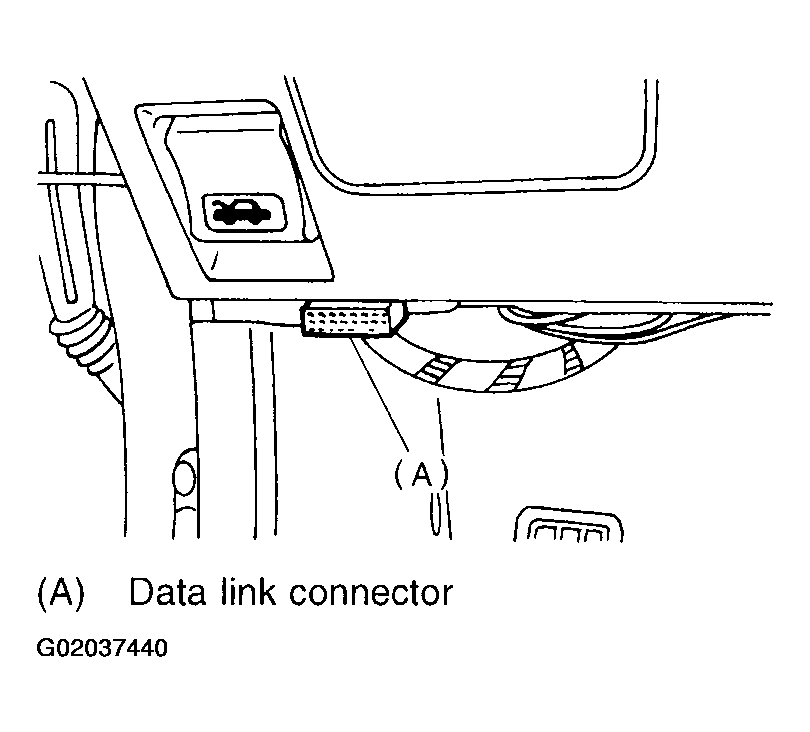

  Fig 3: Locating Data Link Connector
2. Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

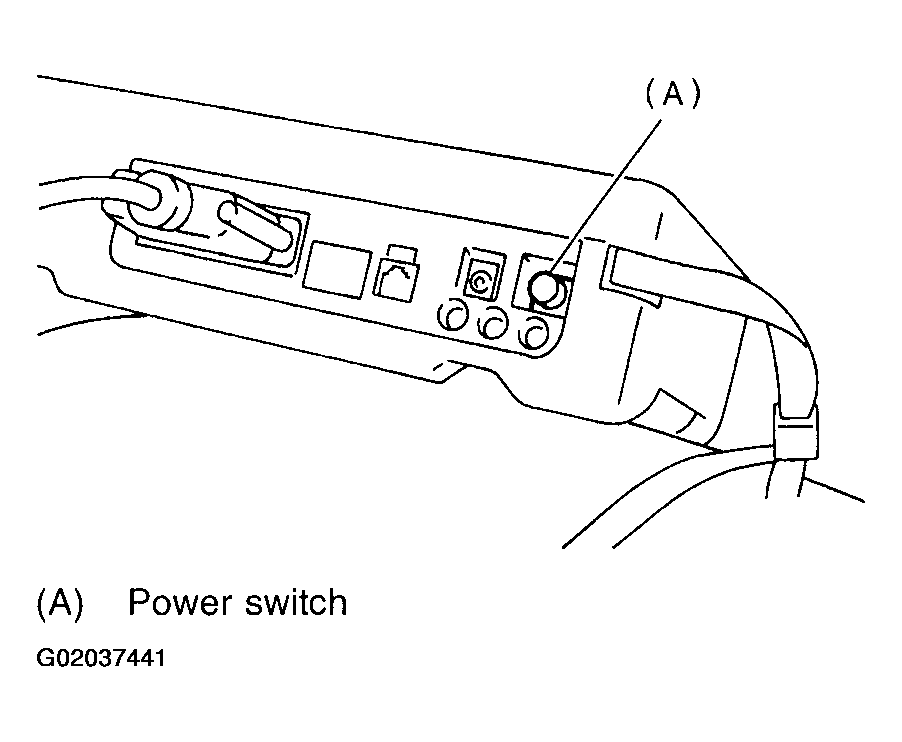

Fig 4: Subaru Select Monitor On/Off Switch
On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after displayed the information of engine type.
On the << Transmission Diagnosis >> display screen, select the {Diagnostic Code(s) Display} and press the [YES] key.
On the << Diagnostic Code(s) Display >> display screen, select the {Current Diagnostic Code(s)} or {History Diagnostic Code(s)} and press the [YES] key.

NOTE:

For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL. With 2.5 L engine, see SUBARU SELECT MONITOR (SSM) PROCEDURE . With 3.0 L engine, see SUBARU SELECT MONITOR (SSM) PROCEDURE .
For detailed concerning diagnostic trouble codes, refer to the DIAGNOSTIC TROUBLE CODE LIST. See List of Diagnostic Trouble Codes .
