Transmission Control Module (TCM) I/O Signal
>>
Schematic
>>
With VDC System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With VDC System

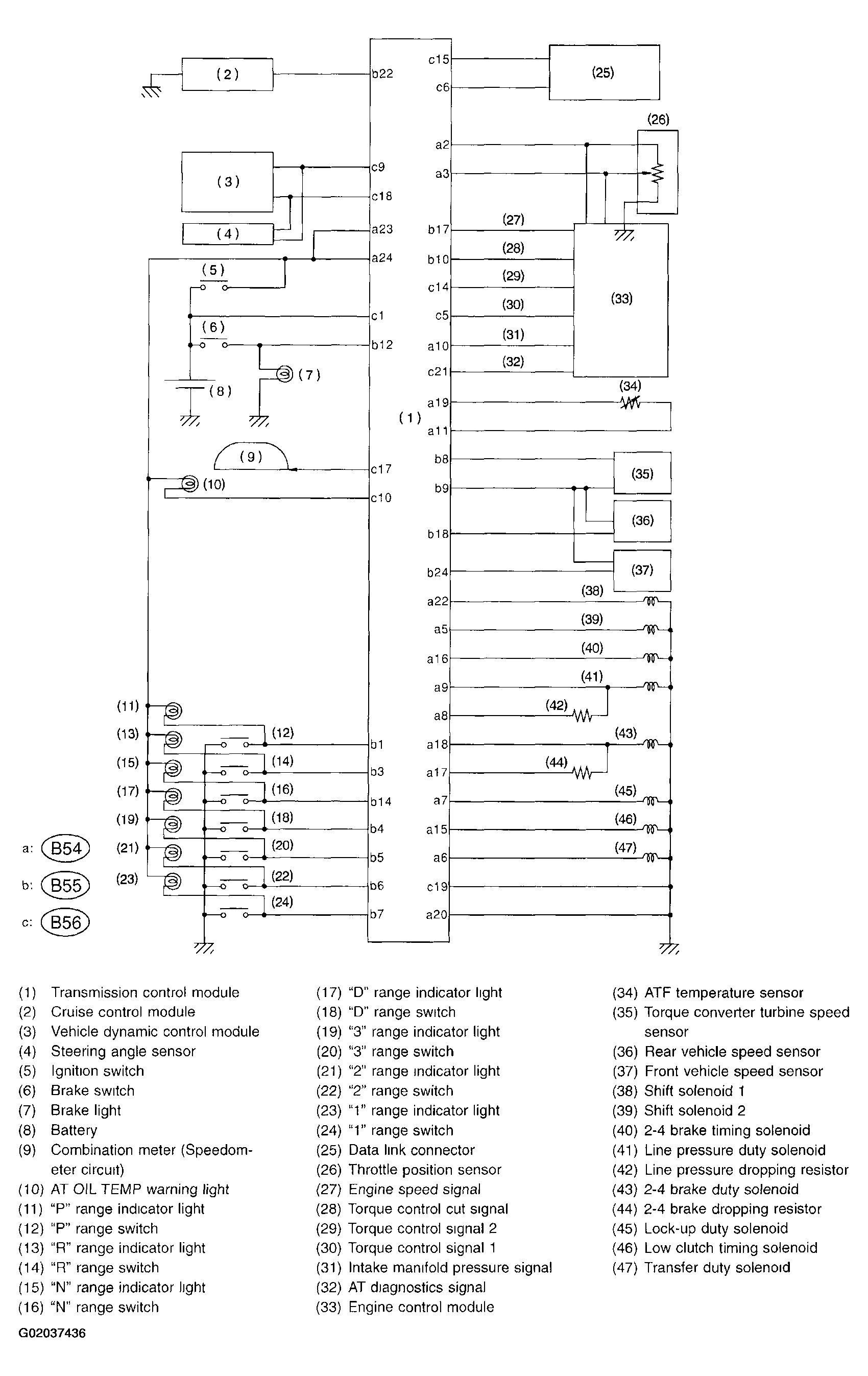

Fig 1: Schematic Diagram (With VDC System)
