Automatic Transmission Assembly: Installation

Install rear cushion rubber to transmission assembly.
Tightening torque:
1. 38 N.m (3.9 kgf-m, 28 ft-lb)
Install ST to torque converter clutch case.
ST 498277200 STOPPER SET

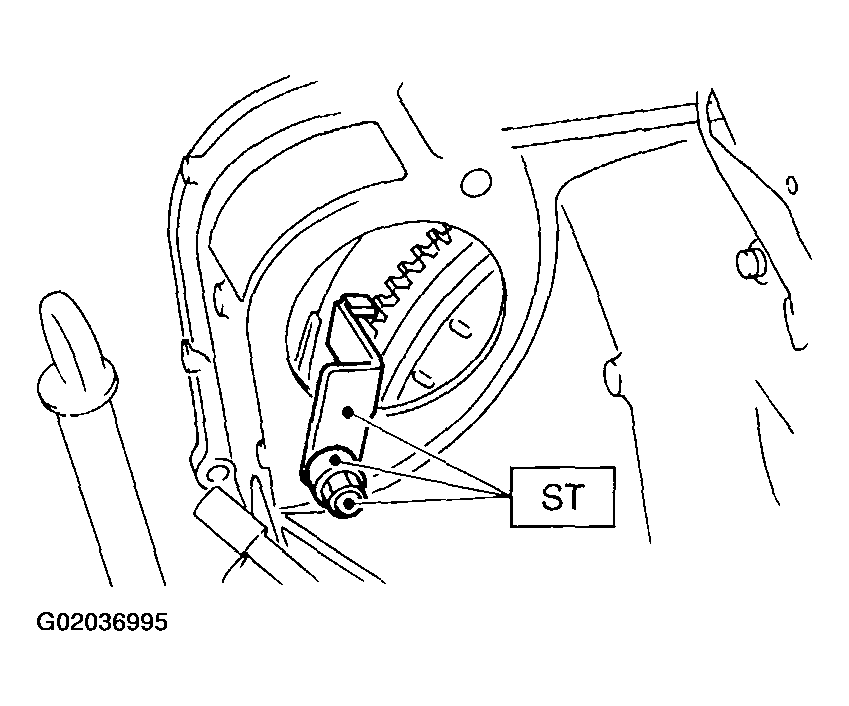

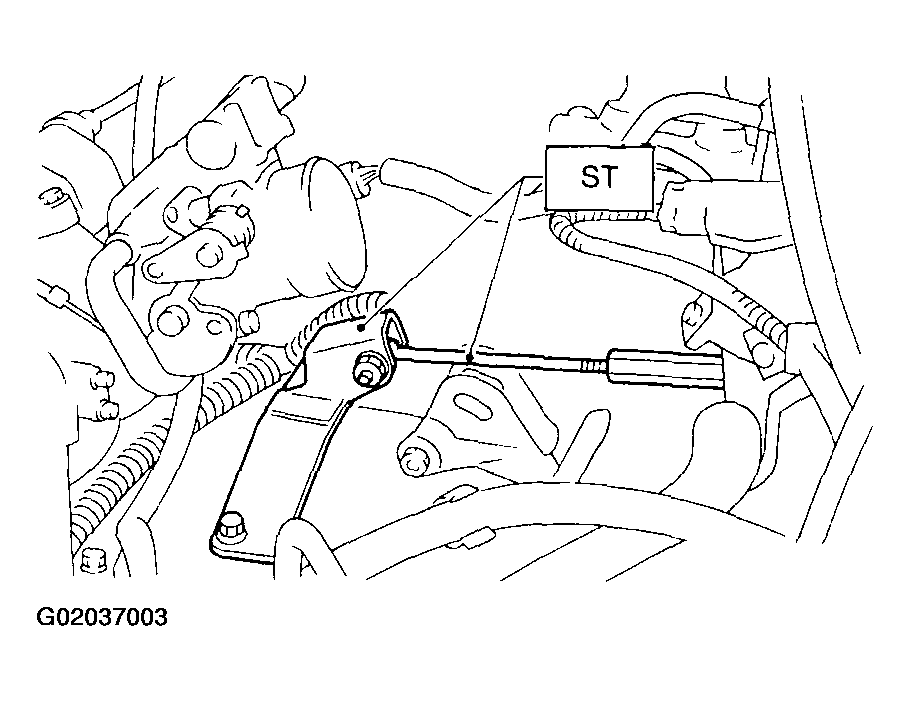

Fig 1: Installing ST To Torque Converter Clutch Case
Install transmission onto engine.
1. Gradually raise transmission with transmission jack.

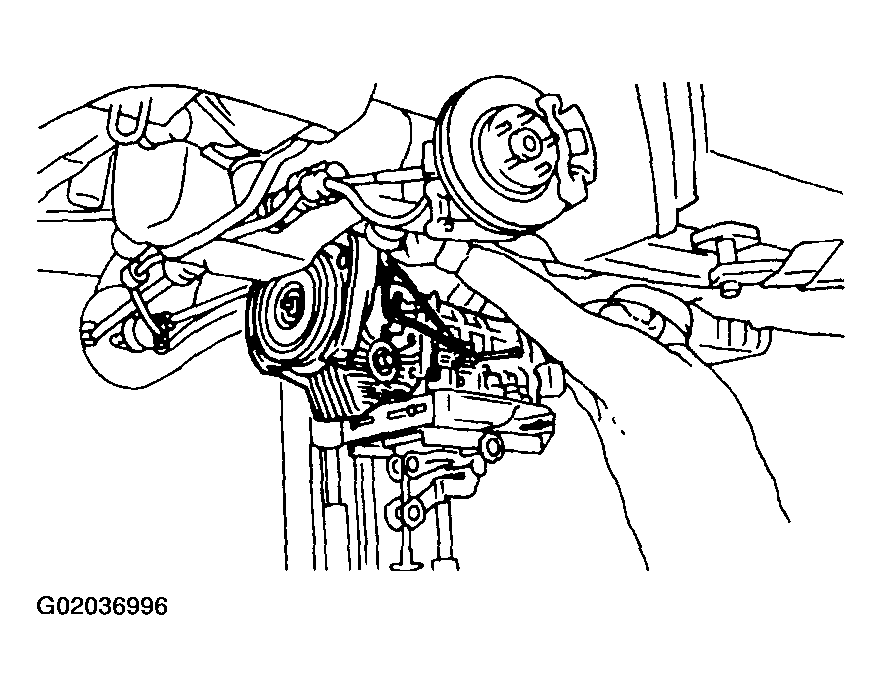

  Fig 2: Install Transmission Onto Engine
2. Engage them at splines.
Install transmission rear crossmember.
Tightening torque:
1. T1: 35 N.m (3.6 kgf-m, 26 ft-lb)
2. T2: 75 N.m (7.6 kgf-m, 55 ft-lb)

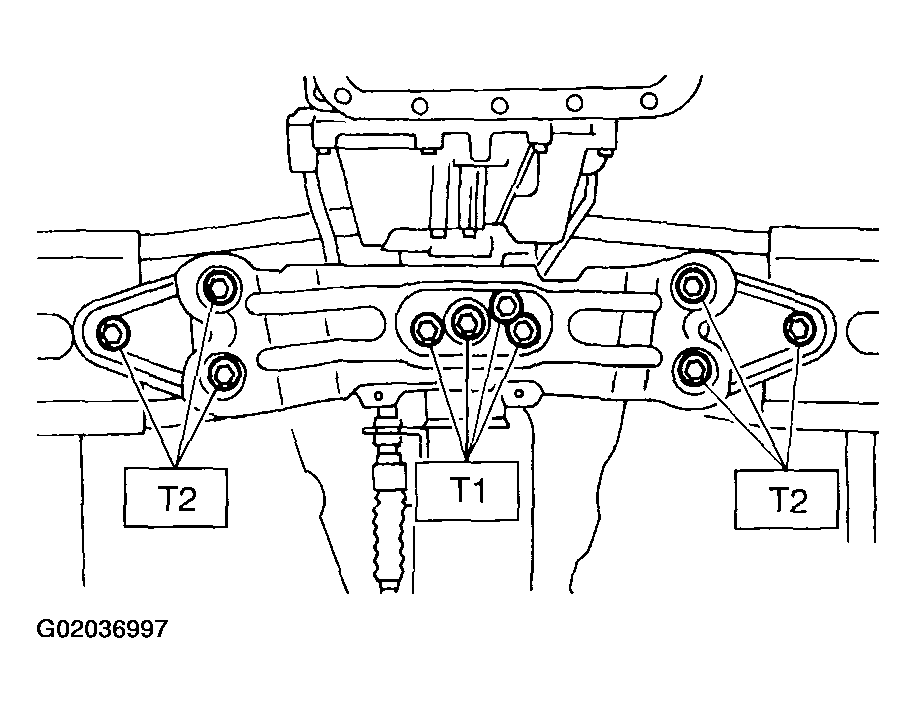

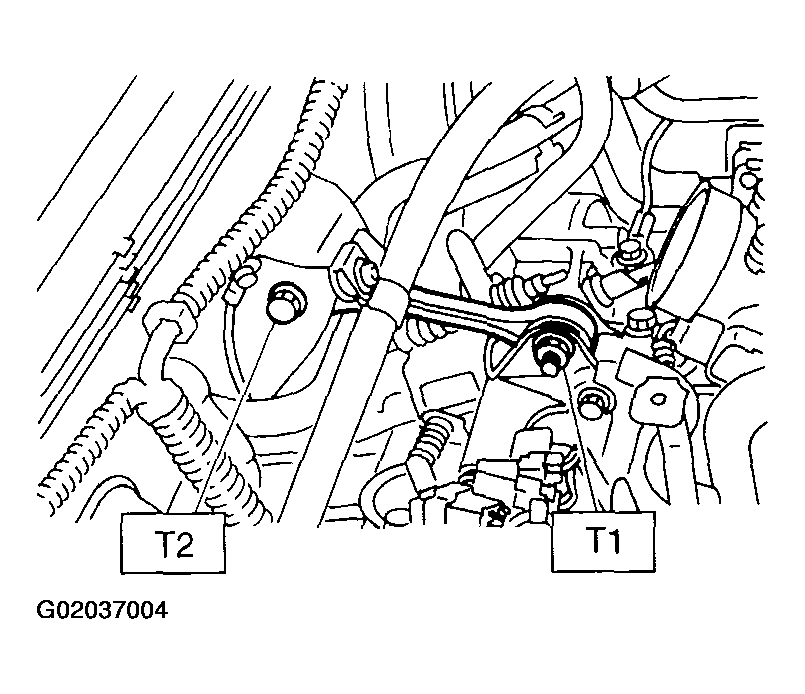

  Fig 3: Installing Transmission Rear Crossmember
Take off transmission jack.
Tighten nuts which hold lower side of transmission to engine.
Tightening torque:
1. 50 N.m (5.1 kgf-m, 36.9 ft-lb)

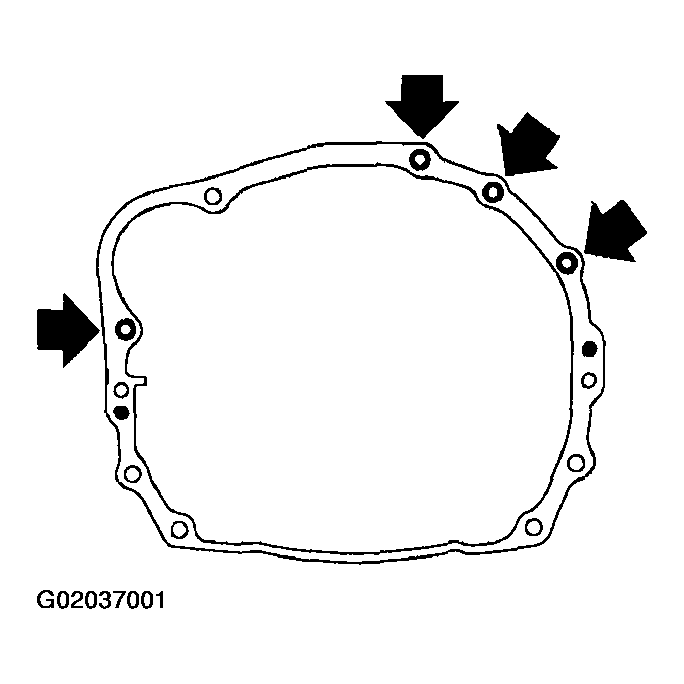

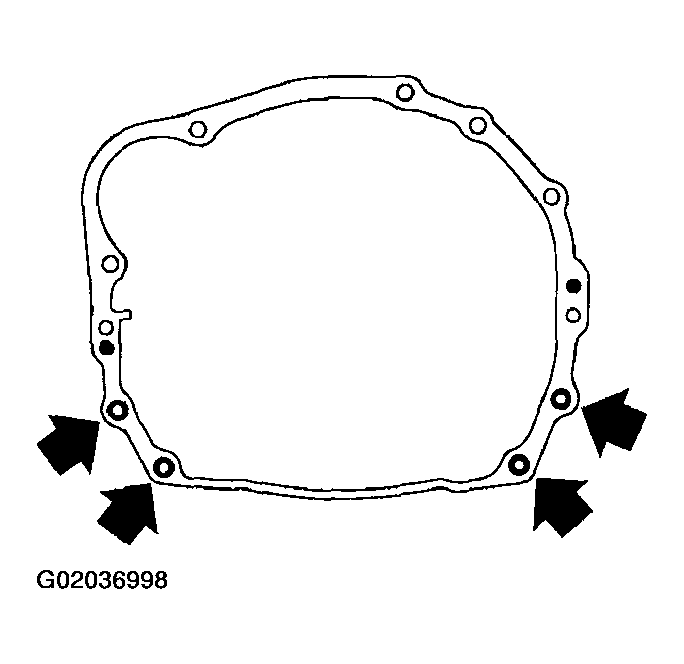

  Fig 4: 2.5 L Model

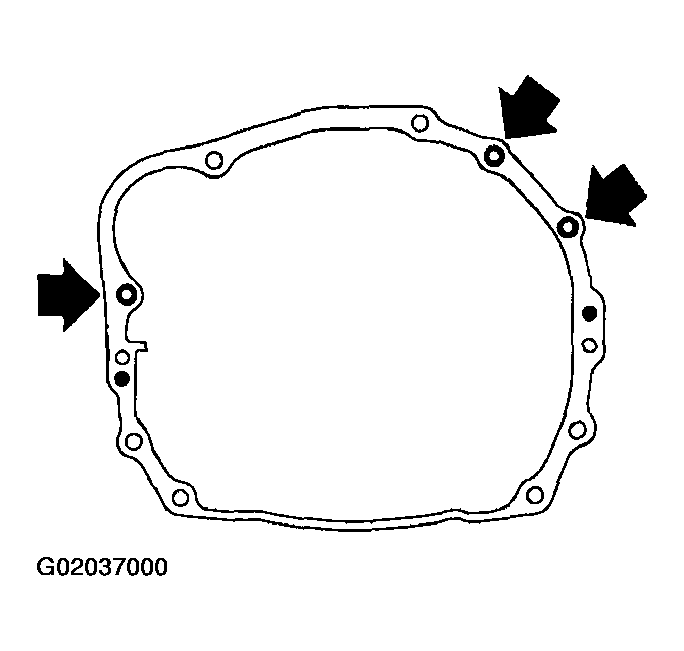

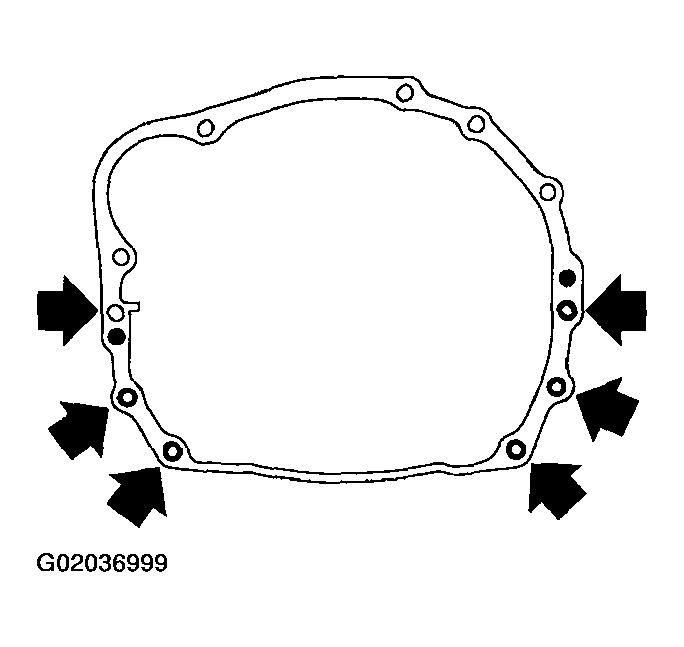

  Fig 5: 3.0 L Model
Connect engine and transmission.
1. Remove ST from torque converter clutch case.
  NOTE: Be careful not to drop the ST into the torque converter clutch case when removing ST.

  ST 498277200 STOPPER SET
2. Install starter.
3. Tighten bolt which holds right upper side of transmission to engine.
  Tightening torque:
  1. 50 N.m (5.1 kgf-m, 36.9 ft-lb)
Fig 6: 2.5 L Model

Fig 7: 3.0 L Model
Install torque converter clutch to drive plate.
1. Tighten bolts which hold torque converter clutch to drive plate.
2. Tighten other bolts while rotating the engine by using ST.
  CAUTION: Be careful not to drop bolts into torque converter clutch housing.

  ST 499977100 CRANK PULLEY WRENCH

  Tightening torque:
  1. 25+/-2 N.m (2.5+/-0.2 kgf-m, 18.1+/-1.4 ft-lb)

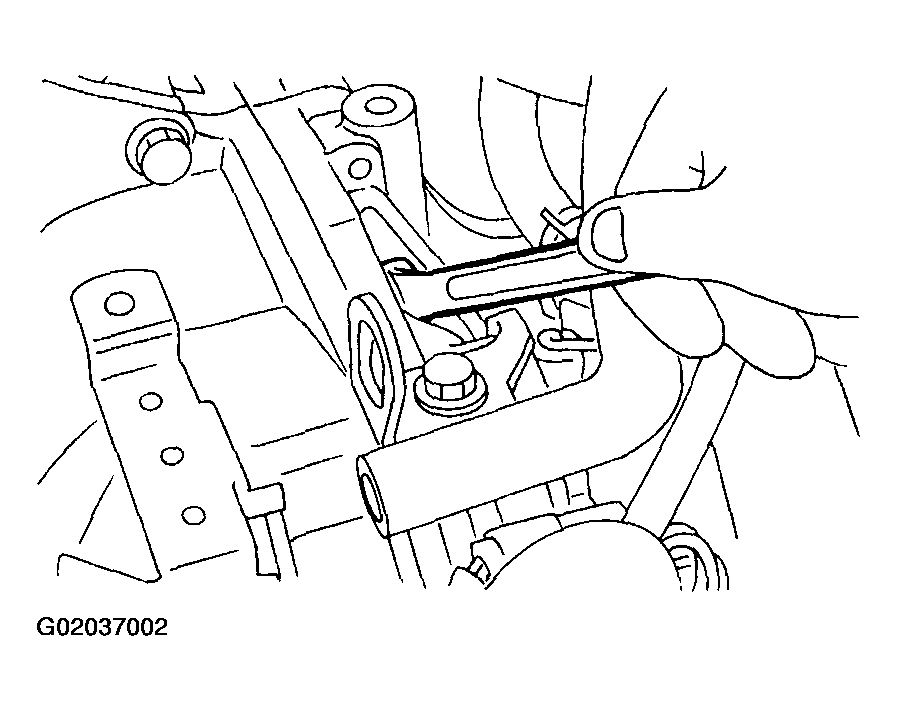

    Fig 8: Tightening Bolts Which Hold Torque Converter & Additional Bolts With ST 499977100 Crank Pulley Wrench
3. Clog plug onto service hole.
Remove ST.

Fig 9: Removing ST
Install pitching stopper.
Tightening torque:
1. T1: 50 N-m (5.1 kgf-m, 37 ft-Ib)
2. T2: 58 N-m (5.9 kgf-m, 43 ft-Ib)

  Fig 10: Installing Pitching Stopper
Install front drive shafts into transmission.
1. Lift-up the vehicle.
2. Install front drive shaft into transmission.
3. Drive spring pin into chamfered hole of drive shaft.
  CAUTION: Always use a new spring pin.

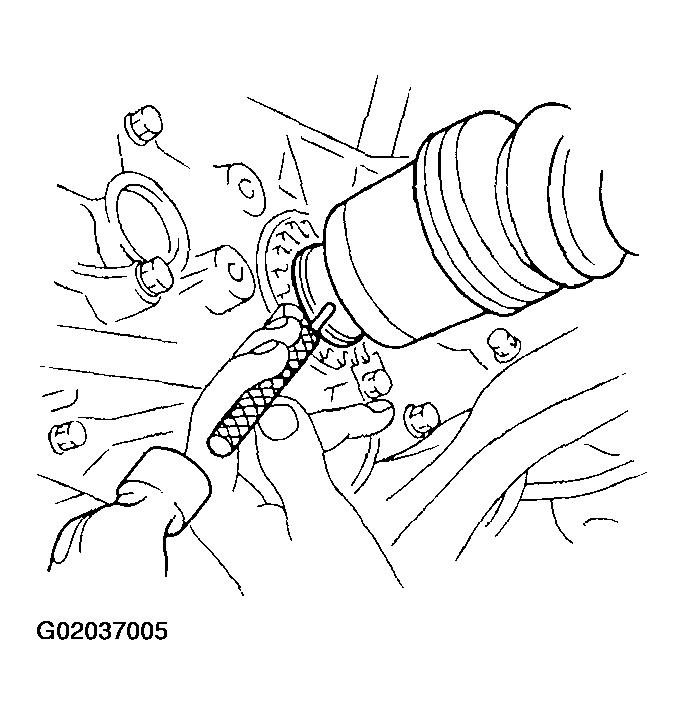

  Fig 11: Installing Front Drive Shaft
4. Install ball joints of lower arm into knuckle arm of housing, and tighten installing bolts.
Tightening torque:
1. 49 N-m (5.0 kgf-m, 36 ft-Ib)

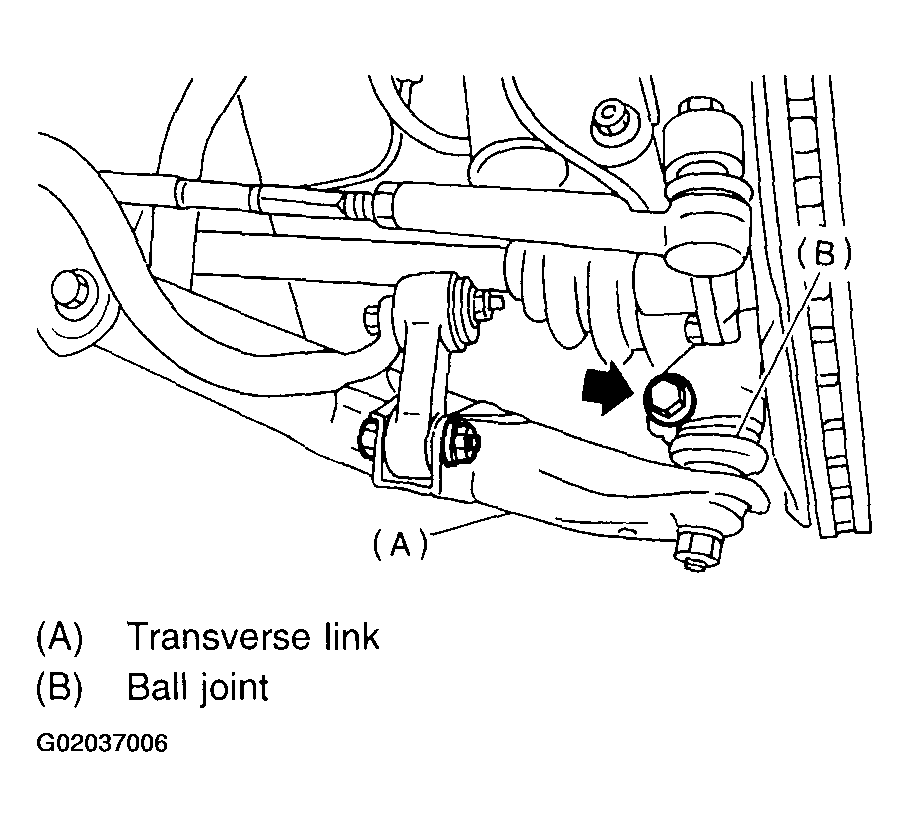

  Fig 12: Installing Ball Joints
Install stabilizer clamps onto front crossmember.
Tightening torque:
1. 25 N-m (2.5 kgf-m, 18.1 ft-Ib)

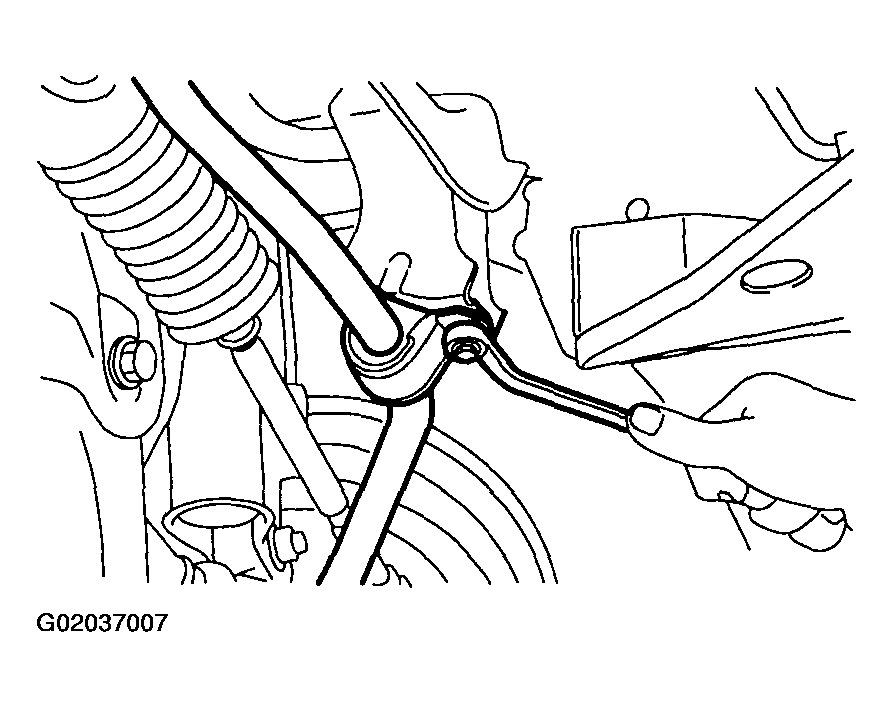

  Fig 13: Install Stabilizer Clamps
Install shift select cable onto select lever. See SELECT CABLE .
Install ATF level gauge guide, and connect ATF cooler hoses to pipe.

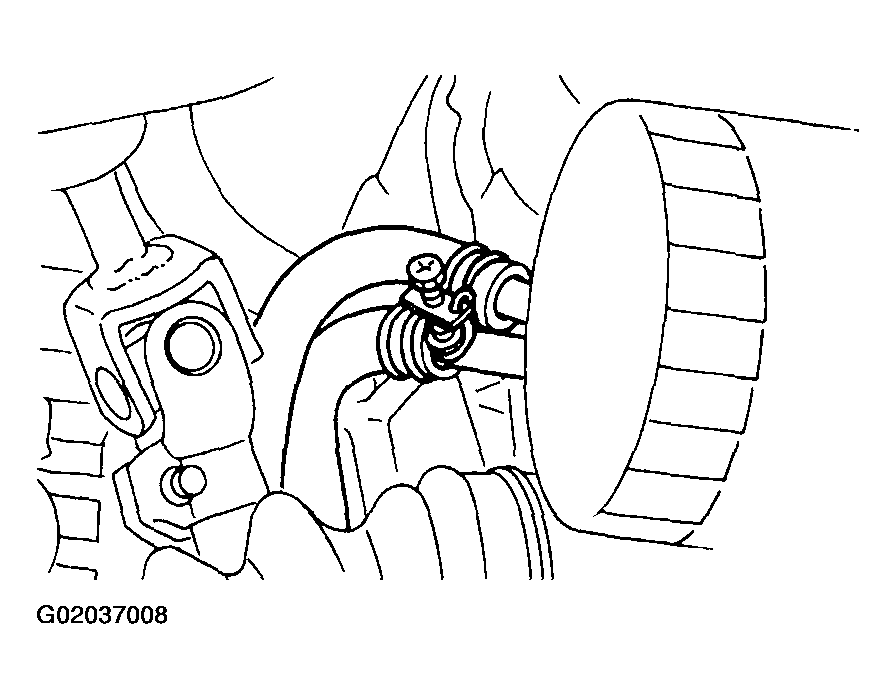

Fig 14: Installing ATF Level Gauge Guide & Connecting ATF Cooler Hose
Install propeller shaft. See REMOVAL, DISASSEMBLY, REASSEMBLY & INSTALLATION .
Install heat shield cover.

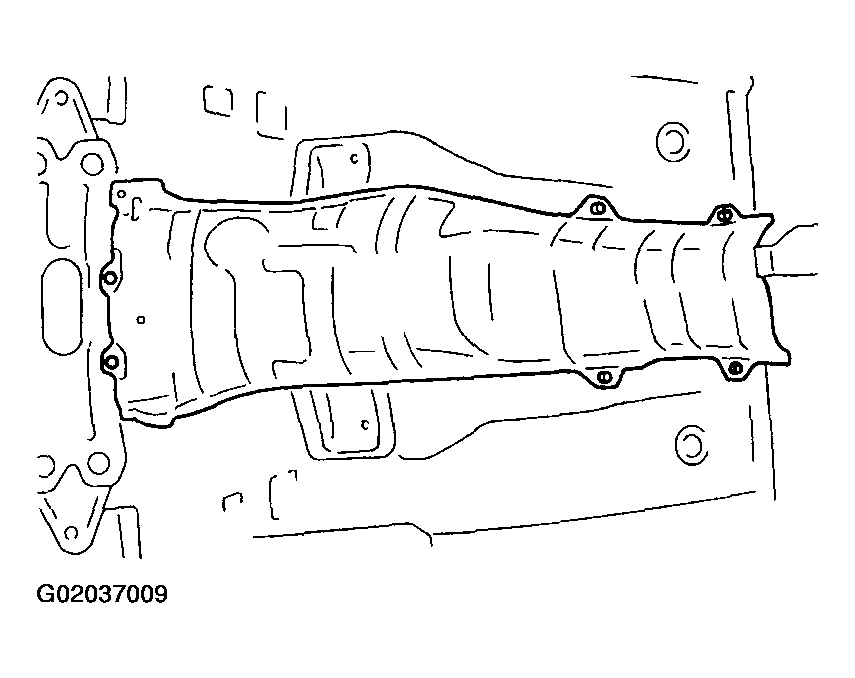

Fig 15: Install Heat Shield Cover
Install rear exhaust pipe to muffler.
Install front exhaust pipe and center exhaust pipe.
Install under cover.
Install ATF level gauge.

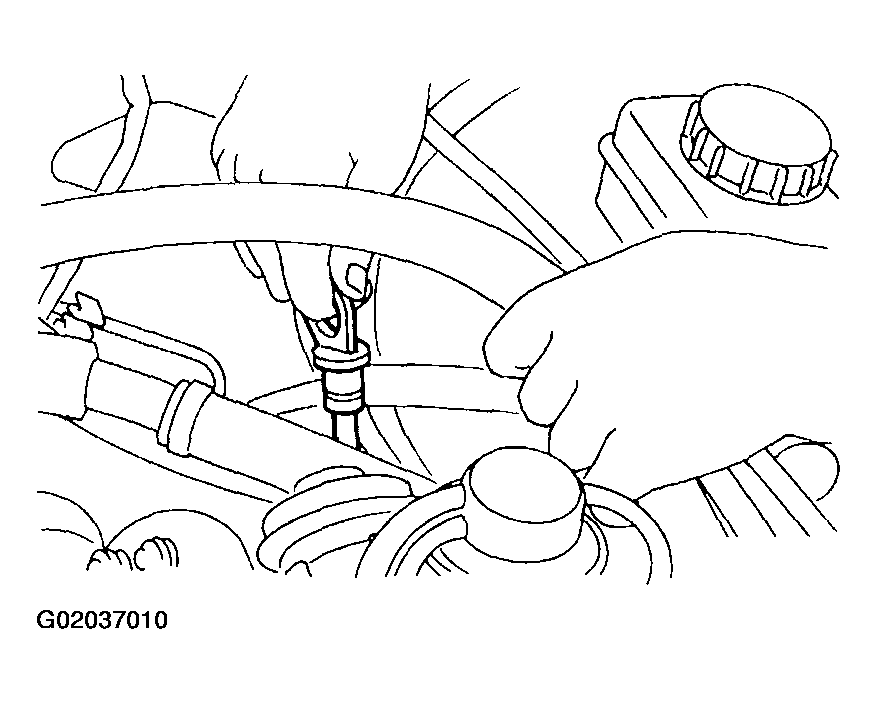

Fig 16: Installing ATF Level Gauge
Connect the following connectors.
1. Transmission harness connectors
2. Transmission ground terminal
3. Oxygen sensor connector
Connect the following cables.
1. Cruise control cable (With cruise control vehicles)
Install air cleaner case stay.
Tightening torque:
1. 16 N-m (1.6 kgf-m, 11.6 ft-Ib)
Install air cleaner case.
Connect battery ground cable.
Fill ATF up to the middle of the "COLD" side on level gauge by using the gauge hole.
Recommended fluid:
1. Dexron III type automatic transmission fluid
Fluid capacity:
1. 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
Take off vehicle from lift arms.
Check select lever operation. See Inhibitor Switch .
Run the vehicle until the ATF temperature rises from 60 to 80°C (140 to 176°F) and check the ATF level of the "HOT" side on level gauge.
Check the vehicle on the road tester. See Road Test .
