Control Valve Body: Installation

Set the select lever in "N" position.
Install the control valve and ground earth connectors.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)

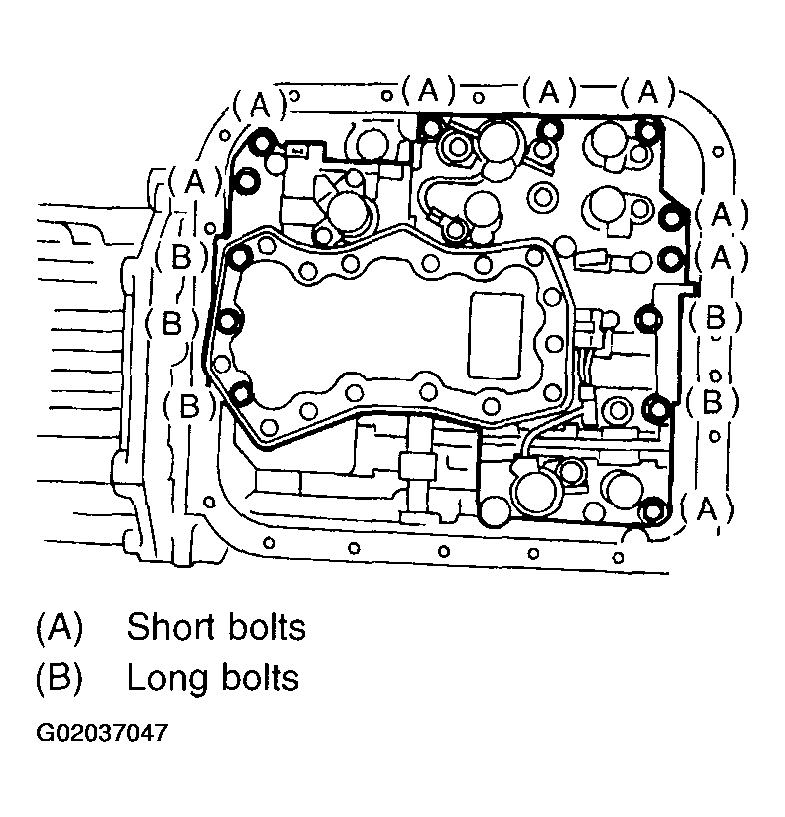

  Fig 1: Identifying Long & Short Bolts
Connect all connector.

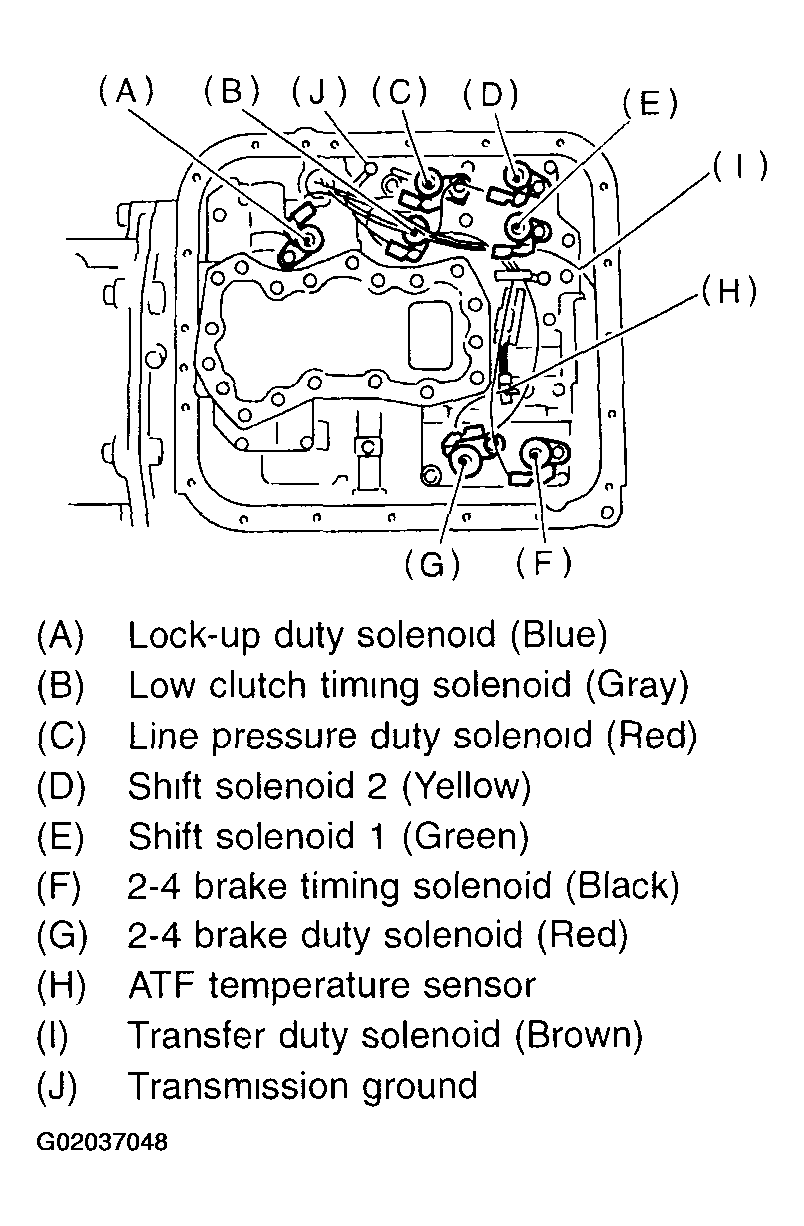

Fig 2: Connecting All Connector
Attach the magnet at the specified position.

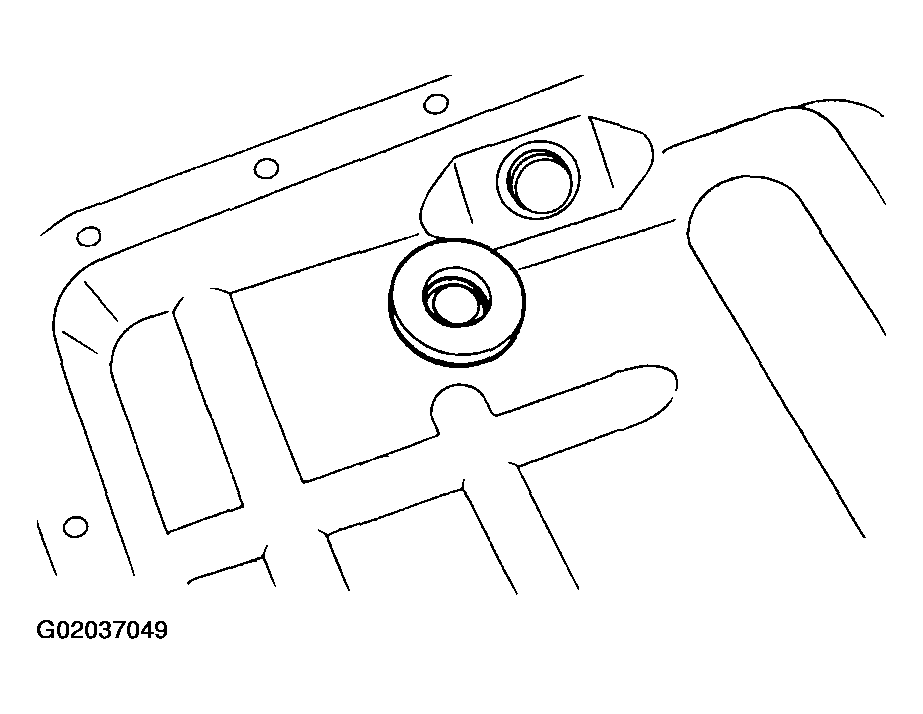

Fig 3: Attaching The Magnet
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Fluid packing:

Tree Bond 1217B

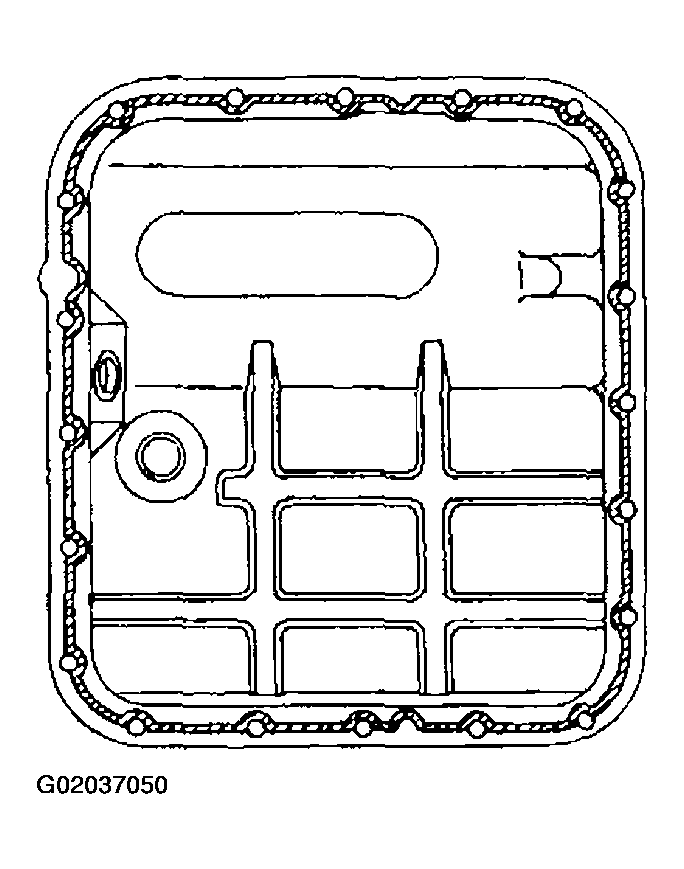

Fig 4: Applying Liquid Gasket
Install the oil pan.
Tightening torque:
1. 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe.
Recommended fluid:
1. Dexron IIE or Dexron III type automatic transmission fluid
Fluid capacity: 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 -8.4 Imp qt)
Check the level of the ATF.
