Control Valve Body: Removal

Clean transmission exterior.
Drain ATF completely.
NOTE: Tighten ATF drain plug after draining ATF.

Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

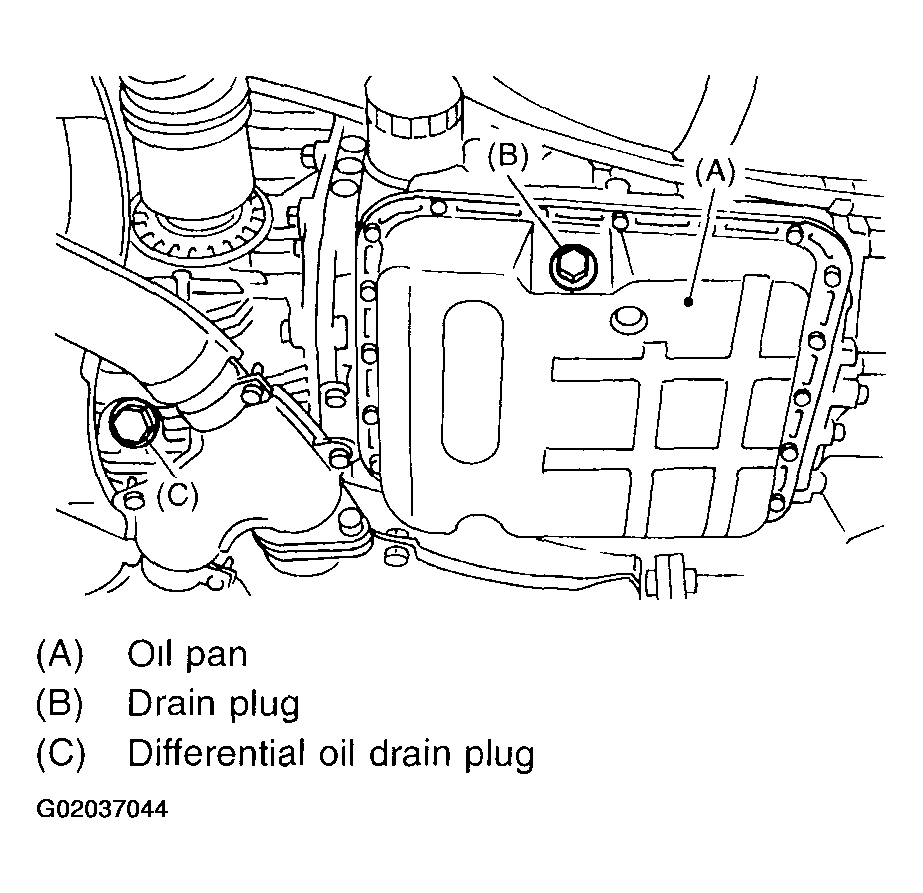

Fig 1: Locating ATF Drain Plug
Remove the oil pan.
NOTE:
- Remove and clean the magnet.
- Remove the old gasket on the oil pan and transmission case completely.
Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors at 9 places.

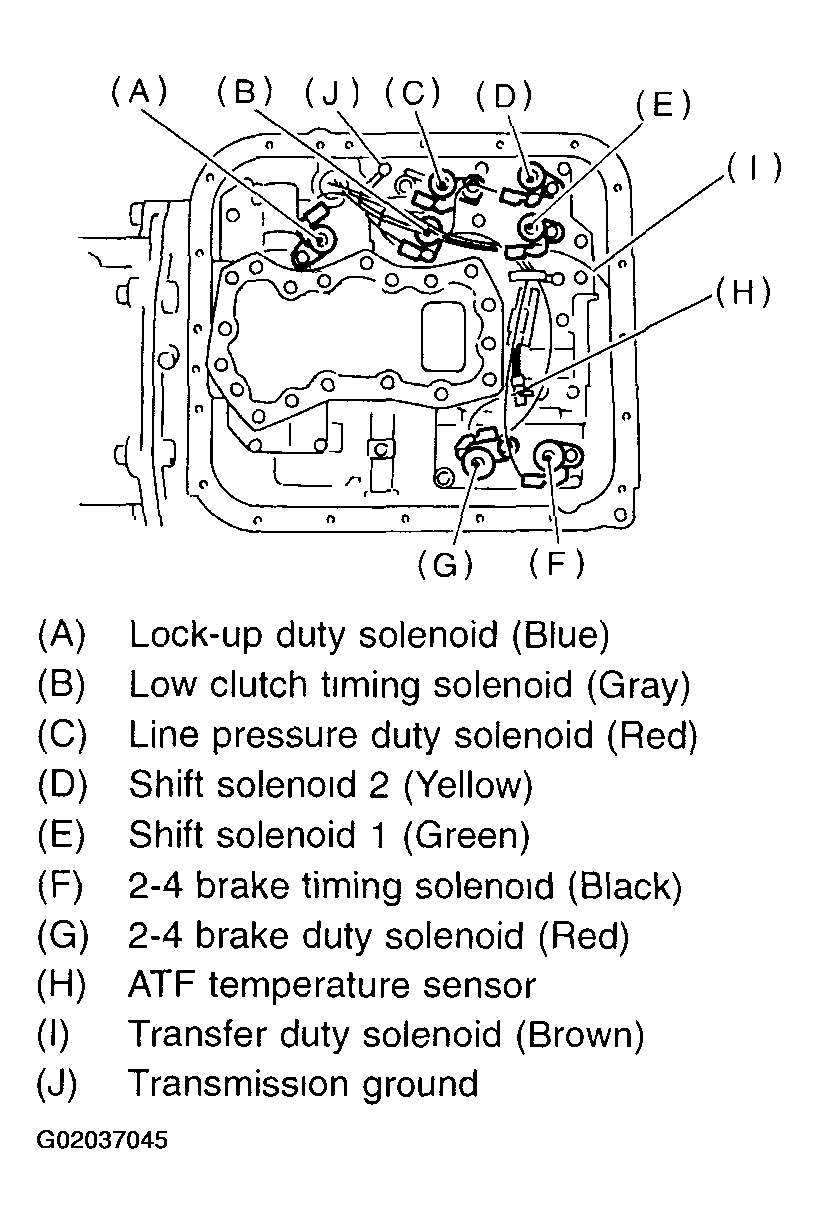

Fig 2: Disconnecting Duty Solenoids & ATF Temperature Sensor Connectors - Removing Connectors From Clip & Disconnecting Connectors
Remove the control valve.
CAUTION: When removing control valve body, be careful not to interfere with transfer duty solenoid wiring.

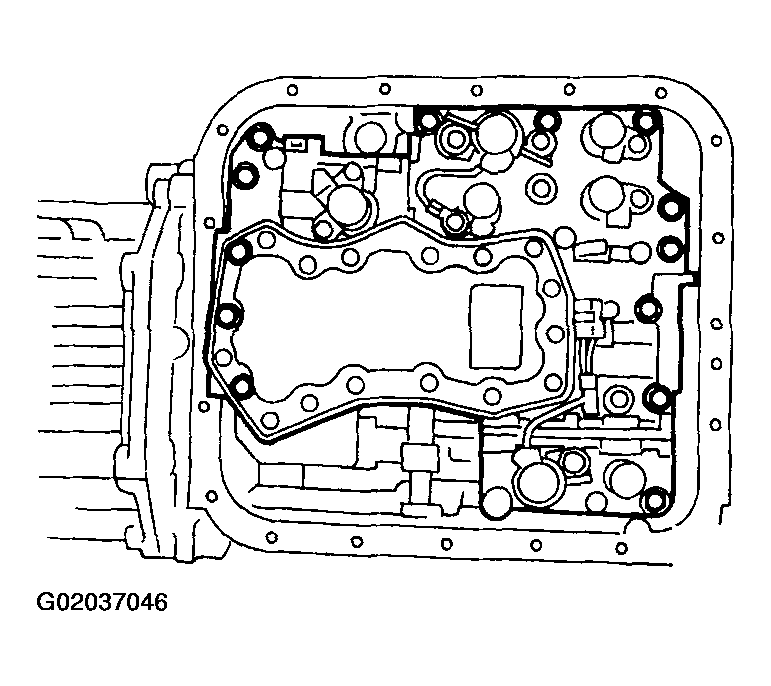

Fig 3: Removing Control Valve Body
