Dropping Resistor: Installation

  1. Install in the reverse order of removal.

    Tightening torque:

    1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

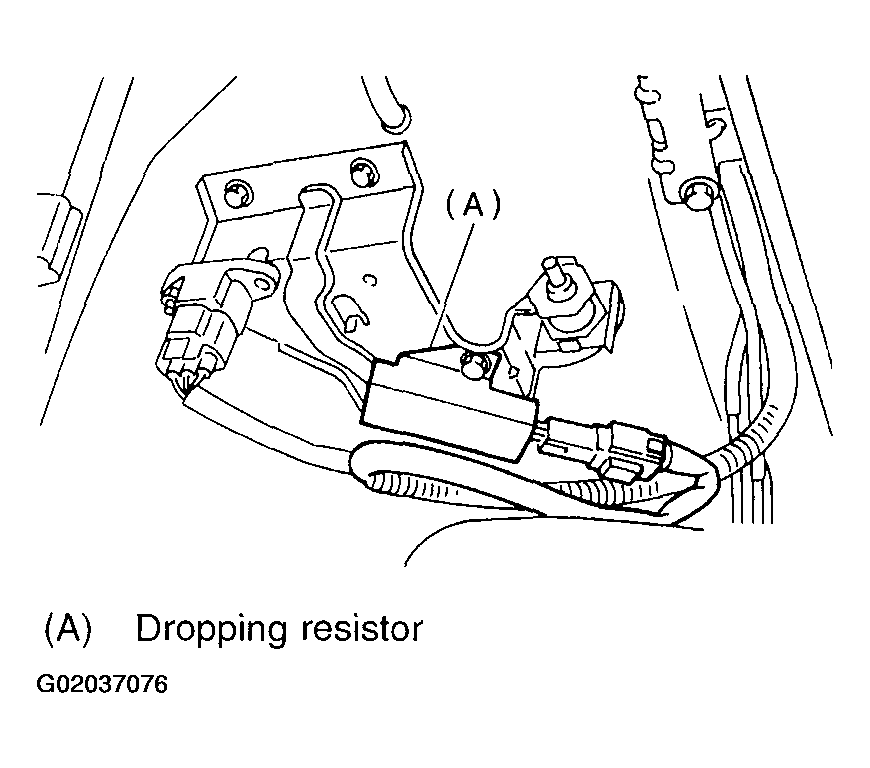

    Fig 1: Locating Dropping Resistor (2.5 L Model)
    G02037076

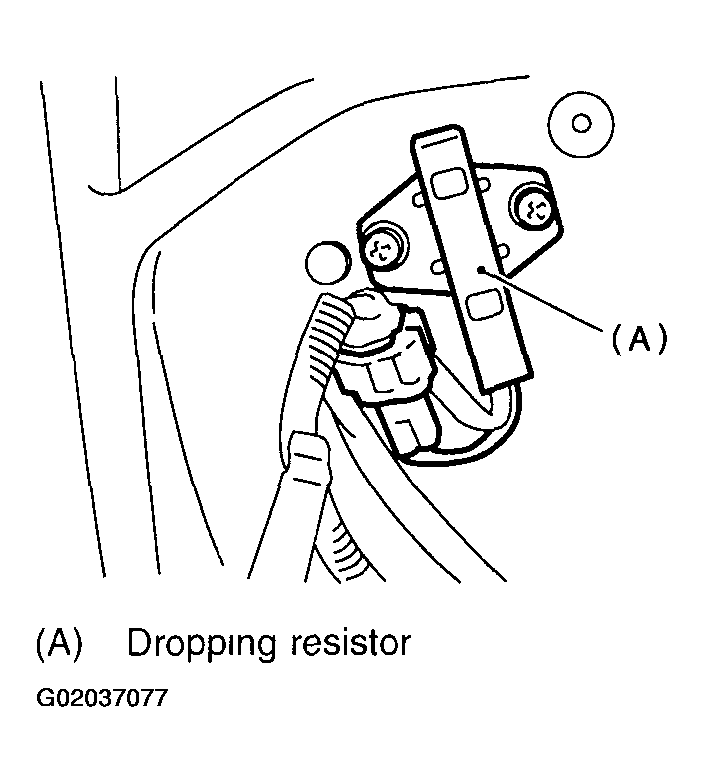

    Fig 2: Locating Dropping Resistor (3.0 L Model)
    G02037077
