Inhibitor Switch: Installation

Install inhibitor switch to transmission case.

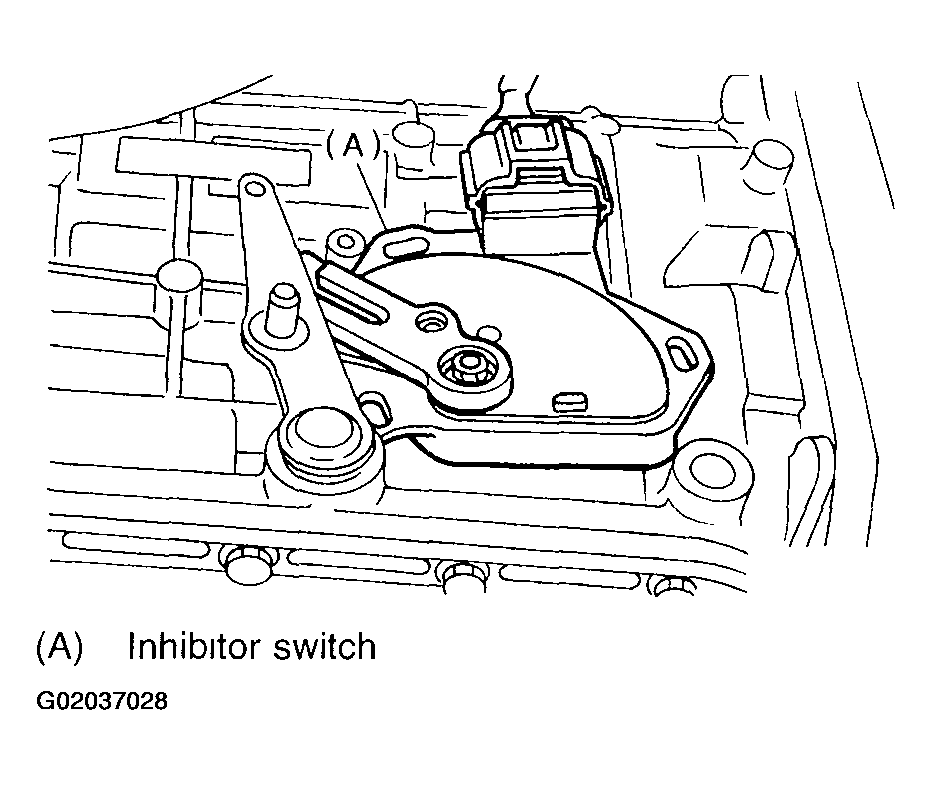

Fig 1: Installing Inhibitor Switch To Transmission Case
Move range select lever to neutral position.
Using ST, tighten bolts of inhibitor switch. ST 499267300 STOPPER PIN

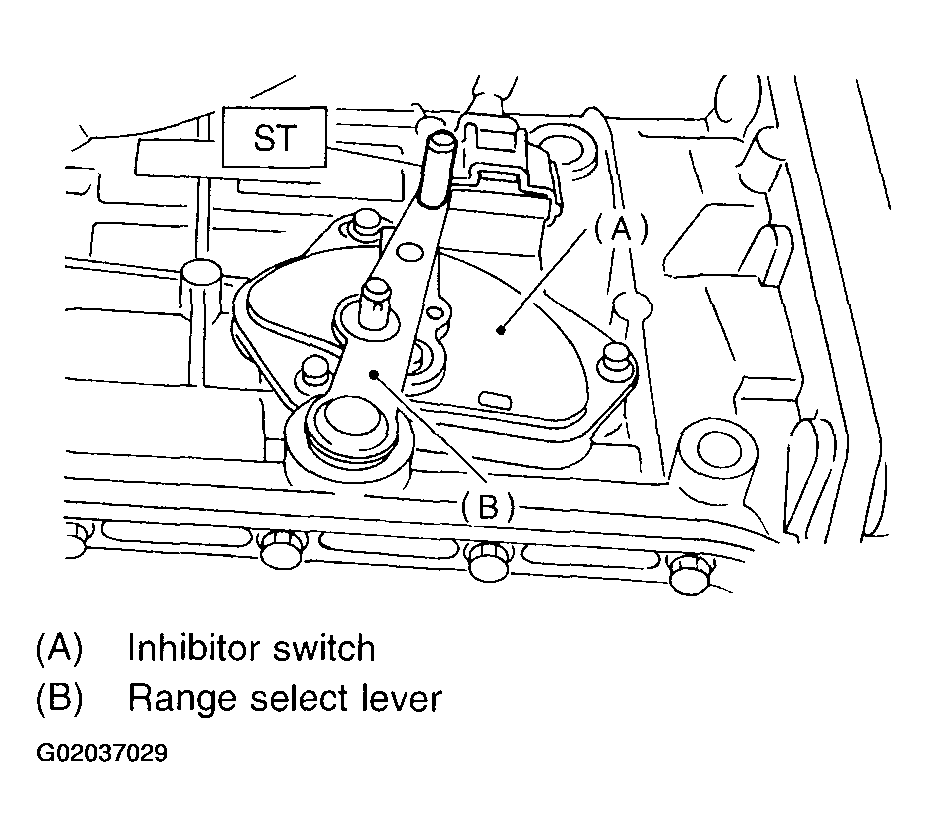

Fig 2: Moving Range Select Lever To Neutral Position
Install select cable to range select lever.
Install plate assembly to transmission.
Tightening torque:
1. T: 24.5 N-m (2.50 kgf-m, 18.1 ft-Ib)

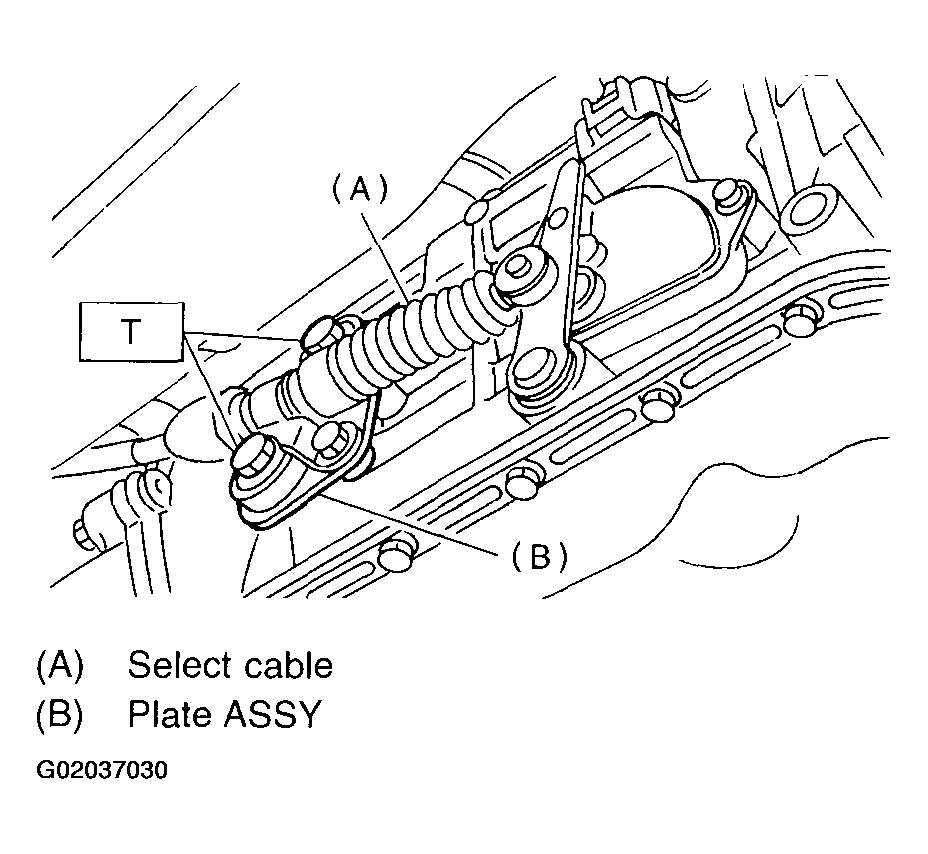

  Fig 3: Installing Plate Assembly
Install snap pin to range select lever.

Fig 4: Installing Snap Pin
Install center exhaust pipe.
Connect inhibitor switch connector.

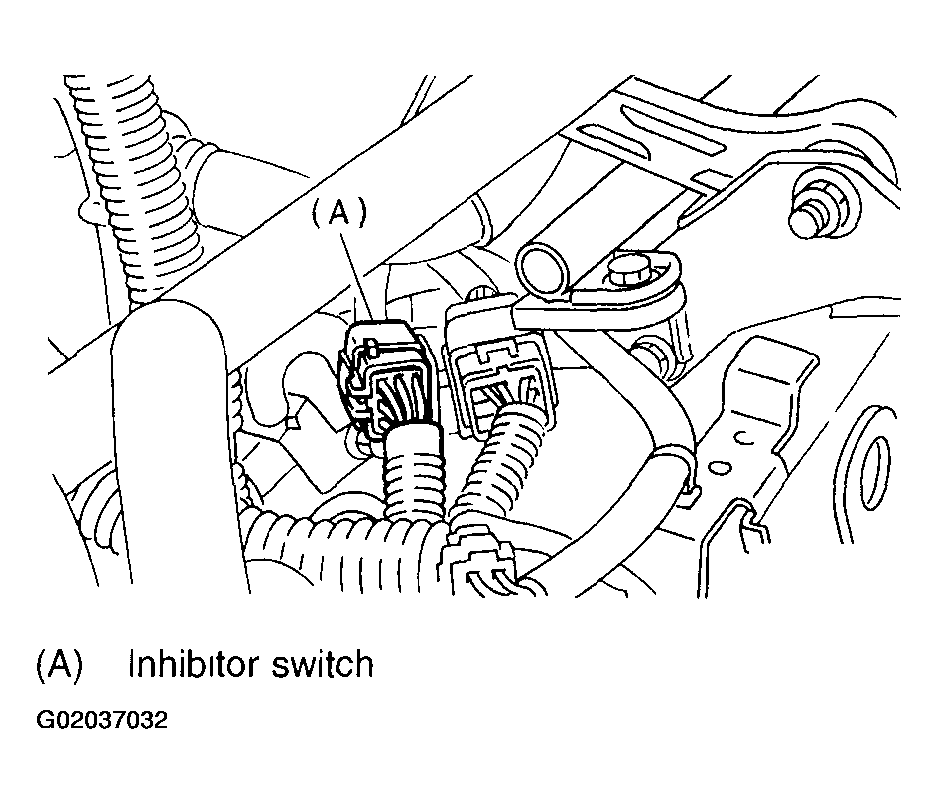

Fig 5: Connecting Inhibitor Switch Connector
Install air intake chamber and duct.
