Inhibitor Switch: Removal

  1. Move select lever to neutral position.
  2. Remove air intake chamber and duct.
  3. Disconnect inhibitor switch connector.

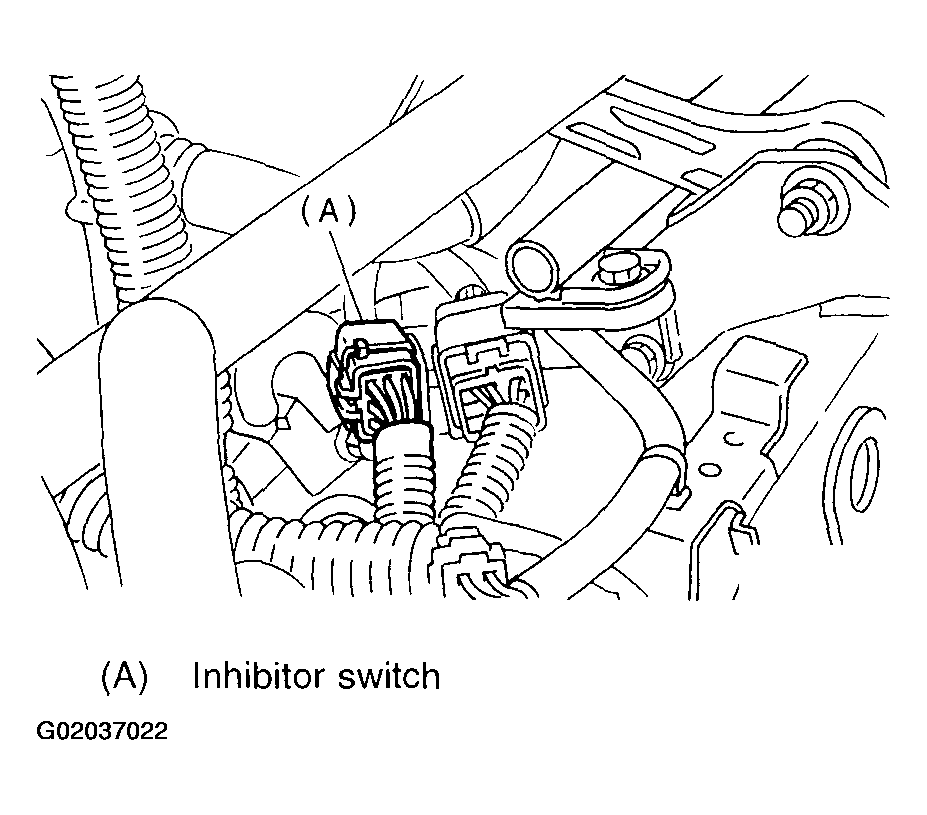

    Fig 1: Disconnecting Inhibitor Switch Connector
    G02037022
  4. Remove center exhaust pipe.
  5. Remove snap pin from range select lever.

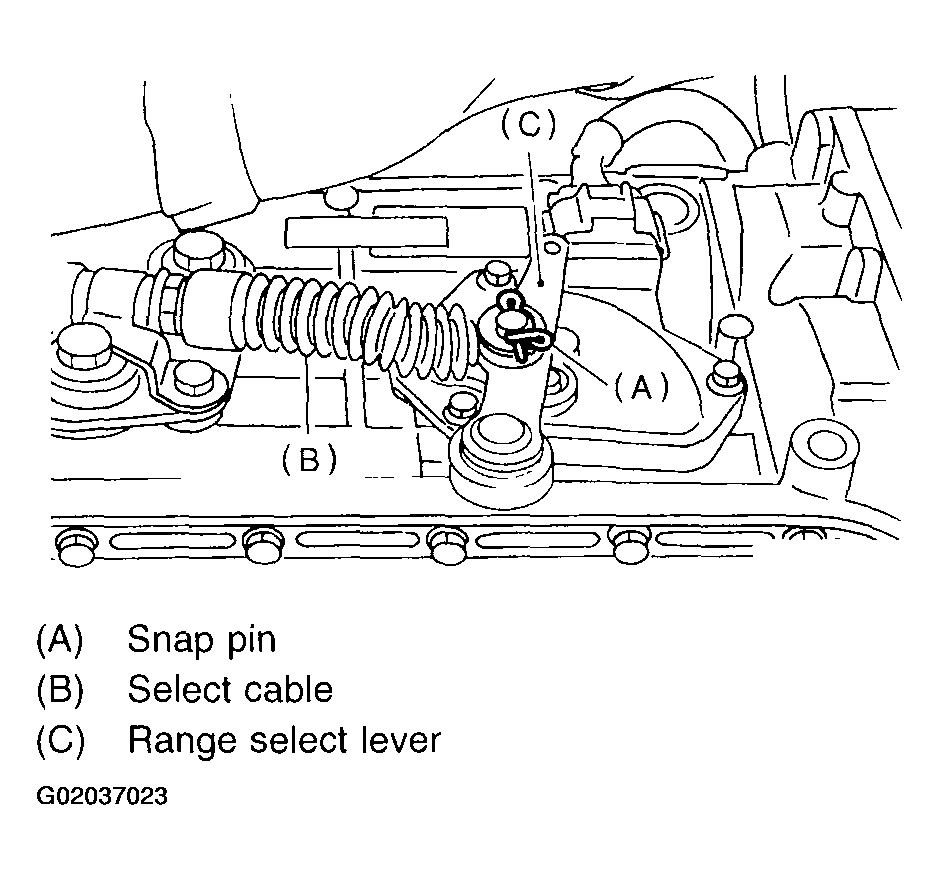

    Fig 2: Removing Snap Pin From Range Select Lever
    G02037023
  6. Remove plate assembly from transmission case.

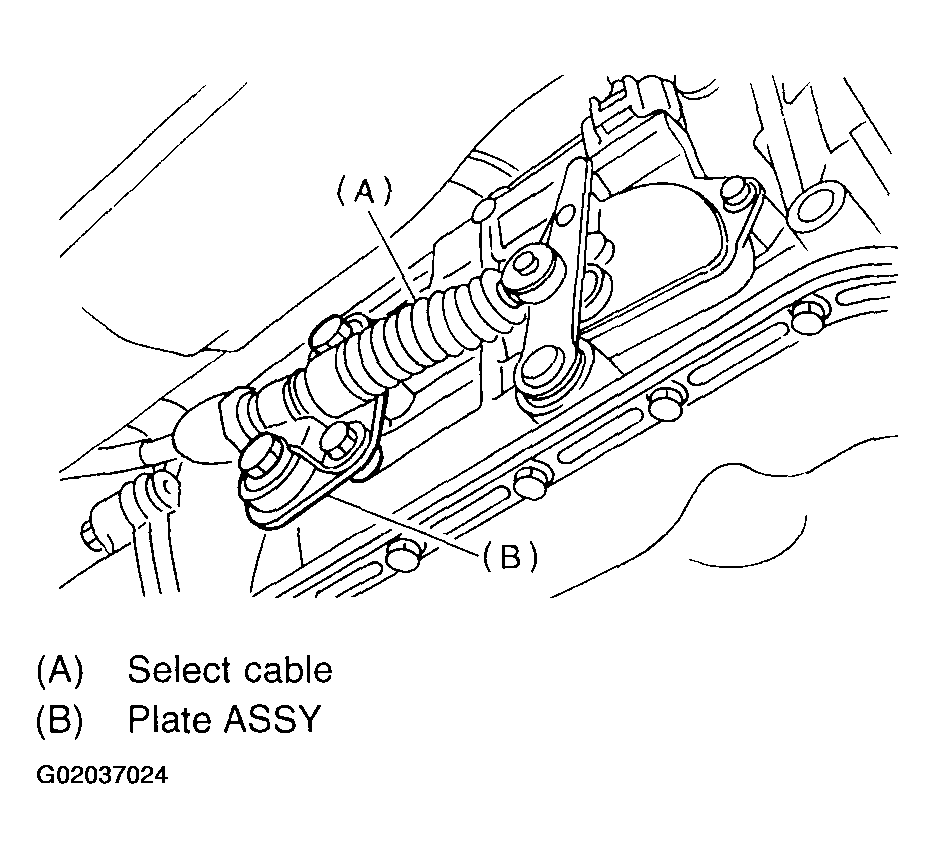

    Fig 3: Removing Plate Assembly From Transmission Case
    G02037024
  7. Remove bolts.

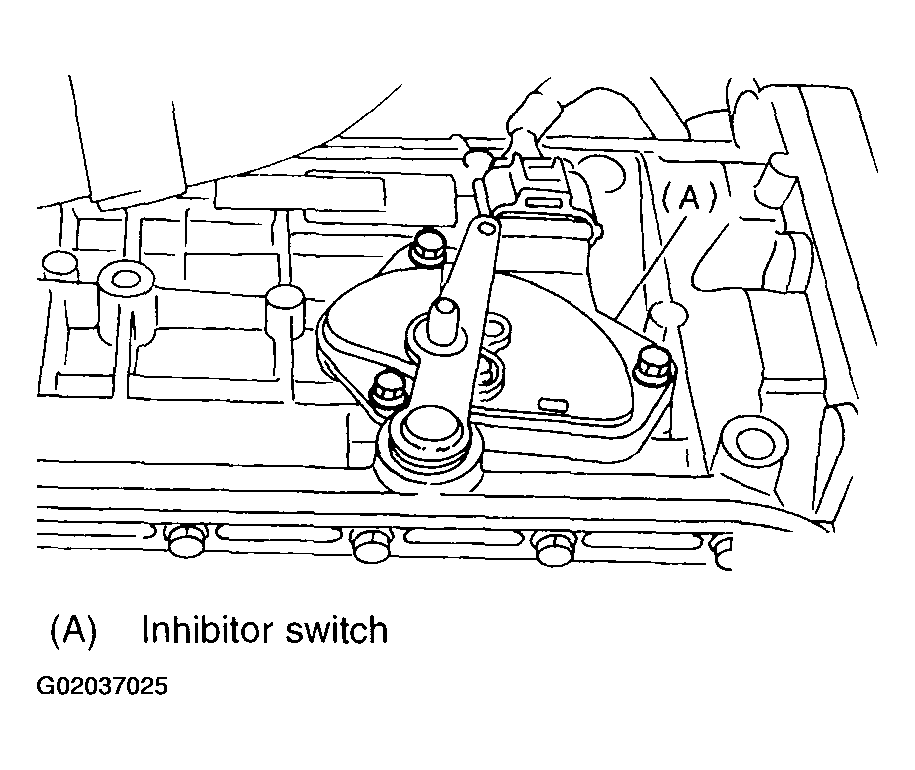

    Fig 4: Removing Bolts
    G02037025
  8. Move range select lever to parking position (left side).

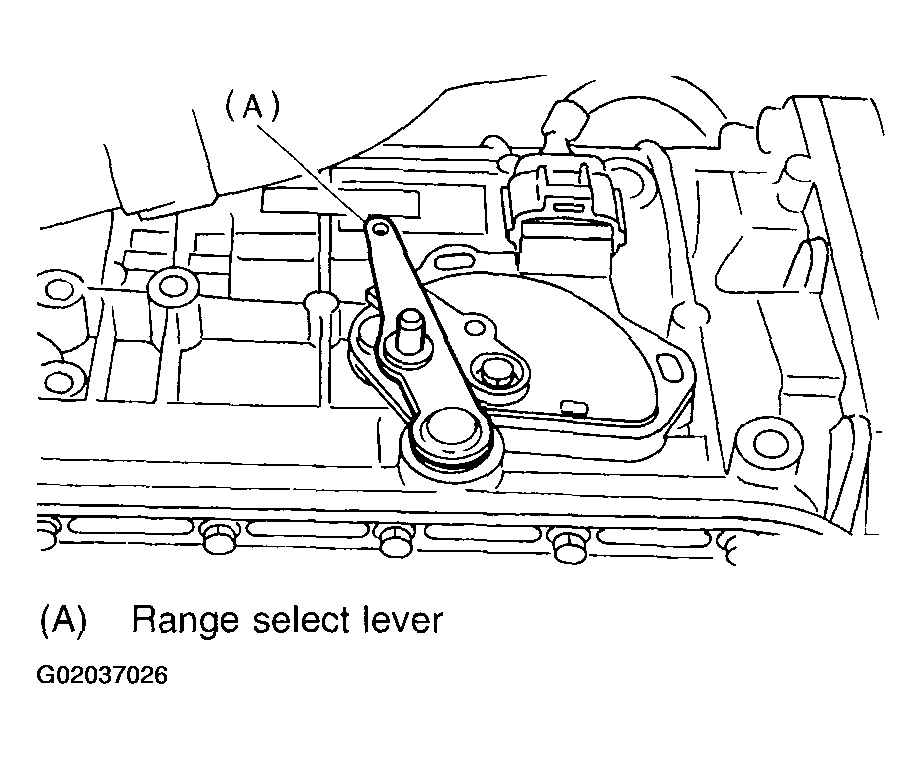

    Fig 5: Moving Range Select Lever To Parking Position (Left Side)
    G02037026
  9. Removing inhibitor switch from transmission.

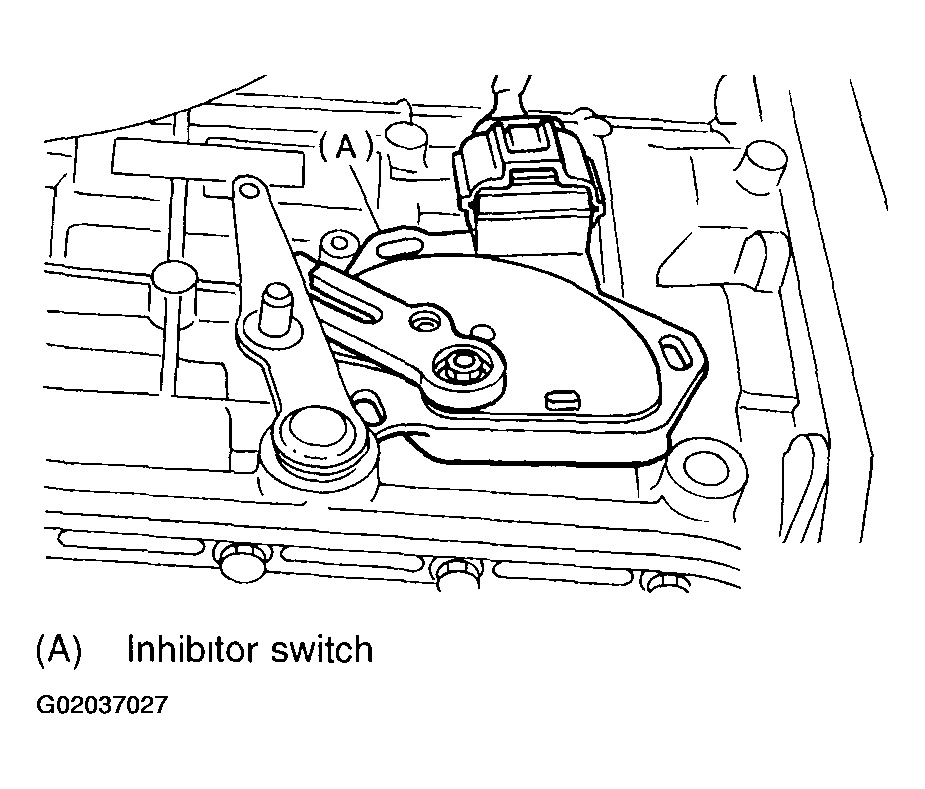

    Fig 6: Removing Inhibitor Switch From Transmission
    G02037027
