Transmission Control Module (TCM): Installation

  1. Install transmission control module.

    Tightening torque:

    1. 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)

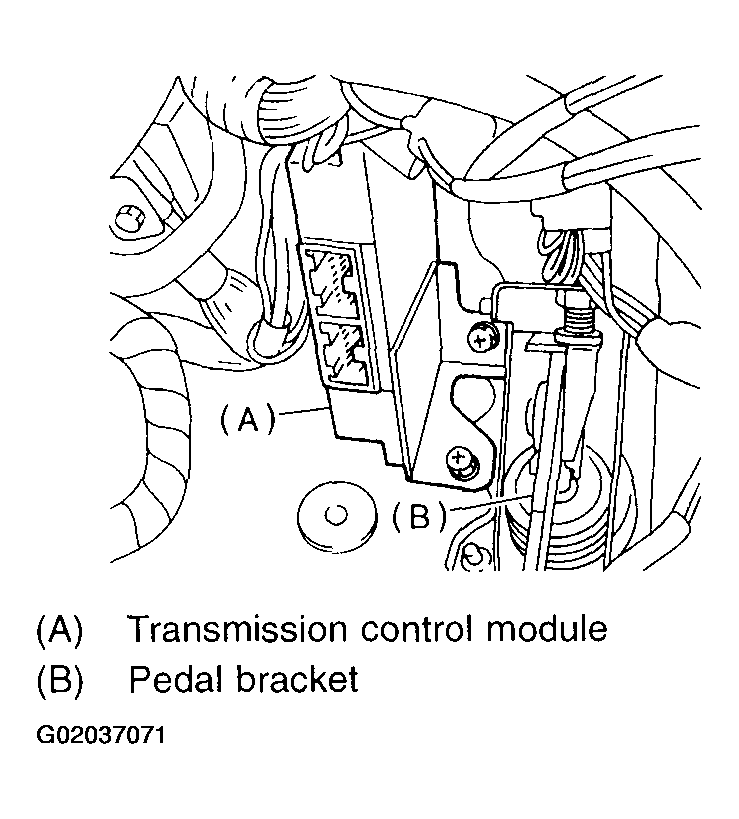

      Fig 1: Except VTD model
      G02037071

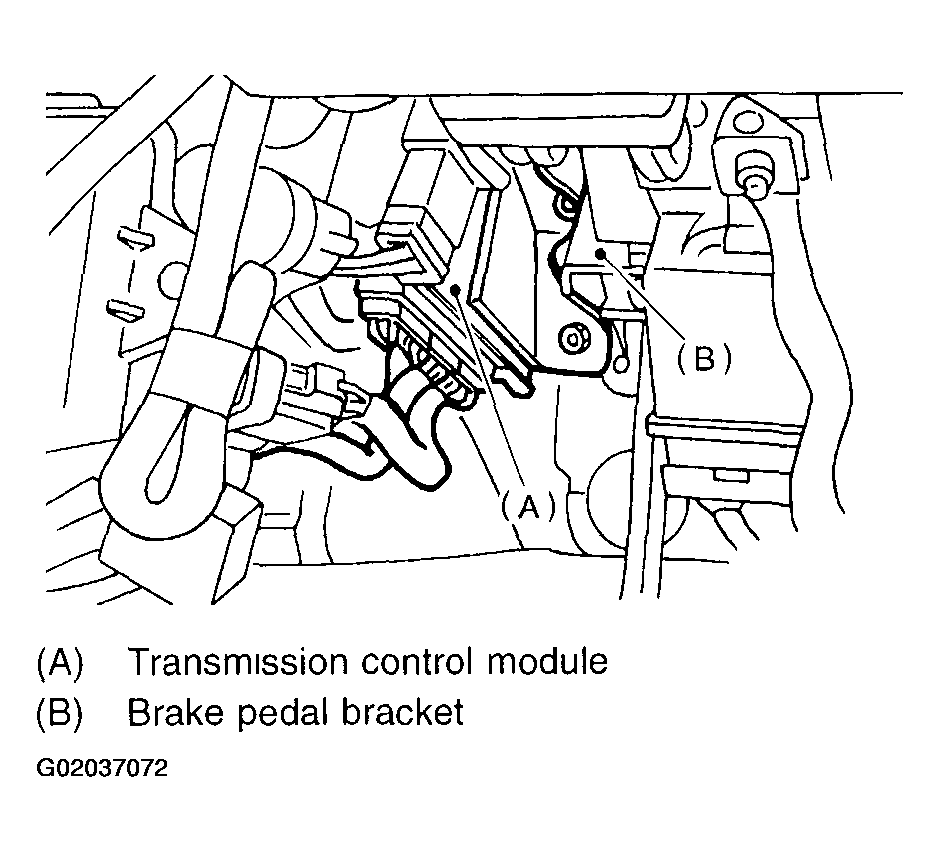

      Fig 2: VTD model
      G02037072
  2. Connect connectors to transmission control module.
  3. Install in the reverse order of removal.
