Transmission Control Module (TCM): Removal

  1. Disconnect battery ground cable.

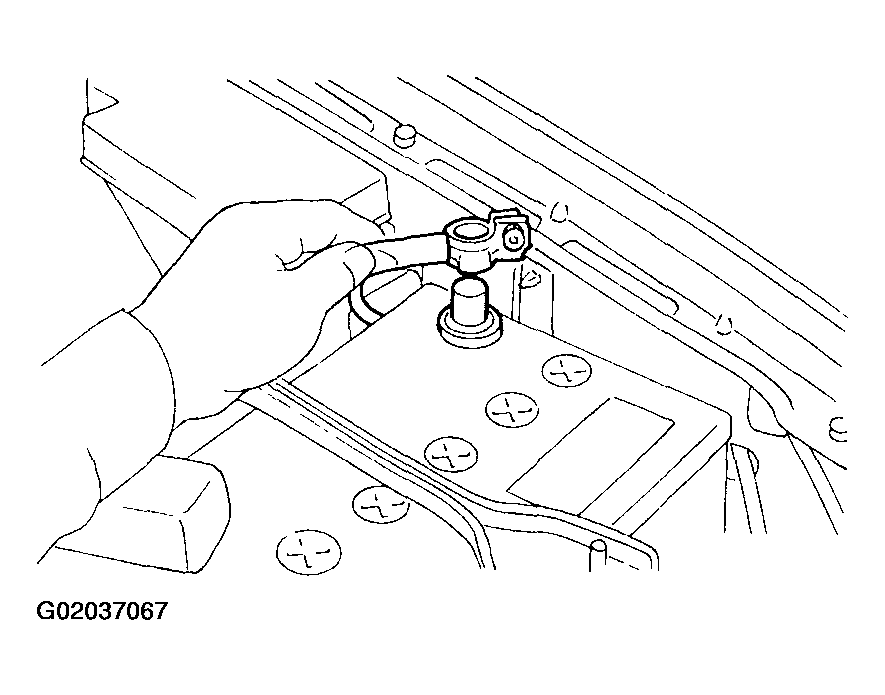

    Fig 1: Disconnecting Battery Ground Cable
    G02037067
  2. Remove lower cover and then disconnect connector.

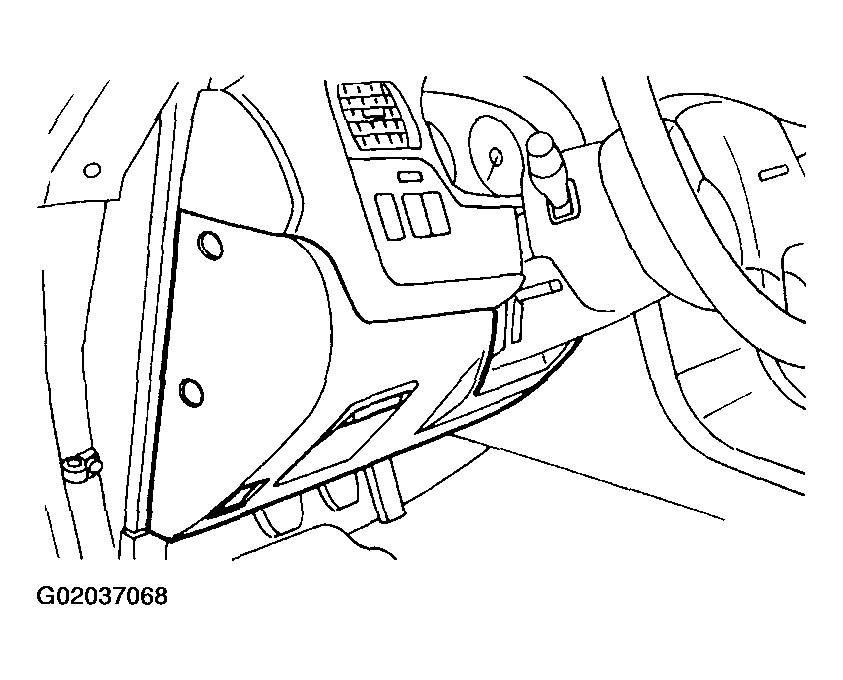

    Fig 2: Removing Lower Cover & Disconnecting Connector
    G02037068
  3. Disconnect connectors from transmission control module.
    Fig 3: Disconnecting Connectors From Transmission Control Module (Except VTD model)
    G02037069

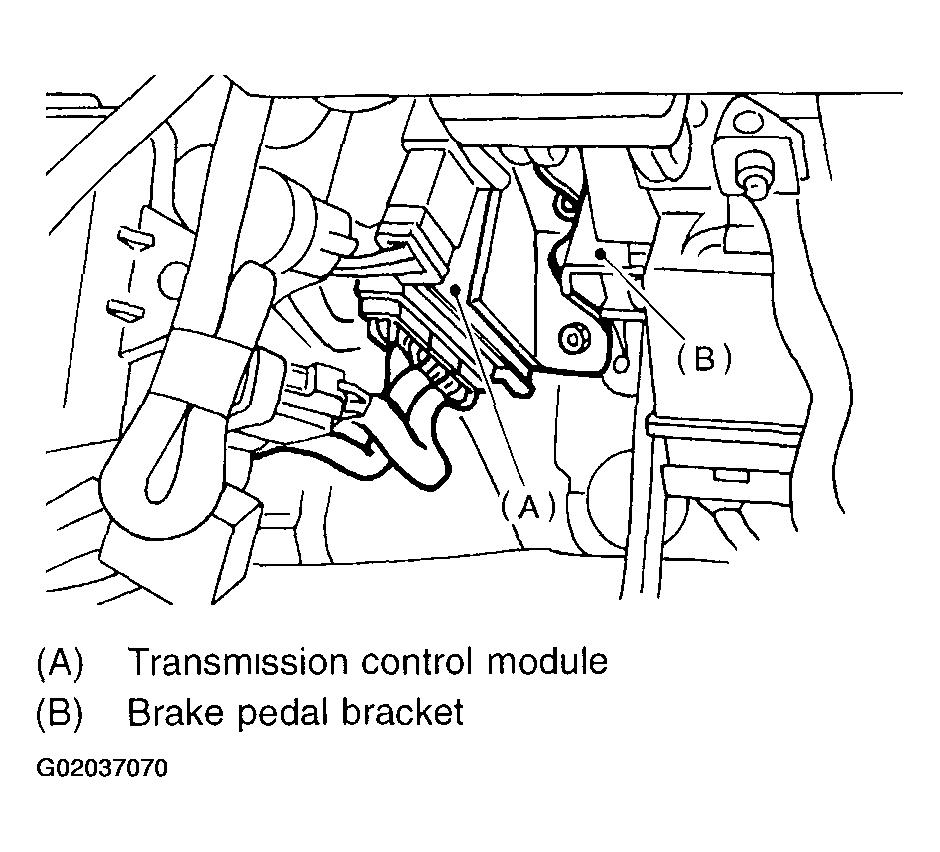

    Fig 4: Disconnecting Connectors From Transmission Control Module (VTD model)
    G02037070
  4. Remove transmission control module.
