2-4 Brake: Removal

  1. Extract the torque converter clutch assembly. See Torque Converter Clutch Assembly  .

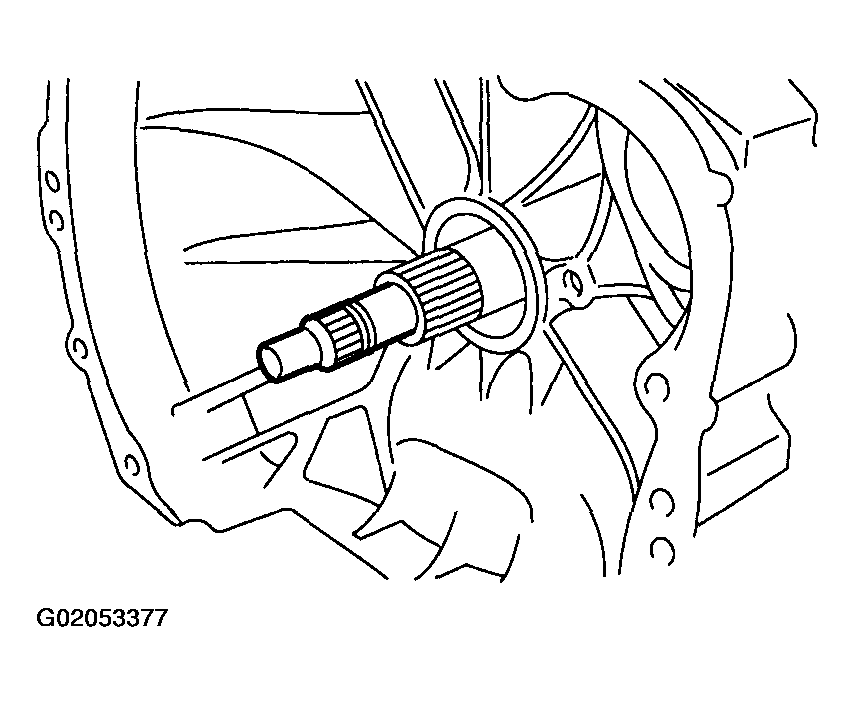

  2. Remove the input shaft.
    Fig 1: Removing input shaft
    G02053377
  3. Disconnect transmission harness connector from stay.
    NOTE: Lift-up lever behind the connector and disconnect it from stay.
  4. Disconnect inhibitor switch connector from stay.
  5. Disconnect the air breather hose. See Air Breather Hose  .
  6. Remove the oil charger pipe. See REMOVAL  .
  7. Remove the oil cooler inlet and outlet pipes with washers. See REMOVAL  .
  8. Remove rear vehicle speed sensor, and separate the transmission case and extension case. See REMOVAL  .
  9. Remove reduction driven gear.

    Without VTD: See Reduction Driven Gear  .

  10. Remove reduction driven gear.

    With VTD: See Reduction Driven Gear  .

  11. Separation of torque converter clutch case and transmission case sections
    CAUTION:
    • Be careful not to damage the oil seal and bushing inside the torque converter clutch case by the oil pump cover.
    • Be careful not to lose the rubber seal.
    NOTE: Separate these cases while tapping lightly on the housing.

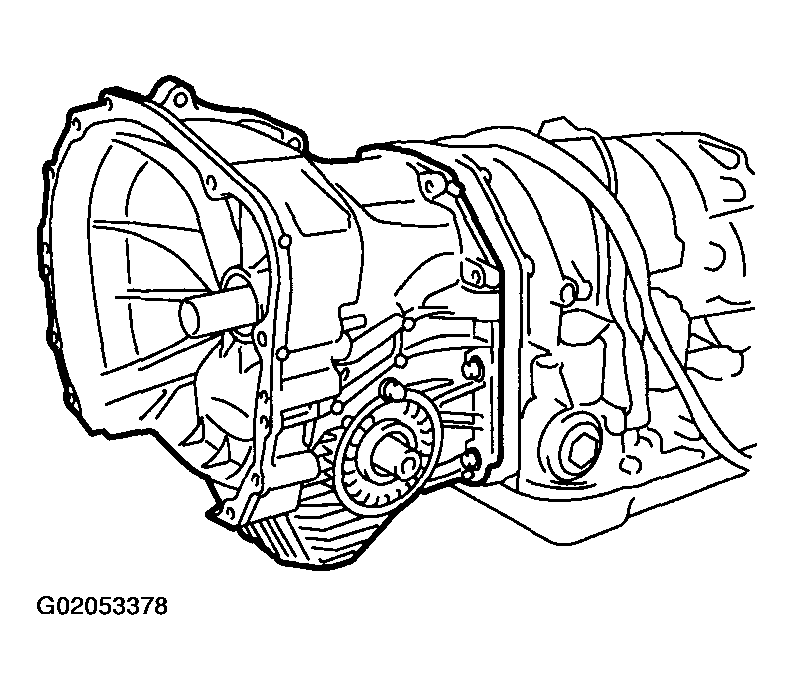

    Fig 2: Separating Of Torque Converter Clutch Case & Transmission Case
    G02053378

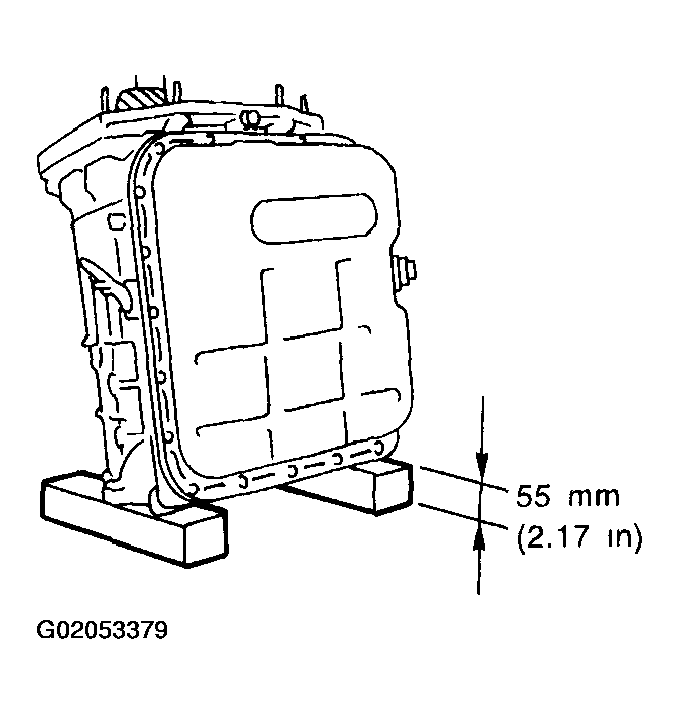

  12. Place two wooden blocks on the workbench, and stand the transmission case with its rear end facing down.
    CAUTION:
    • Be careful not to scratch the rear mating surface of the transmission case.
    • Note that the parking rod and drive pinion protrude from the mating surface.
    Fig 3: Positioning Wooden Blocks On The Workbench
    G02053379
  13. Remove the oil pan and control valve body. See Control Valve Body Assembly  .

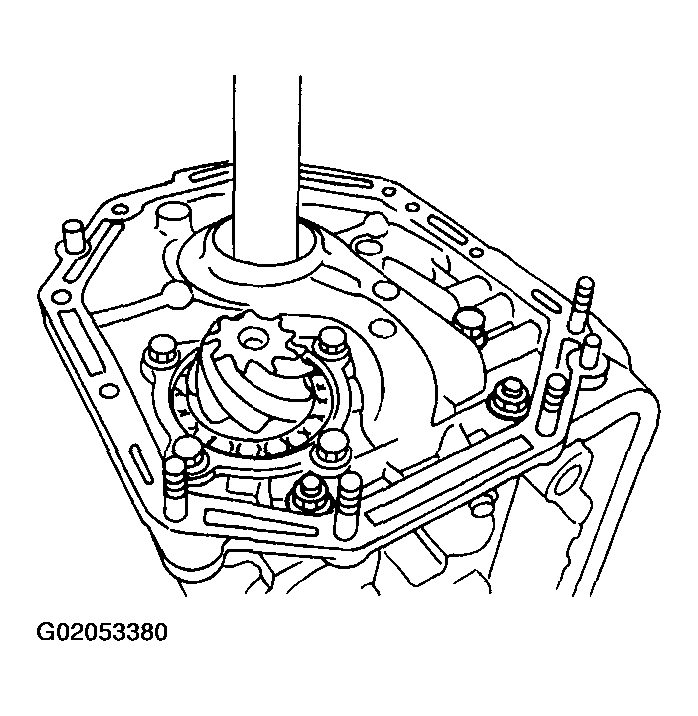

  14. Remove the oil pump housing.
    CAUTION: Be careful not to lose the total end play adjusting thrust washer.
    Fig 4: Removing Oil Pump Housing
    G02053380

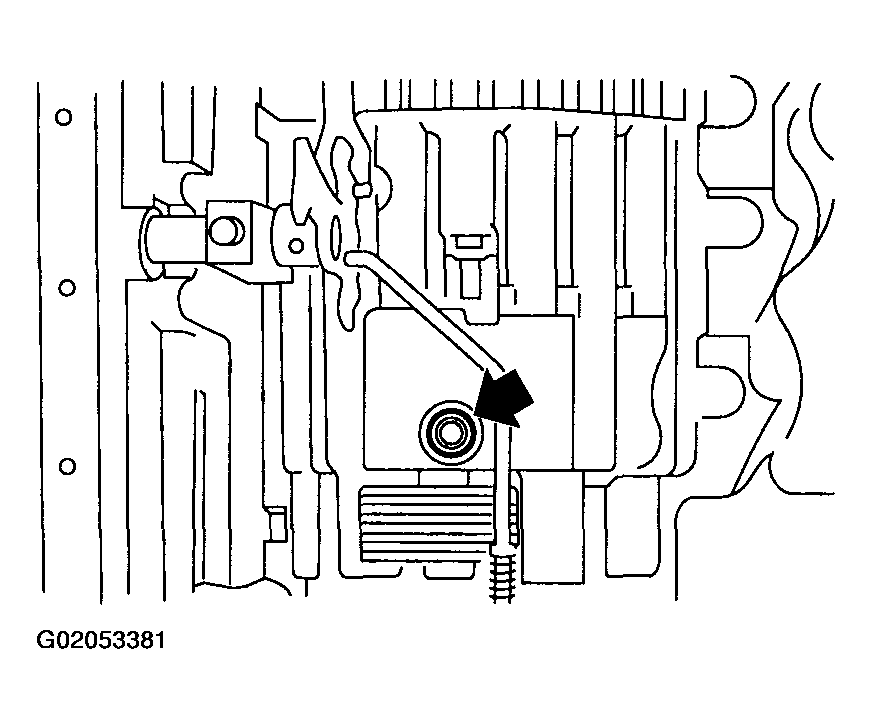

  15. Remove 2-4 brake seal.
    Fig 5: Removing 2-4 Brake Seal
    G02053381
  16. Take out the high clutch and reverse clutch assembly. See High Clutch and Reverse Clutch  .
  17. Take out the front sun gear and the thrust bearing.

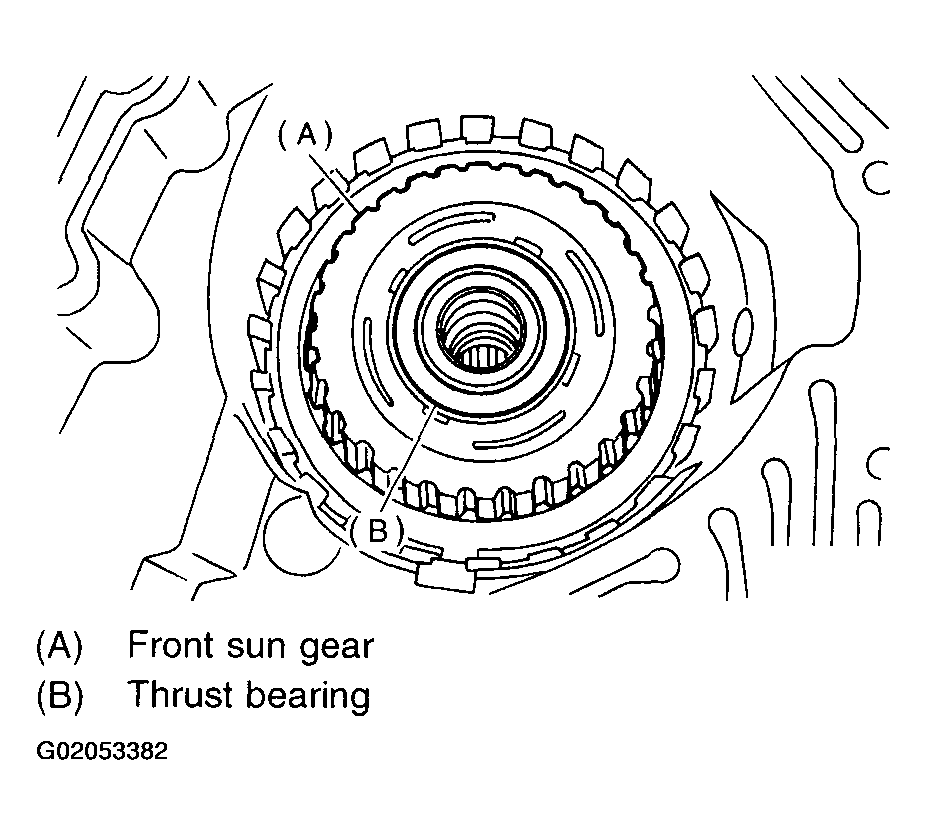

    Fig 6: Taking Out Front Sun Gear & Thrust Bearing
    G02053382

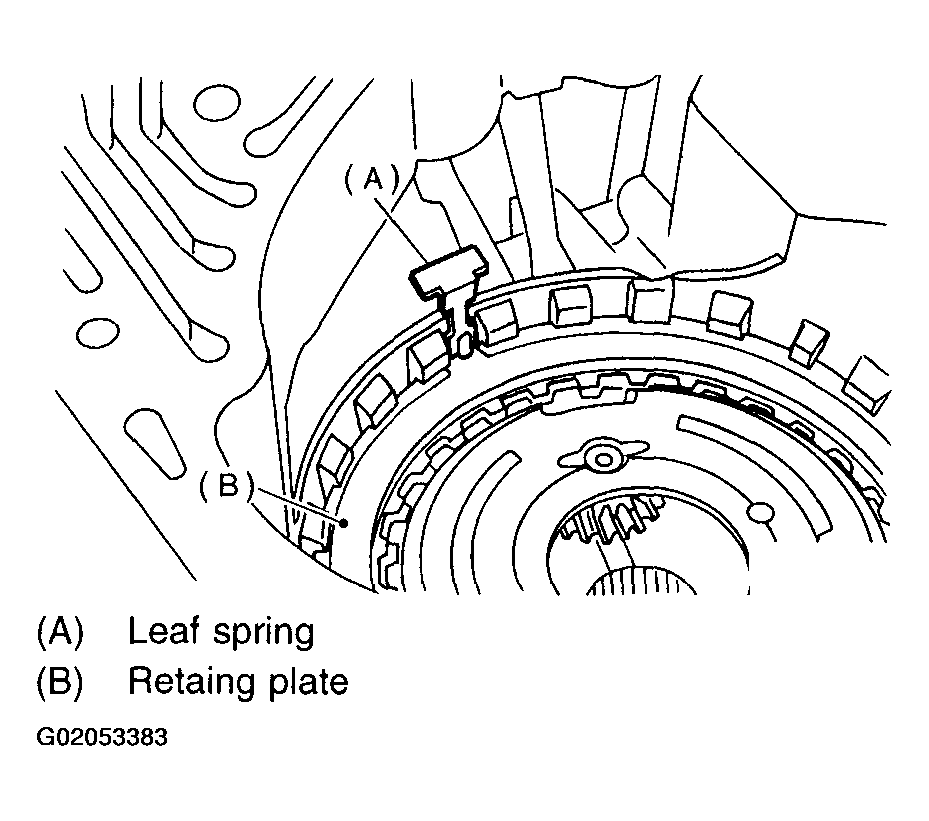

  18. Pull out leaf spring.
    CAUTION: Be careful not to bend leaf spring during removal.
    NOTE: Remove it while pressing down on lower leaf spring.
    Fig 7: Pulling Out Leaf Spring
    G02053383
  19. Remove snap ring and thrust needle bearing.

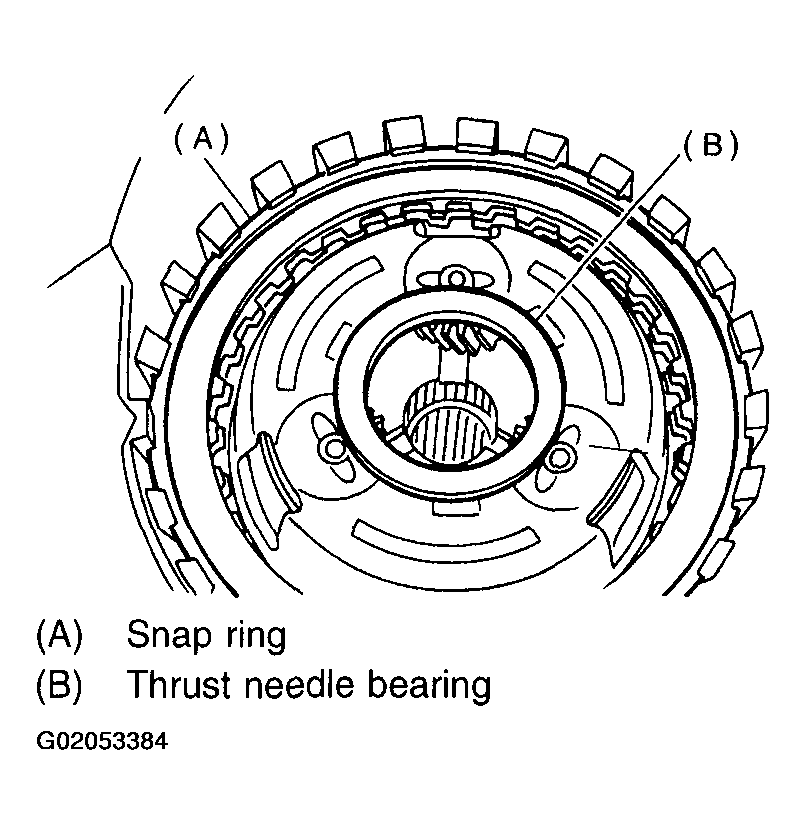

    Fig 8: Removing Snap Ring & Thrust Needle Bearing
    G02053384

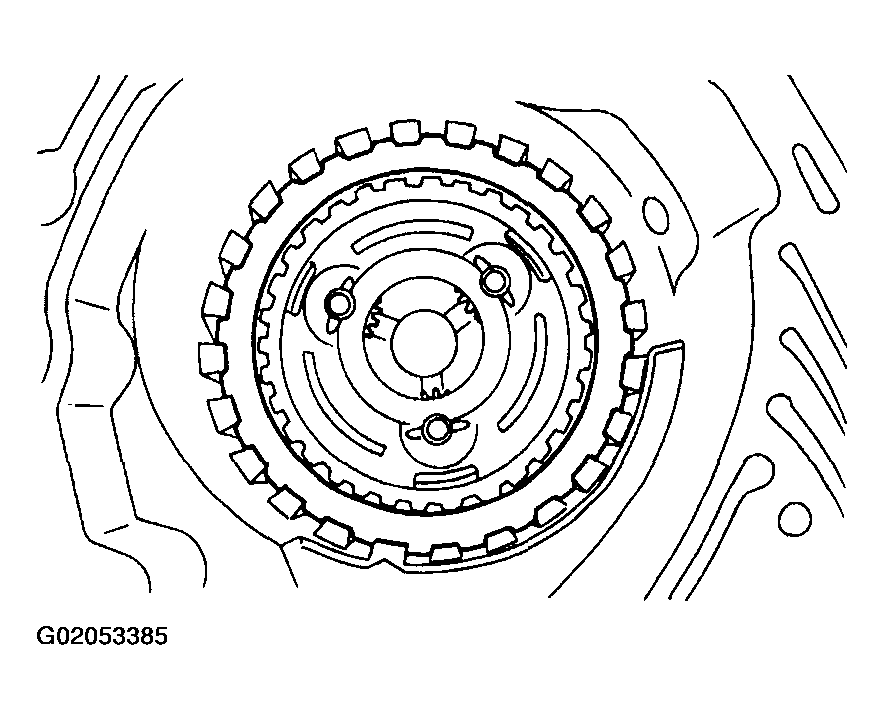

  20. Take out retaining plate, drive plate and driven plate of 2-4 brake.
    Fig 9: Taking Out Retaining Plate, Drive Plate & Driven Plate Of 2-4 Brake
    G02053385
  21. Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly.

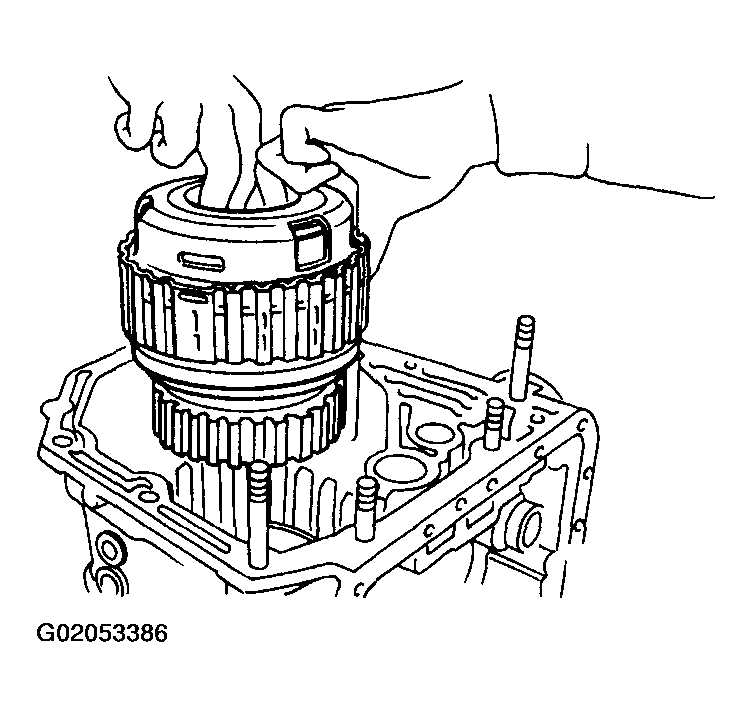

    Fig 10: Taking Out Thrust Needle Bearing, Planetary Gear Assembly & Low Clutch Assembly
    G02053386

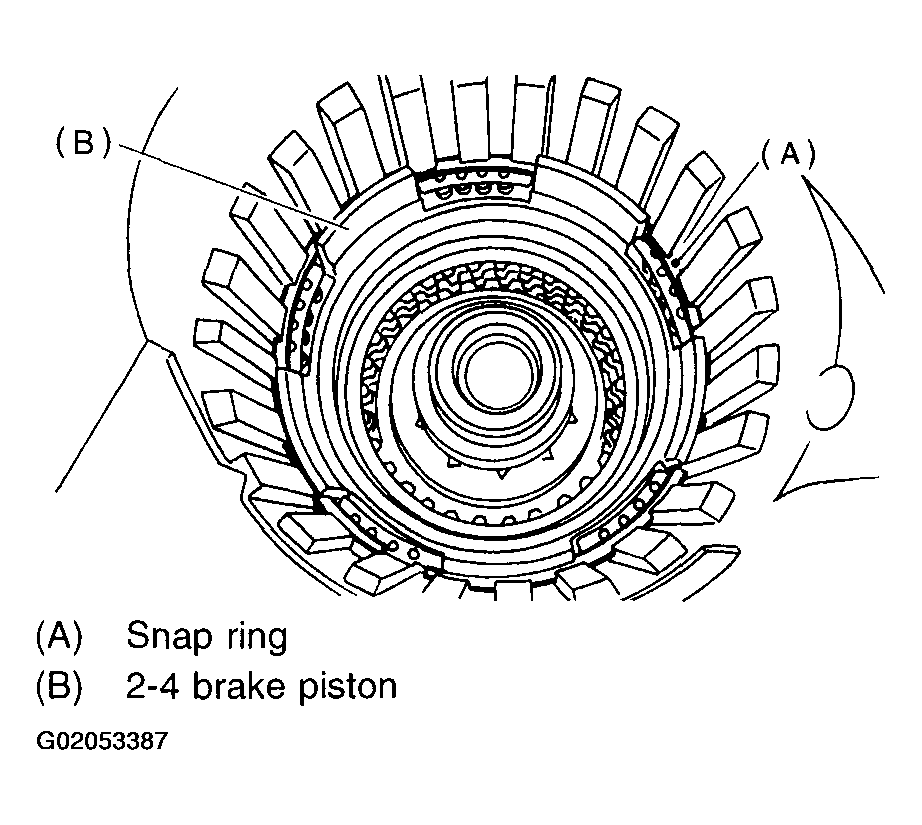

  22. Remove snap ring.
    Fig 11: Removing Snap Ring
    G02053387

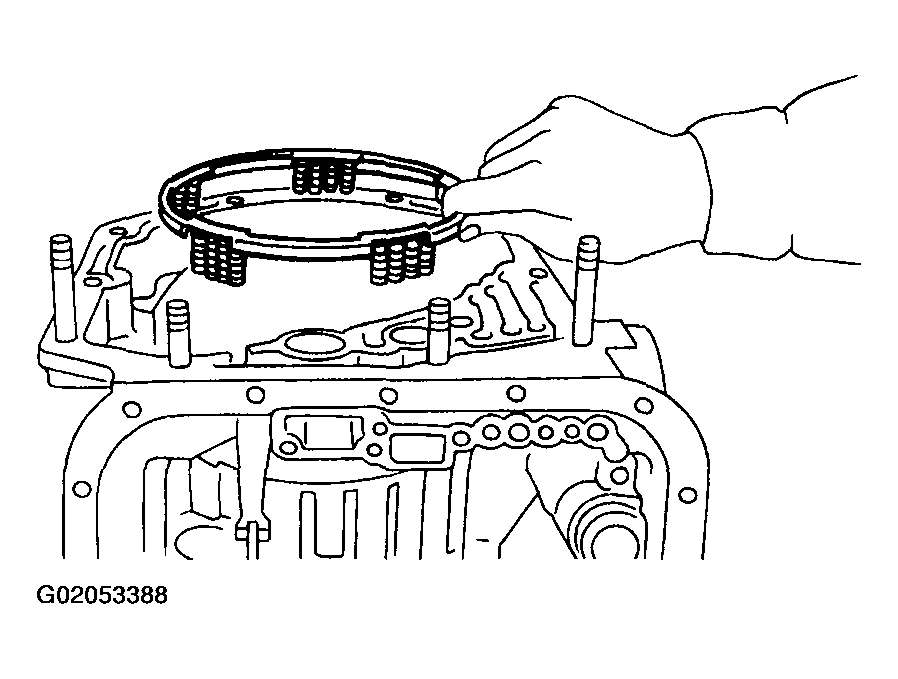

  23. Take out 2-4 brake return spring.
    Fig 12: Taking Out 2-4 Brake Return Spring
    G02053388
  24. Take out 2-4 brake piston and piston retainer.
    CAUTION: When removing the brake piston 2-4 and piston retainer, be careful not to rub or bump them against the transmission case.

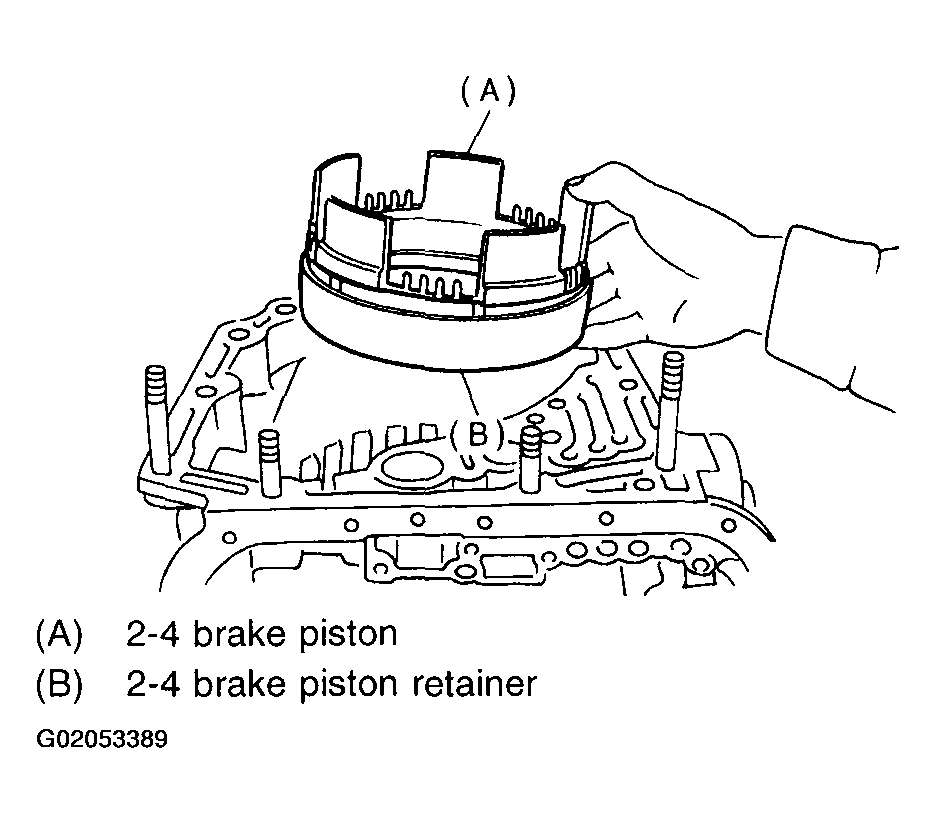

    Fig 13: Taking Out 2-4 Brake Piston & Piston Retainer
    G02053389
  25. Separate 2-4 brake piston and piston retainer.

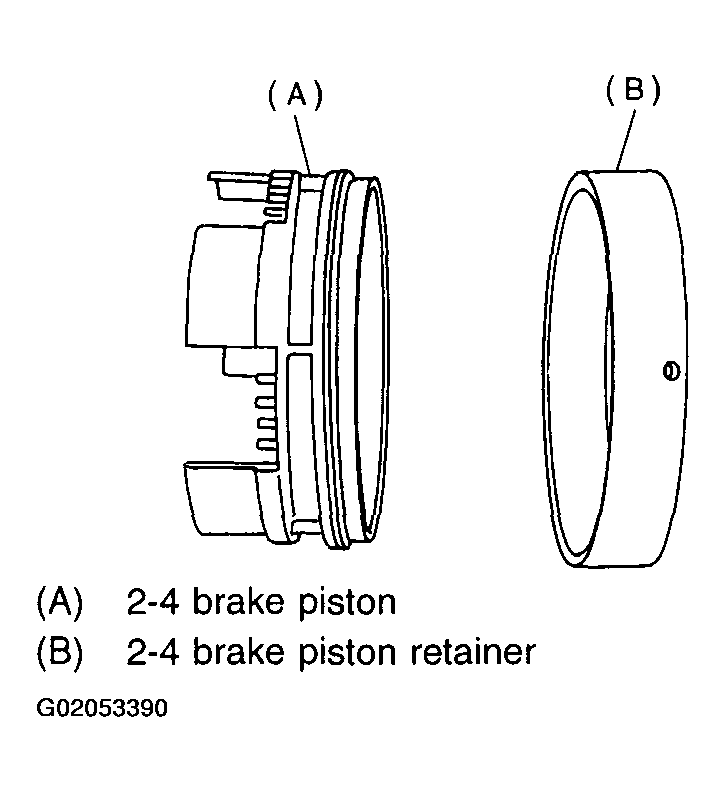

    Fig 14: Separating 2-4 Brake Piston & Piston Retainer
    G02053390
