Center Differential Carrier: Disassembly

  1. Remove seal ring.
    CAUTION: Be careful not to damage the seal rings.

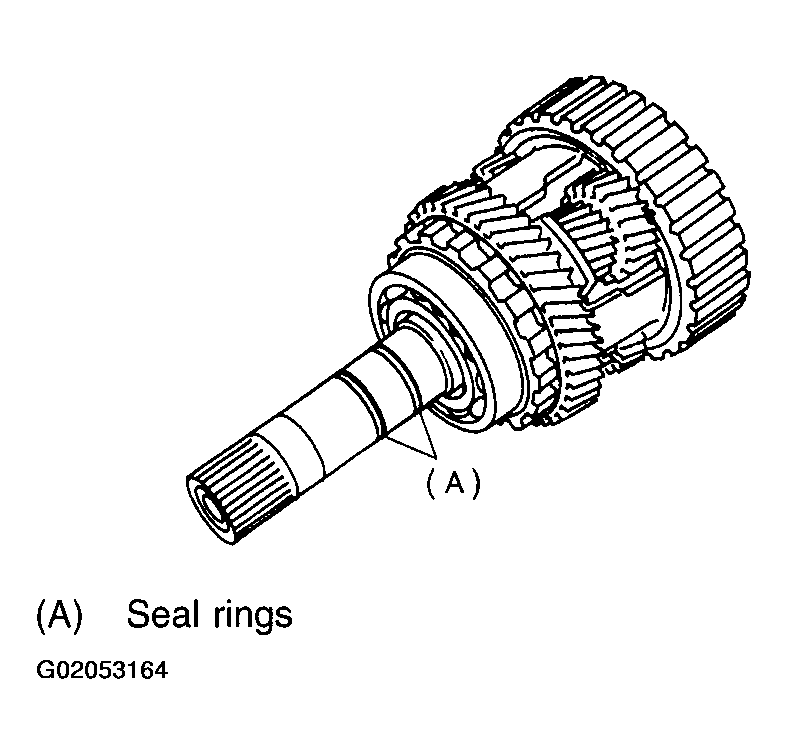

    Fig 1: Removing Seal Ring
    G02053164
  2. Using a press and ST, remove the ball bearing.

    ST 498077000 REMOVER

    Fig 2: Removing Ball Bearing
    G02053165
  3. Remove snap ring, and pull out shafts from center differential assembly.

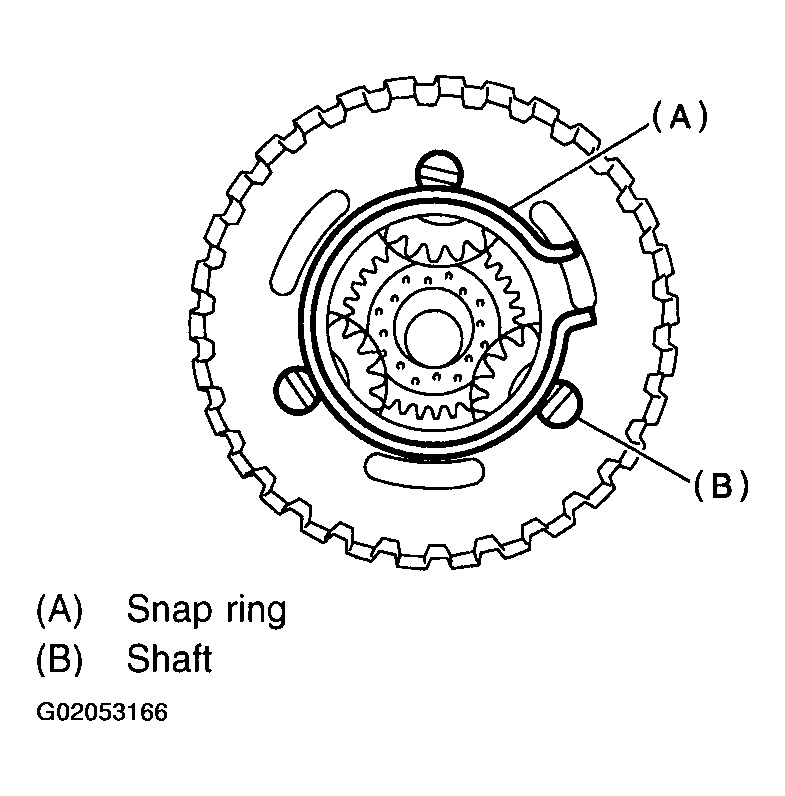

    Fig 3: Removing Snap Ring & Pulling Out Shafts From Center Differential Assembly
    G02053166
  4. Remove thrust washer, pinion gears and washers from center differential assembly.
    Fig 4: Removing Thrust Washer, Pinion Gears & Washers From Center Differential Assembly
    G02053167
  5. Pull out intermediate shaft and thrust bearing.
