Center Differential Carrier: Installation

  1. Install the center differential assembly with shim.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

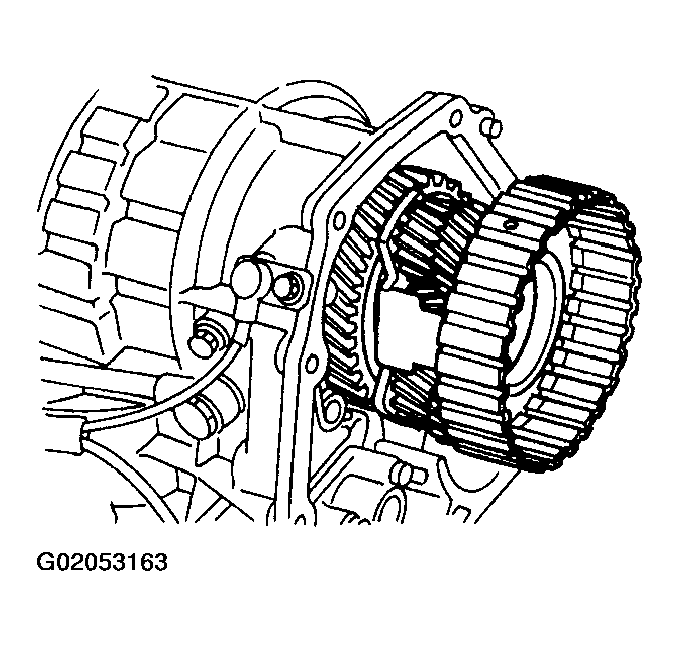

    Fig 1: Installing Center Differential Assembly With Shim
    G02053163
  2. Insert the rear drive shaft. See Rear Drive Shaft  .
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor. See INSTALLATION  .
