Control Valve Body Assembly: Assembly

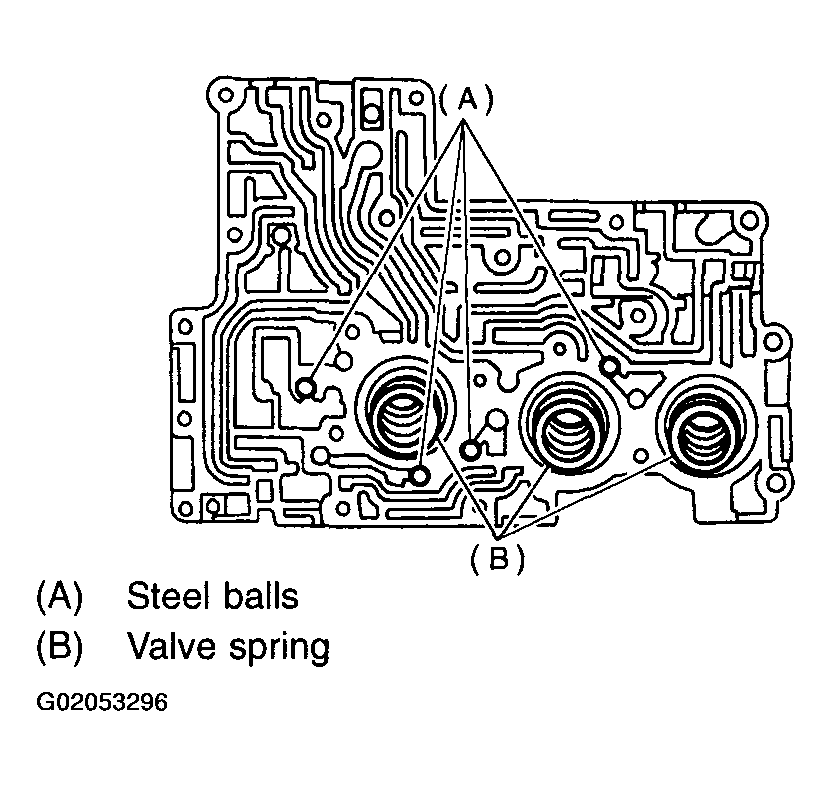

Install accumulator pistons, valve springs and steel balls to upper valve body.
NOTE: Insert steel balls in their proper positions.

Fig 1: Installing Accumulator Valve Springs & Steel Balls To Upper Valve Body

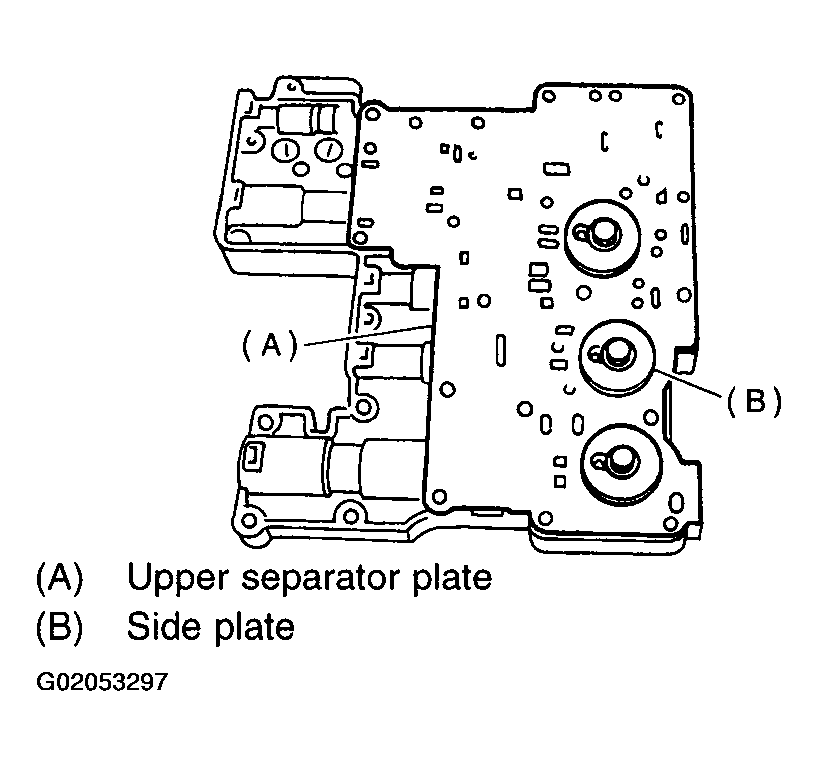

Install support plate and upper separator plate to middle valve body.
NOTE: Align the hole in side plate with the hole in separator plate.

Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 2: Installing Support Plate & Upper Separator Plate

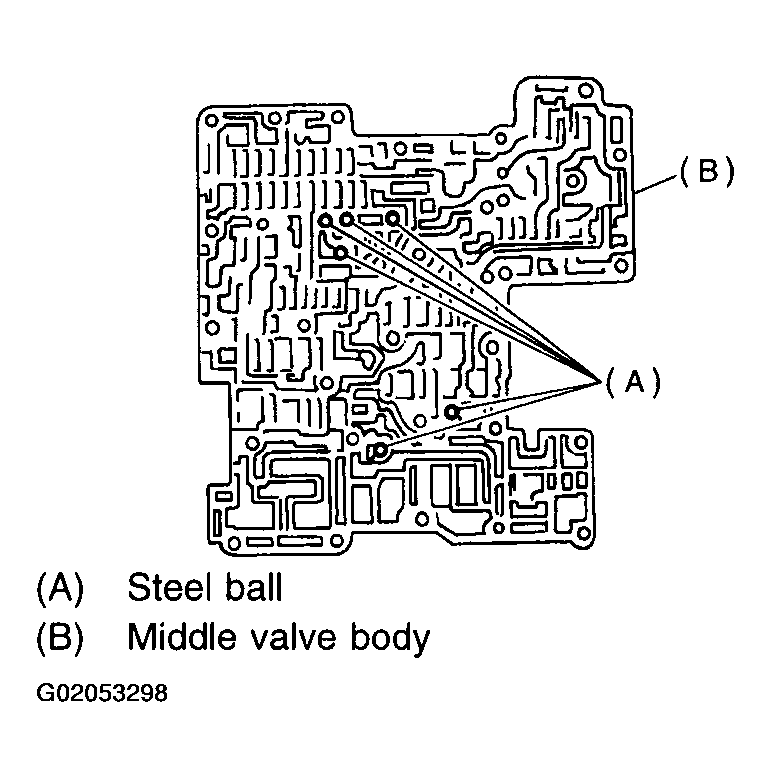

Install steel balls to middle valve body.
NOTE: Insert steel balls in their proper positions.

Fig 3: Installing Steel Balls To Middle Valve Body

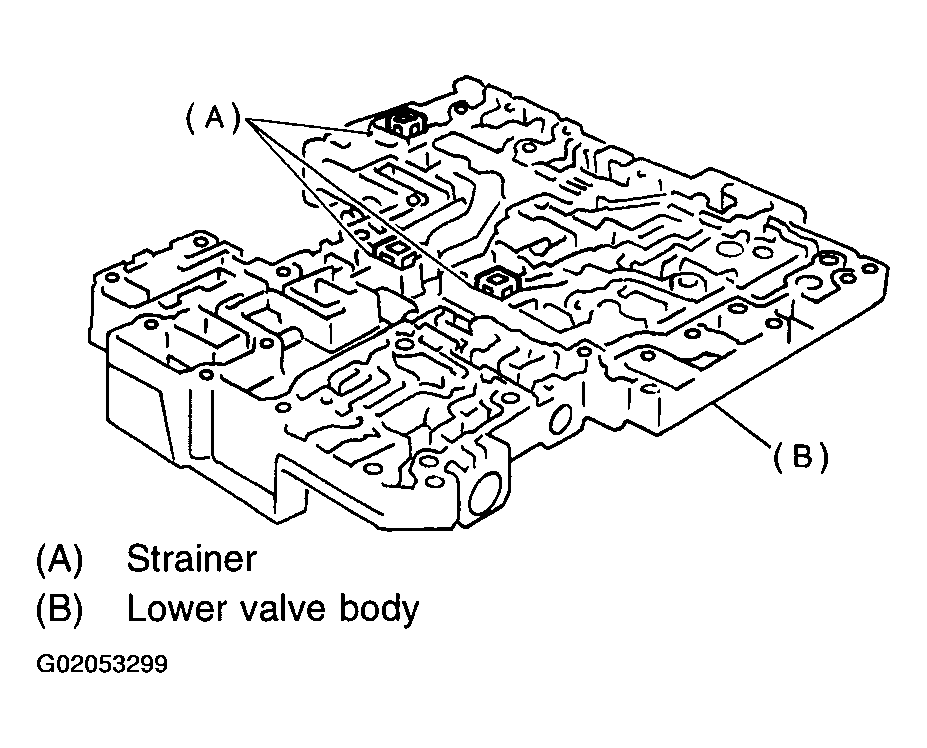

Install three filters to lower valve body.
CAUTION: Pay attention to the location of filters.

Fig 4: Installing Filters To Lower Valve Body

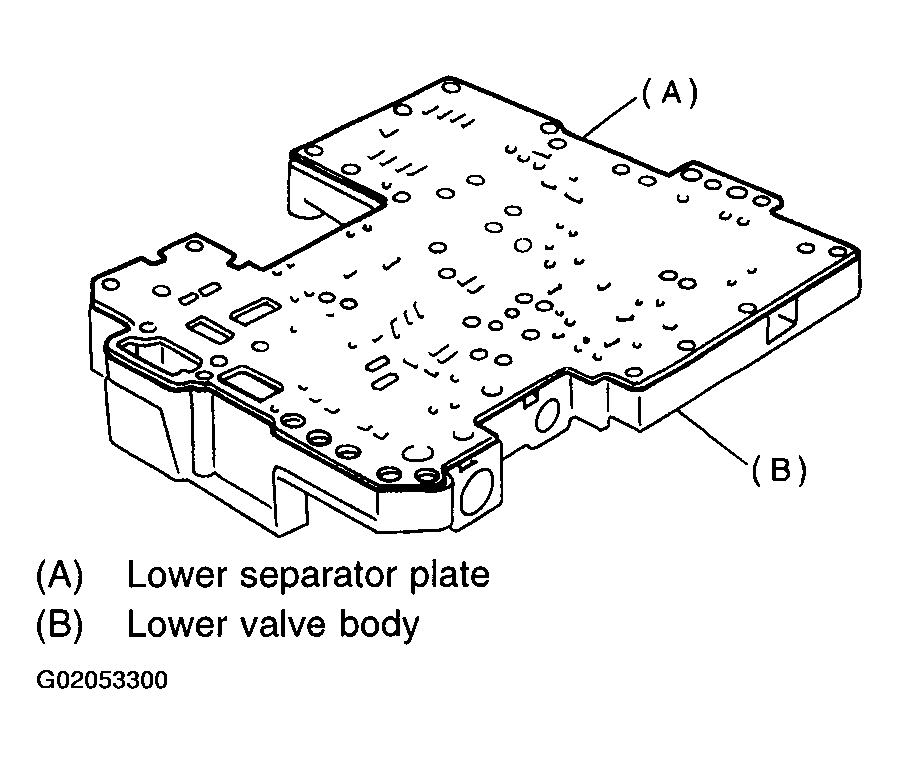

Install lower separate plate to lower valve body.

Fig 5: Installing Lower Separate Plate

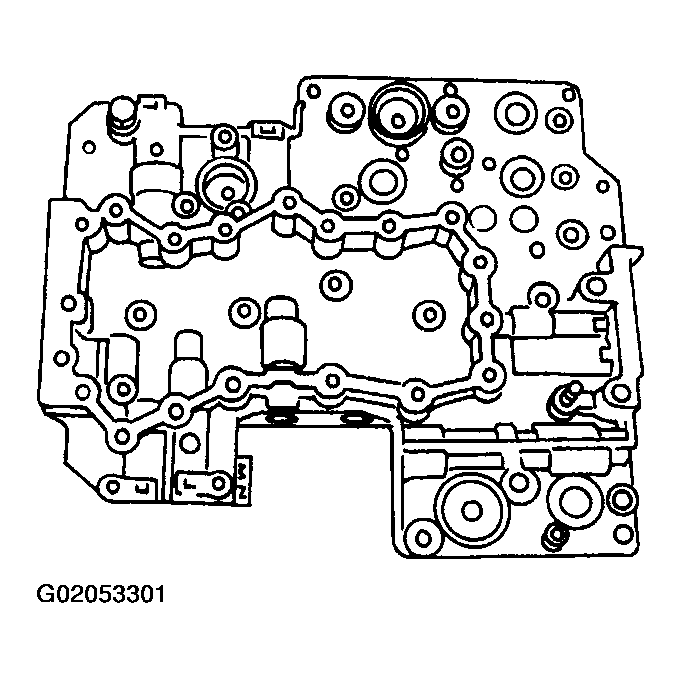

Temporarily assemble valve body.
CAUTION: Be careful not to drop the middle valve body and upper body interior steel ball, or the lower body filter.

Fig 6: Temporarily Assembling Valve Body

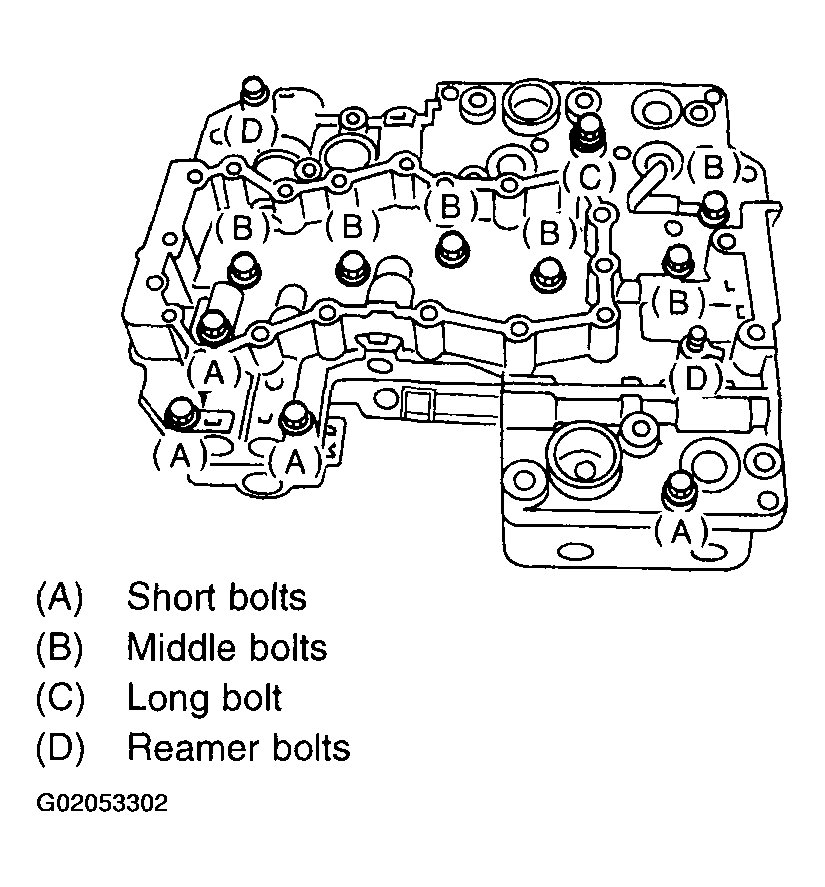

Tighten bolts.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 7: Tightening Bolts

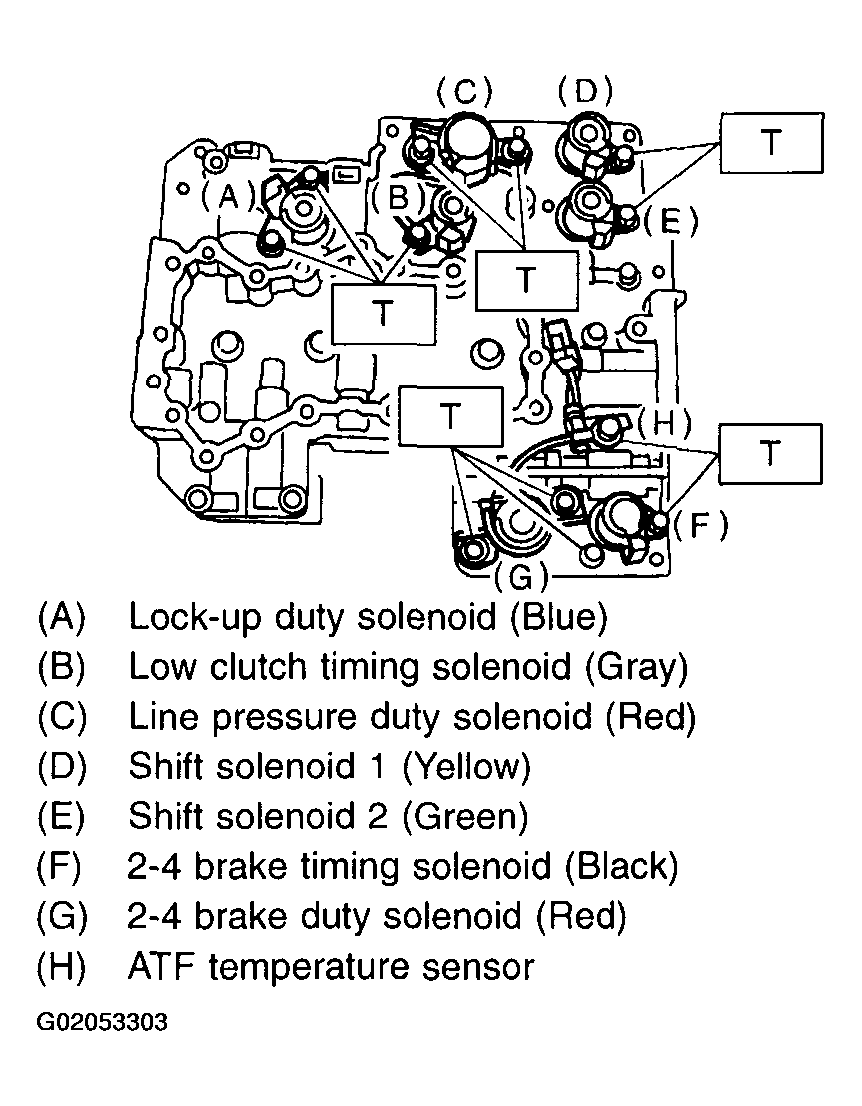

Install the sensor, solenoids and duty solenoids.
Tightening torque:
1. T: 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 8: Installing Sensor, Solenoids & Duty Solenoids
Install oil strainer to lower valve body.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
