Control Valve Body Assembly: Disassembly

  1. Remove oil strainer from lower control valve body.

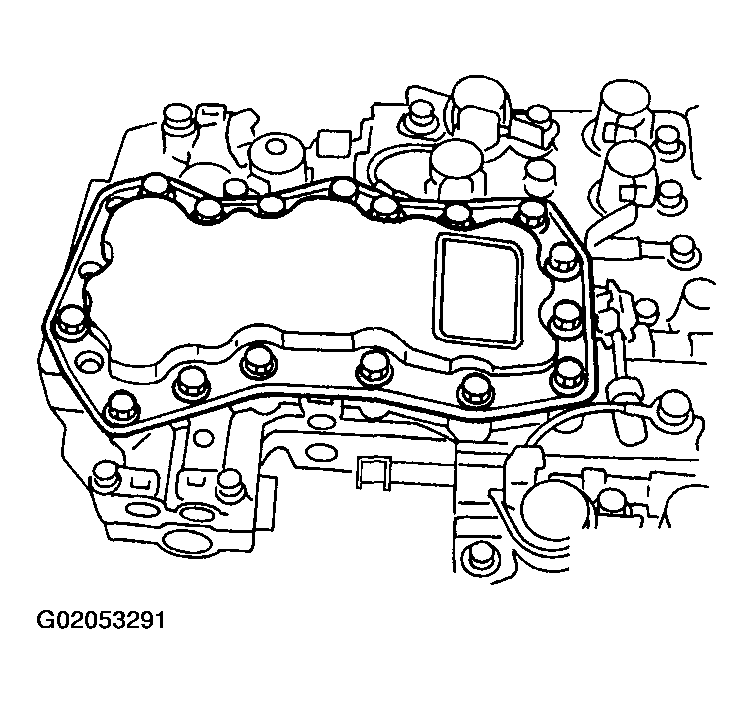

    Fig 1: Removing Oil Strainer From Lower Control Valve Body
    G02053291
  2. Remove duty solenoids, solenoids and sensor from the lower valve body.

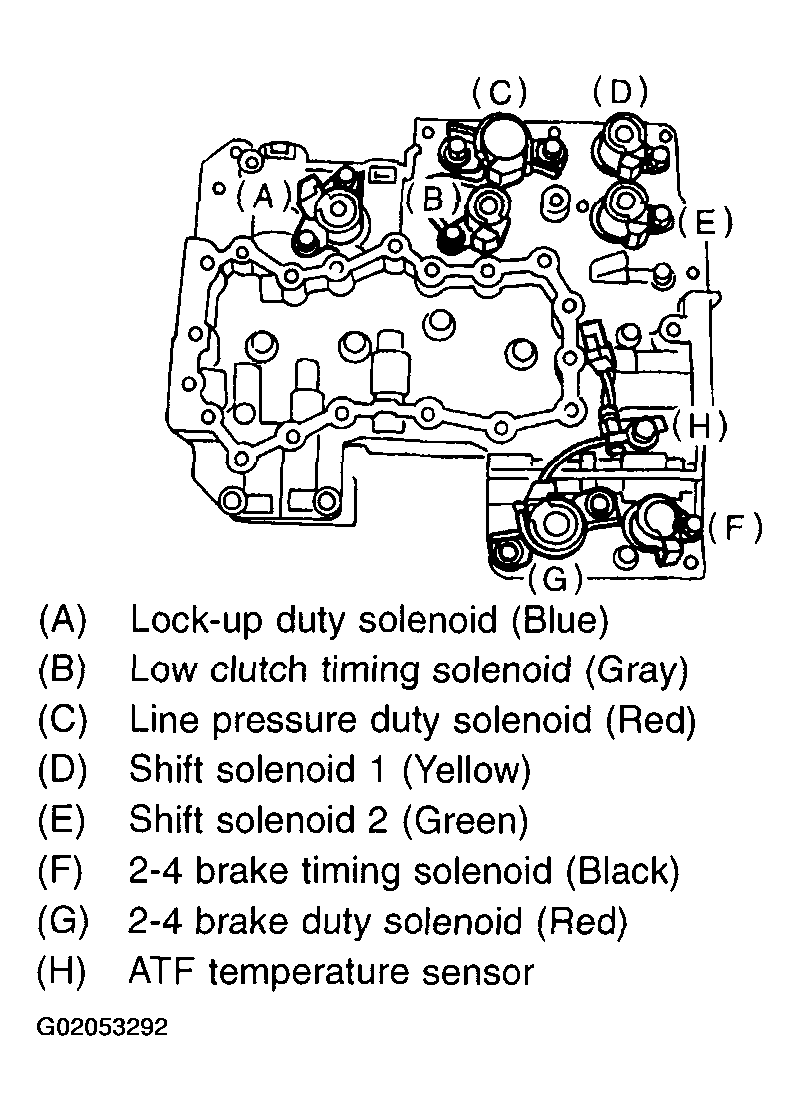

    Fig 2: Removing Duty Solenoids, Solenoids & Sensor From Lower Valve Body
    G02053292
  3. Remove the upper-lower valve body tightening bolts.

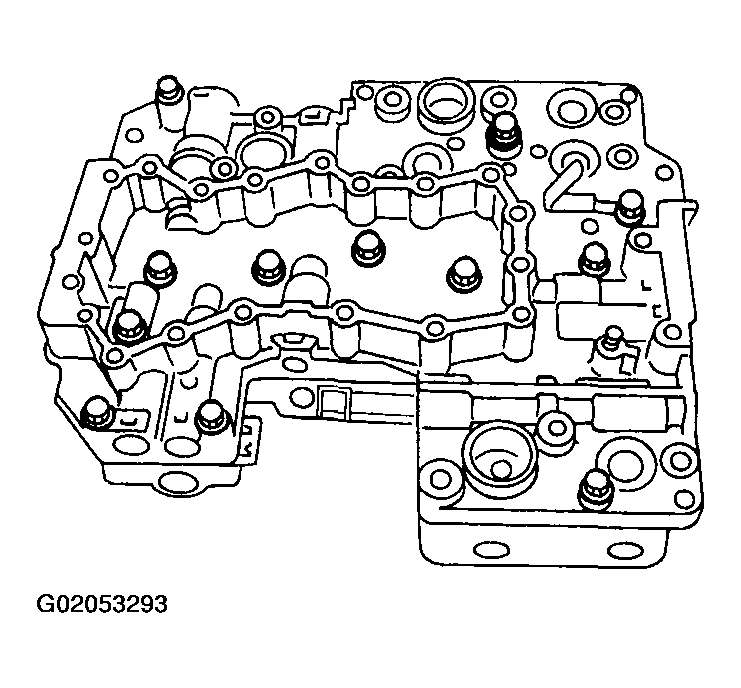

    Fig 3: Removing Upper-Lower Valve Body Tightening Bolts
    G02053293
  4. Separate the control valve body.
    CAUTION:
    • Do not lose the ten (10) steel balls contained in the upper valve body and middle valve body.
    • Do not lose strainers contained in the lower valve body.
    NOTE: During ordinary servicing, clean the control valve bodies in this condition, without further disassembly. In the event of a seized clutch or other problem, disassemble the control valve bodies further, and clean the component parts.
  5. Remove Upper Separator plate from middle valve body.

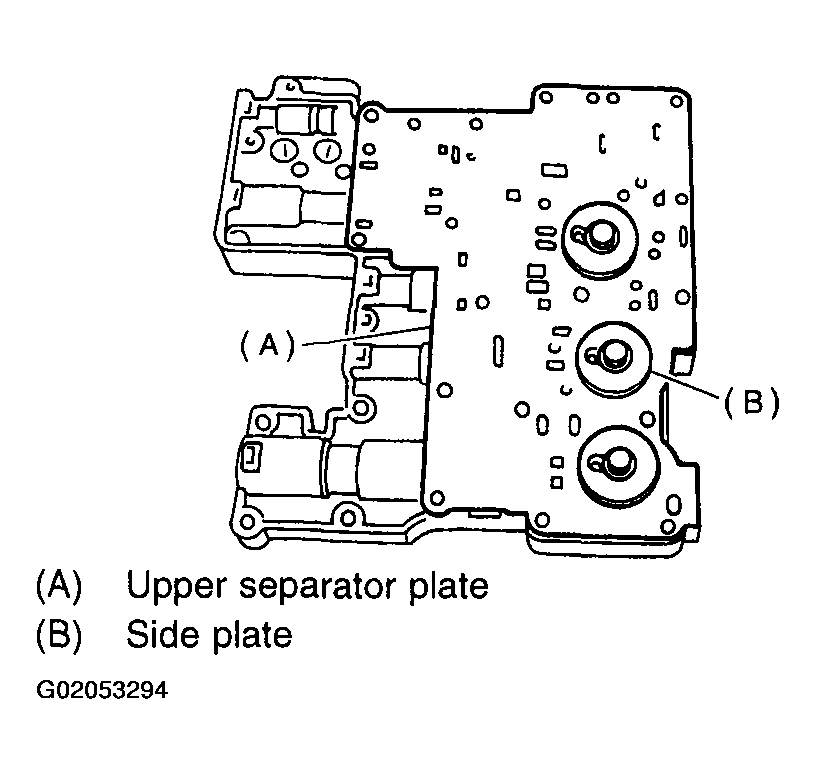

    Fig 4: Removing Upper Separator
    G02053294
  6. Remove valve springs from upper valve body.
  7. Using air compressor, remove accumulator piston from upper valve body.

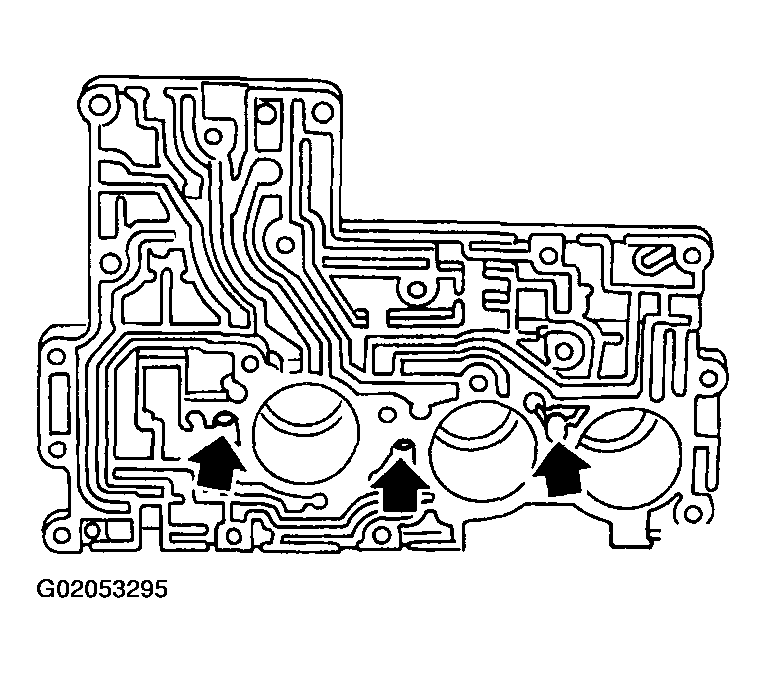

    Fig 5: Removing Accumulator Piston From Upper Valve Body
    G02053295
