With VTD

  1. Using the ST and a press, press in a new oil seal.

    ST 498057300 INSTALLER

  2. Press in the dust cover.
  3. Install transfer clutch pipe.
    CAUTION: Be careful not to bend the pipe.

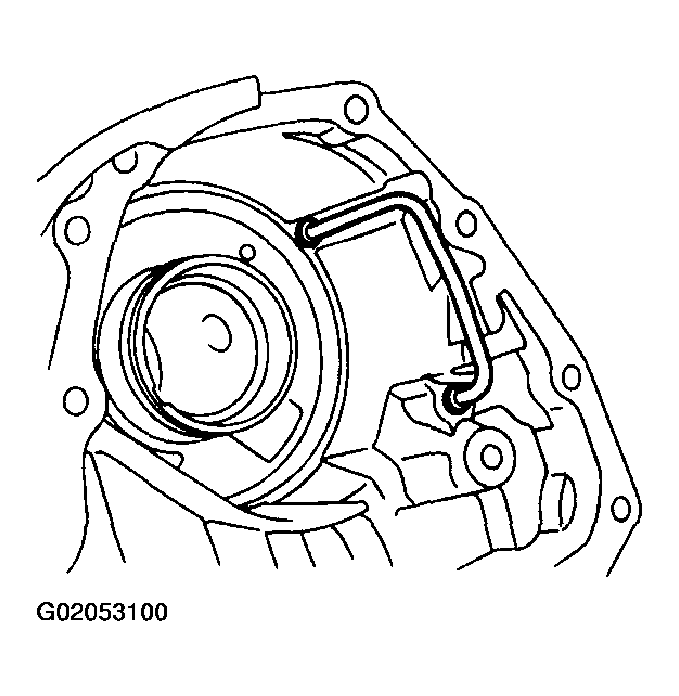

    Fig 1: Installing Transfer Clutch Pipe
    G02053100
  4. Install test plug.

    Tightening torque:

    1. 13 N.m (1.3 kgf-m, 9.4 ft-lb)

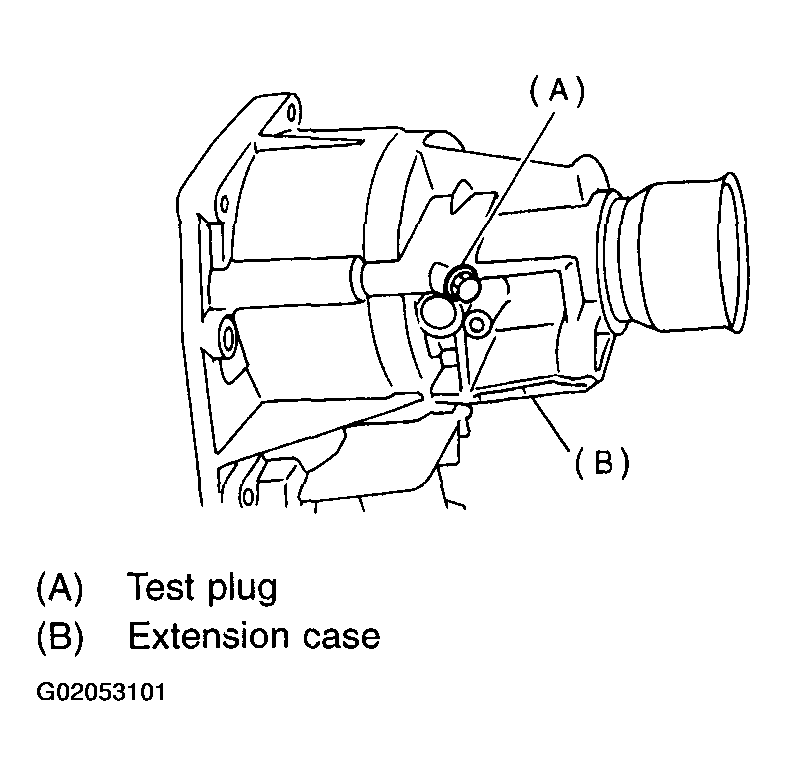

      Fig 2: Installing Test Plug
      G02053101
  5. Insert the multi-plate clutch, the drive plate, the driven plate, and the spring retainer.

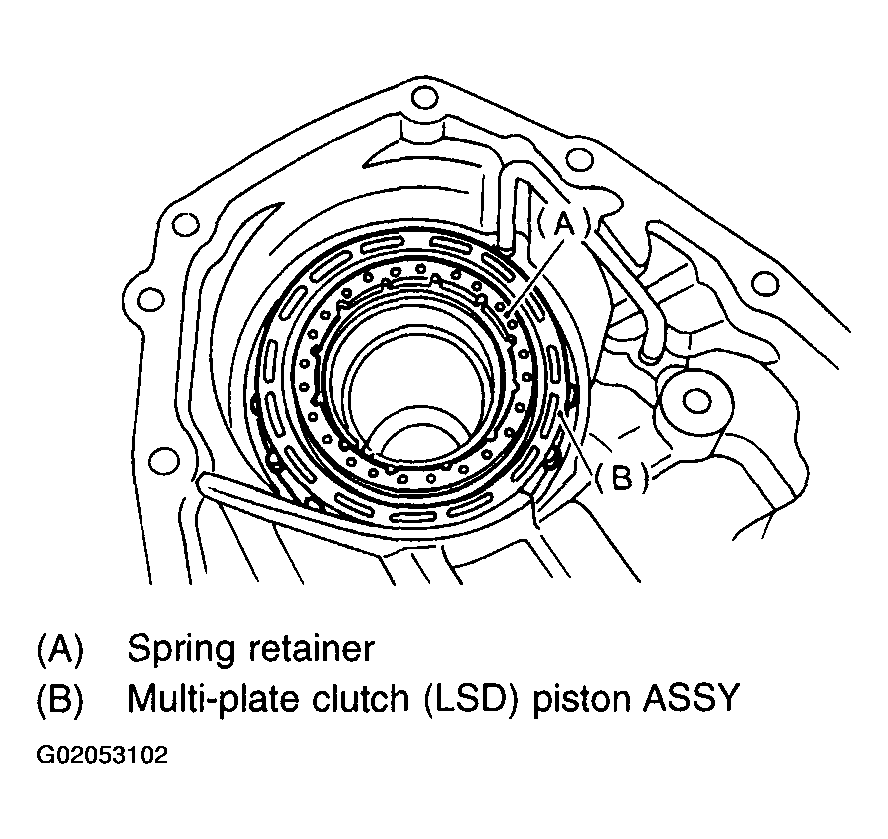

    Fig 3: Installing Clutch Pack Components
    G02053102
  6. Using the ST1, ST2, and ST3, install the snap ring.

    ST1 398673600 COMPRESSOR

    ST2 498627100 SEAT

    ST3 398663600 PLIERS

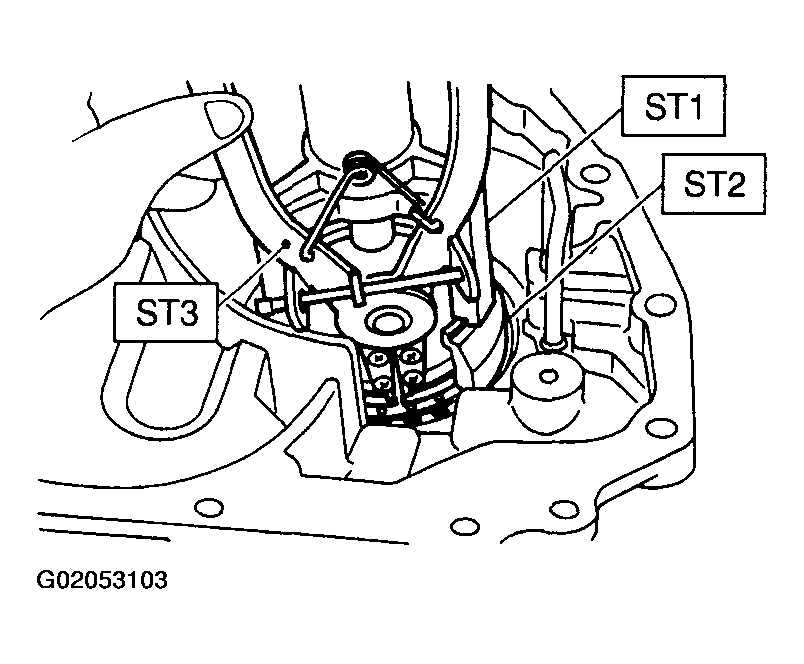

    Fig 4: Installing Snap Ring
    G02053103
