Extension Case: Installation

Attach the selected thrust needle bearing to the end surface of reduction drive gear with vaseline.
NOTE: Install thrust needle bearing in the correct direction.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

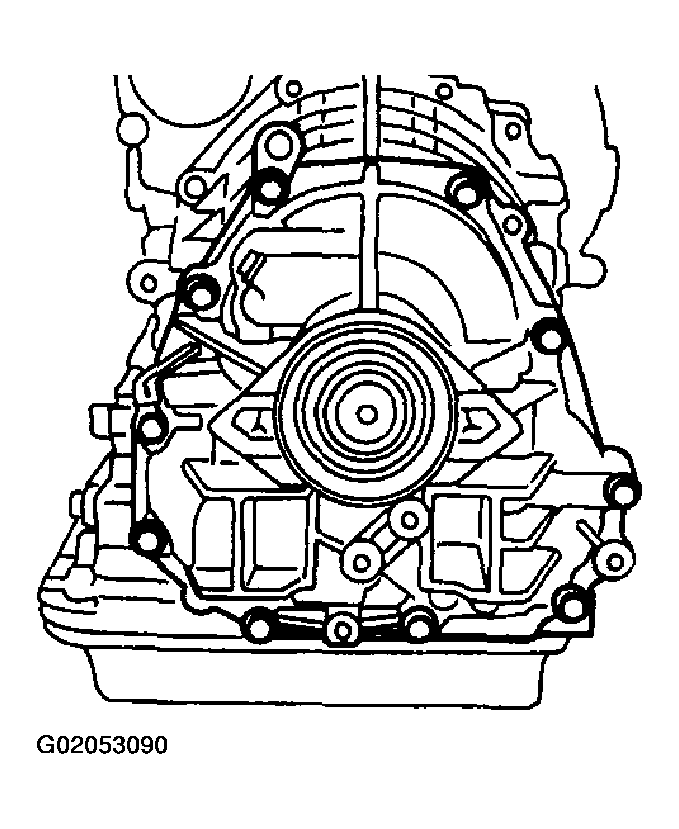

  Fig 1: Installing Extension Case
Install the rear vehicle speed sensor.
Tightening torque:
1. 7 N.m (0.7 kgf-m, 5.1 ft-lb)

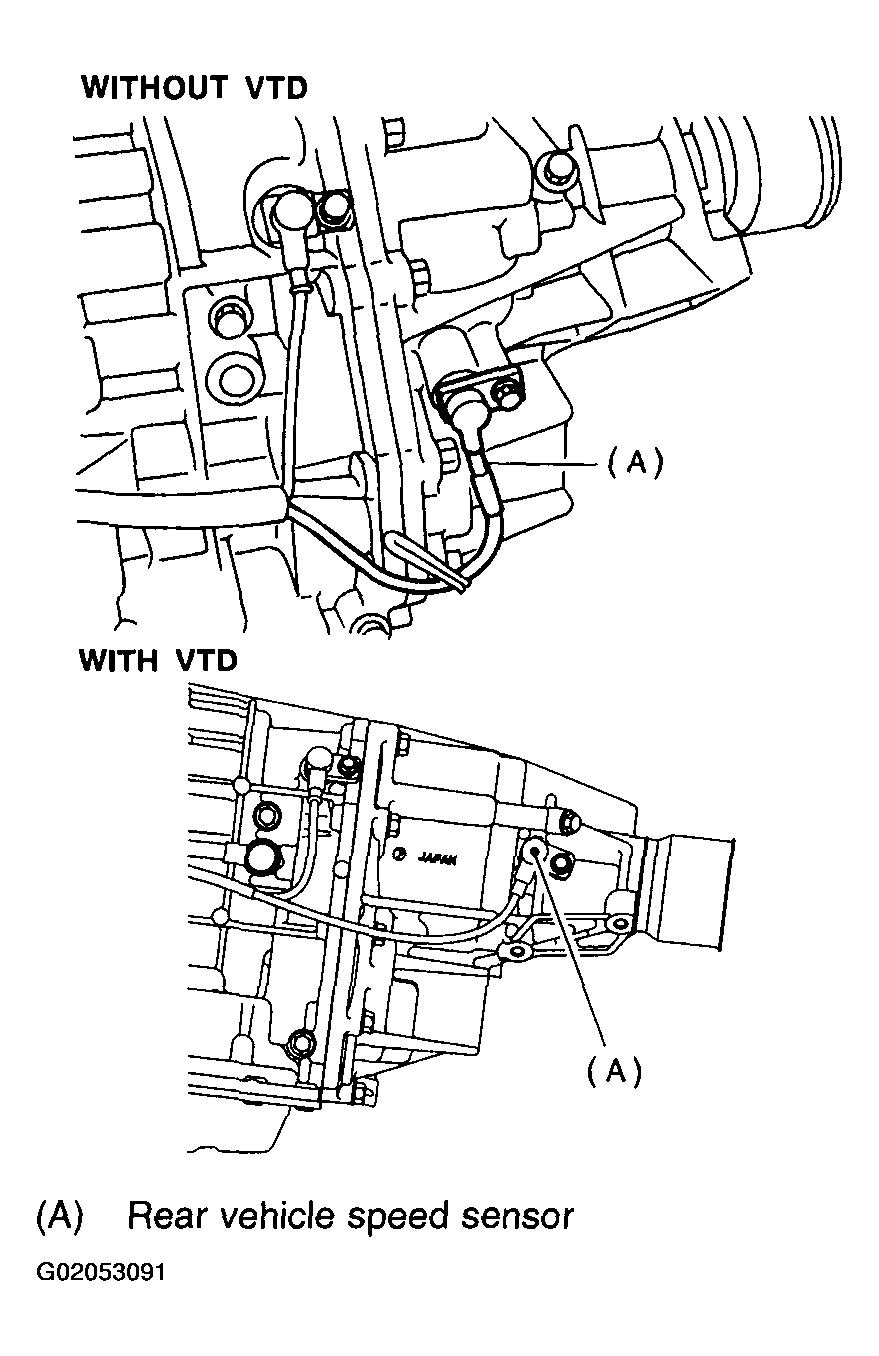

  Fig 2: Installing Rear Vehicle Speed Sensor
