Front Differential: Disassembly

  1. Using a press and ST, remove the taper roller bearing.

    ST 498077000 REMOVER

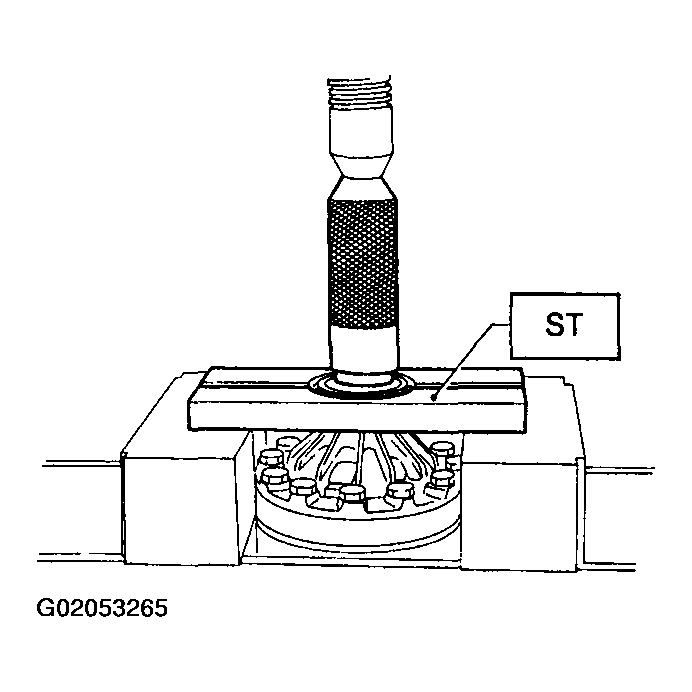

    Fig 1: Removing Tapered Roller Bearing
    G02053265
  2. Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

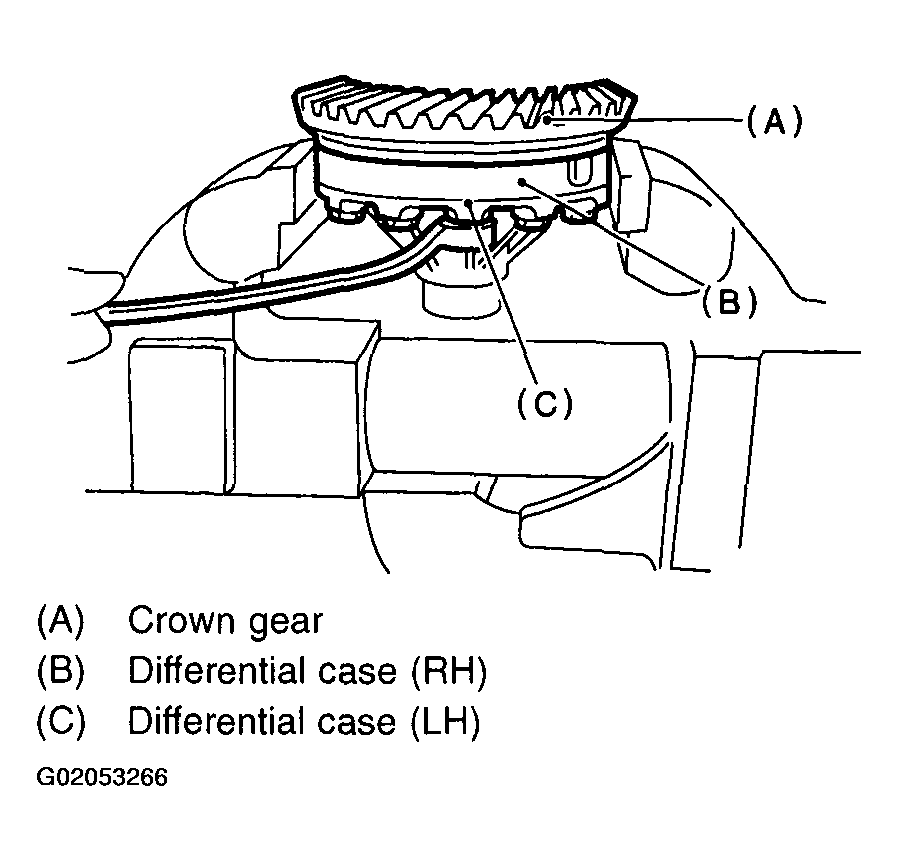

    Fig 2: Removing Crown Gear Tightening Bolts & Separating Crown Gear Cases
    G02053266
  3. Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

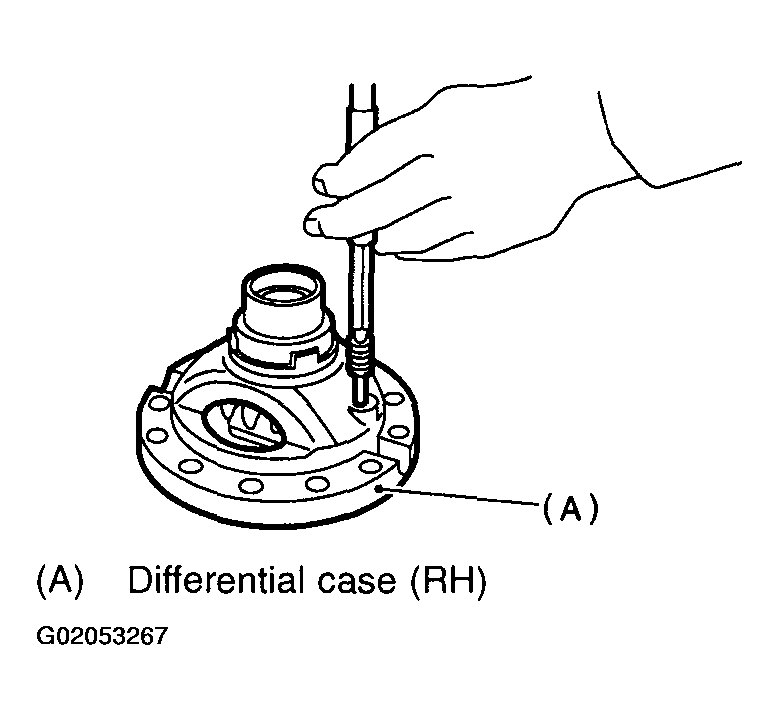

    Fig 3: Pulling Out Straight Pin & Shaft
    G02053267
