Transmission Case And Control Device

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  3.4 (0.35, 2.5)
2. T2:  4.9 (0.50, 3.6)
3. T3:  5.9 (0.60, 4.3)
4. T4:  7.8 (0.80, 5.8)
5. T5:  12 (1.2, 8.4)
6. T6:  12.7 (1.3, 9.4)
7. T7:  13.7 (1.4, 10.1)
8. T8:  17.7 (1.8, 13.0)
9. T9:  24.5 (2.5, 18.1)
10. T10:  24.5 (2.5, 18.1)
11. T11:  45 (4.5, 32.5)

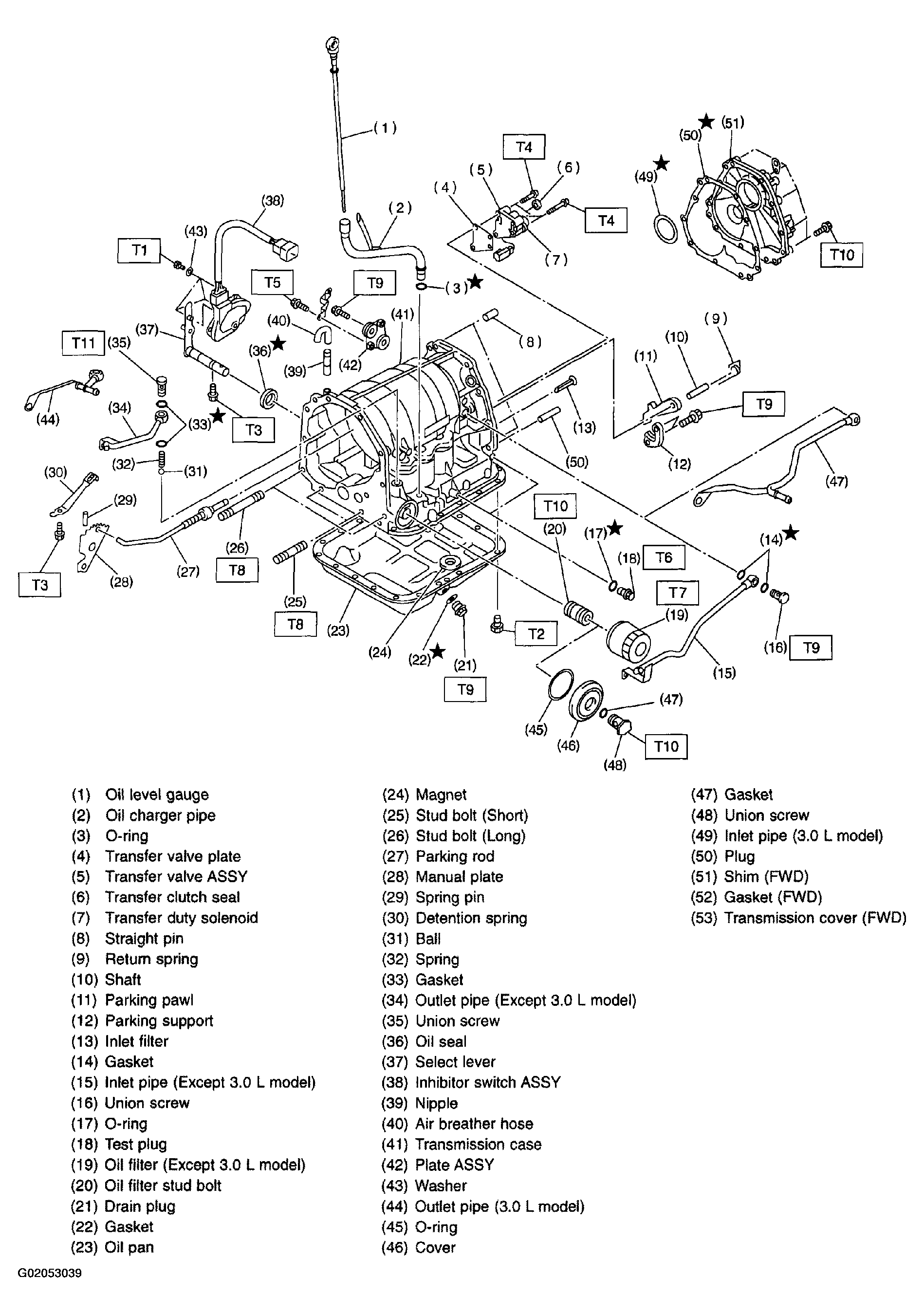

Fig 1: Exploded View Of Transmission Case & Control Devices
