Reduction Driven Gear: Disassembly

  1. Remove snap ring from reduction driven gear.

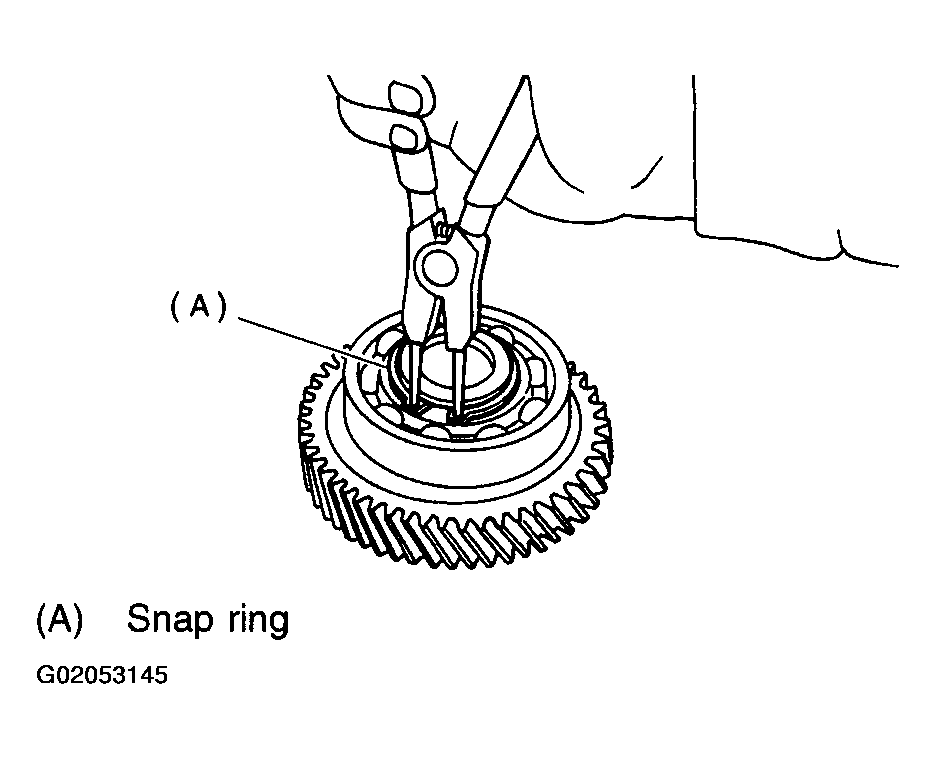

    Fig 1: Removing Snap Ring
    G02053145
  2. Using ST, remove ball bearing from reduction driven gear.

    ST 498077600 REMOVER

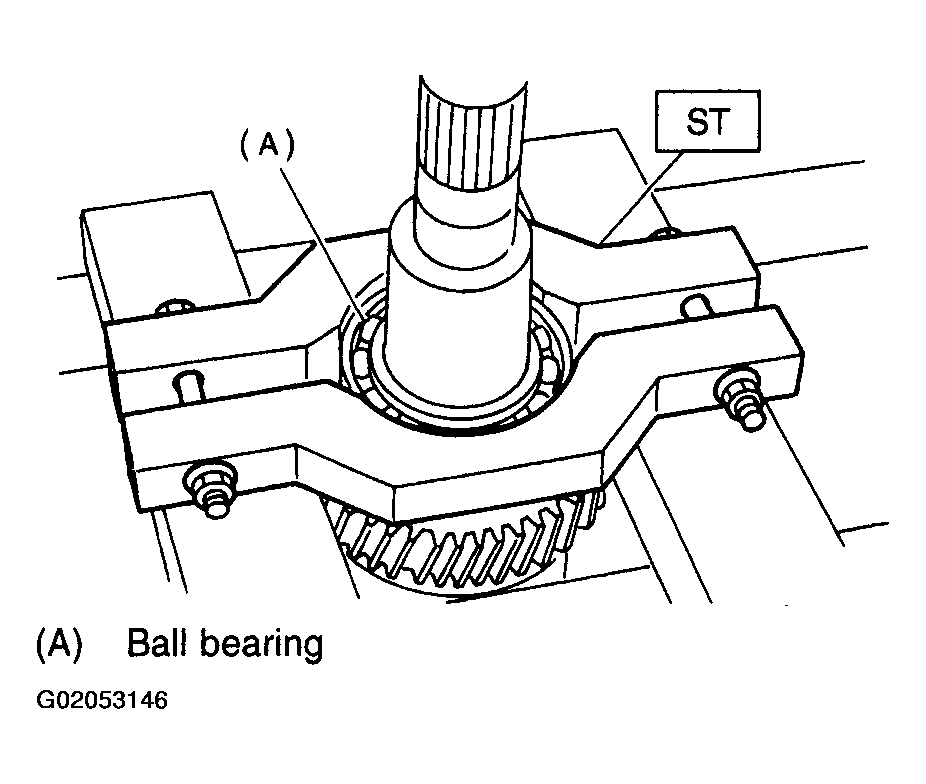

    Fig 2: Removing Ball Bearing
    G02053146
  3. Remove snap rings from reduction driven gear. (2.5 L US model and 3.0 L model).
