Transfer Clutch: Disassembly

Remove the seal ring.
CAUTION: Be careful not to damage the seal ring.

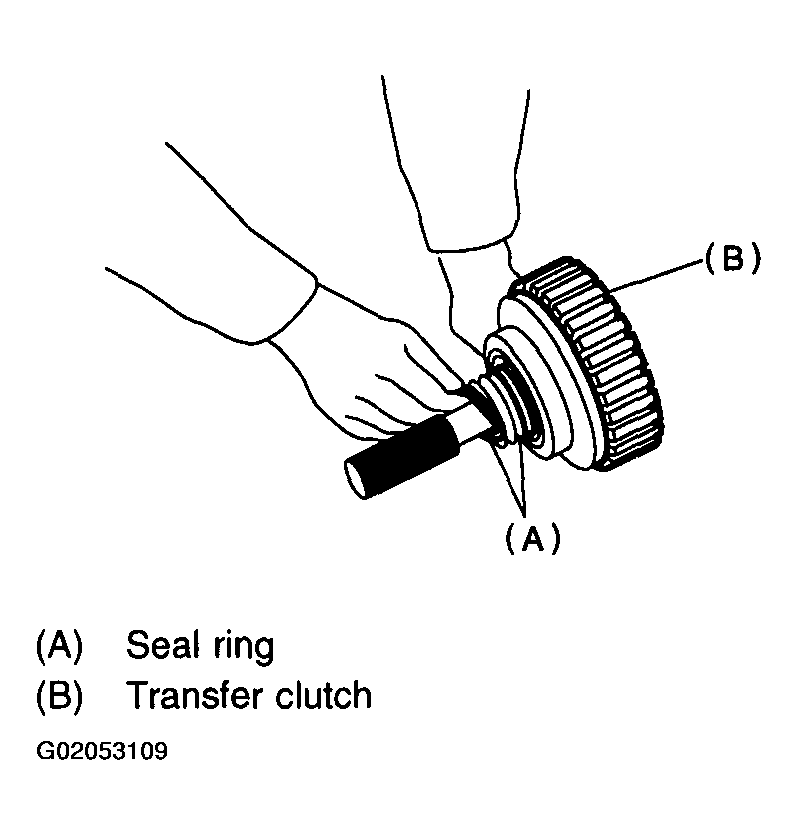

Fig 1: Removing Seal Ring
Using a press and ST, remove the ball bearing.
CAUTION: Do not reuse the bearing.

ST 498077600 REMOVER

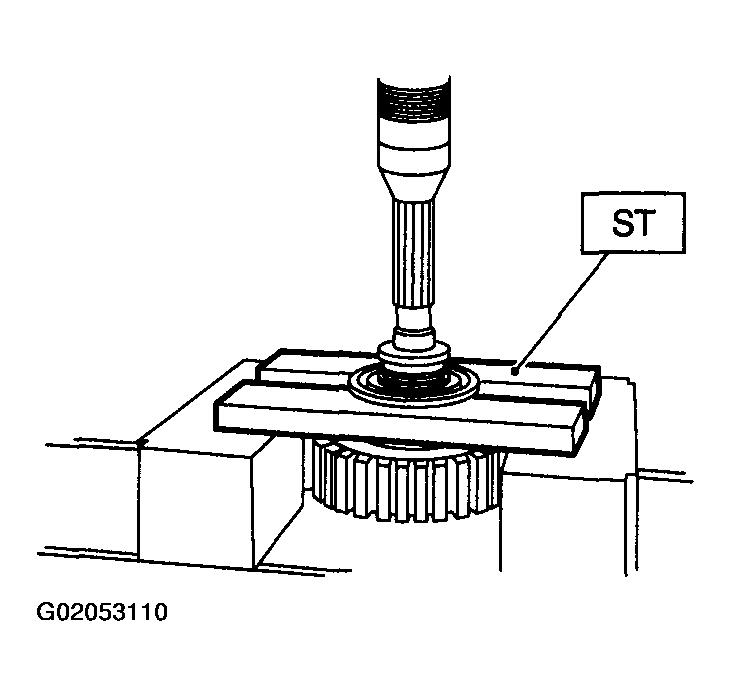

Fig 2: Removing Ball Bearing
Remove the snap ring, and take out the pressure plate, drive plates, and driven plates.

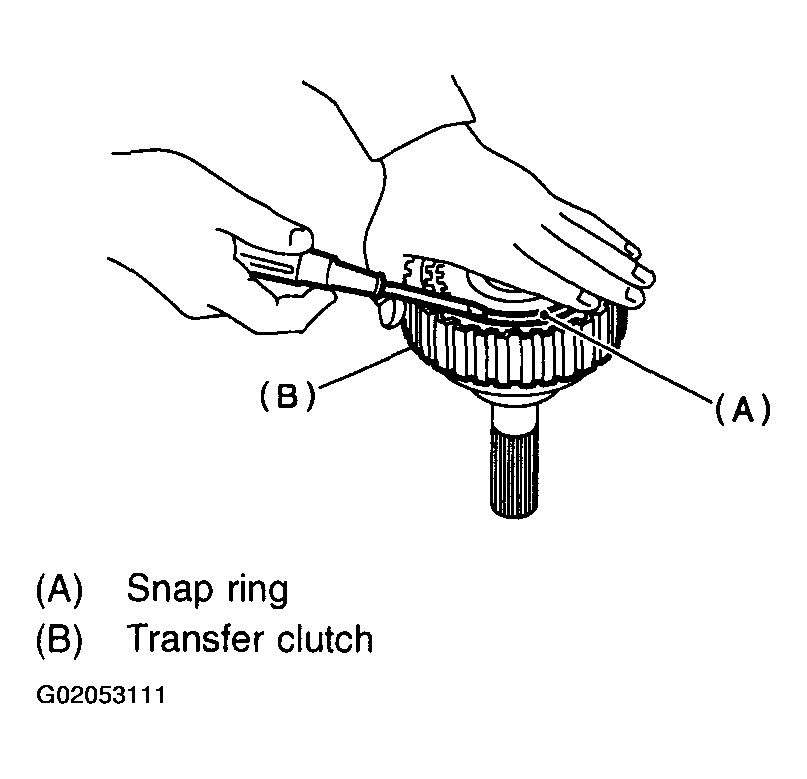

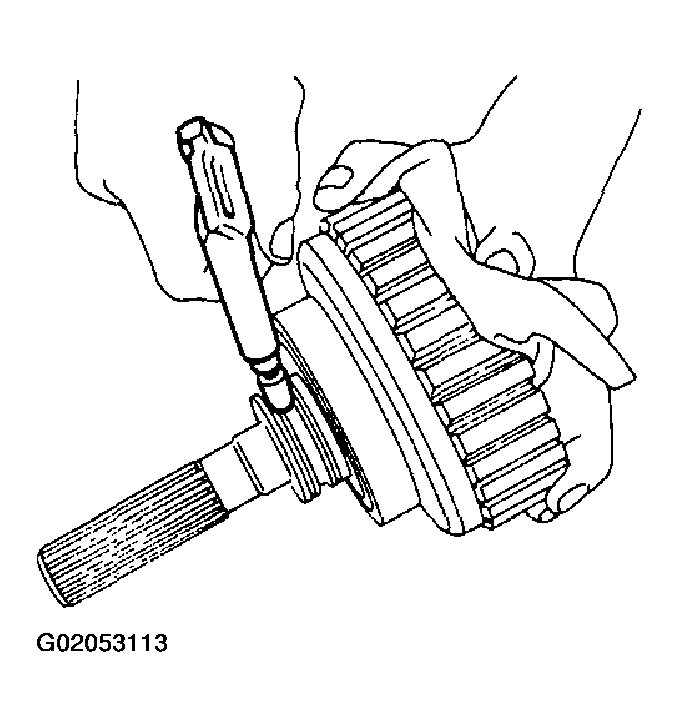

Fig 3: Removing Snap Ring For Clutch Plates
Remove the snap ring with ST1, ST2 and ST3, and take out the return spring and transfer clutch piston seal.
ST1 399893600 PLIERS

ST2 398673600 COMPRESSOR

ST3 398623600 SEAT

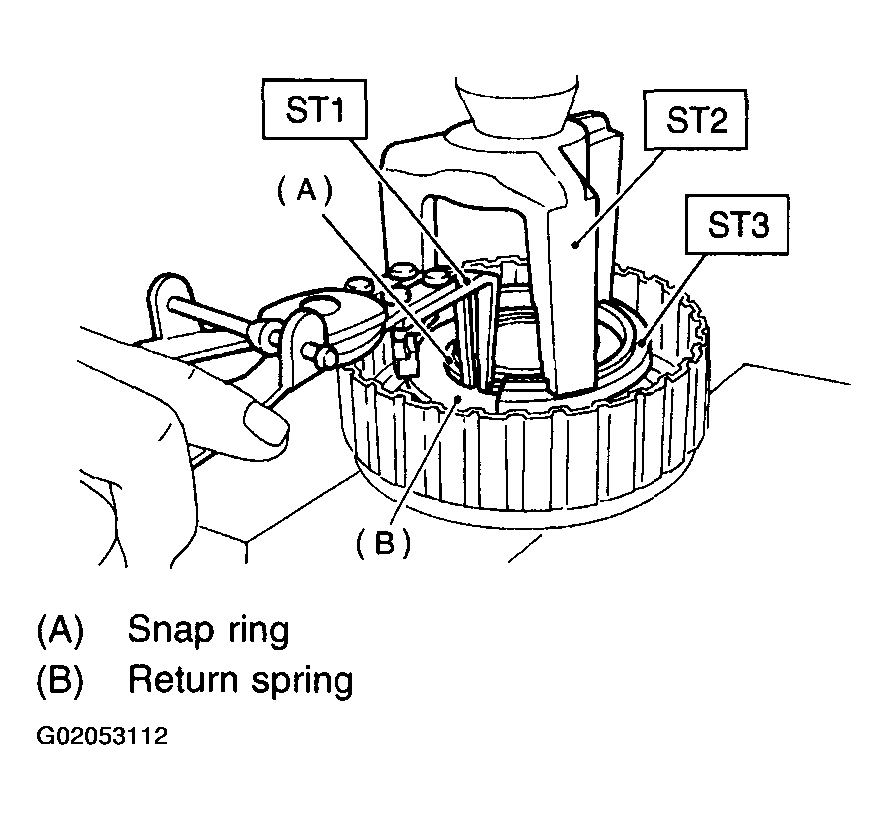

Fig 4: Removing Snap Ring For Return Spring & Transfer Clutch Piston Seal
Apply compressed air to the rear drive shaft to remove the piston.

Fig 5: Removing Piston
