Transfer Clutch: Installation

  1. Install the transfer clutch assembly to the case.
    CAUTION: Be careful not to damage the seal rings.

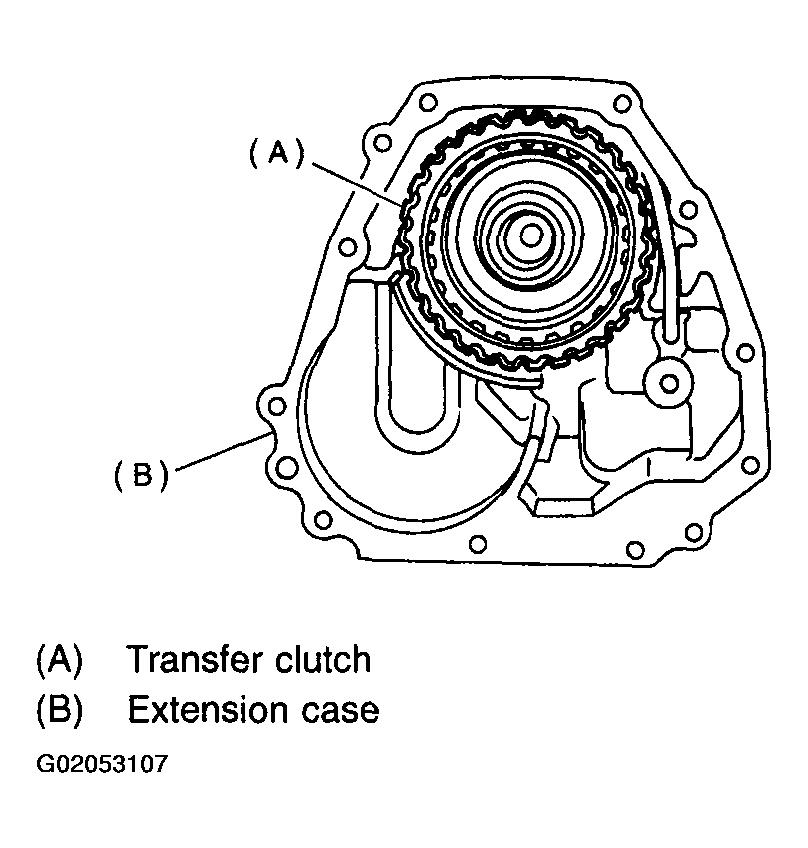

    Fig 1: Installing Transfer Clutch Assembly
    G02053107
  2. Tighten bolts to secure the case.

    Tightening torque:

    1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

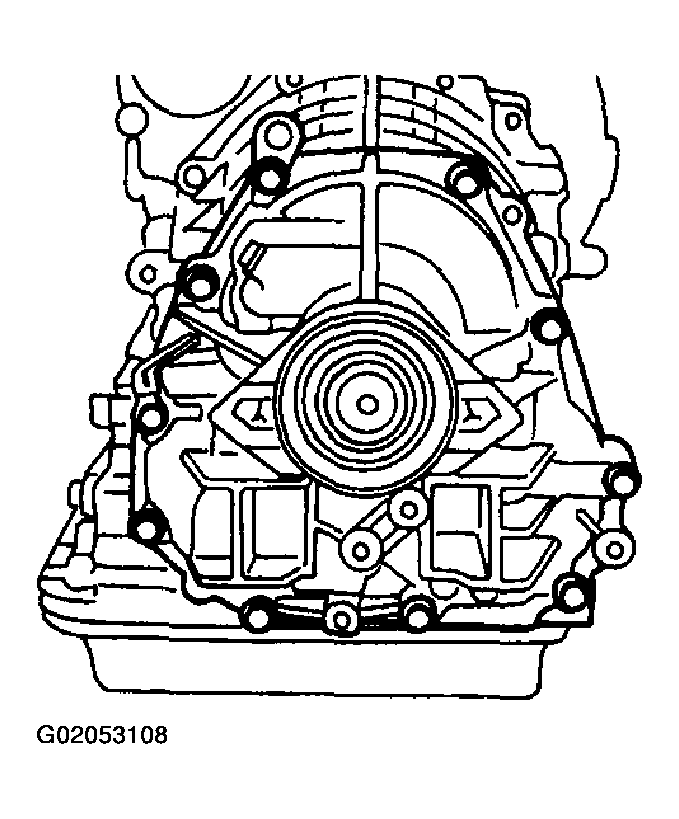

      Fig 2: Tightening Extension Case Bolts
      G02053108
