Transmission Control Device: Installation

Install detention spring to transmission case.
Tightening torque:
1. 6 N.m (0.6 kgf-m, 4.3 ft-lb)

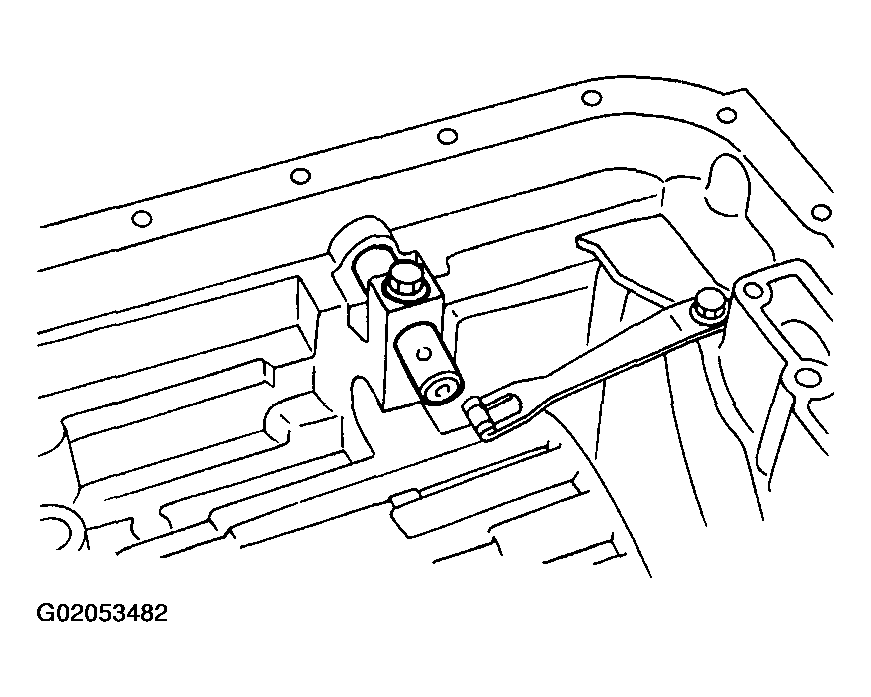

Fig 1: Installing Detention Spring To Transmission Case
Insert range select lever, and tighten bolt.
Tightening torque:
1. 6 N.m (0.6 kgf-m, 4.3 ft-lb)

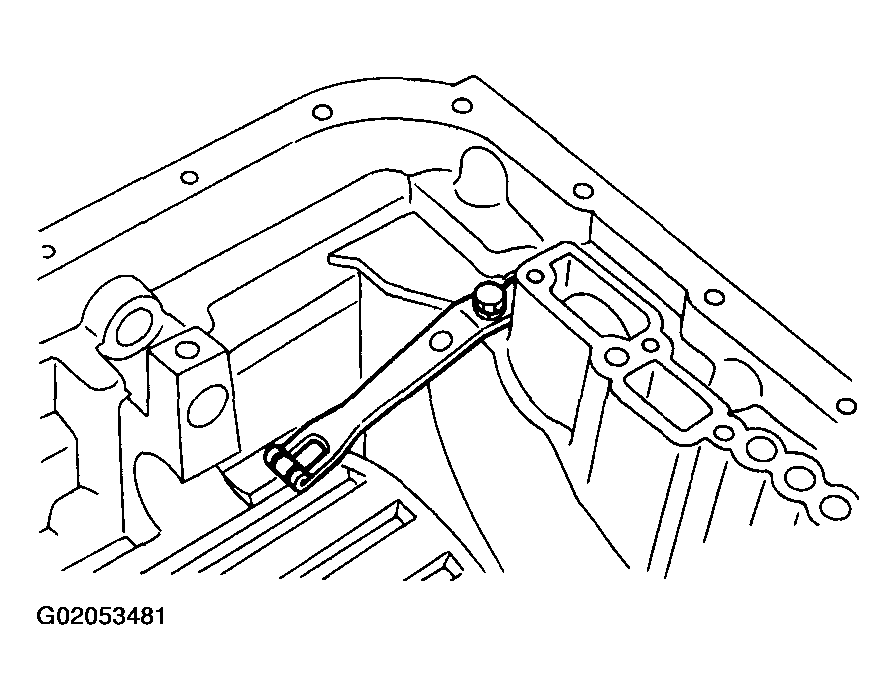

Fig 2: Inserting Range Select Lever & Tightening Bolt
Insert manual lever and parking rod.

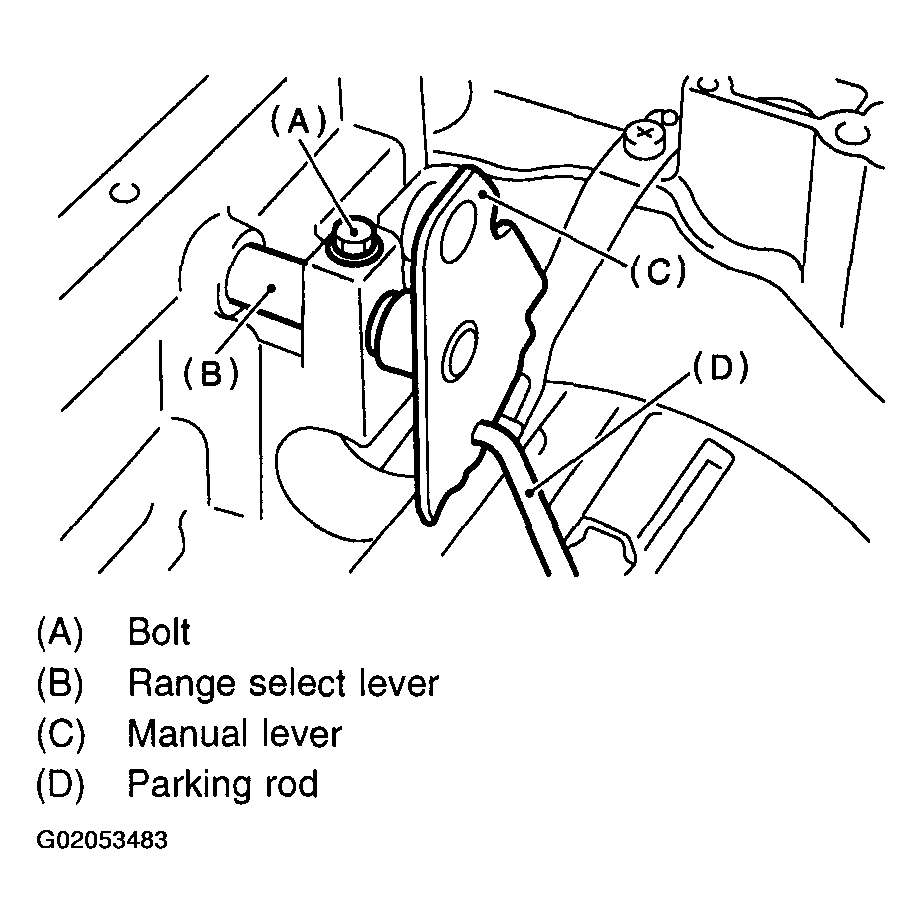

Fig 3: Inserting Manual Lever & Parking Rod
Insert spring pin to manual lever.

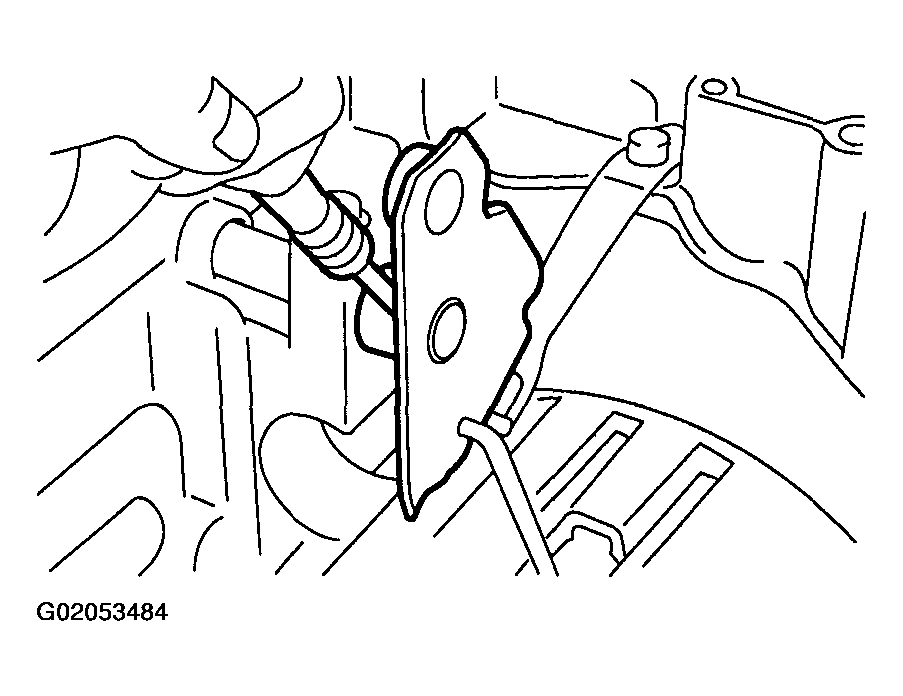

Fig 4: Inserting Spring Pin To Manual Lever
Install control valve assembly. See Control Valve Body Assembly .
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:
1. THREE BOND 1217B

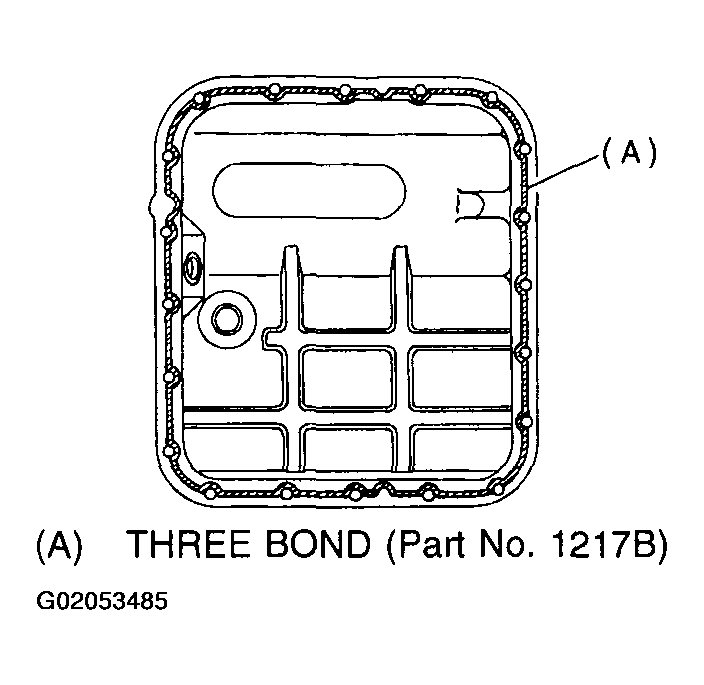

Fig 5: Applying Liquid Gasket
Turn over the transmission case to its original position.
Install pitching stopper bracket.
Tightening torque:
1. 41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install air breather hose. See INSTALLATION .
Install inhibitor switch and adjust the inhibitor switch by referring to Supplement AT section.
Insert inhibitor switch and transmission connector into stay.

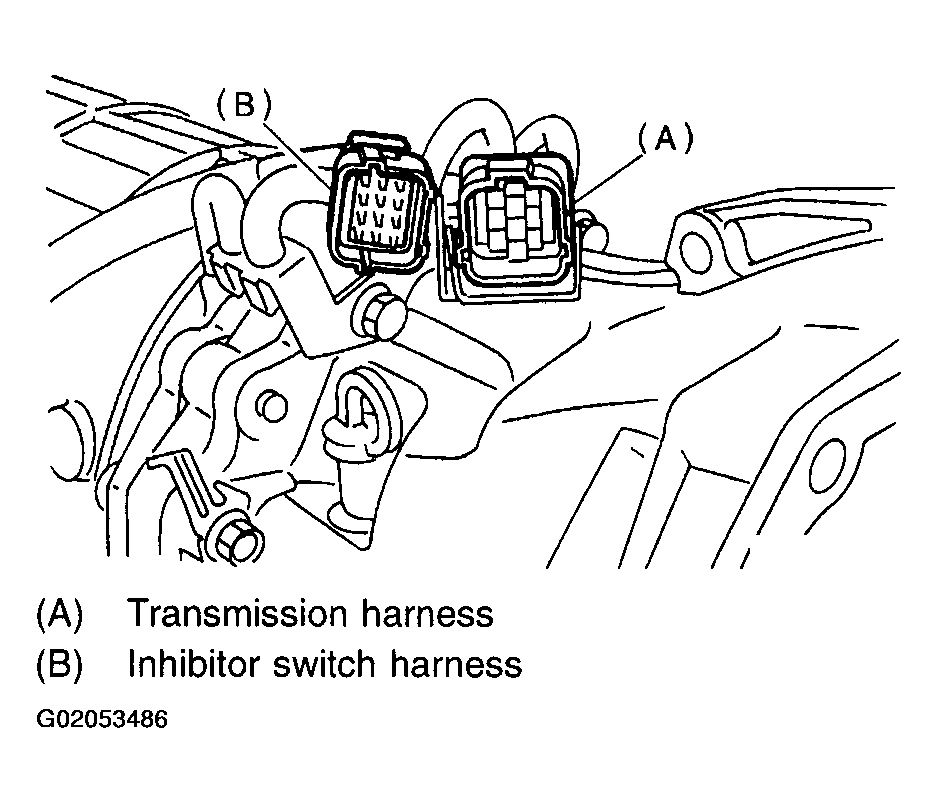

Fig 6: Inserting Inhibitor Switch & Transmission Connector
Insert the input shaft while turning lightly by hand.
CAUTION: Be careful not to damage the bushing.

Normal protrusion A:
1. 50 - 55 mm (1.97 - 2.17 in)

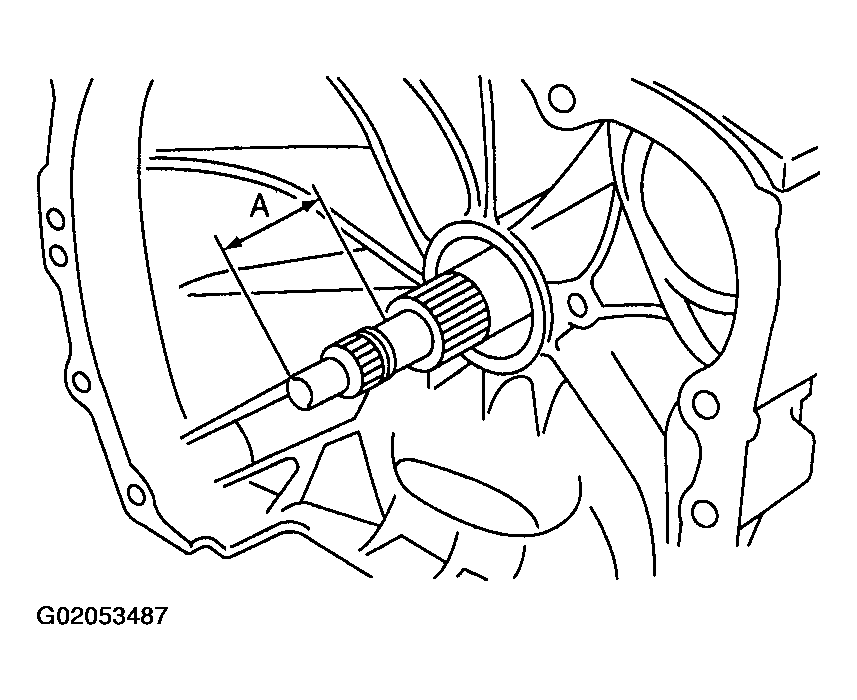

Fig 7: Identifying Protrusion "A"
Install the torque converter clutch assembly. See INSTALLATION .
