- Extract the torque converter clutch assembly.
NOTE:
- Extract the torque converter clutch horizontally. Be careful not to scratch the bushing inside the oil pump shaft.
- Note that oil pump shaft also comes out.
- Remove the input shaft.
- Disconnect transmission harness connector from stay.
NOTE:
Lift-up lever behind the connector and disconnect it from stay.
- Disconnect inhibitor switch connector from stay.
- Disconnect the air breather hoses. See Air Breather Hose
.
- Wrap vinyl tape around the nipple attached to the air breather hose.
- Remove pitching stopper bracket.

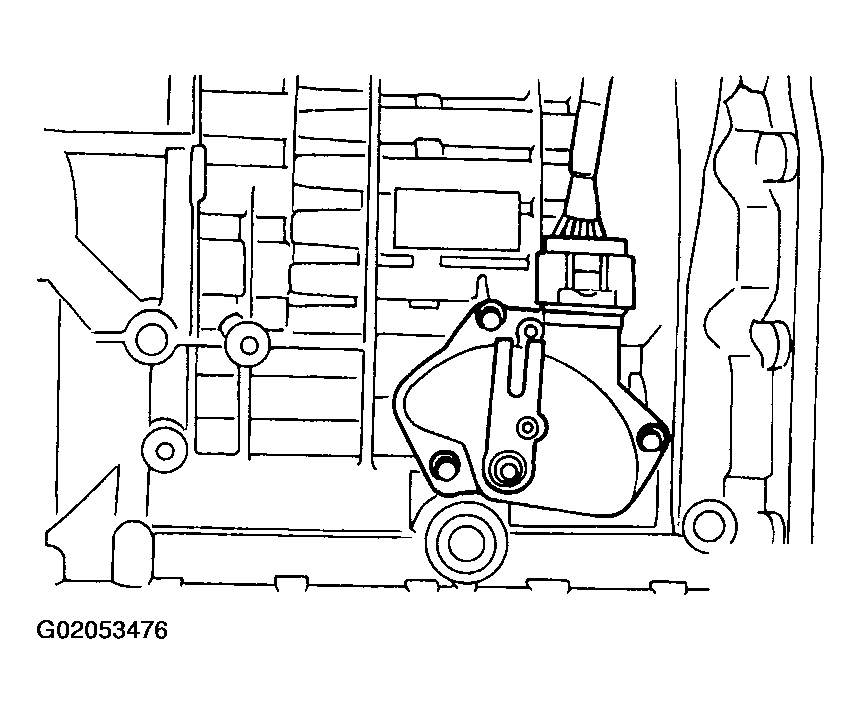

- Remove the inhibitor switch.
- Prepare a block of wood. Turn the transmission case over, and support it with the block of wood.
NOTE:
Turn the transmission case in the direction the inhibitor switch was installed.

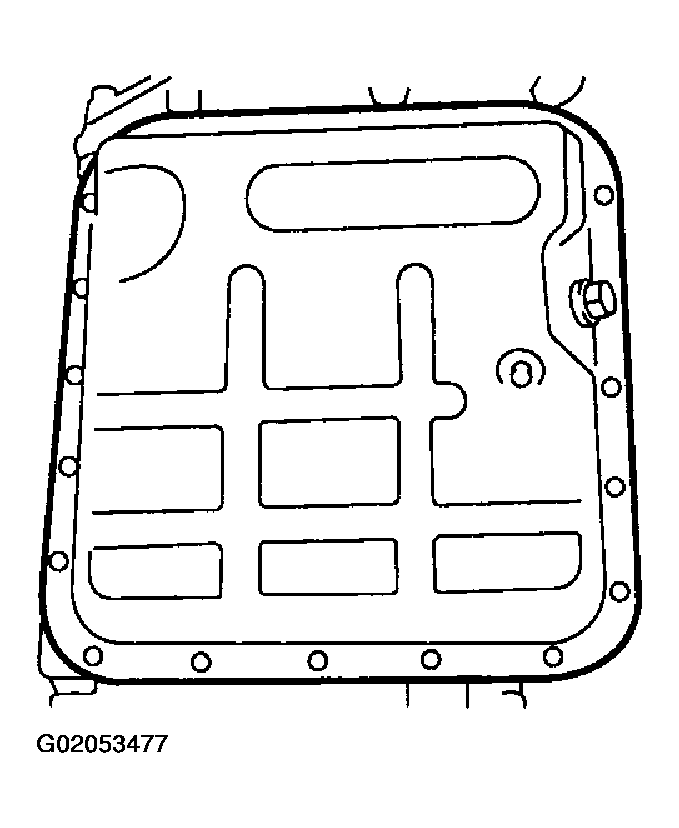

- Remove the oil pan.
NOTE:
Use a scraper to remove oil pan.
- Remove control valve body assembly. See Control Valve Body Assembly
.

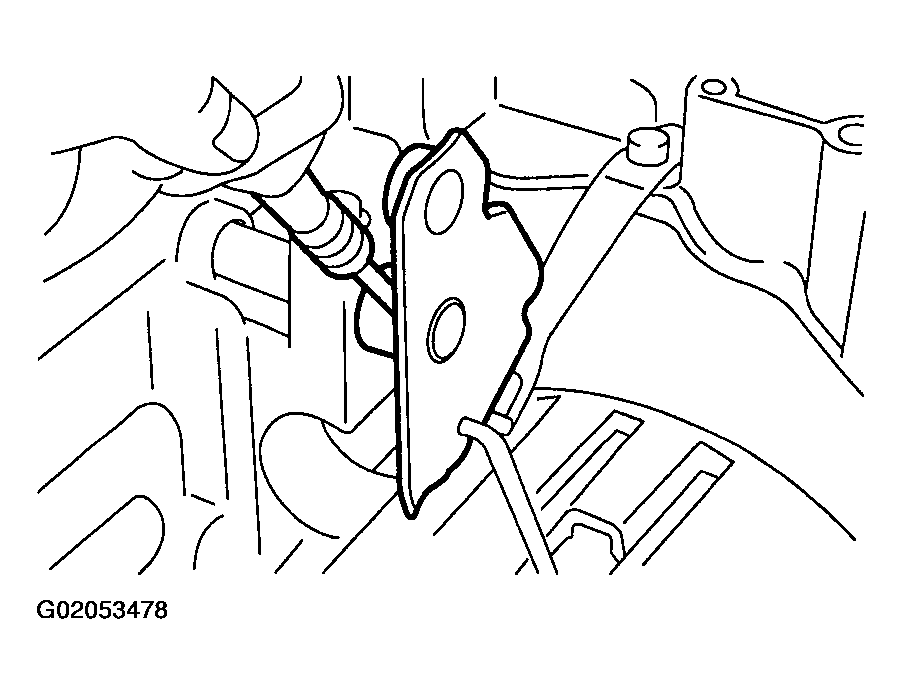

- Pull off the straight pin of manual lever.

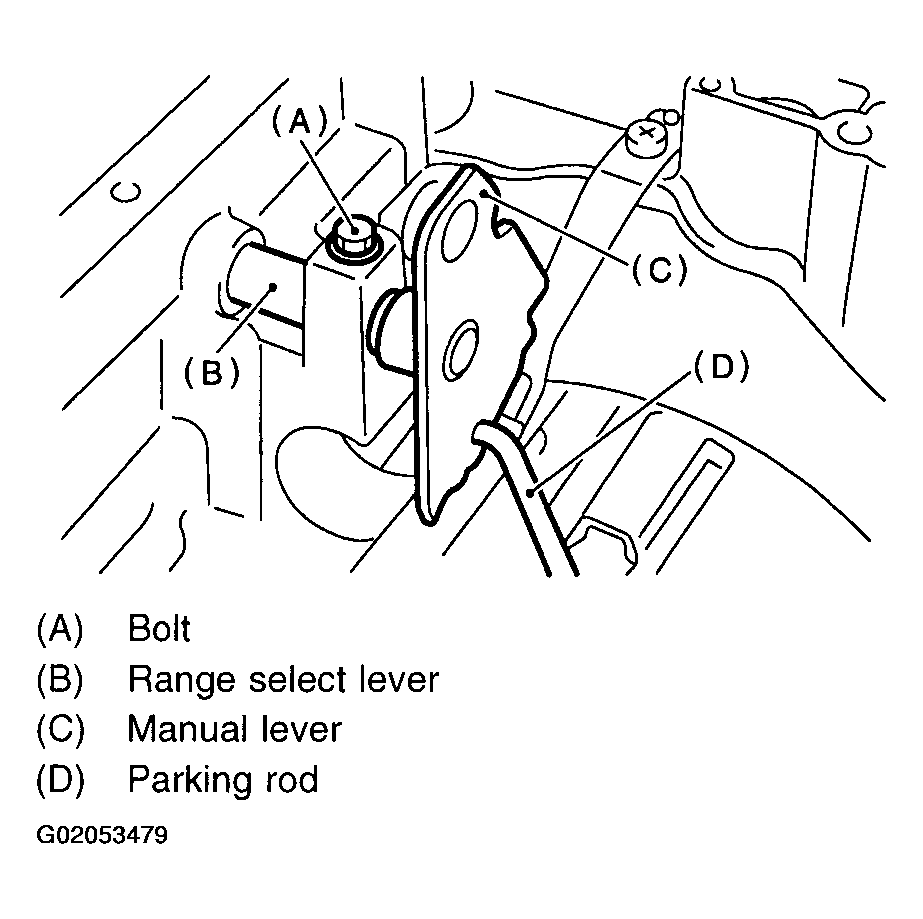

- Remove bolts securing select lever, then remove select lever, manual lever and parking rod.
CAUTION:
Be careful not to damage the lips of the press-fitted oil seal in the case.

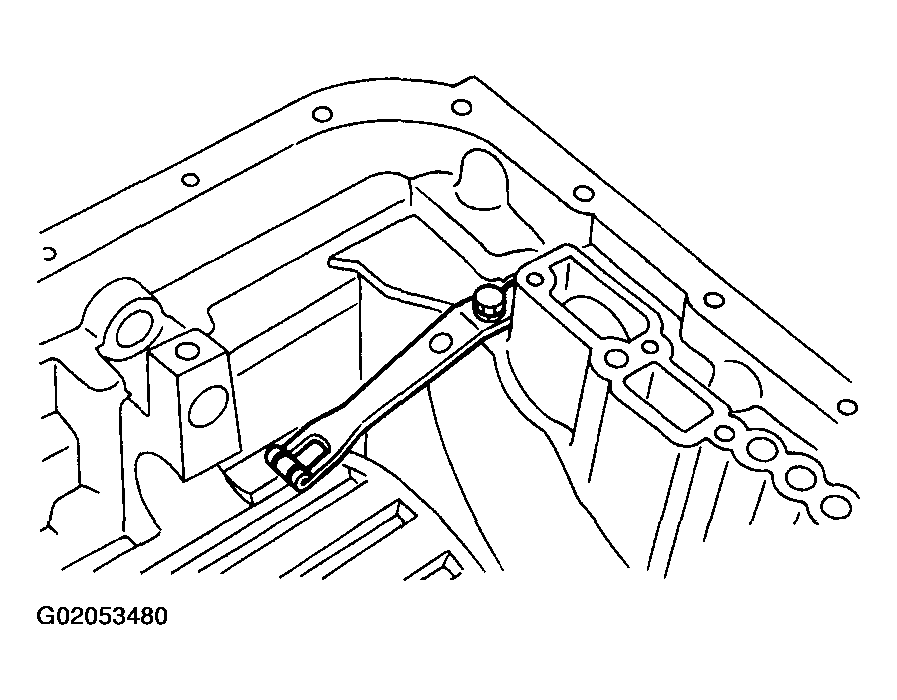

- Remove the detention spring.
