Differentials & Drive Axles: General Description: Specifications: Notes

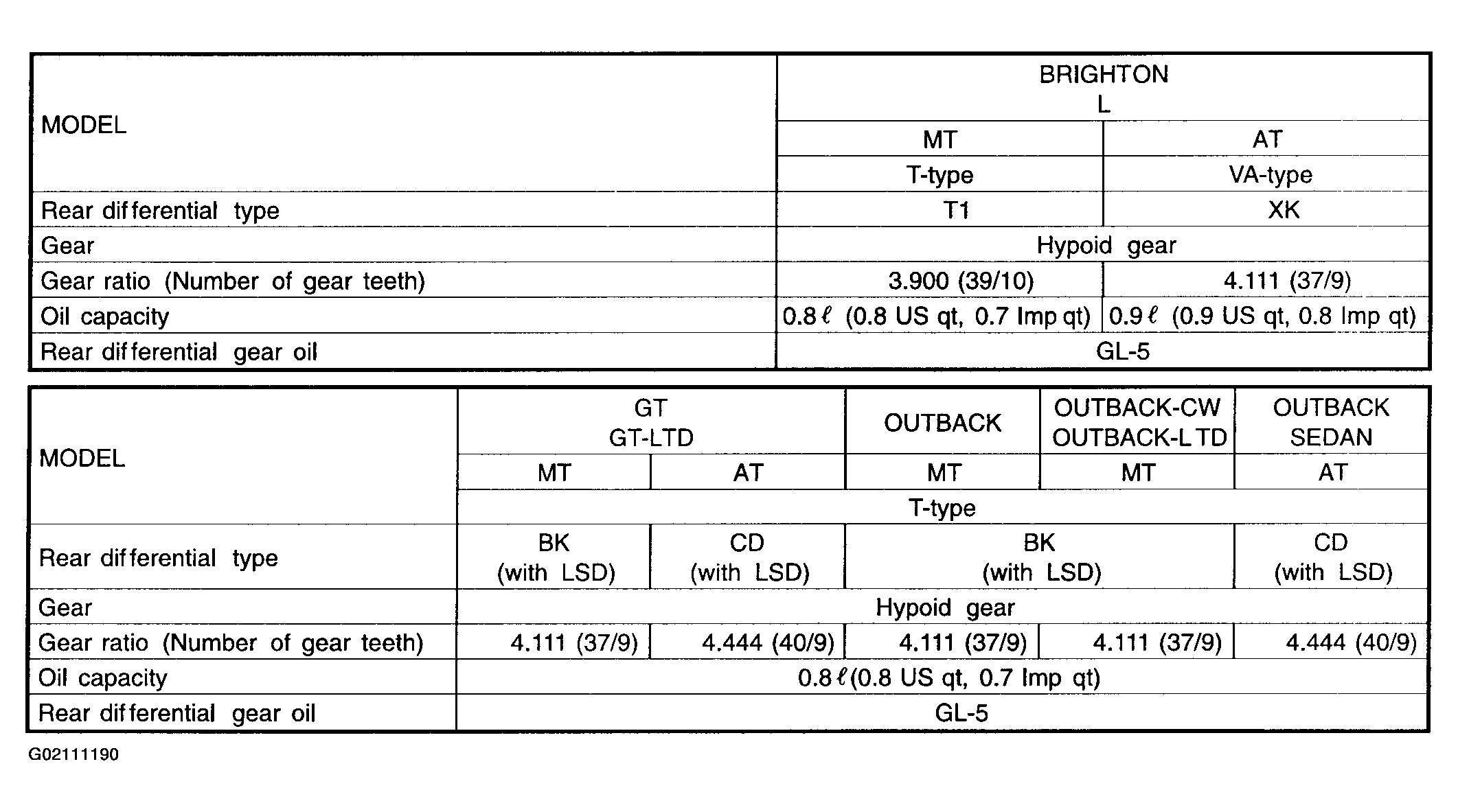

Fig 1: Specifications Chart

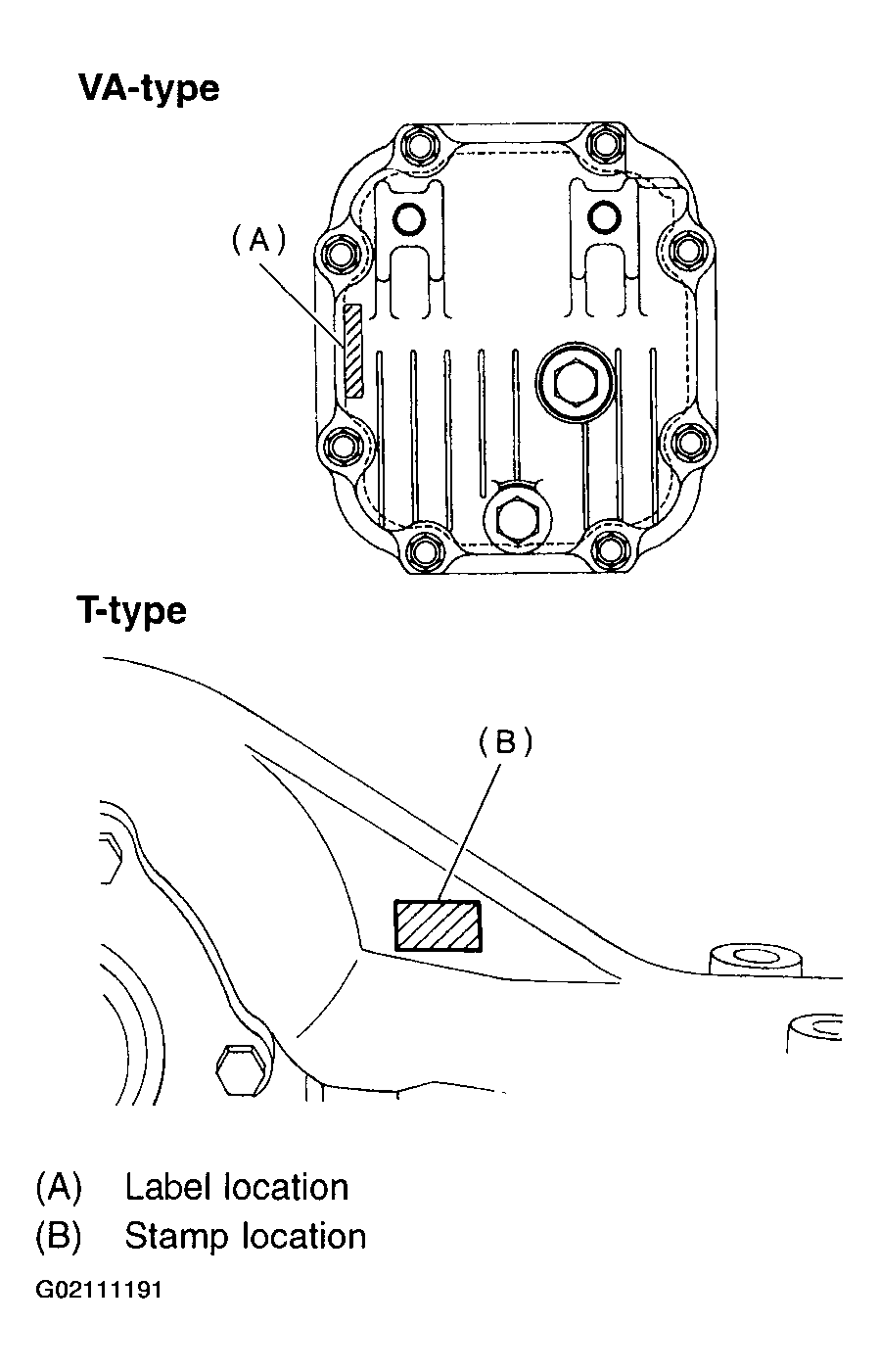

Fig 2: Identifying Label & Stamp Locations

• Rear differential gear oil

  Recommended oil label

  CAUTION: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.
  Fig 3: Rear Differential Gear Oil Chart
