ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM&H/U.

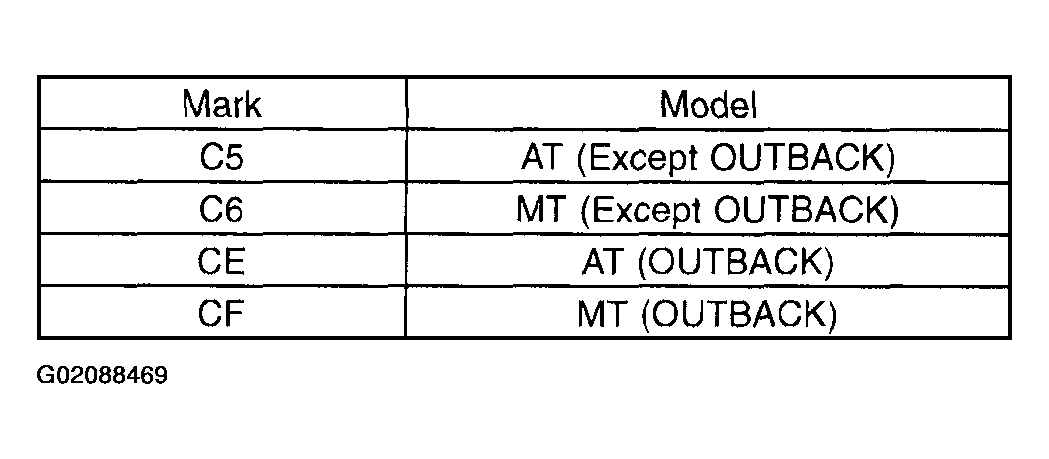

    Fig 1: Checking Specifications Chart
    G02088469

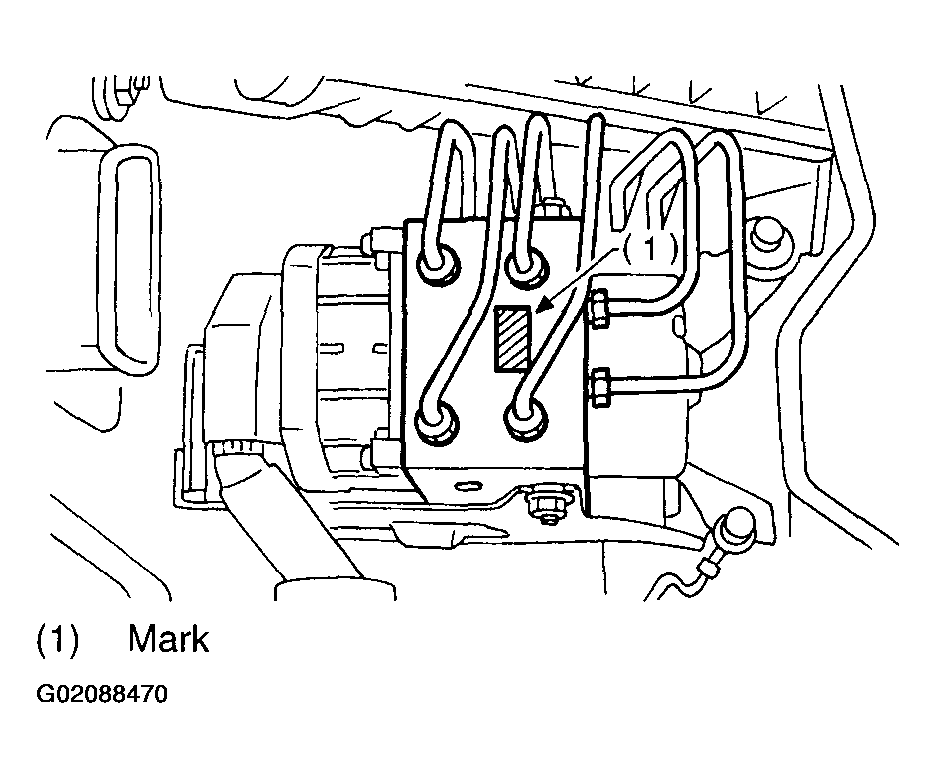

    Fig 2: Identifying Mark On ABSCM & H/U
    G02088470
