- Disconnect ground cable from battery.
- Remove air intake duct from engine compartment to facilitate removal of ABSCM&H/U.
- Use an air gun to get rid of water around the ABSCM&H/U.
CAUTION:
The contact will be insufficient if the terminal gets wet.

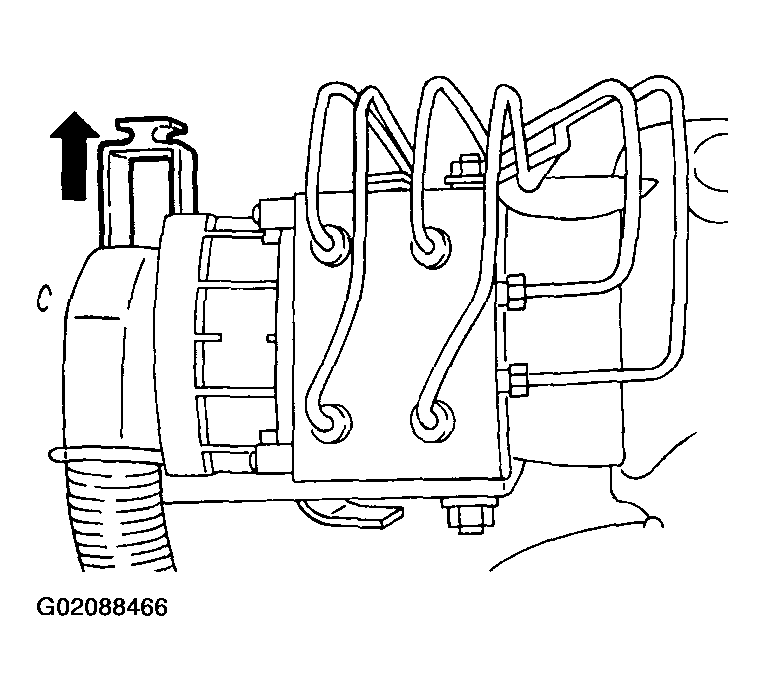

- Pull off the lock of the ABSCM&H/U connector to remove it.
- Disconnect connector from ABSCM&H/U.
CAUTION:
Be careful not to let water or other foreign matter contact the ABSCM&H/U terminal.
- Unlock cable clip.
- Disconnect brake pipes from ABSCM&H/U.
CAUTION:
Wrap brake pipes with vinyl bag to avoid spilling brake fluid on vehicle body.

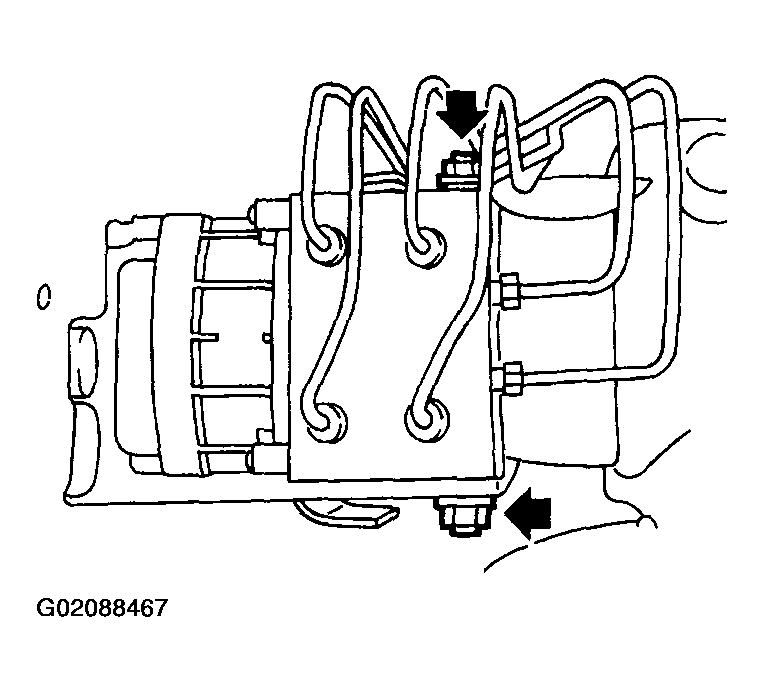

- Remove ABSCM&H/U ground terminal from bracket.
- Remove ABSCM&H/U from engine compartment.
CAUTION:
- ABSCM&H/U cannot be disassembled. Do not attempt to loosen bolts and nuts.
- Do not drop or bump ABSCM&H/U.
- Do not turn the ABSCM&H/U upside down or place it on its side.
- Be careful to prevent foreign particles from getting into ABSCM&H/U.
- Apply a coat of rust-preventive wax (Nippeco LT or GB) to bracket attaching bolt after tightening.
- Do not pull harness when disconnecting connector.
