Diagnostic Chart

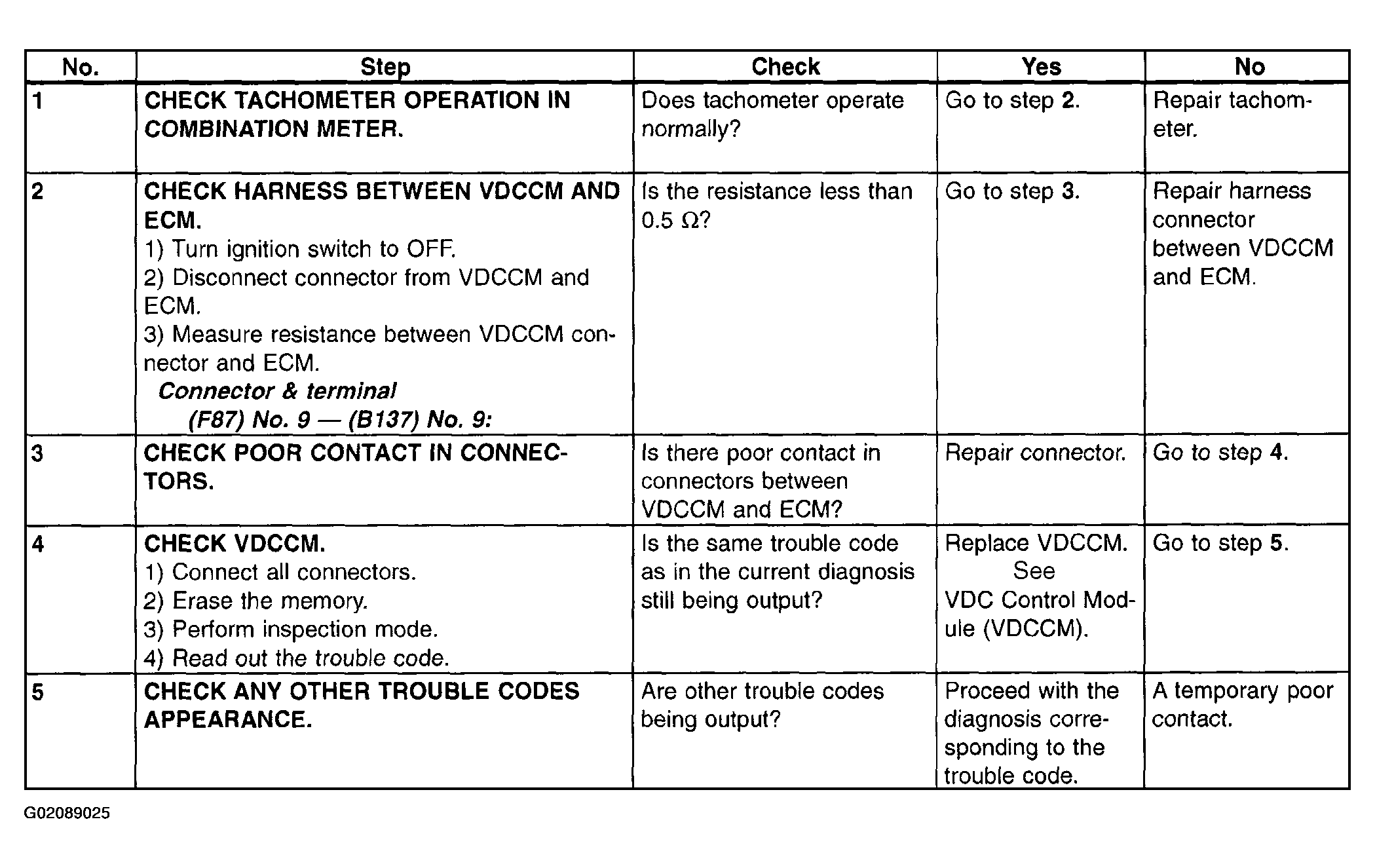

Fig 1: Diagnostic Chart - Trouble Code 49 - With Select Monitor (Abnormal Engine Speed Signal)
