VDCCM Connector Cover: Remove

  1. Turn ignition switch OFF.
  2. Disconnect connector from VDCCM.
  3. Remove band.
  4. Remove cable clamp cover.
  5. Remove screws securing connector cover.
    CAUTION: Do not allow harness to catch on adjacent parts during installation.

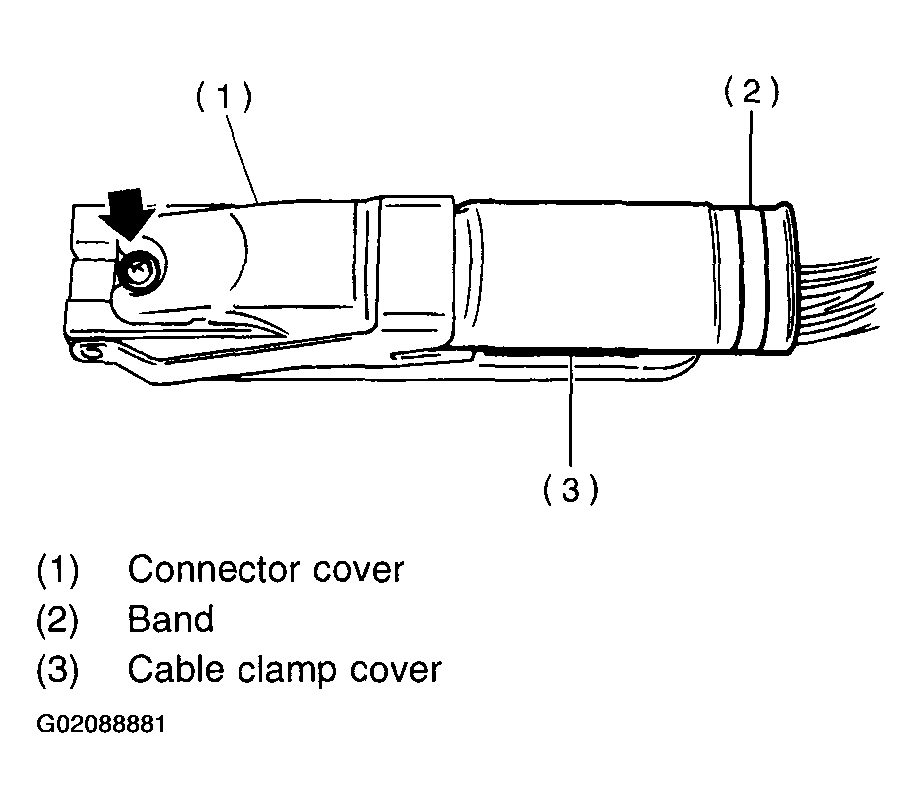

    Fig 1: Removing Connector Cover Screws For VDCCM
    G02088881
  6. Remove connector cover.
    Fig 2: Removing Connector Cover For VDCCM
    G02088882
