Abs Sensor

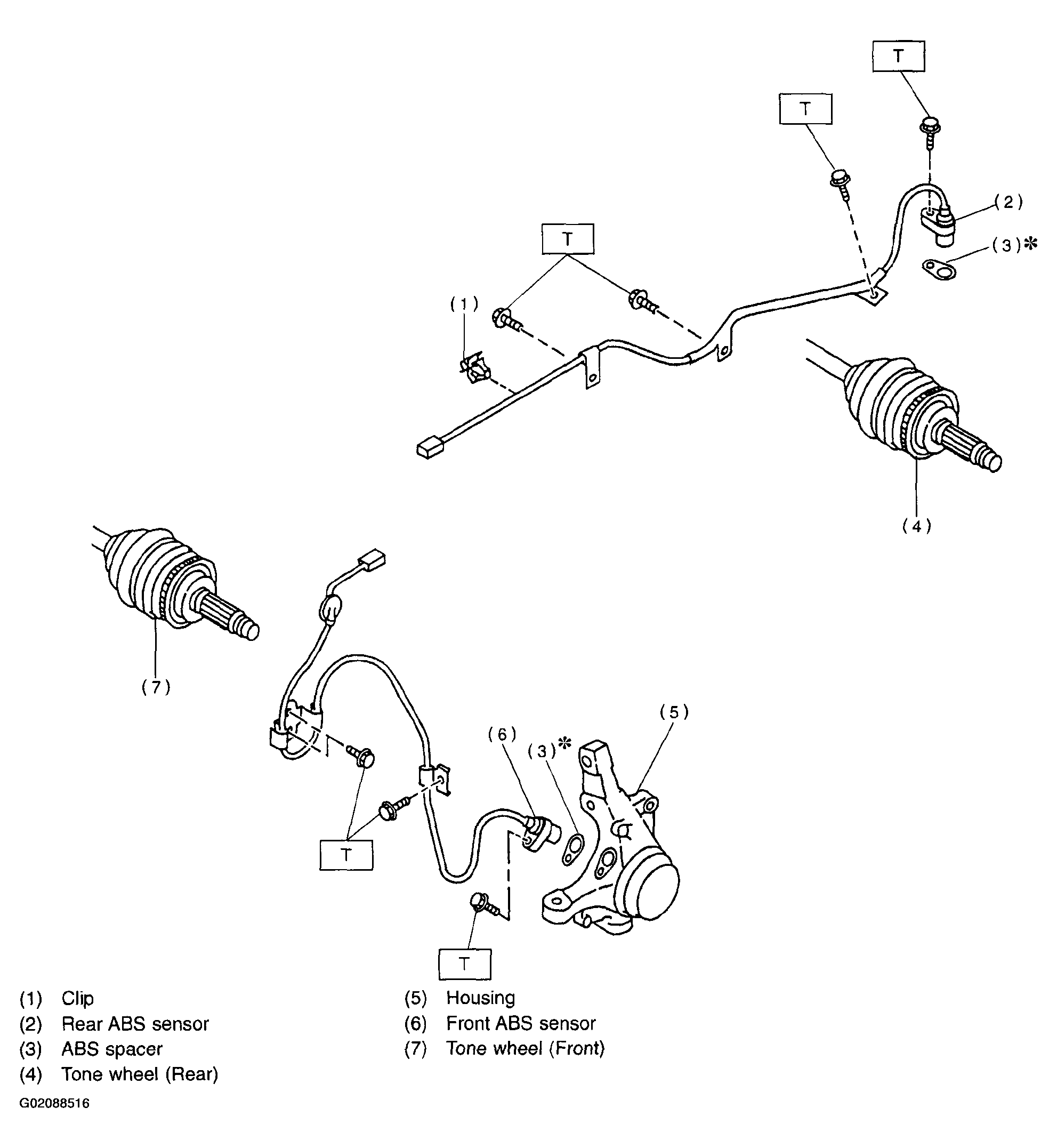

Fig 1: Exploded View Of Sensor Routing
G02088516

Tightening torque: N.m (kgf-m, ft-lb)

  1. T: 32 (3.3, 24)
