Relay Box
- Disconnect ground cable from battery.
- Remove air intake duct from engine compartment to facilitate removal of relay box.
- Disconnect connector from relay box.
- Unlock cable clip.

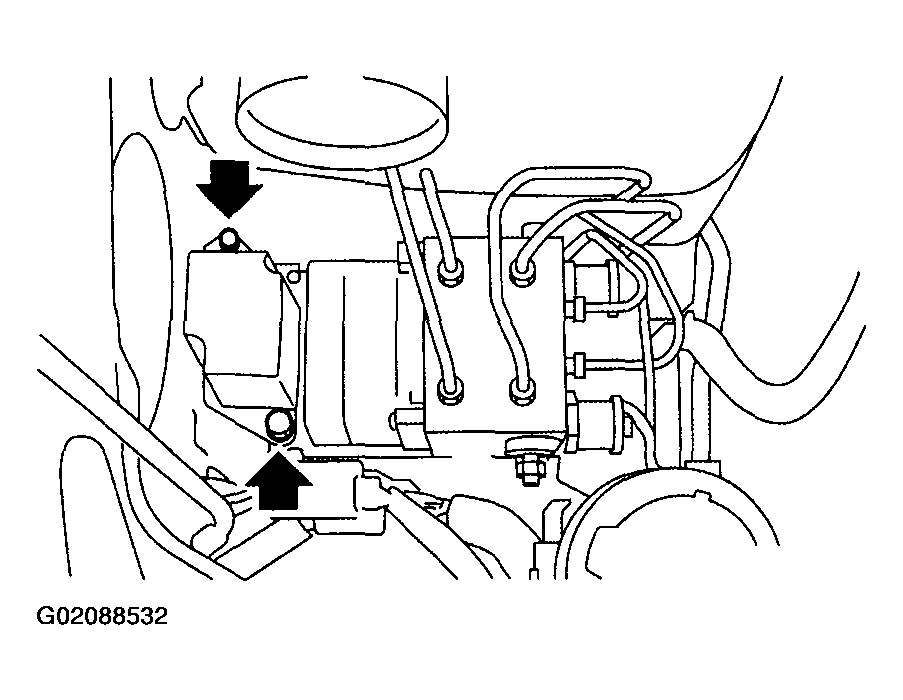

- Remove nuts which secure relay box, and remove relay box and connector bracket.
CAUTION: Do not drop or bump relay box.
