VDC Control Module (VDCCM): Removal

Disconnect battery ground cable.

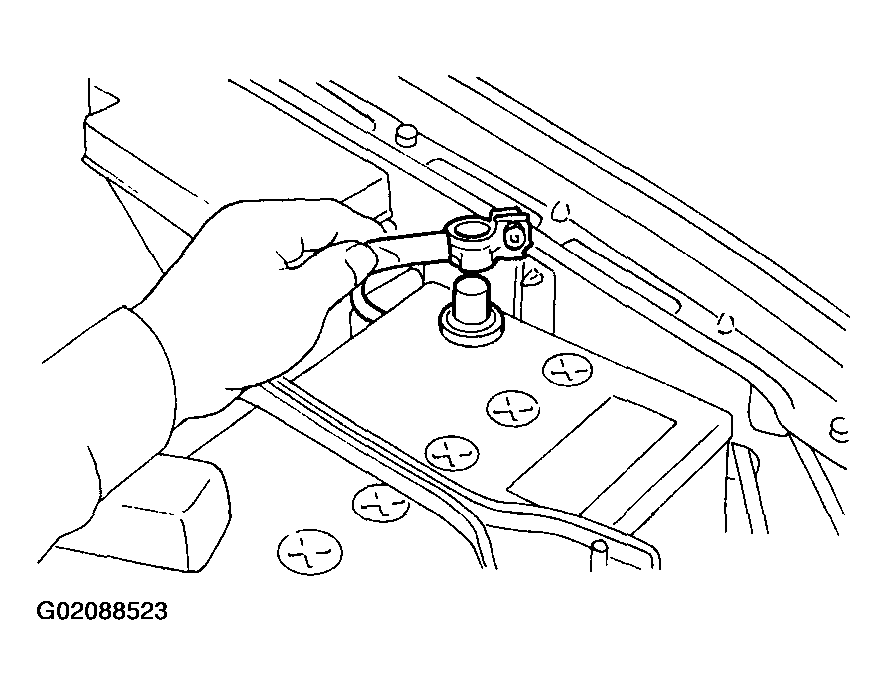

Fig 1: Disconnecting Battery Ground Cable
Remove lower cover of instrument panel and disconnect connectors on the back side of the cover.

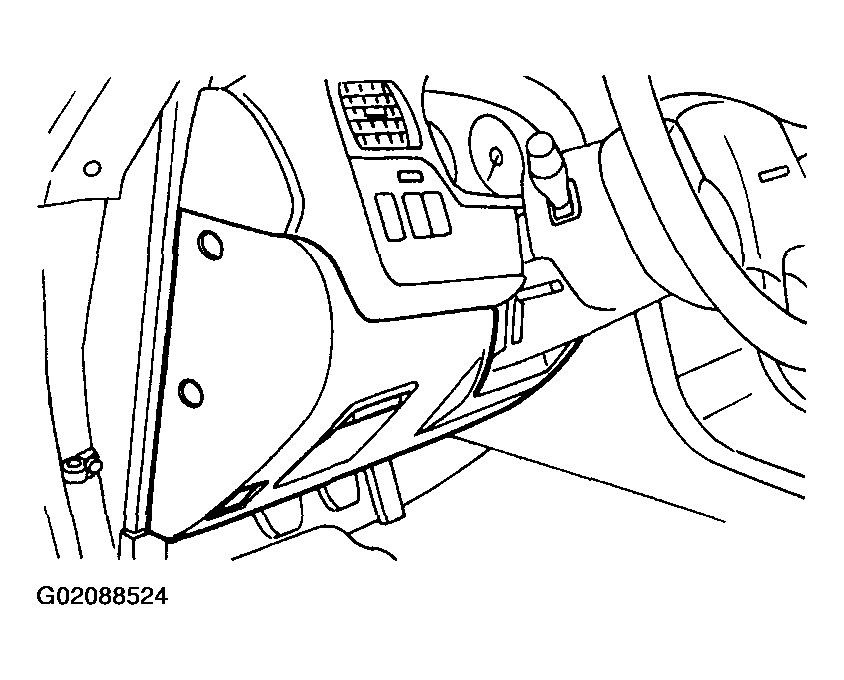

Fig 2: Removing Lower Cover Of Instrument Panel
Remove three bolts which secure the fuse box onto body side, then move the fuse box aside.

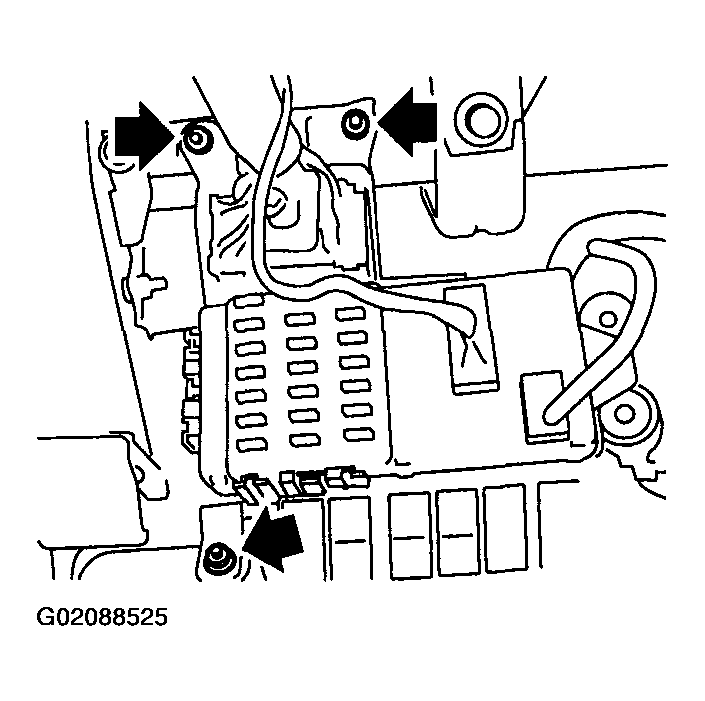

Fig 3: Identifying Fuse Box Bolts
Remove two bolts which install VDCCM onto body side bracket.

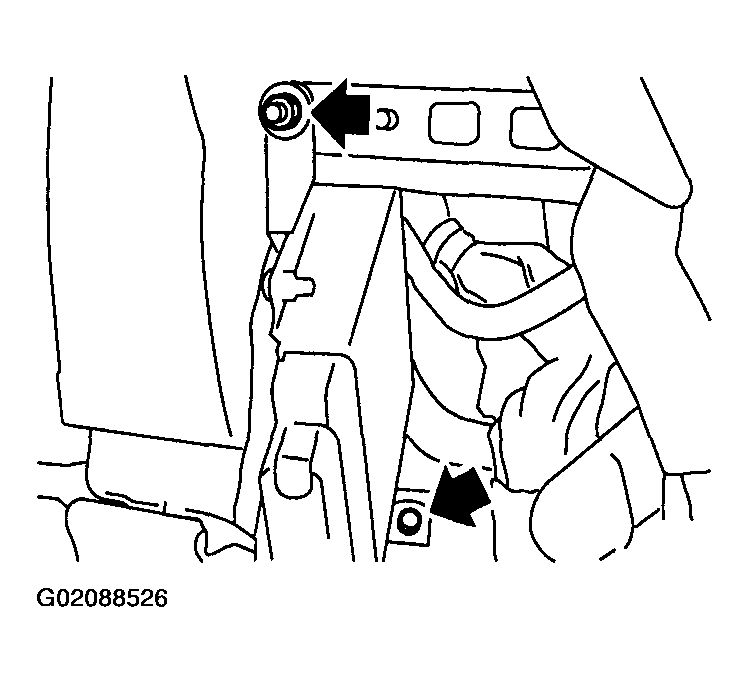

Fig 4: Identifying VDCCM Bolts
Disconnect connector from VDCCM by pulling up the securing holder.

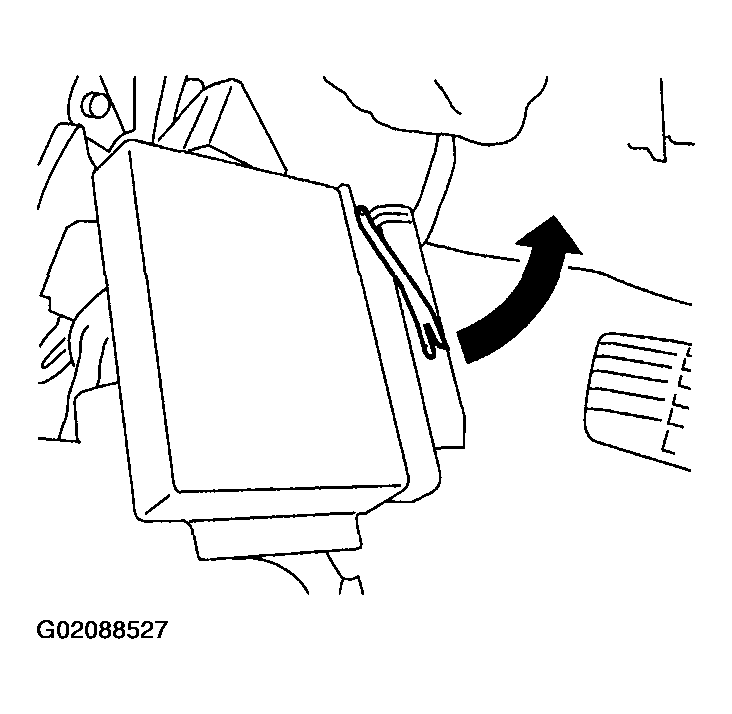

Fig 5: Disconnecting VDCCM Connector
Remove VDCCM.
