Yaw Rate and Lateral G SENSOR: Installation
Install in the reverse order of removal.
NOTE:

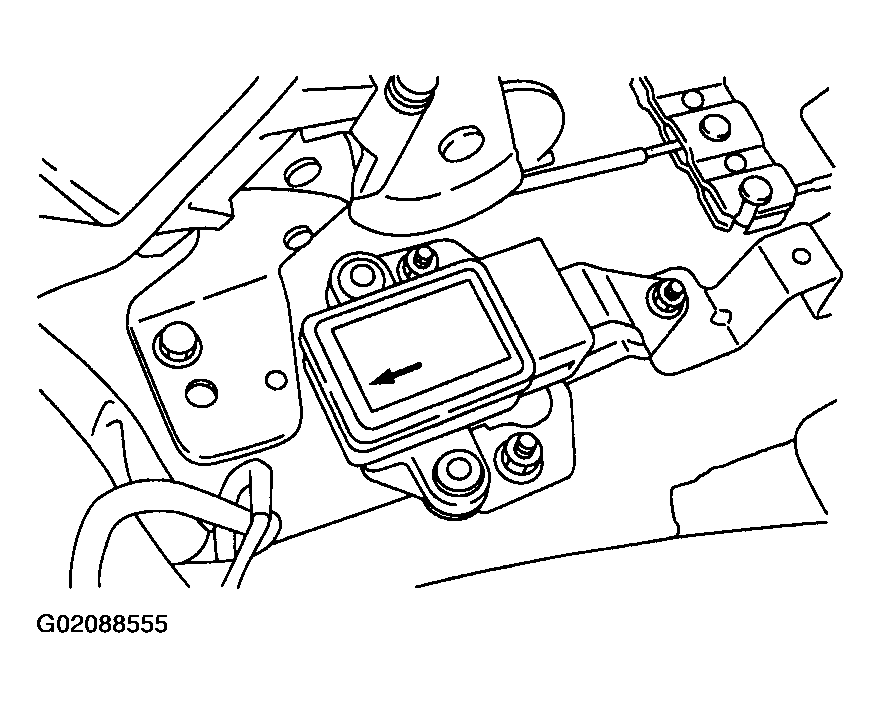

Do not install yaw rate and lateral G sensor in the wrong direction. There is an arrow on the sensor showing which side faces the front of the vehicle.
CAUTION:
After completion of installation procedure, the following two position settings must be made.
These procedures are necessary for VDCCM to later recognize what position the vehicle is in. For procedures for the above two settings, see ADJUSTMENT .
- Steering angle sensor center positioning
- Yaw rate and lateral G sensor 0 positioning
These procedures are necessary for VDCCM to later recognize what position the vehicle is in. For procedures for the above two settings, see ADJUSTMENT .
