Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | At right side of engine compartment. |
| Air Bag Control Module | Ahead of front floor tunnel. |
| A/T Shift Lock Control Module | Behind left side of dash. |
| Cruise Control Module | Behind right side of dash. |
| Daytime Running Light Control Module | Behind center of dash. |

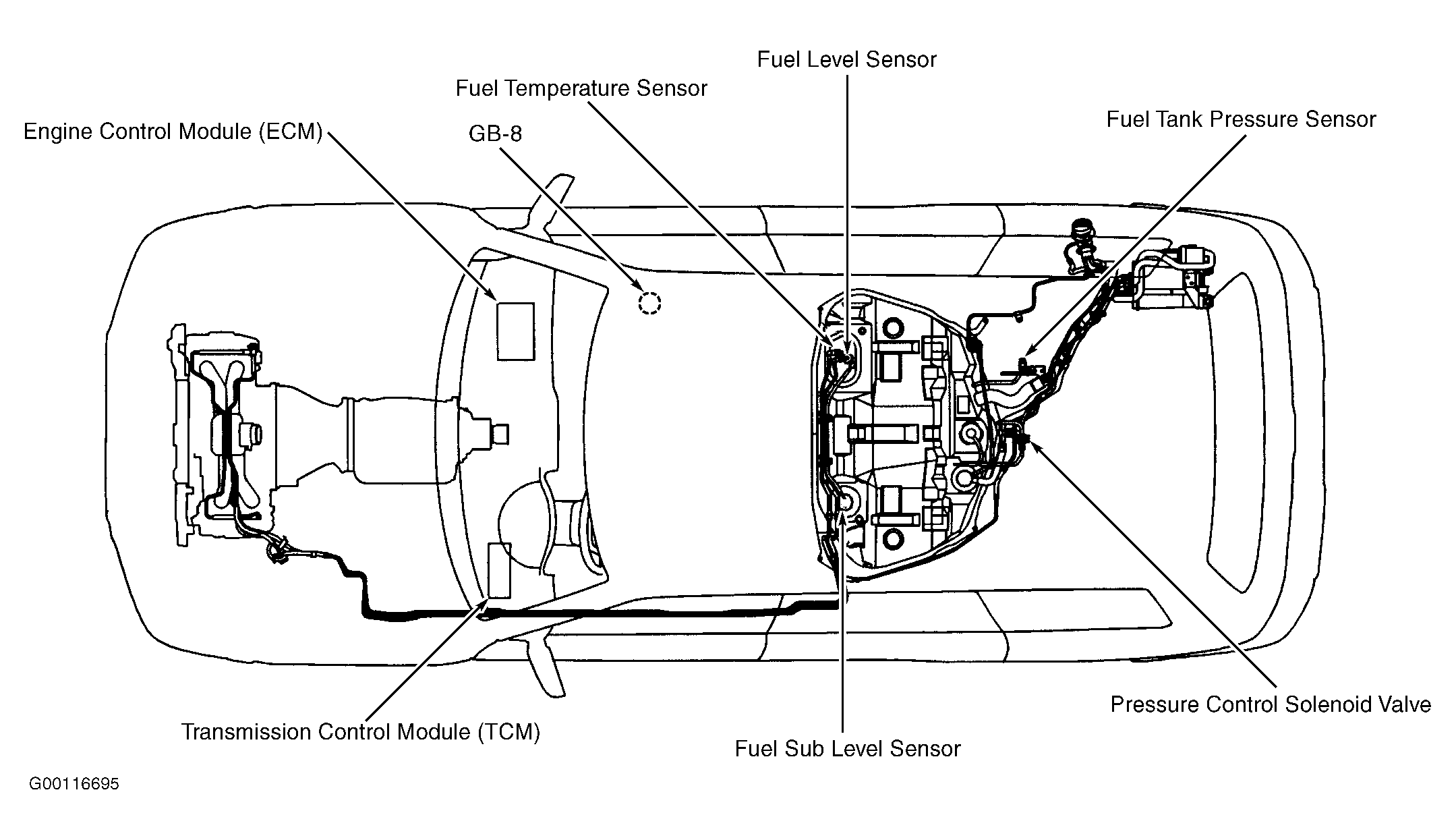

| Engine Control Module (ECM) | In passenger side front footwell below carpet and protective panel. See Figure. |
| Hydraulic Module | Right side of engine compartment. |
| Illumination Control Module | Behind center of dash. |

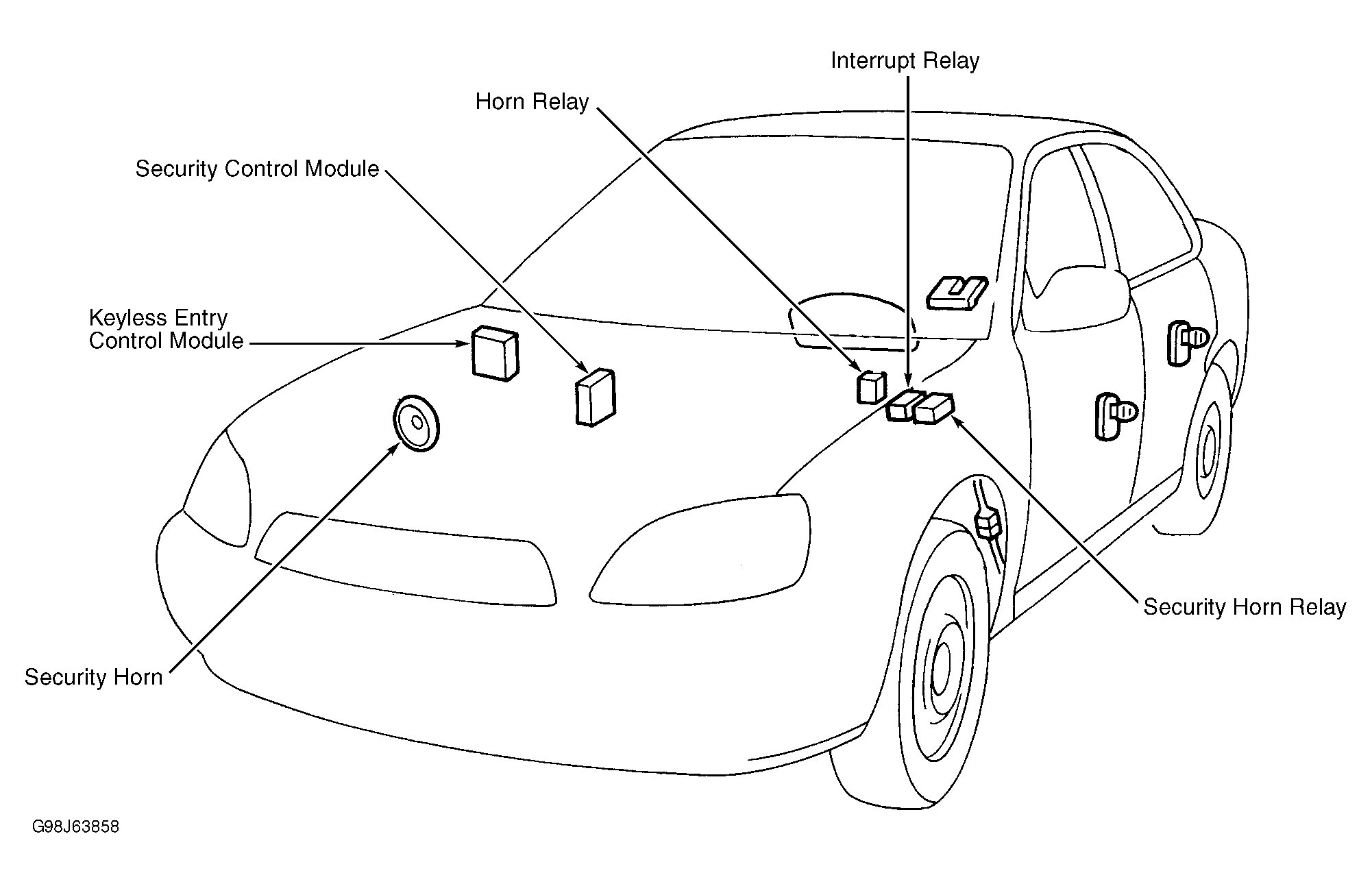

| Keyless Entry Control Module | Behind right side of dash. See Figure. |
| Security Control Module | Behind center of dash. See Figure. |
| Sun Roof Control Module & Motor (Sedan) | At front of sun roof opening. |
| Sun Roof Control Module & Motor (Wagon) | At rear of sun roof opening. |
| Transmission Control Module (TCM) | Behind left side of dash. See Figure. |
| Turn & Hazard Module | Behind left side of dash. |
