3.0 L Model

  1. Install reservoir tank to bracket.
  2. Connect pressure hose and suction hose to oil pump.

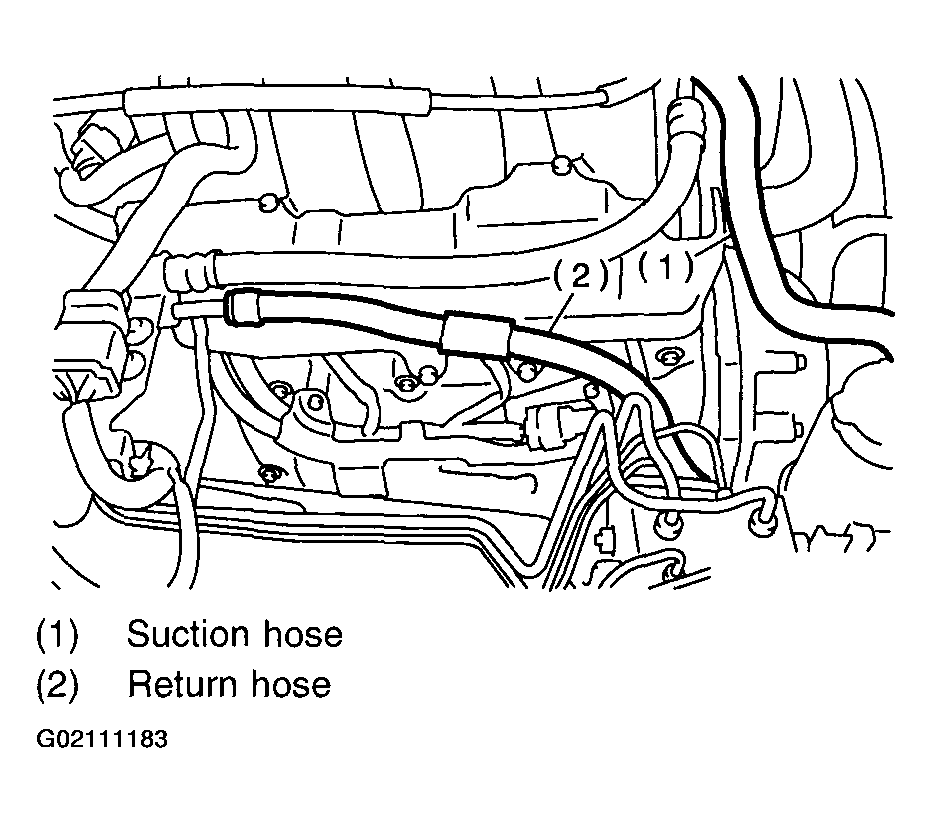

    Fig 1: Connecting Pressure Hose & Suction Hose To Oil Pump
    G02111183
  3. Feed the specified power steering fluid. See Power Steering Fluid  .
